EXCEL ESG 2550AHR

Year2017ManufacturerEXCELCategoryReciprocating Surface GrindersConditionUsedLocationUnited Kingdom
Ref125

Description

Overview

Supplied by the seller

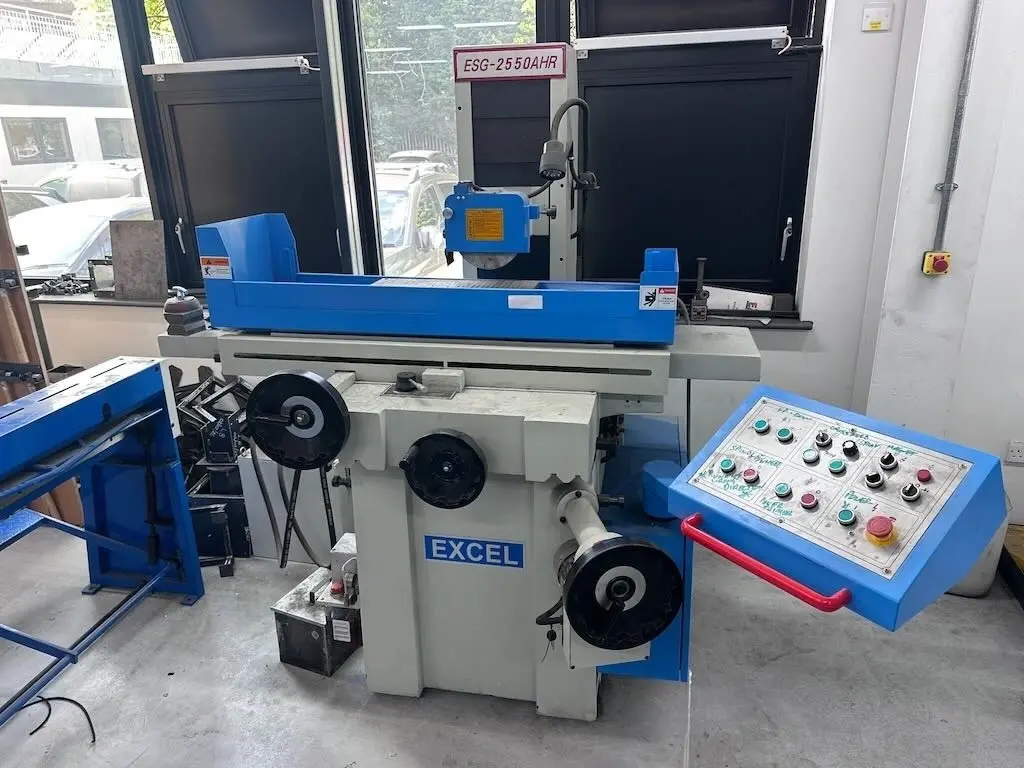

2017 Excel ESG 2550AHR Hydraulic Surface Grinder, a robust medium-sized precision surface grinder featuring hydraulic automatic longitudinal and cross-table feeds together with rapid powered wheelhead elevation. (Ex-College Machine) The machine is equipped with a 500 x 250mm electromagnetic magnetic chuck, hydraulic power pack, coolant system, low-voltage work light and comprehensive operator control panel. Heavy-duty cast construction provides good rigidity and stability for precision grinding applications. The ESG 2550AHR uses a high-precision direct-drive grinding spindle and is designed for accurate surface grinding and consistent surface finishes. Excel specifies one flat and one V-way for the longitudinal slide and twin V-ways for the cross slide.

Specifications

Manufacturer
EXCEL
Year
2017
Weight
1,700 kg
Dimensions
2,170 x 2,100 x 2,100 mm
Table-W
254 mm
Table-L
508 mm
Horz/Vert
Horz
Power
1.5 kW
Grinding Wheel Width
20 mm
Grinding Wheel Dia.
200 mm
View full spec sheetHide full spec sheet
Model
ESG 2550AHR
Table size
508 x 254mm
Nominal grinding capacity
500 x 250mm / 20" x 10"
Electromagnetic chuck
500 x 250mm
Longitudinal table travel
560mm
Cross table travel
275mm
Vertical wheelhead travel
450mm
Maximum spindle centre to table
450mm
Longitudinal feed rate
7 – 23m/min
Automatic cross feed
0.1 – 8mm/stroke
Cross rapid traverse
990mm/min
Manual cross feed
0.02mm graduation / 5mm per handwheel revolution
Vertical rapid feed
460mm/min
Manual vertical feed
0.005mm graduation / 1mm per handwheel revolution
Grinding wheel
200 x 20 x 31.75mm
Grinding spindle speed
2,850rpm
Spindle motor
1.5kW
Hydraulic pump motor
0.75kW
Coolant pump
0.09kW
Elevating motor
0.25kW
Cross-feed motor
0.04kW
Total rated power
Approx. 3kW
Maximum table load incl. chuck
125kg
Electrical supply
415V, 3-phase

As supplied by the seller. Figures are converted between systems where a unit applies; anything without one is shown as quoted.
