Description
Overview
Supplied by the seller
Free Loading To Suitable Transport.
In great condition, this machine is available to purchase immediately.
Machine can be inspected under Power.
Comes with:

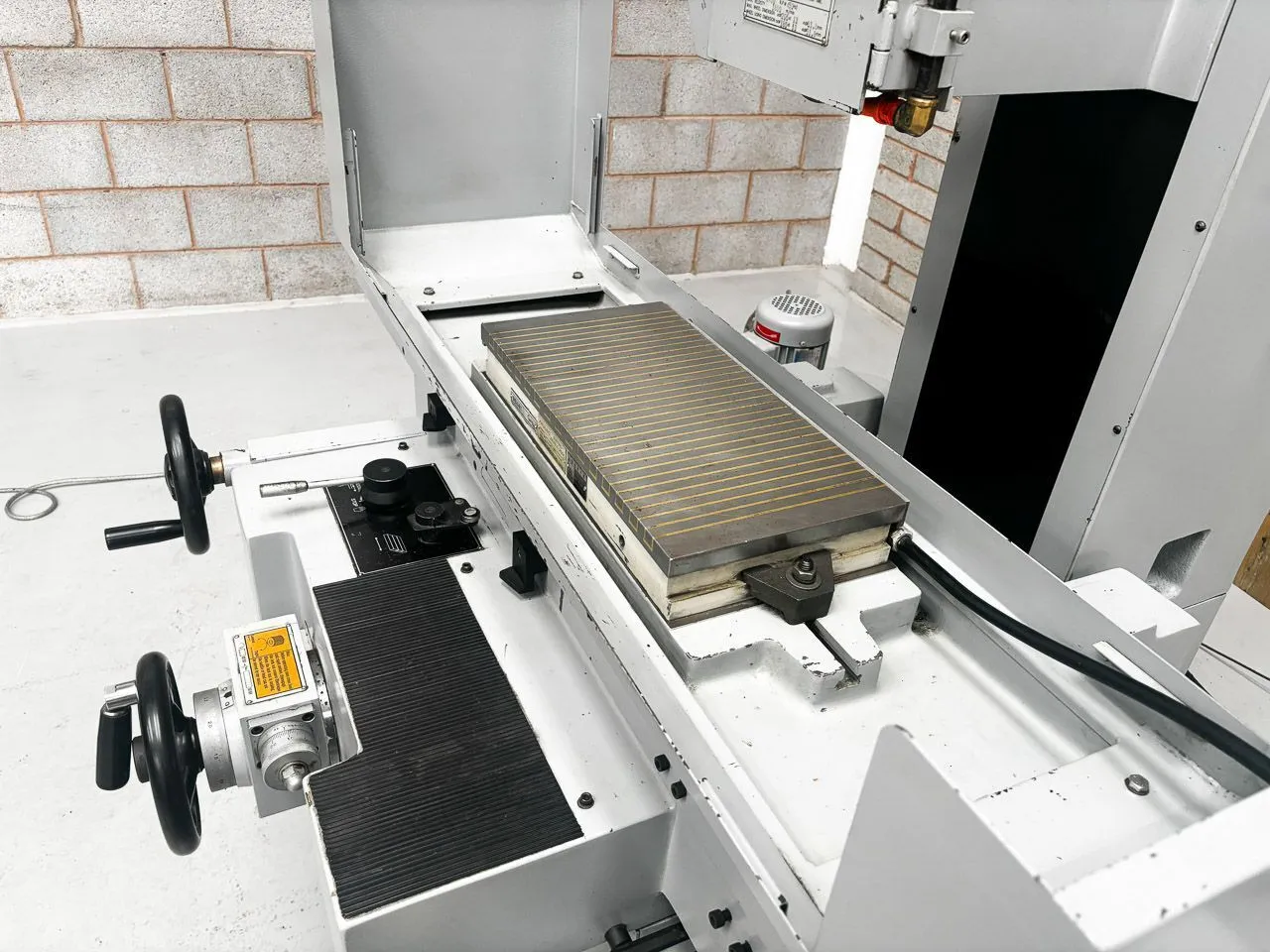

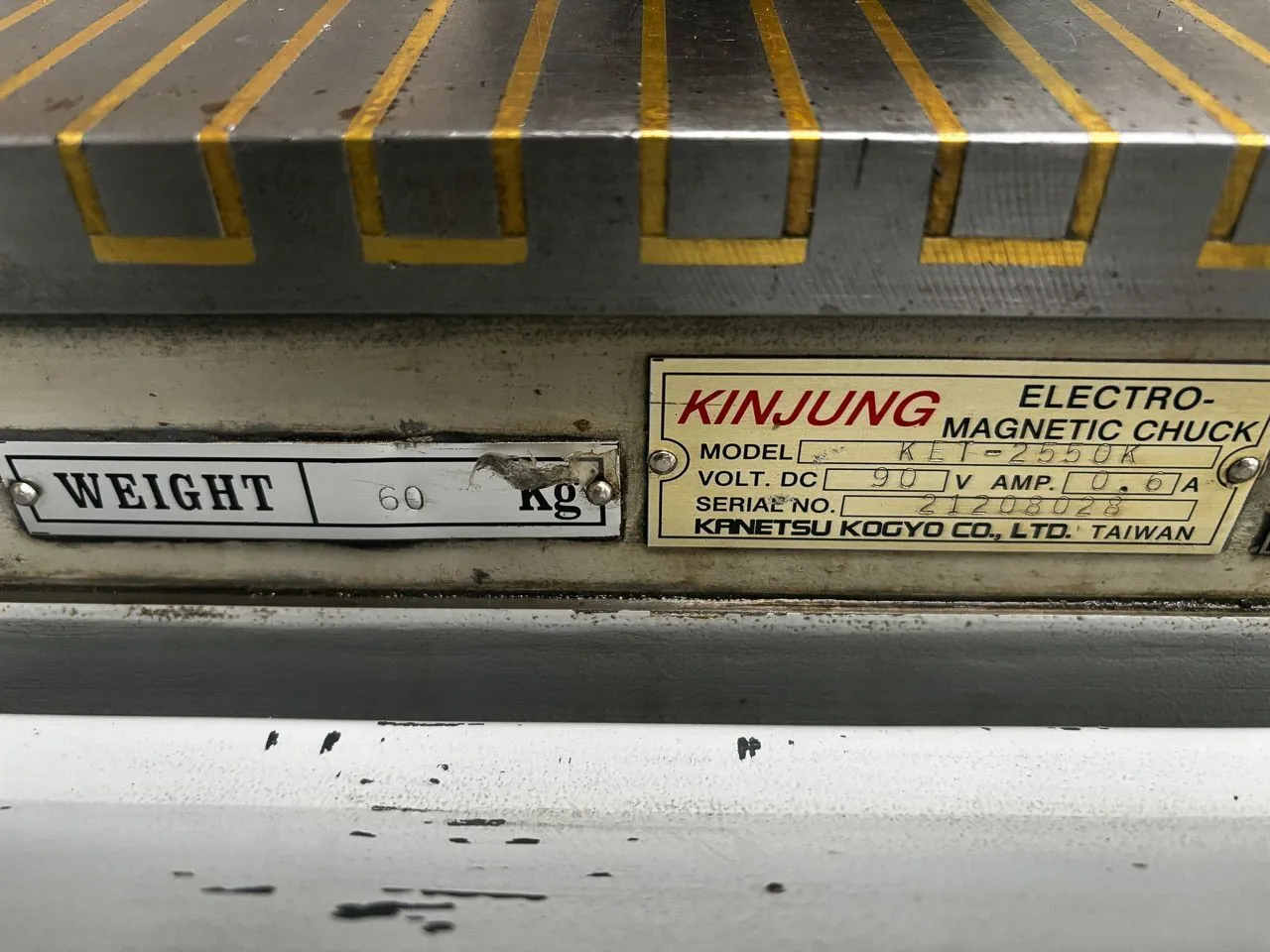

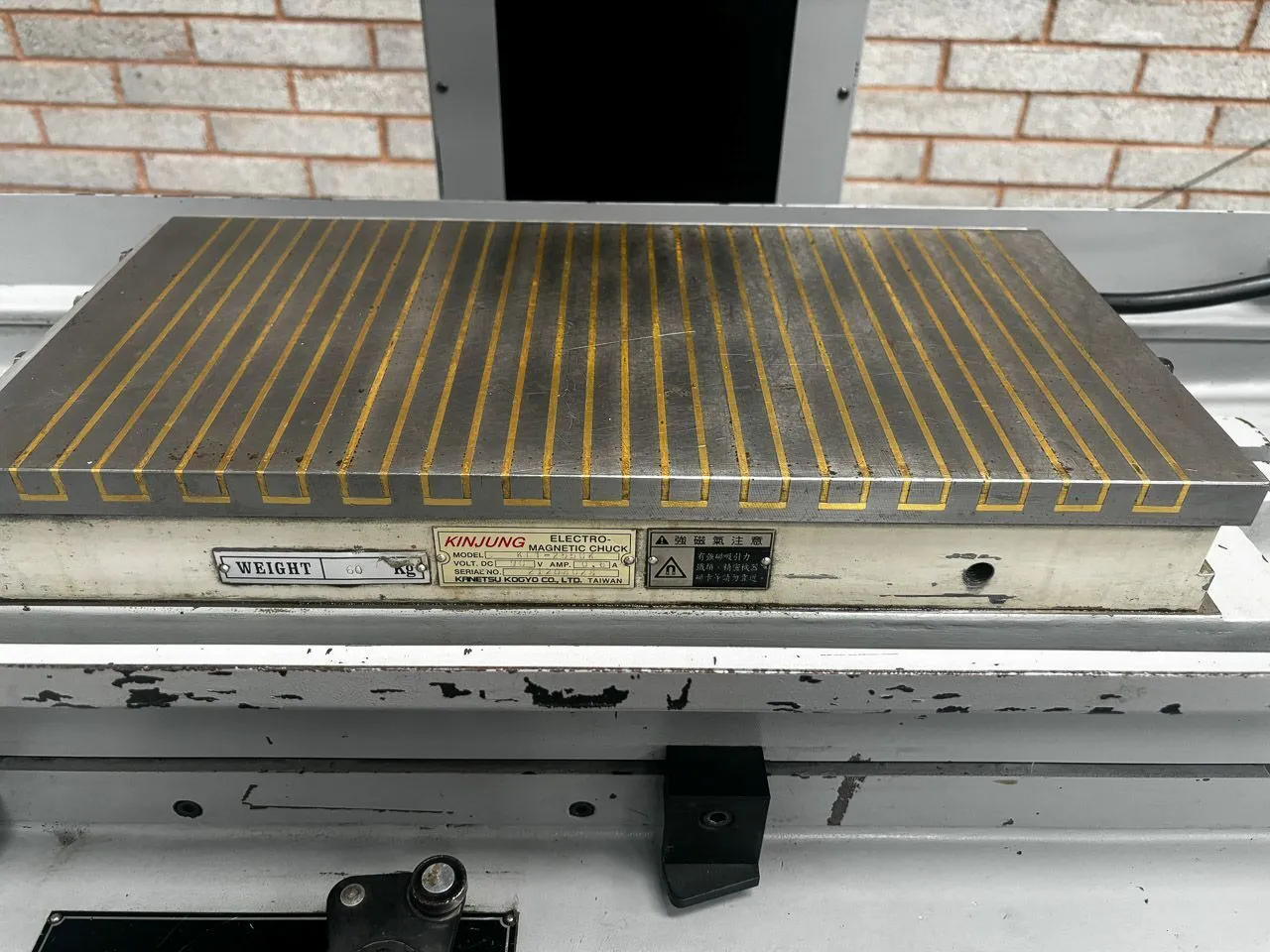

Electro Magnetic Chuck with Demaginitiser

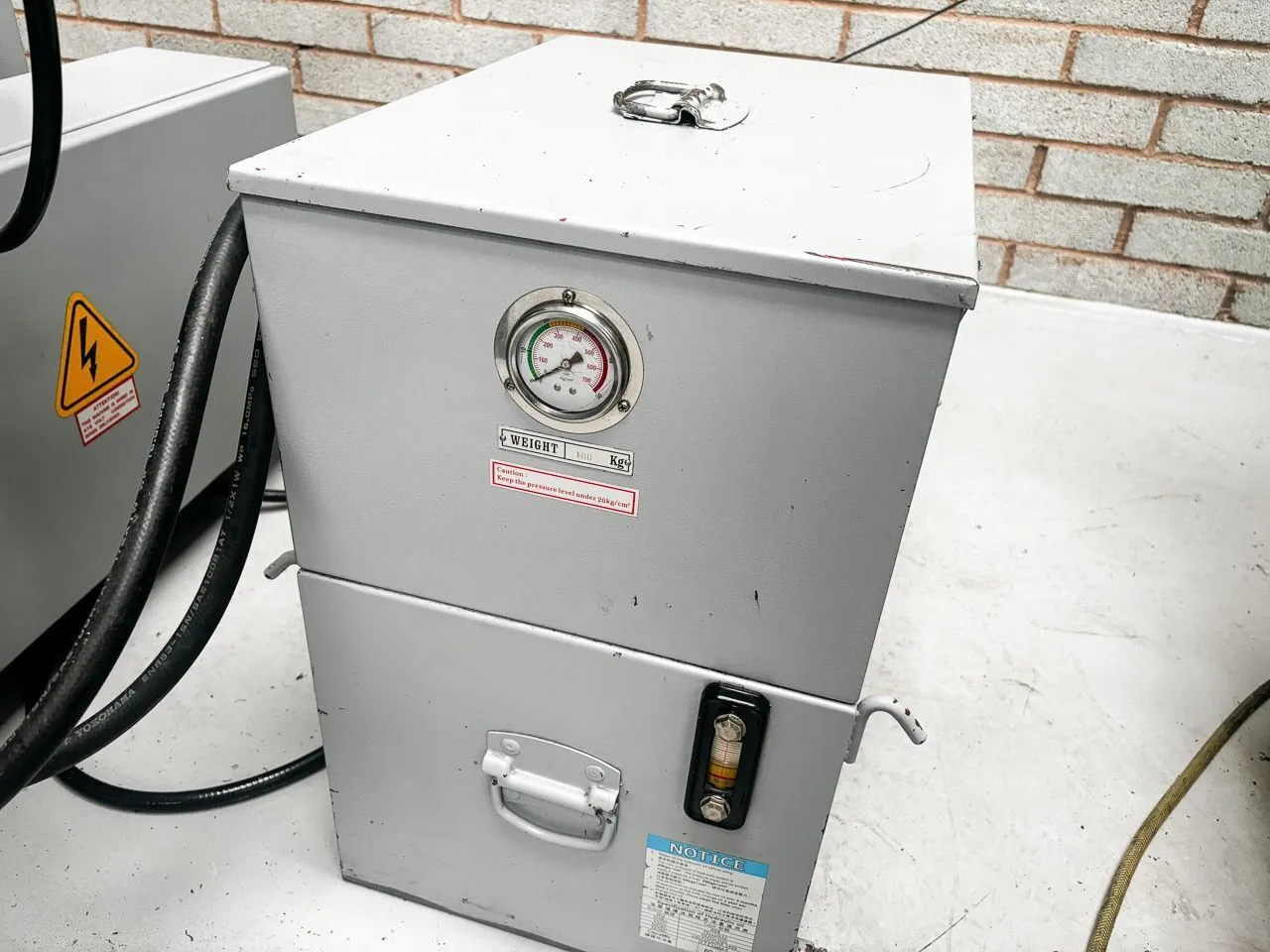

Separate Hydraulic Tank
Separate air and coolant tank

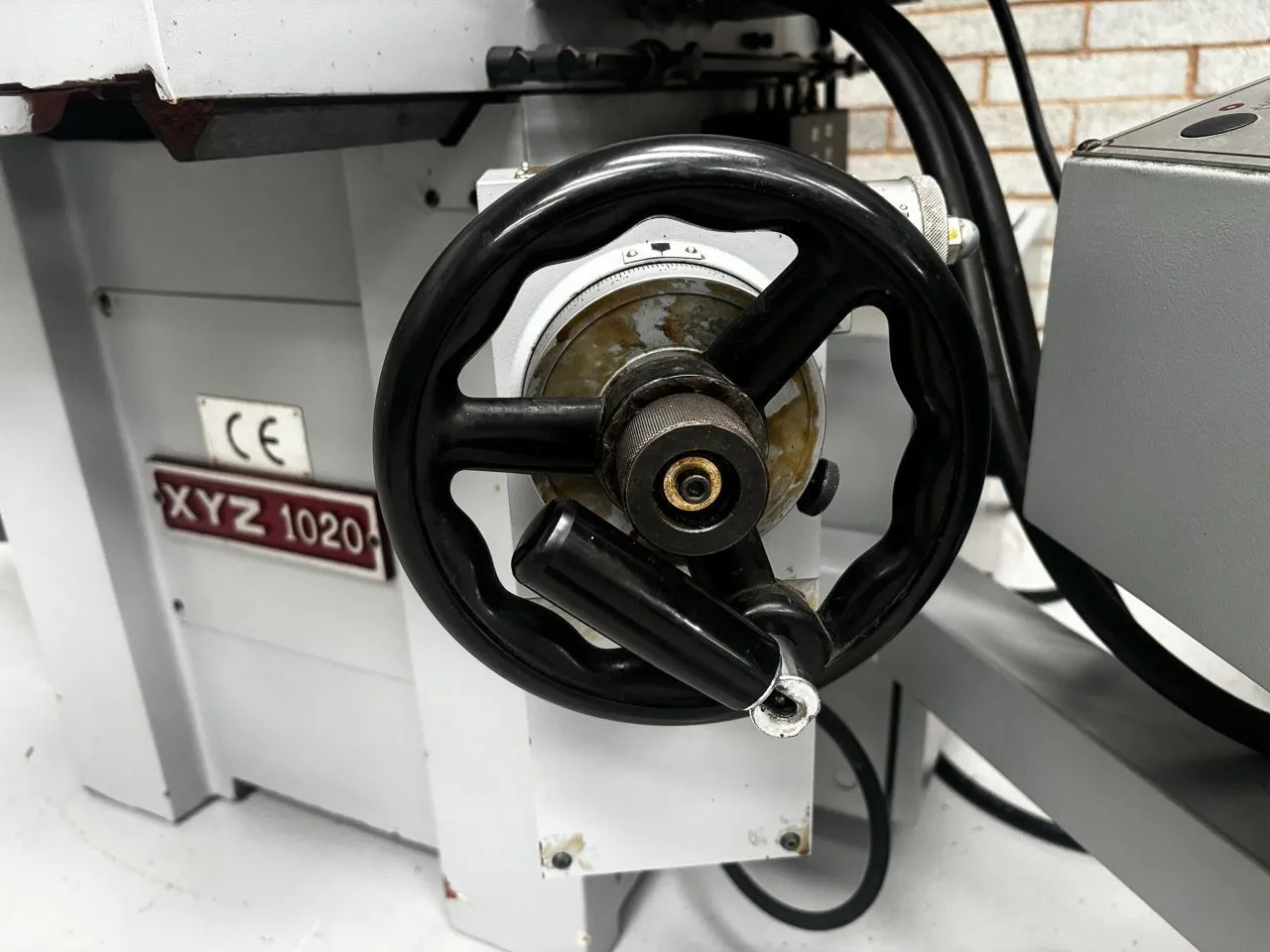

Incremental Cross Feed

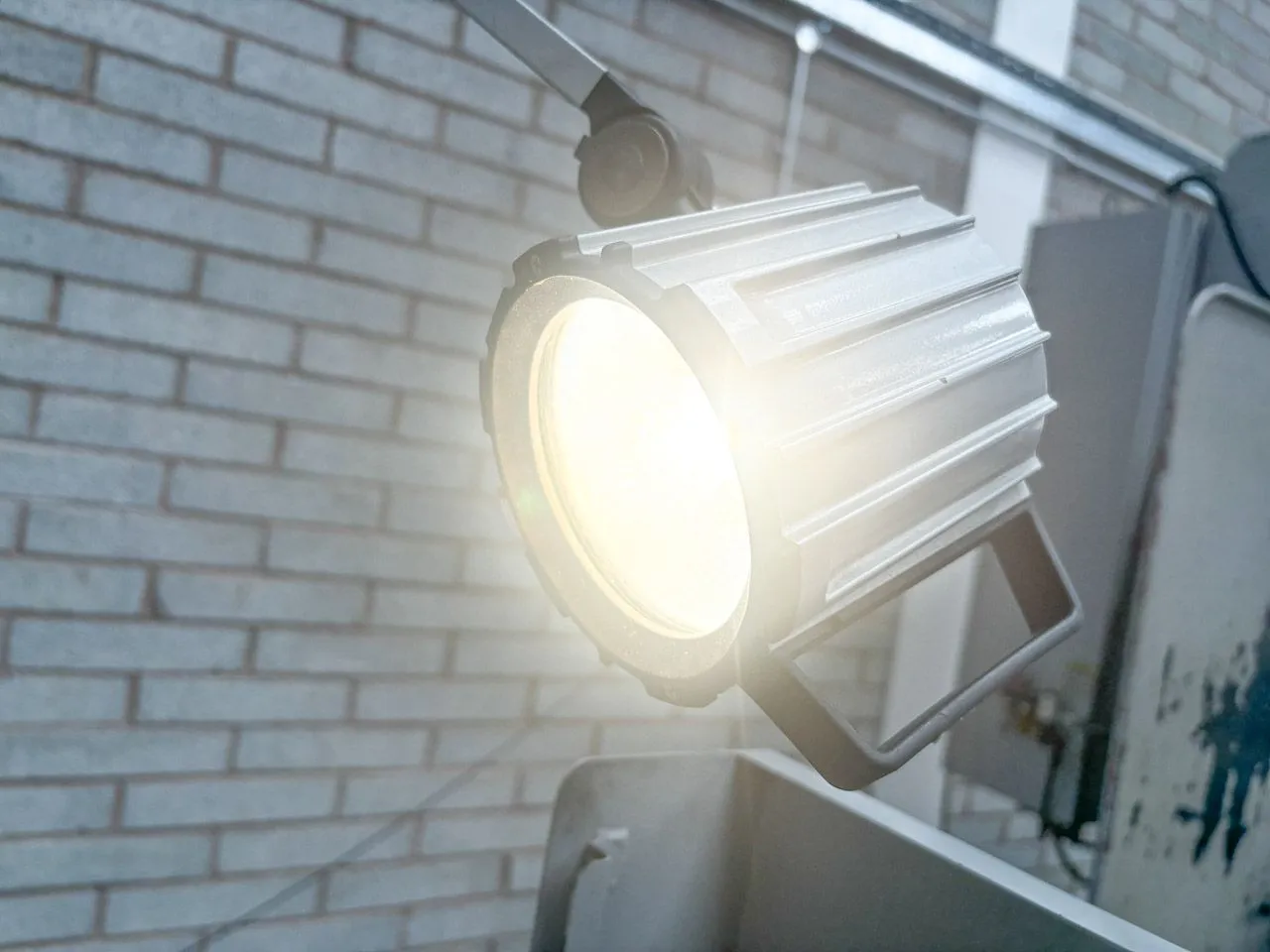

Halogen Work Lamp

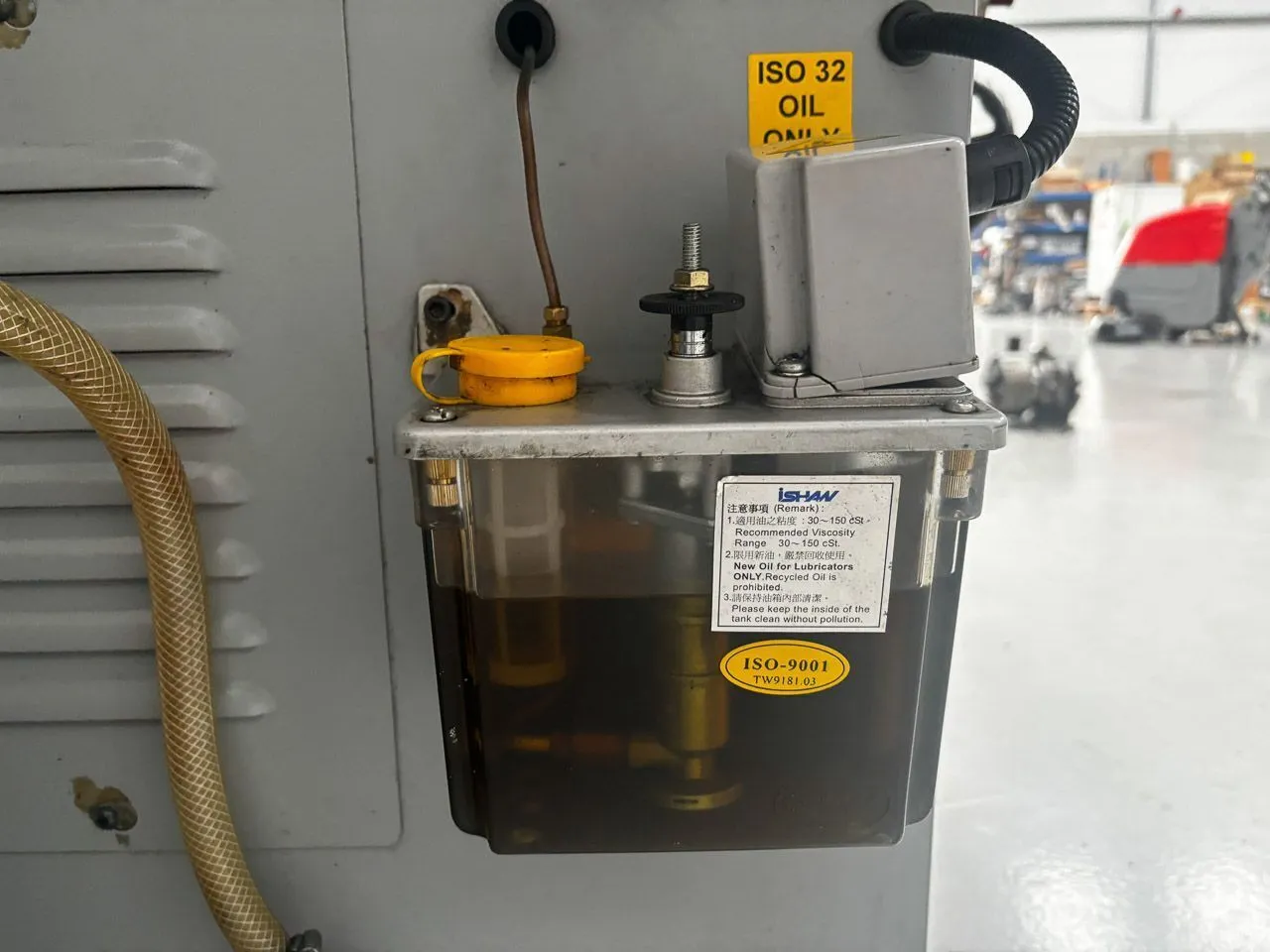

Lubrication System
Coolant.

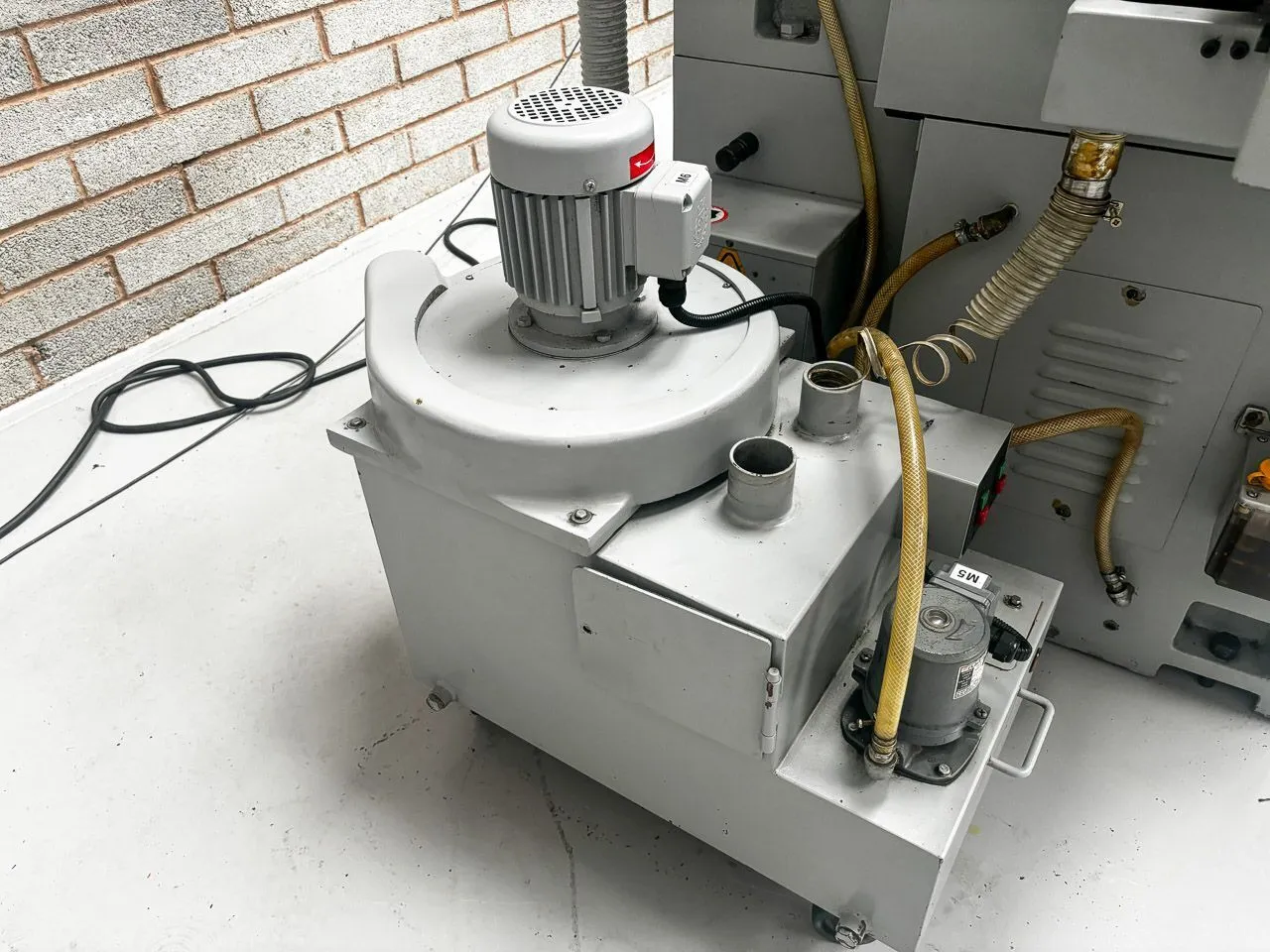

Dust Extraction.
Worklight
Includes: 2x Wheel Arbors

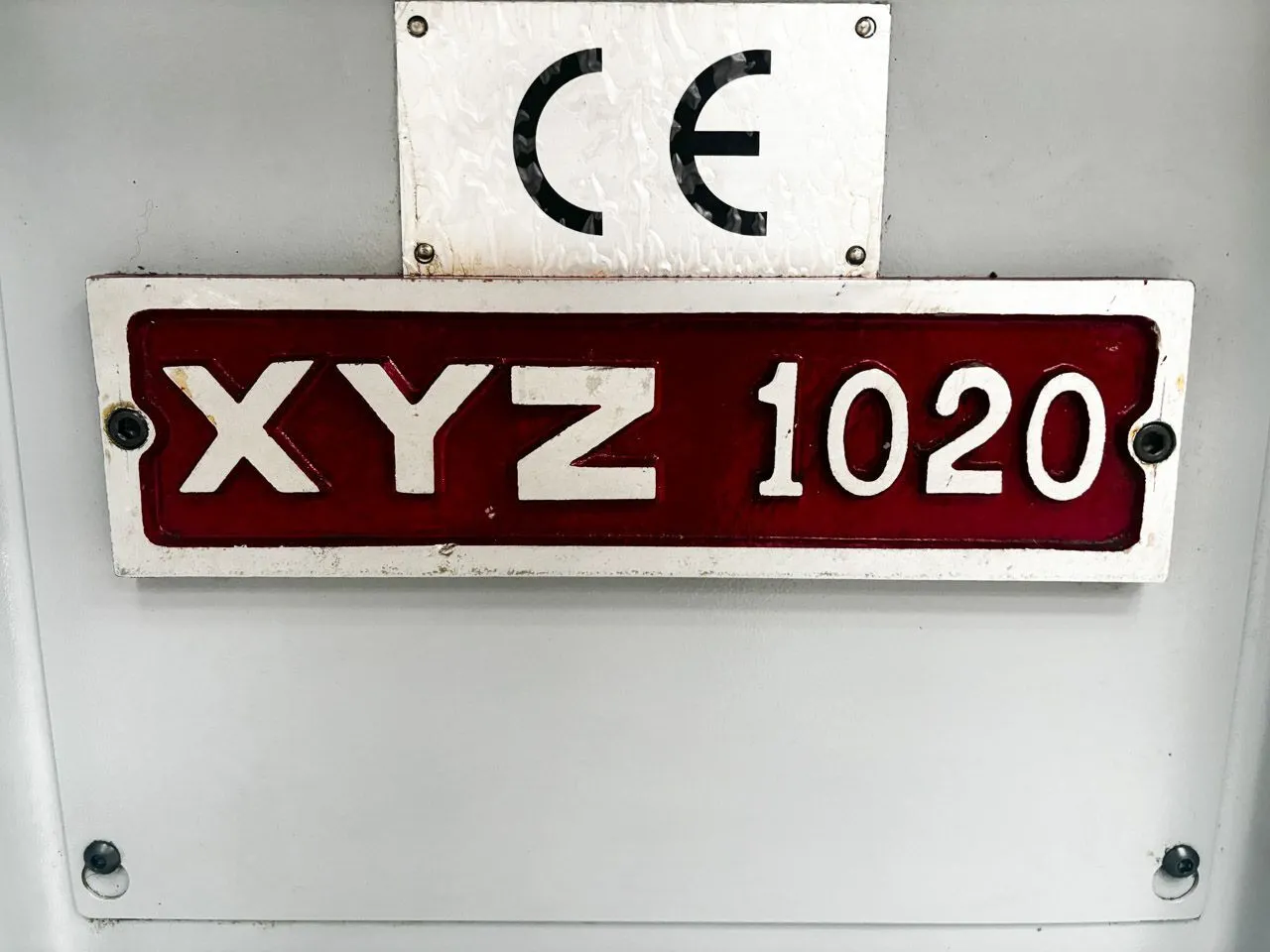

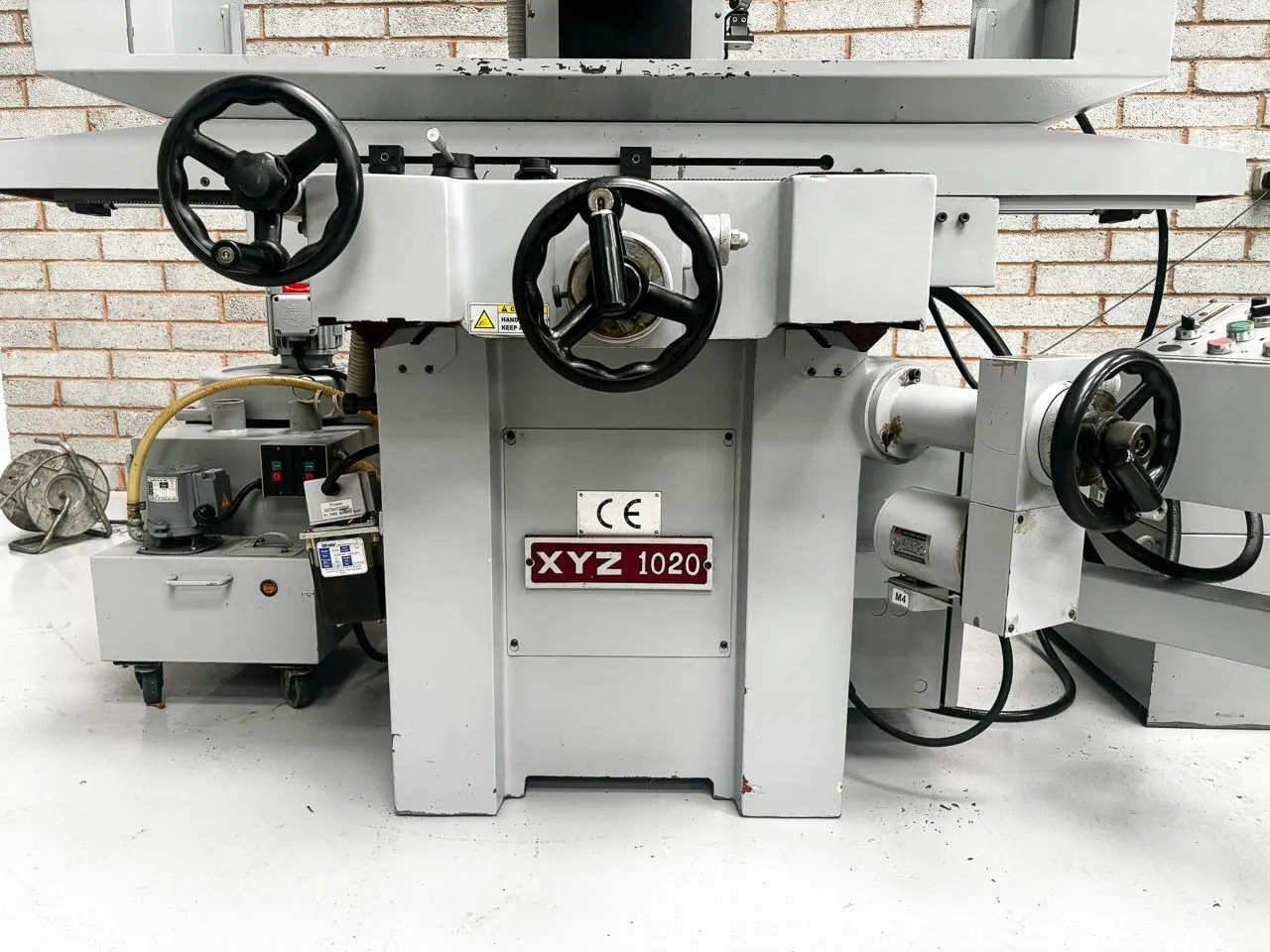

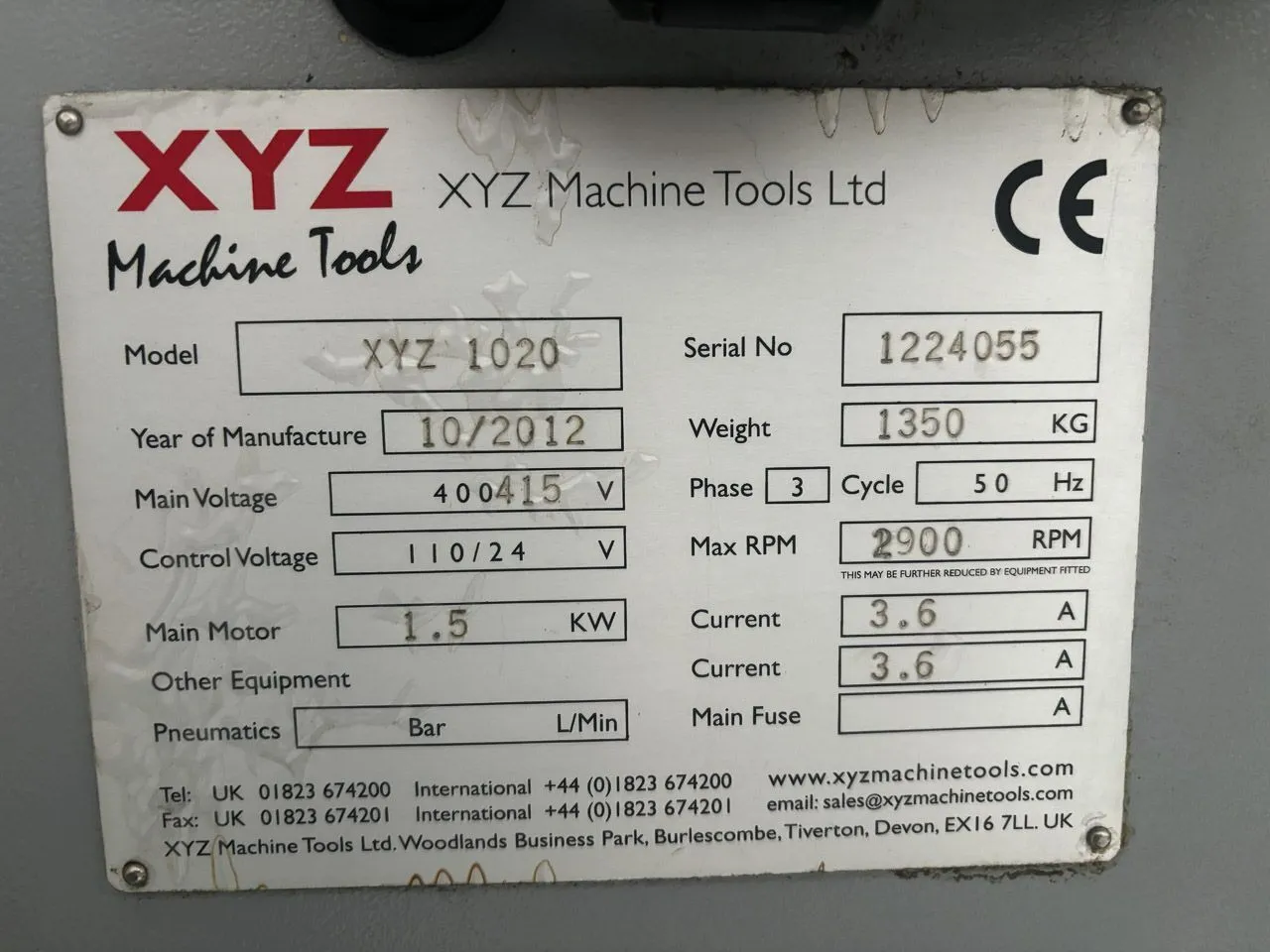

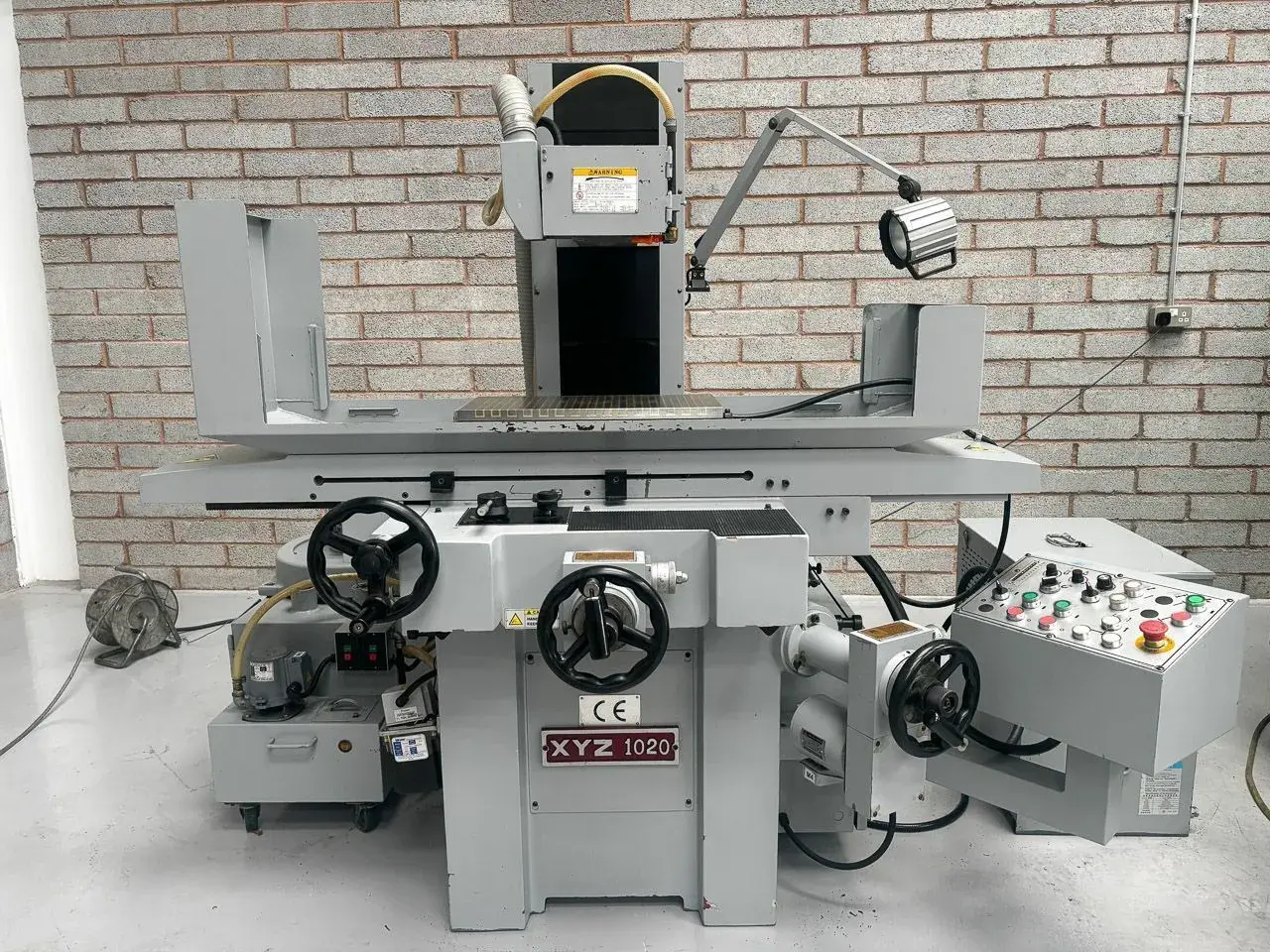

MODEL: XYZ 1020
S/N: 1224055
Included
- Coolant
- Extraction
Specifications
- Manufacturer
- XYZ
- Year
- 2012
- Weight
- 1,550 kg
- Dimensions
- 2,250 x 1,450 x 1,800 mm
- Table-W
- 250 mm
- Table-L
- 500 mm
- Horz/Vert
- 'Horz'
- Power
- 1.5 kW
- Grinding Wheel Width
- 120 mm

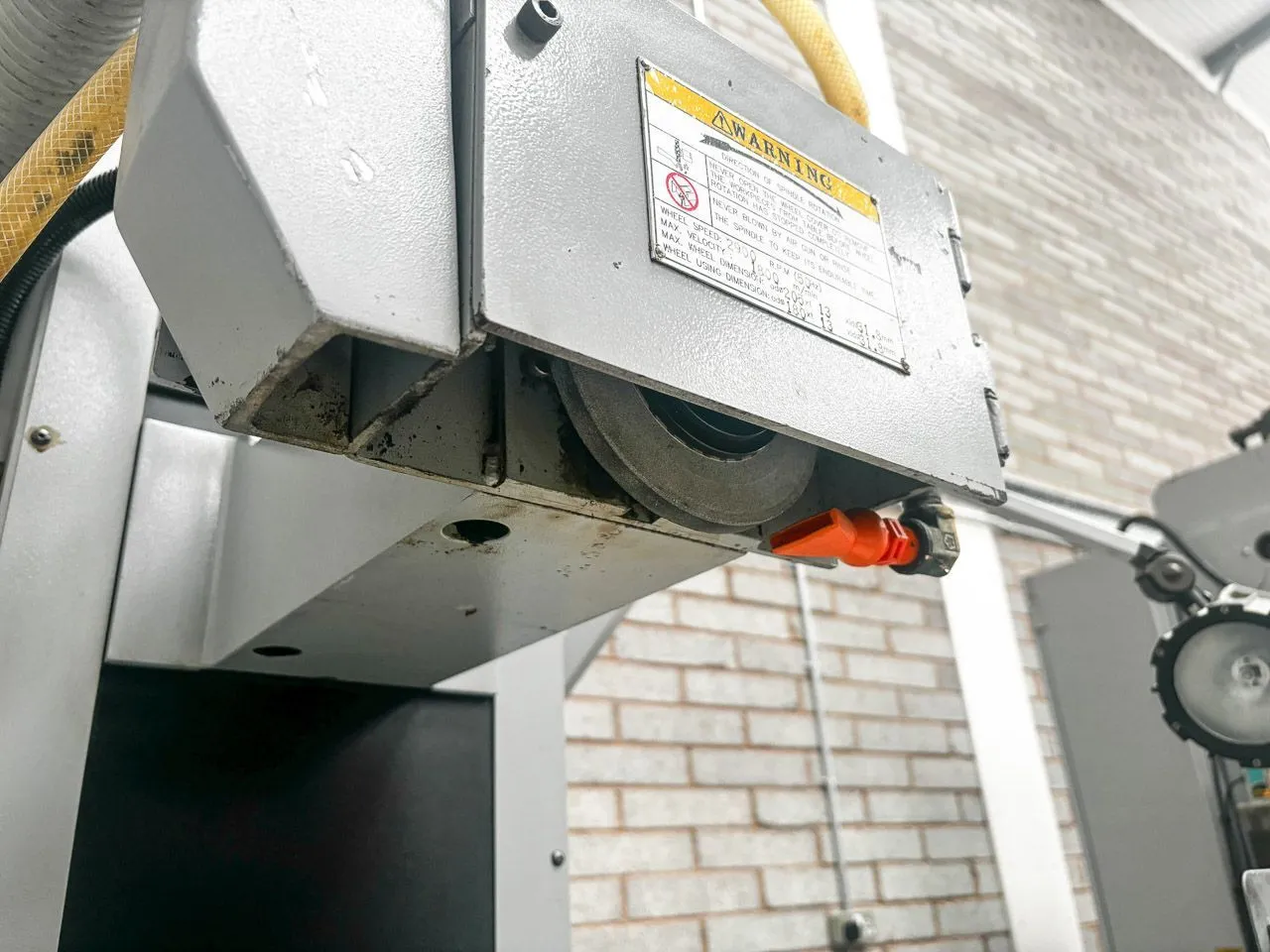

- Grinding Wheel Dia.
- 180 mm
View full spec sheetHide full spec sheet
- Model
- XYZ 1020
- Magnetic Chuck Size
- 250 x 500mm
- Max Grinding Length
- 500mm
- Max Grinding Width
- 250mm
- Max Table Surface to Spindle Centre
- 500mm
- Longitudinal Travel
- 550mm
- Longitudinal Feeds
- 5 - 25M/min
- Cross Travel
- 270mm
- Cross Travel- Auto Increment
- 0.15 - 15mm
- Cross Feed Travel per Revolution
- 4mm

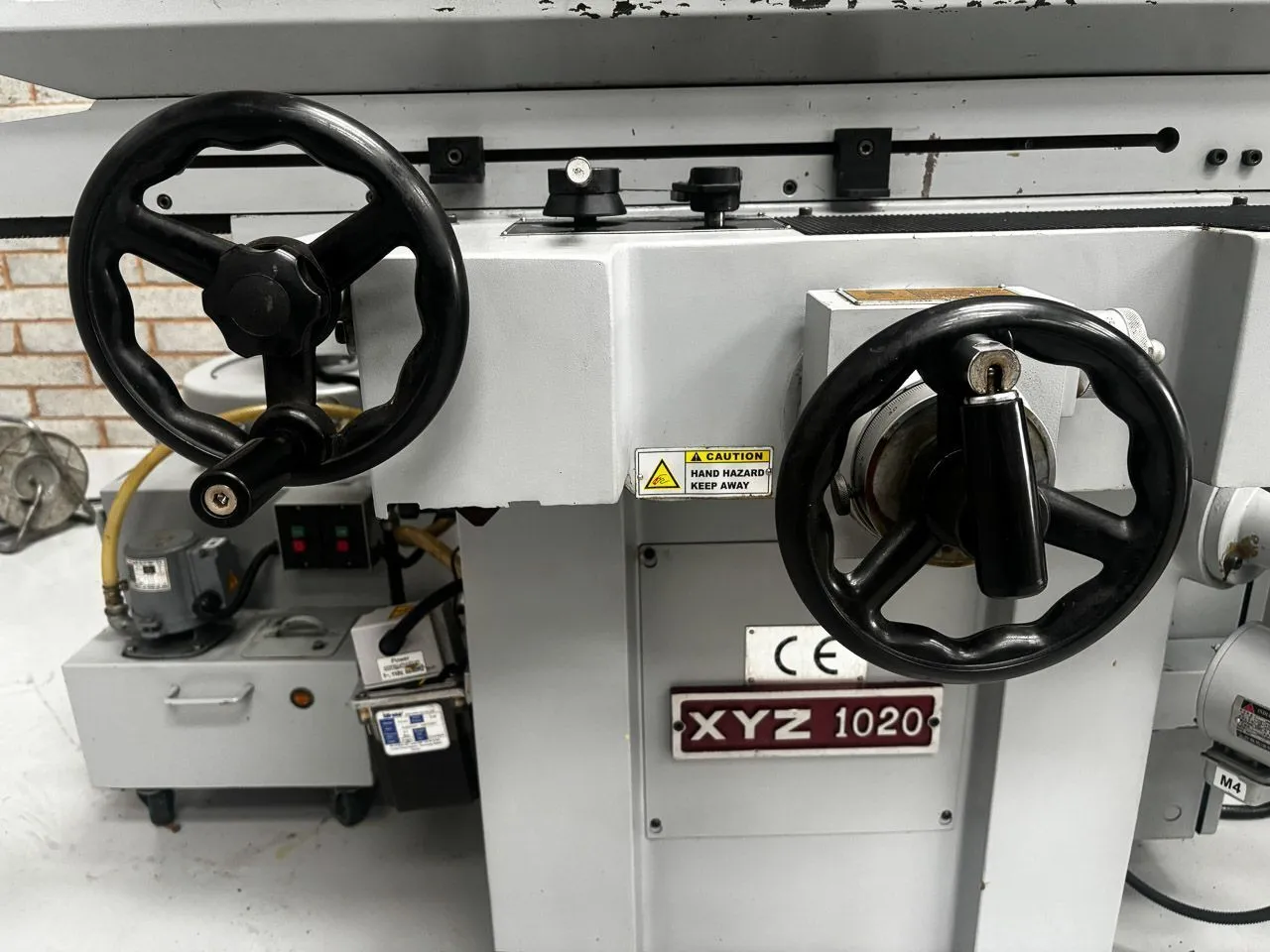

- Cross Feed Handle Graduation
- 0.02mm
- Down Feed Travel per Revolution
- 2mm
- Down Feed Handle Graduation
- 0.01mm
- Spindle
- 1.5 kW
- Max Spindle Speed
- 2900 RPM
- Hydraulic motor power
- 1hp
- Grinding Wheel Width
- 12cm (19cm Max)
- Grinding Wheel Bore
- 31.75mm
- Voltage
- 415V
- Power Requirements
- 20Amp - 3 Phase Supply
- Floor Plan
- 225cm x 145cm x 180cm
- Serial Number
- 1224055
As supplied by the seller. Figures are converted between systems where a unit applies; anything without one is shown as quoted.
