EXCEL ECG 2075 UH

Year2016ManufacturerEXCELCategoryUniversal Cylindrical GrindersConditionUsedLocationUnited Kingdom
Ref109

Description

Overview

Supplied by the seller

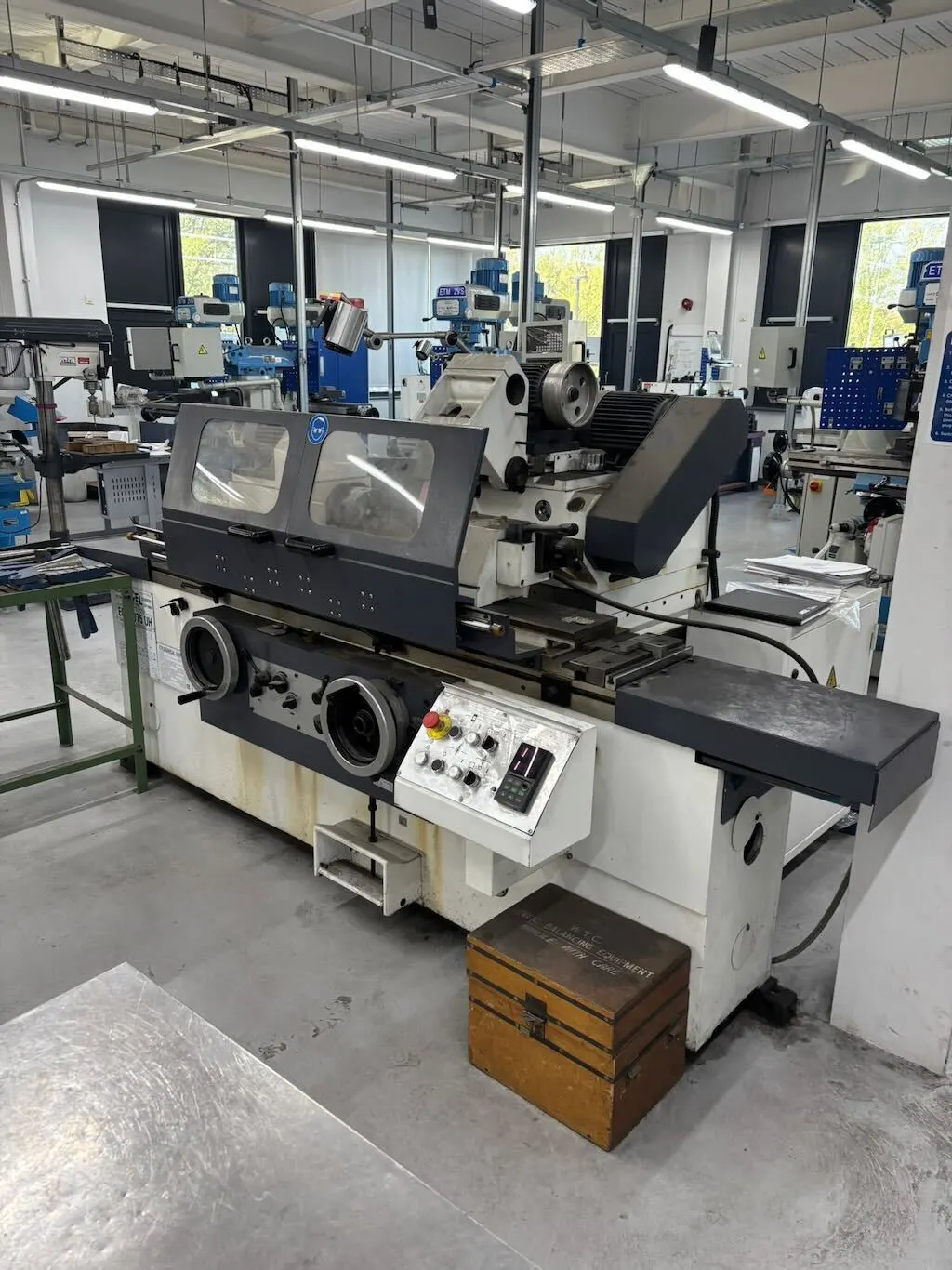

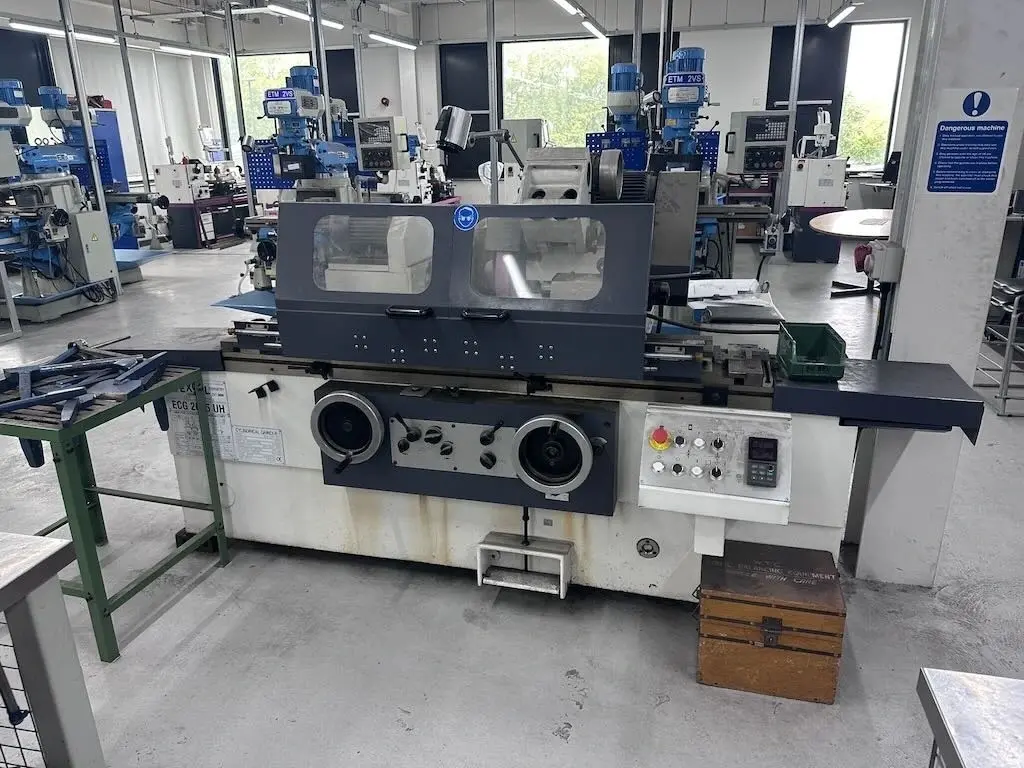

Ex-College 2016 Excel ECG 2075 UH Universal Cylindrical Grinder, 750mm Between Centres, 135mm Centre Height, 5 to 200mm External Grinding Diameter, 25 to 100mm Internal Grinding Diameter, 100kg Max Workpiece Weight, MT4 Workhead & Tailstock, Variable Workhead Speed 25 to 380rpm, 400 x 50 x 203mm Grinding Wheel, Internal Grinding Attachment, Coolant Tank.

Specifications

Manufacturer
EXCEL
Year
2016
Weight
4,300 kg
Dimensions
2,750 x 2,030 x 2,050 mm
Swing
135 mm
Centers
750 mm
Power
4 kW
Workhead Power
1.1 kW
Workhead Speed
0.0 rpm
Grinding Wheel Dia.
400 mm
Max Weight Between Centers
99.8 kg
Plunge (Yes/No)
'No'
View full spec sheetHide full spec sheet
  • Excel ECG 2075 UH Universal Cylindrical Grinder, 2016
  • Capacity
Distance between centres
750mm
Centre height
135mm
Diameter ground, external
5 to 200mm
Diameter ground, internal
25 to 100mm
Maximum external grinding length
750mm
Maximum internal grinding length
125mm
Maximum workpiece weight
100kg
  • Workhead
Workhead swivel angle
+90°
Spindle taper
MT4
Spindle speed
25 to 380rpm variable
  • Wheelhead
Wheel spindle speed
1,670rpm
Hydraulic rapid stroke
50mm
Maximum wheelhead travel
205mm
Wheelhead swivel angle
+10°
Manual feed per revolution, rough
2mm
Manual feed per revolution, fine
0.5mm
Manual feed per graduation
0.01mm
Fine feed per graduation
0.0025mm
Grinding wheel size
400 x 50 x 203mm
Grinding wheel speed
1,440rpm
  • Internal Grinding
Internal spindle speed
10,000 / 15,000rpm
Maximum internal wheel size
50 x 25 x 13mm
Minimum internal wheel size
17 x 20 x 6mm
  • Table & Tailstock
Table travel per revolution
6mm
Maximum table swivel clockwise
3°
Maximum table swivel anti-clockwise
8°
Longitudinal travel speed
0.1 to 4m/min
Tailstock quill taper
MT4
Tailstock quill travel
30mm
  • Motors & Dimensions
Wheelhead motor
4kW
Internal grinding motor
1.1kW
Workhead motor
1.1kW
Machine dimensions, L x W x H
275 x 203 x 205cm

As supplied by the seller. Figures are converted between systems where a unit applies; anything without one is shown as quoted.
