Description
Overview
Supplied by the seller

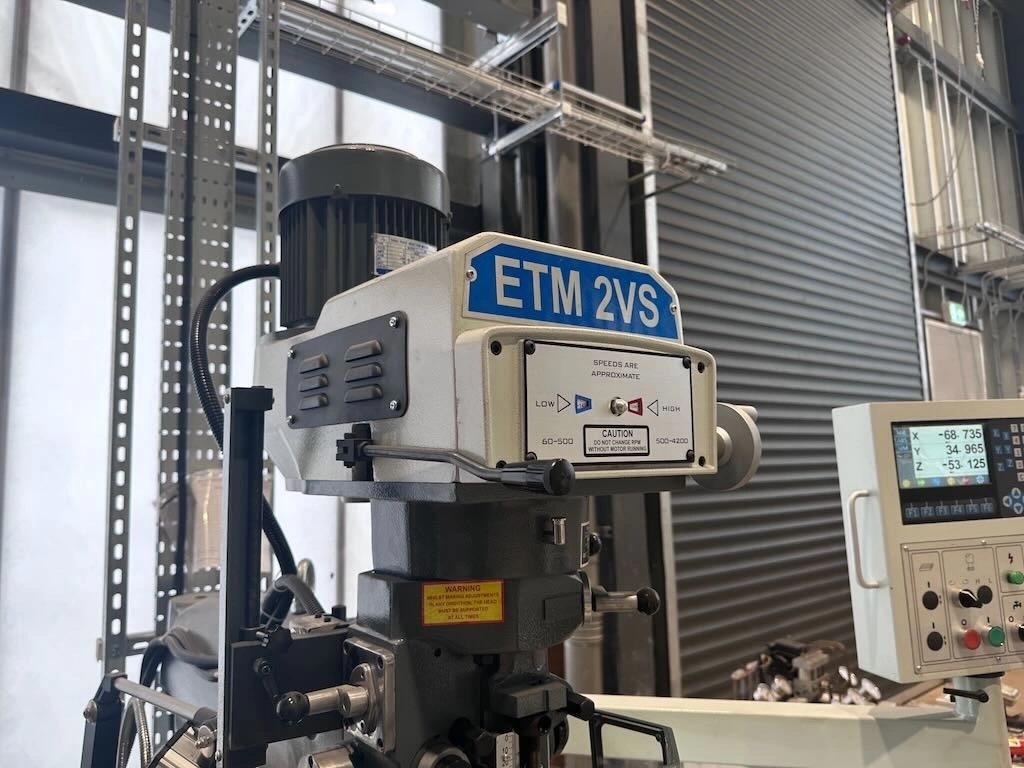

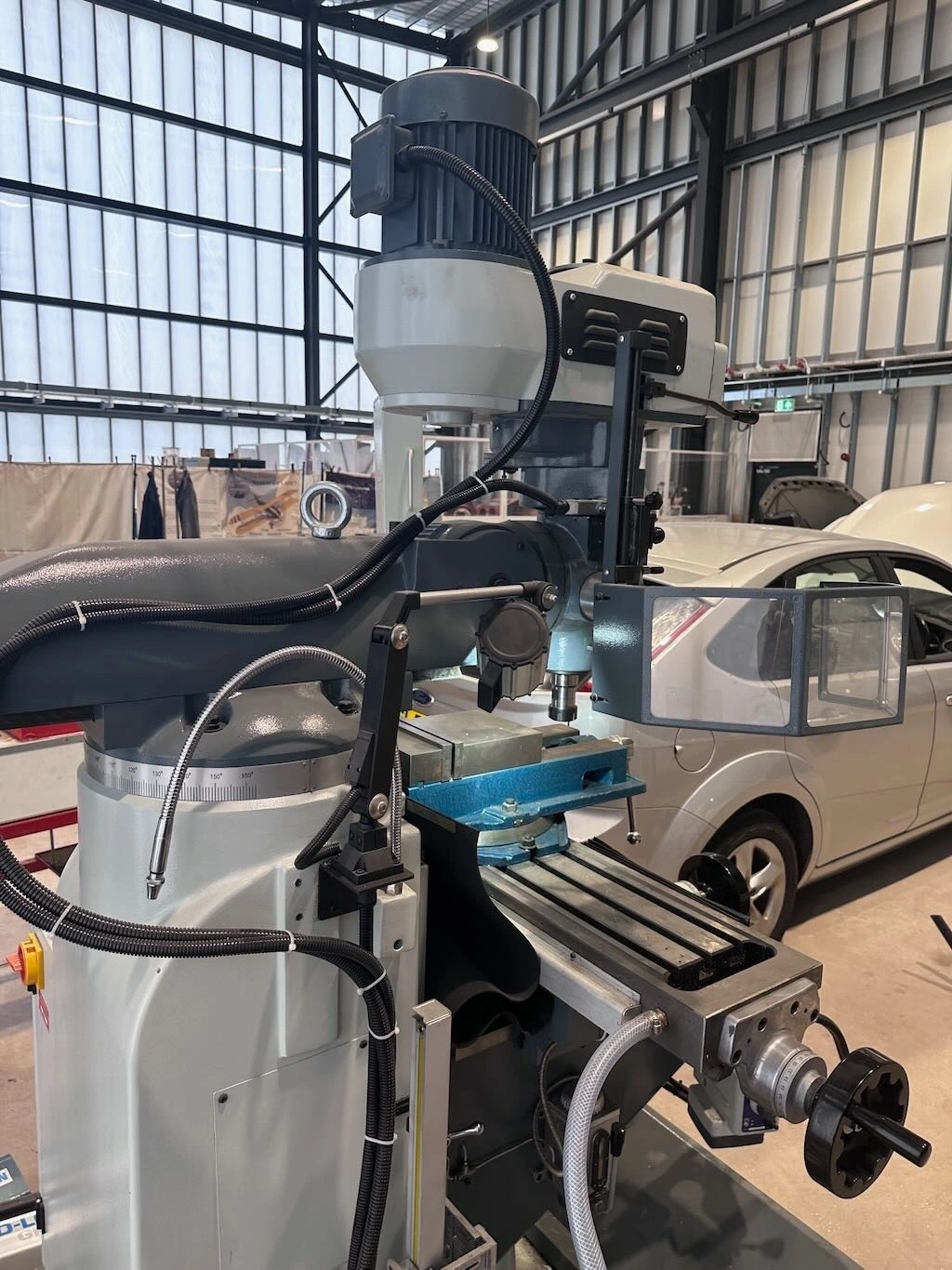

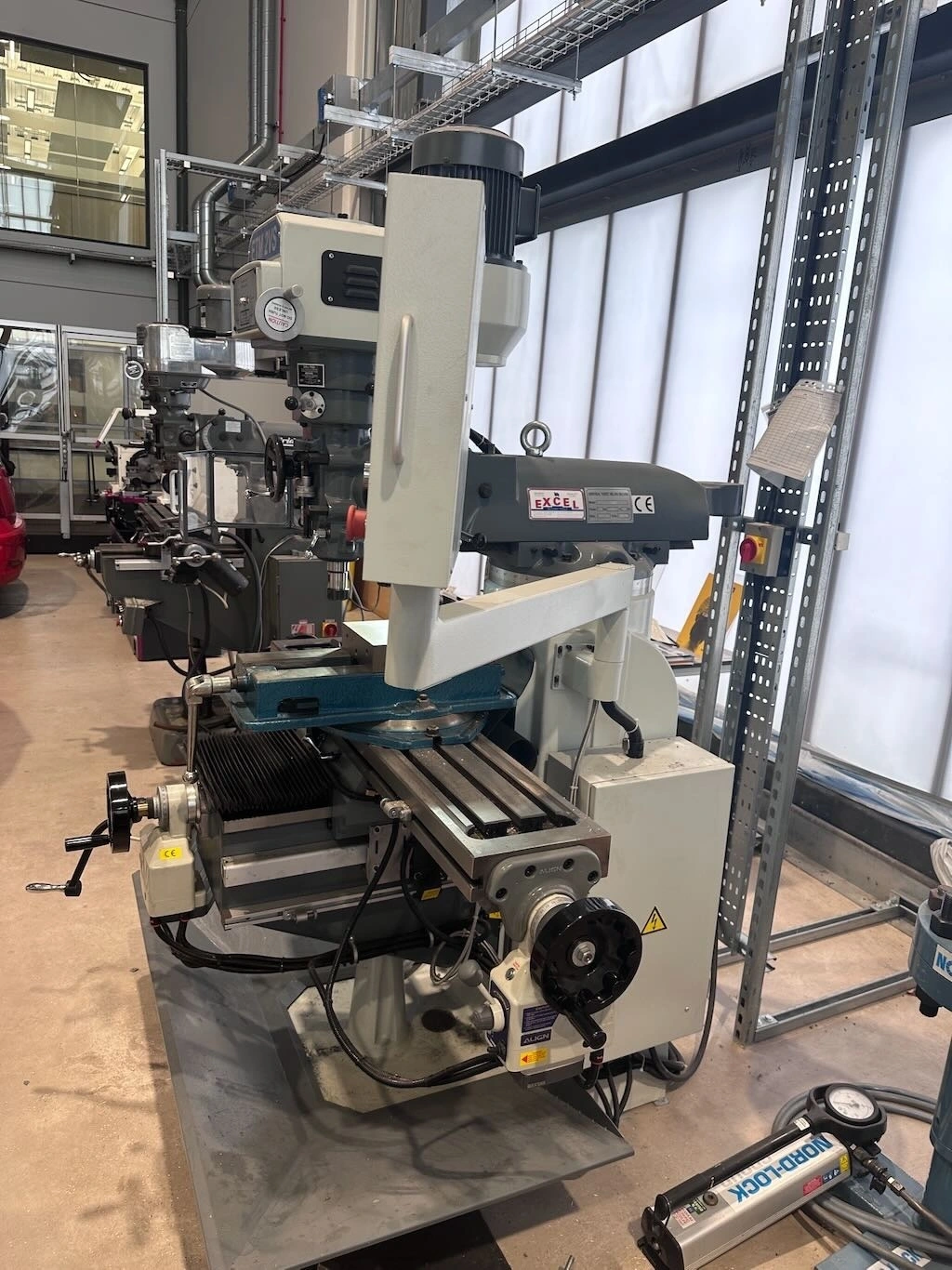

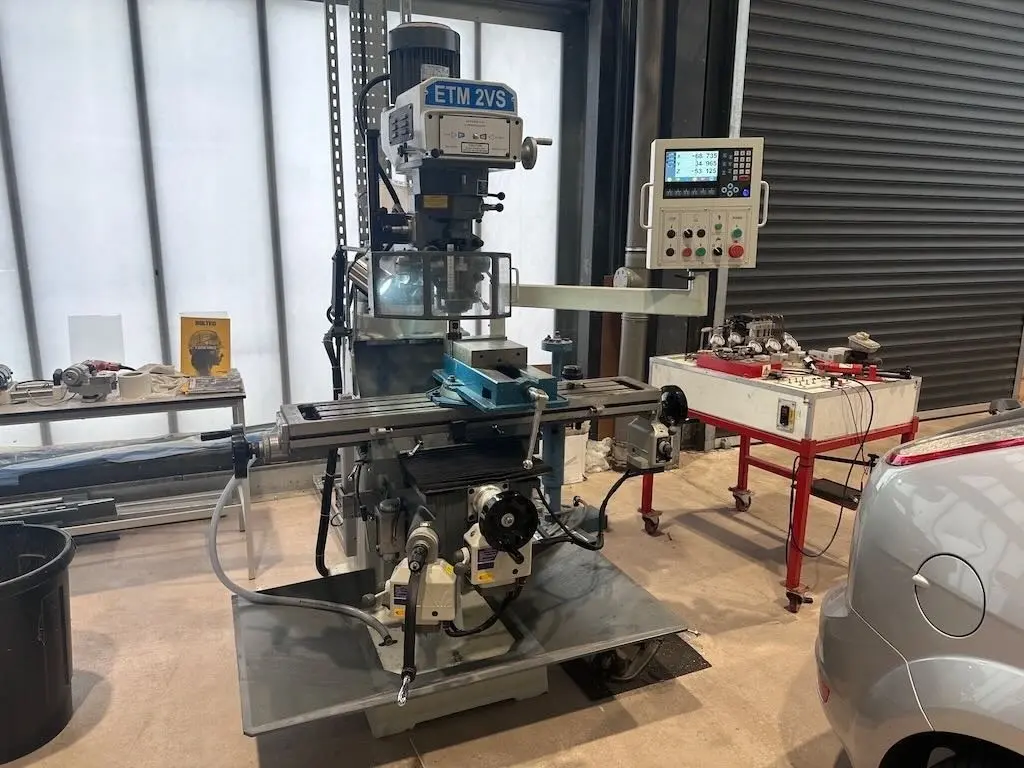

Ex College 2020 Excel ETM 2VS Variable Speed Turret Milling Machine, R8 Spindle Taper, 65 to 4,500rpm Spindle Speeds, 1,246 x 230mm Table, 790mm Longitudinal Travel, 310mm Cross Travel, 390mm Knee Travel, 127mm Quill Travel, 3-Axis DRO, Power Feed to Quill, Servo-Type Table Feeds, One-Shot Lubrication, Coolant System, Electrically Interlocked Spindle Guard and Low-Voltage Machine Light.
Specifications
- Manufacturer
- EXCEL
- Year
- 2020
- Weight
- 1,160 kg
- Dimensions
- 86.61 x 63.00 x 78.74
- Table Size-W
- 230 mm
- Table Size-L
- 1,246 mm
- Power
- 2.2 kW
- Model
- ETM 2VS
- Machine type
- Variable speed turret milling machine
- Electrical connection
- 400V, 3ph, 50Hz
View full spec sheetHide full spec sheet
- Spindle motor
- 2.2kW / 3HP
- Coolant pump
- 90W

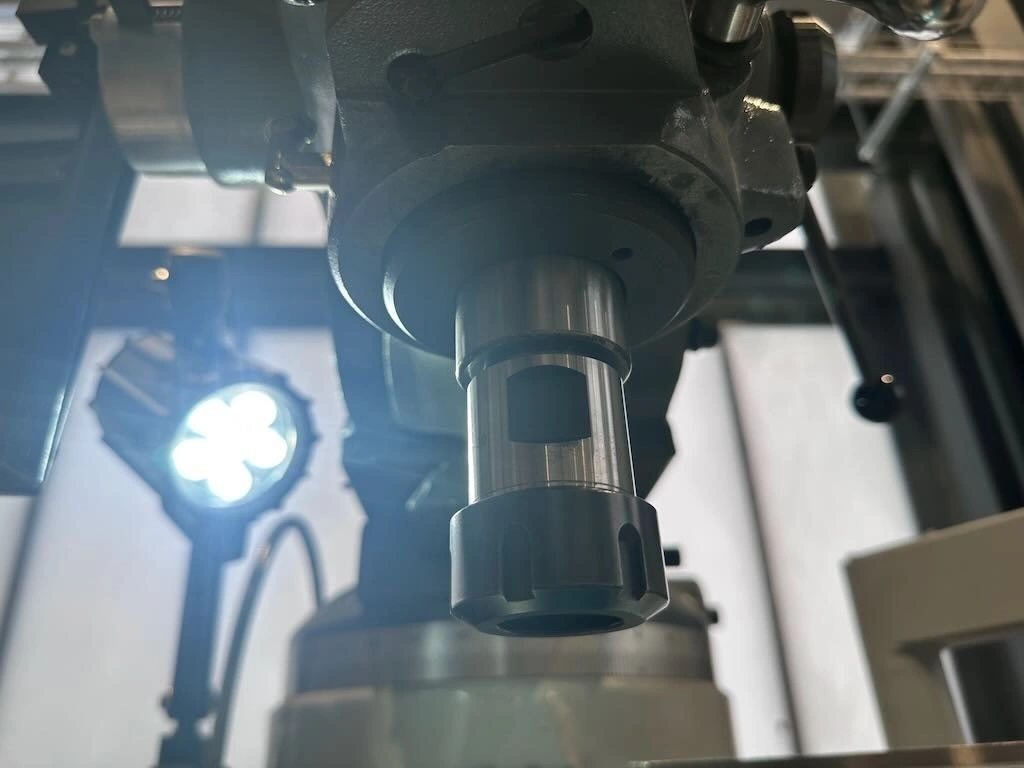

- Spindle taper
- R8

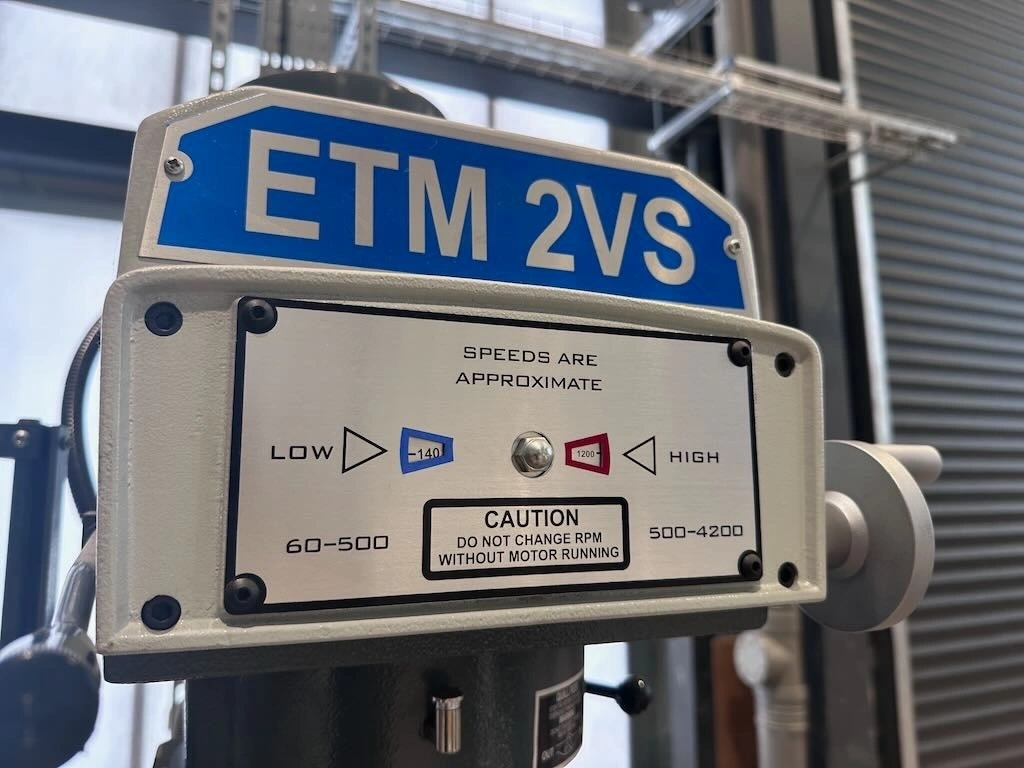

- Spindle speeds
- 65 to 4,500rpm

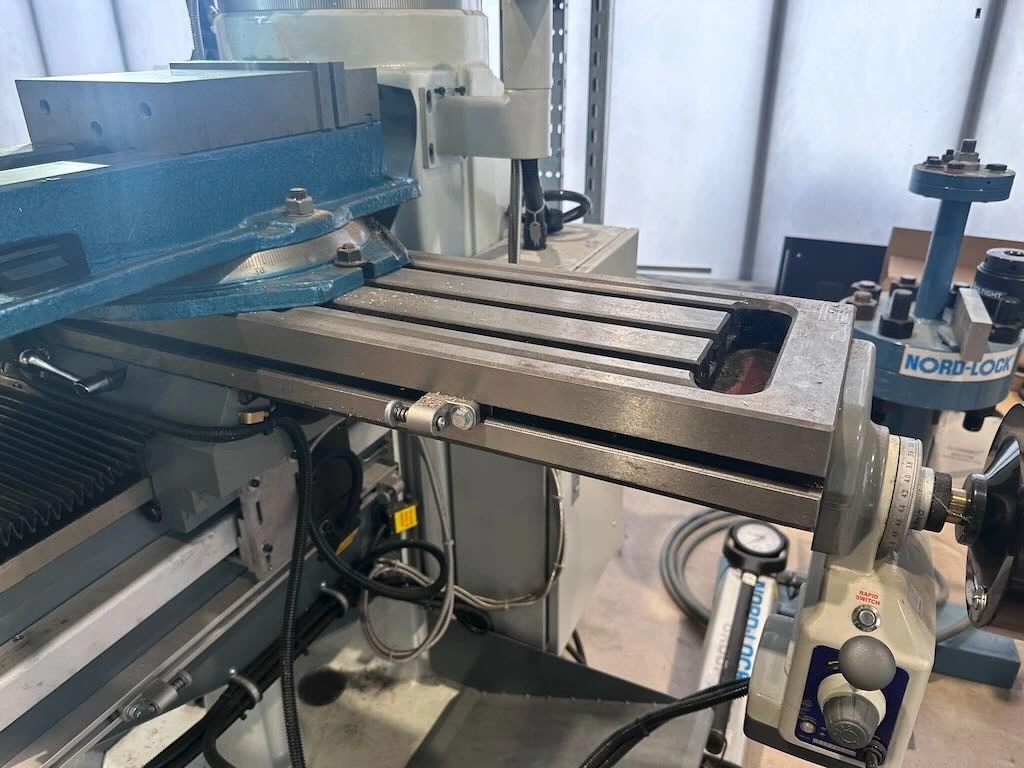

- Table size
- 1,246 x 230mm
- T-slots
- 16mm / 3 slots
- Longitudinal table travel
- 790mm, reduced to approx. 690mm with feed/DRO
- Cross saddle travel
- 310mm, reduced to approx. 270mm with feed/DRO
- Knee vertical travel
- 390mm

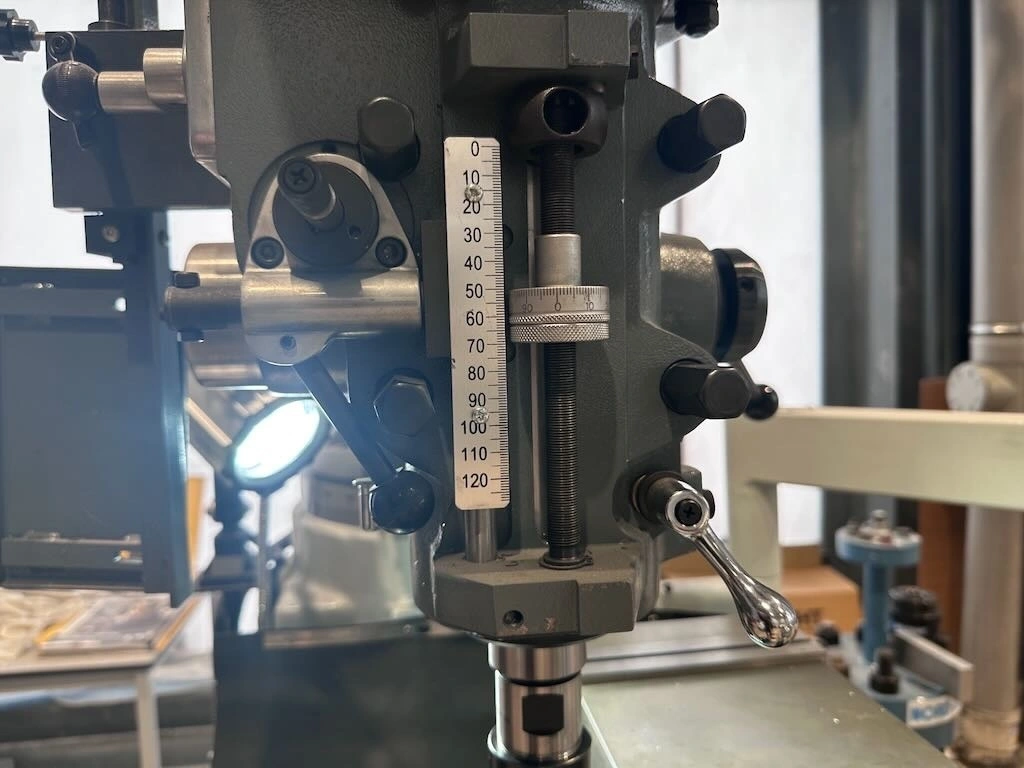

- Quill travel
- 127mm
- Ram travel
- 312mm
- Quill power feeds
- 0.04 / 0.08 / 0.15mm/rev
- Spindle nose to table
- 0 to 405mm
- Spindle to column
- 90 to 450mm
- Head tilt left/right
- ±90°
- Head tilt front/back
- ±45°
- Approx. dimensions
- 220 x 160 x 200cm
- The core technical data above is taken from Excel’s ETM 2VS specification sheet and distributor specifications, including the 400V 3-phase supply, 2.2kW/3HP motor, R8 spindle, 65 to 4,500rpm spindle speed range, 1,246 x 230mm table, 127mm quill travel and 1,160kg machine weight.
- Feeds
- Feed
- Detail

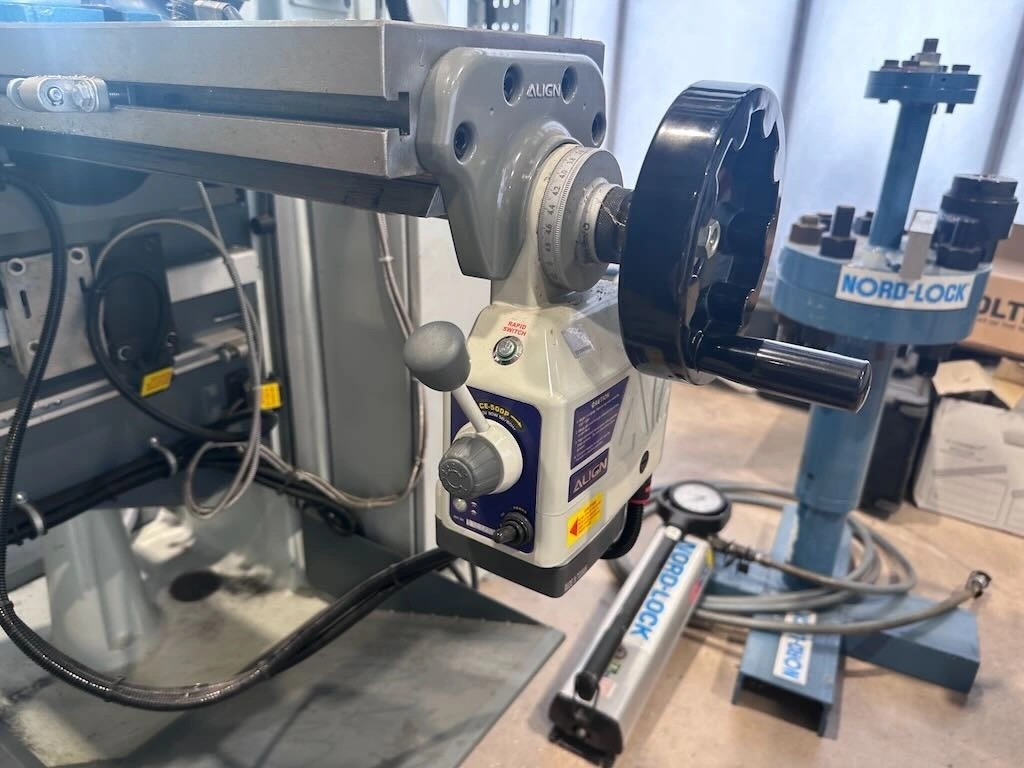

- X-axis longitudinal feed
- Infinitely variable, 0 to 740mm/min
- Y-axis cross feed
- Infinitely variable, 0 to 730mm/min
- Z-axis knee feed
- Variable, 0 to 280mm/min

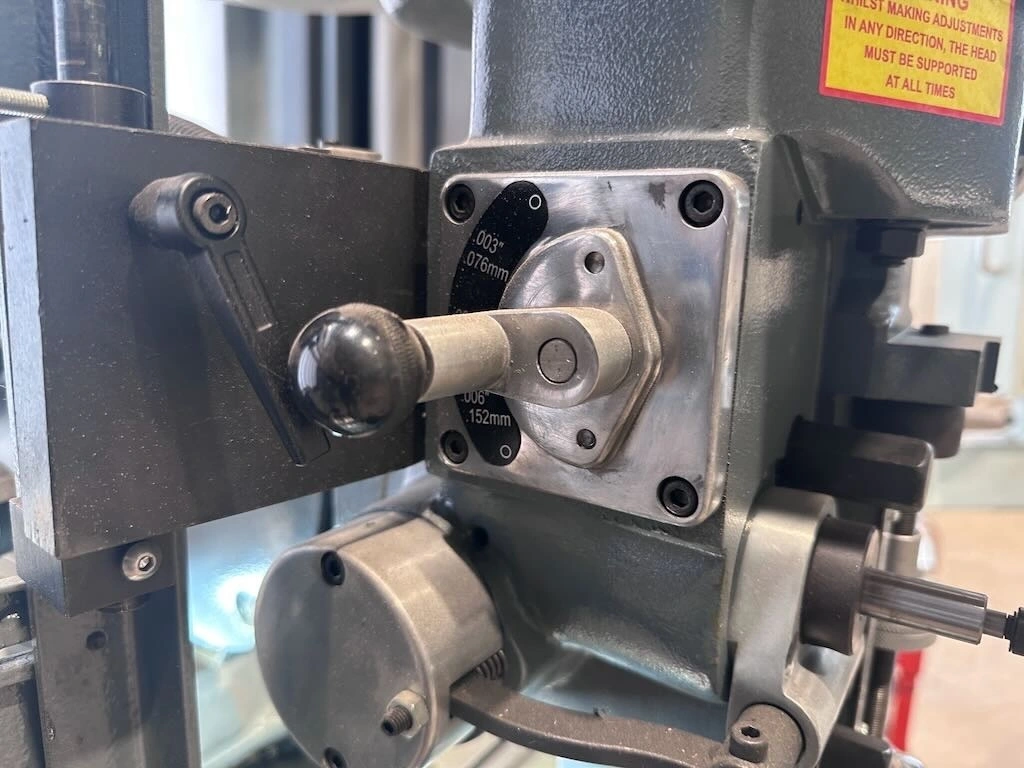

- Quill feed
- 3 rates, 0.04 / 0.08 / 0.15mm/rev

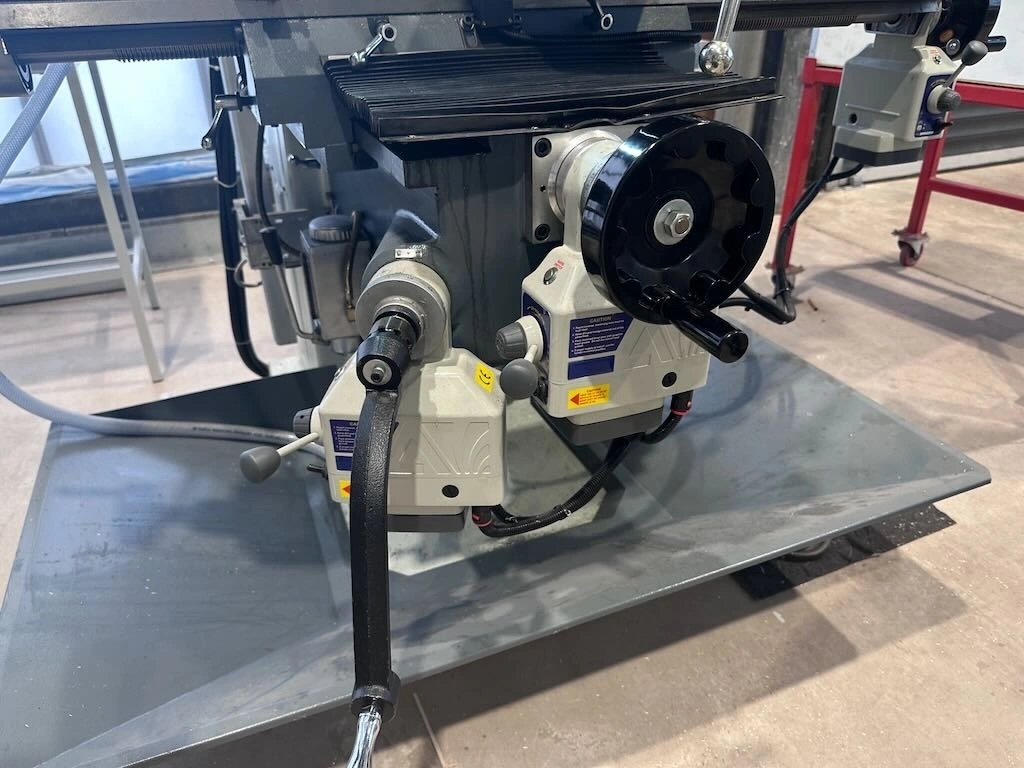

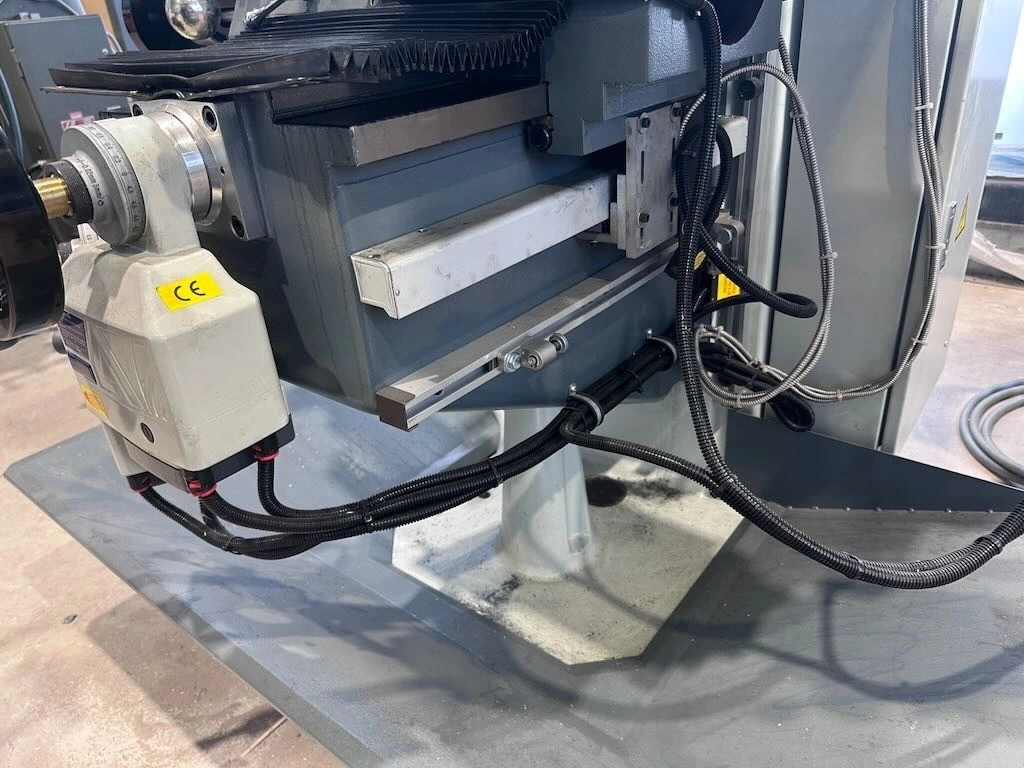

- The ETM 2VS is listed with servo-type longitudinal, cross and vertical feed with rapid traverse, plus 3-rate power feed to the quill.
- Standard Equipment / Features

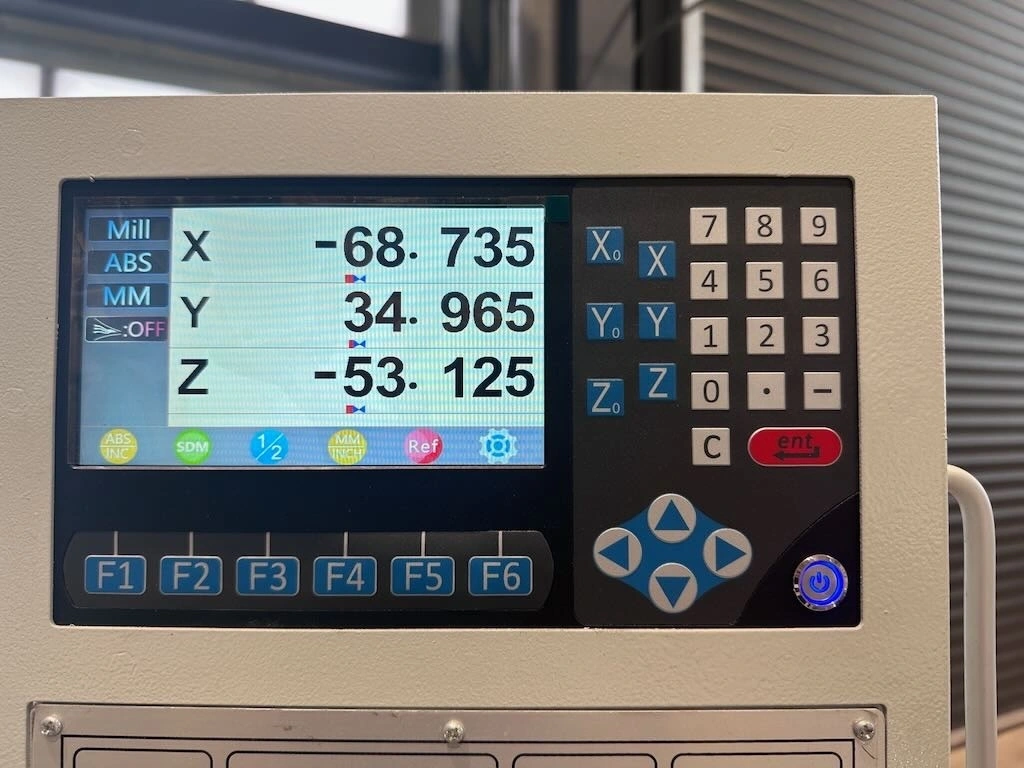

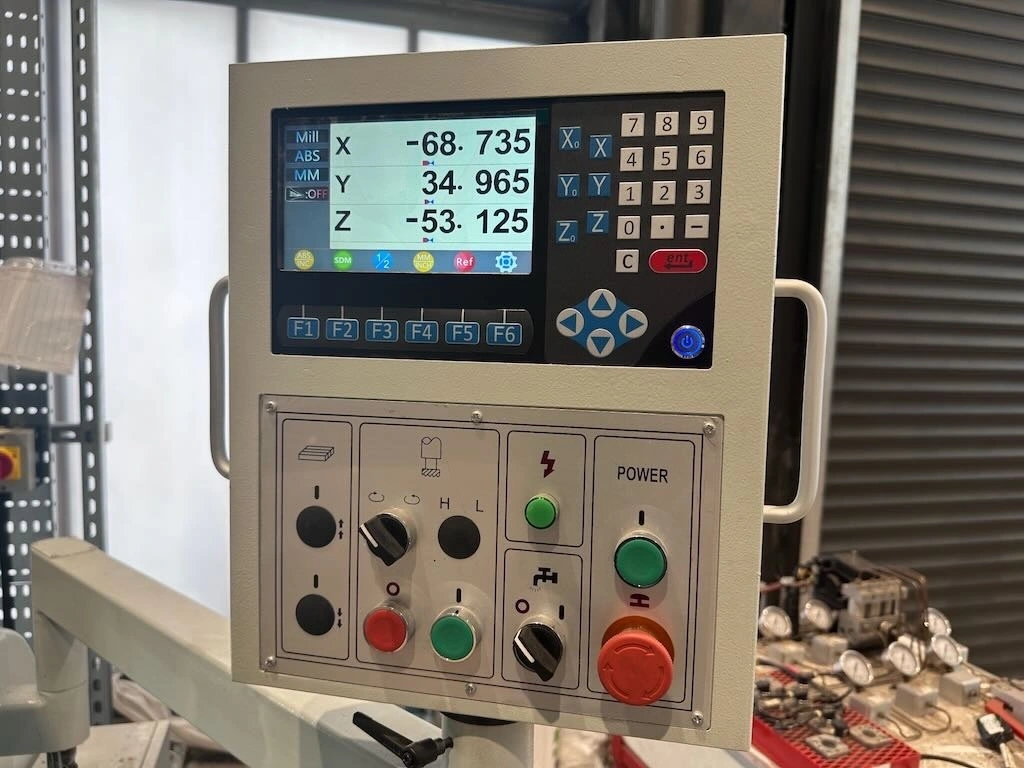

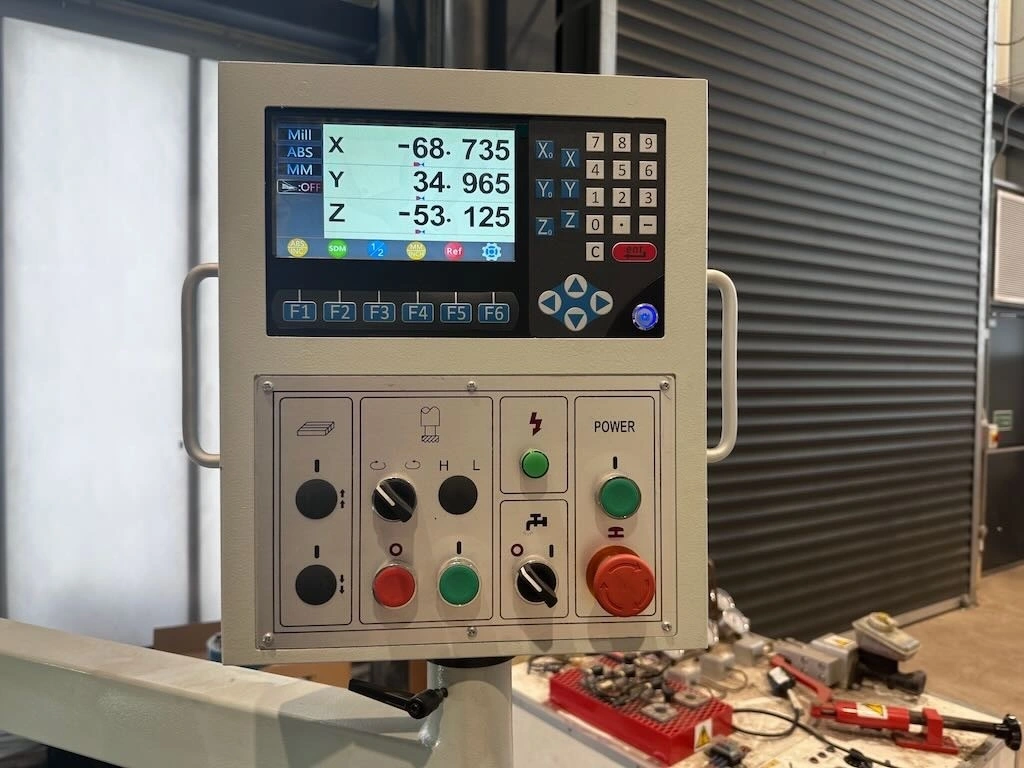

- 3-axis digital readout
- R8 spindle taper
- Variable spindle speed
- Power feed to quill, 3 rates
- Servo-type longitudinal, cross and vertical feed
- Rapid traverse
- One-shot lubrication
- Coolant system

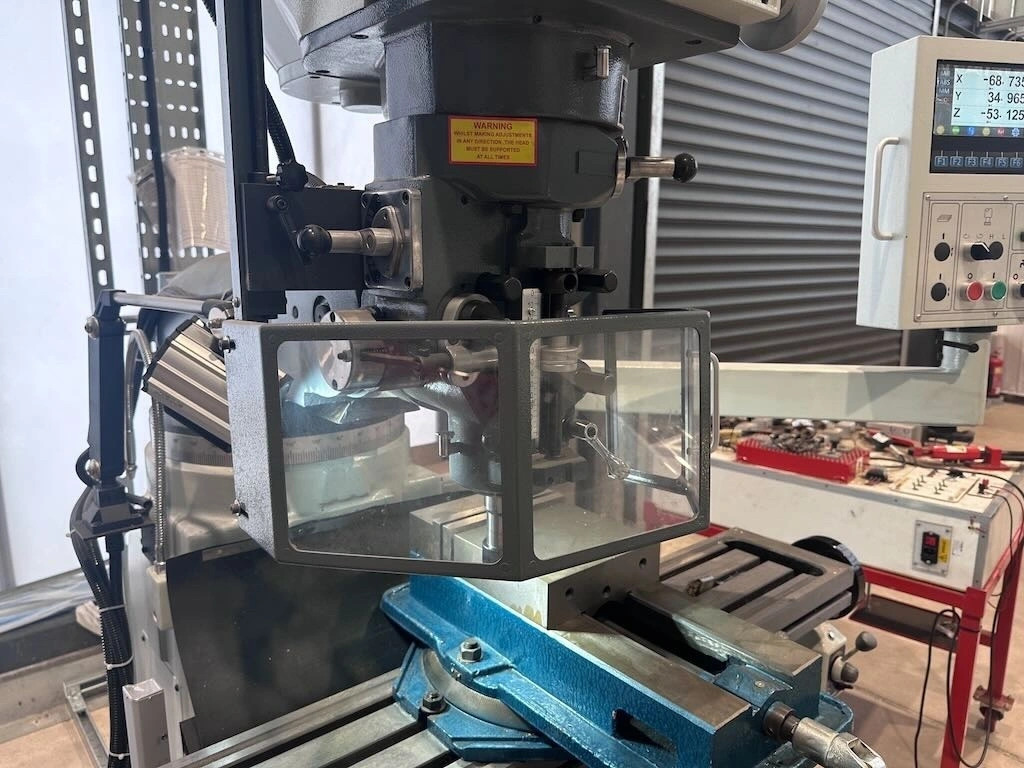

- Electrically interlocked spindle guard

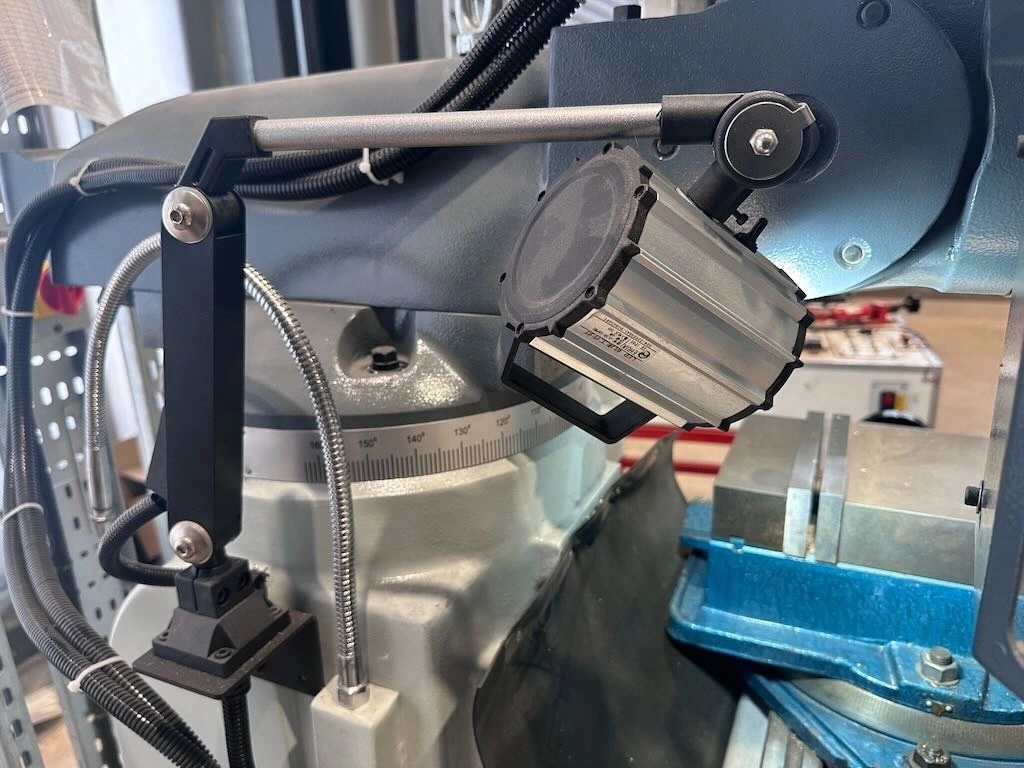

- Low-voltage machine light
- Hardened slideways
- Reversible spindle switch
- Adjustable depth stop

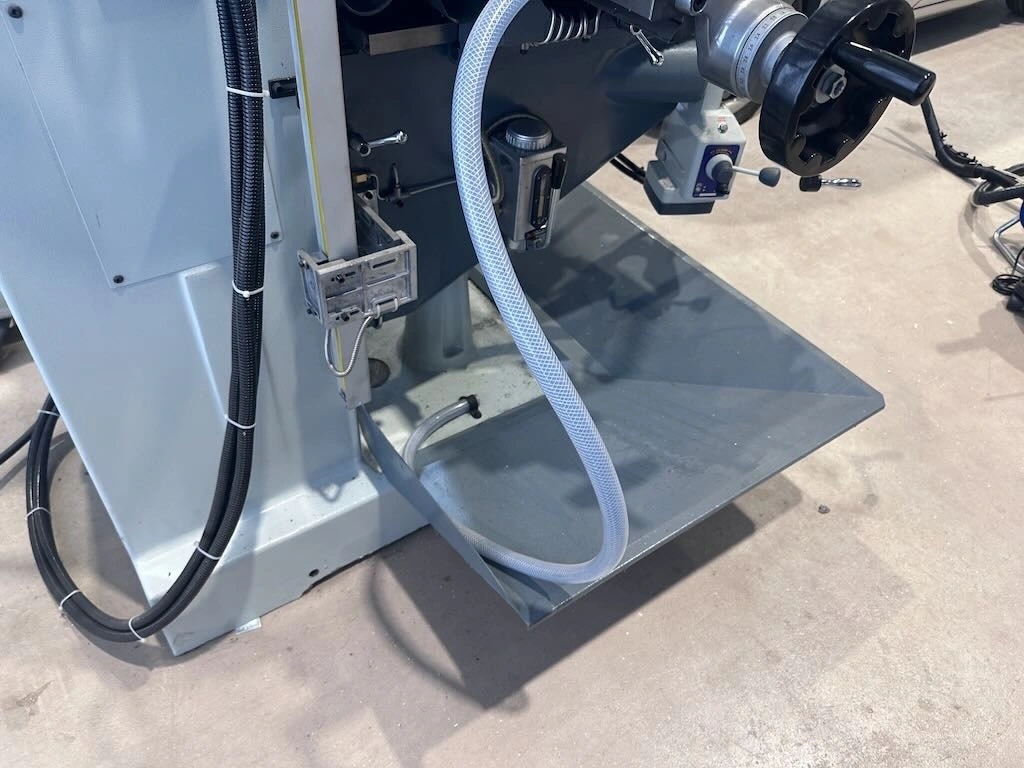

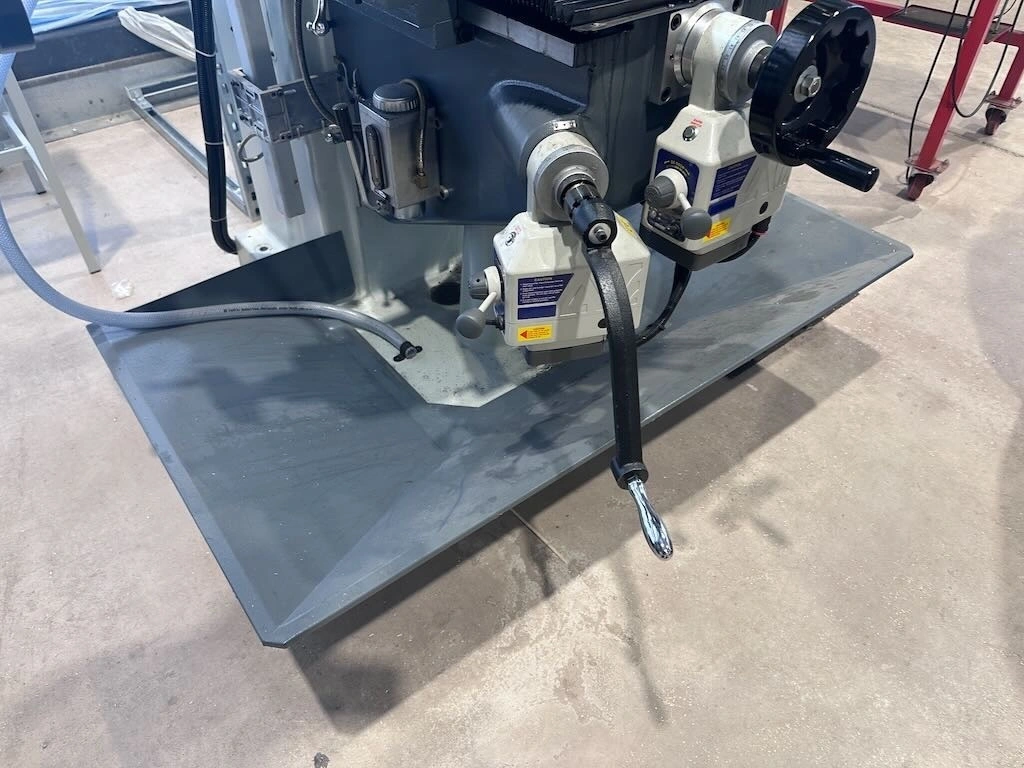

- Large base tray
- Excel lists the ETM 2VS with one-shot lubrication, coolant system, electrically interlocked spindle guard, low-voltage machine light and 3-axis DRO as standard equipment.
As supplied by the seller. Figures are converted between systems where a unit applies; anything without one is shown as quoted.
