1 / 39About this machine

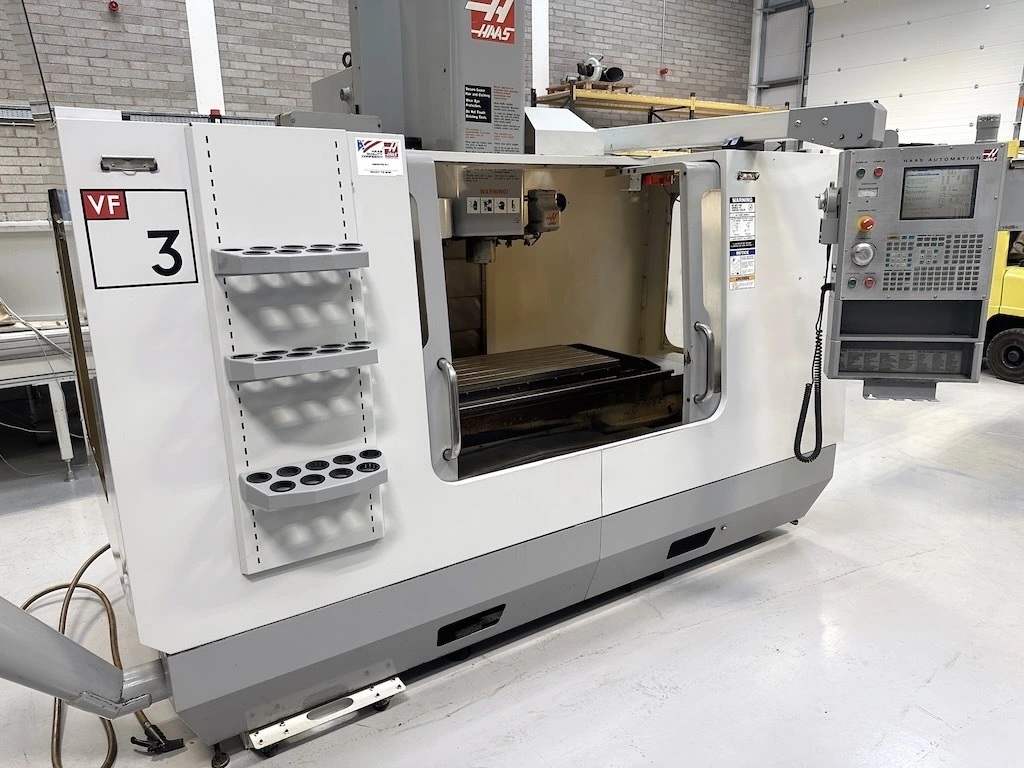

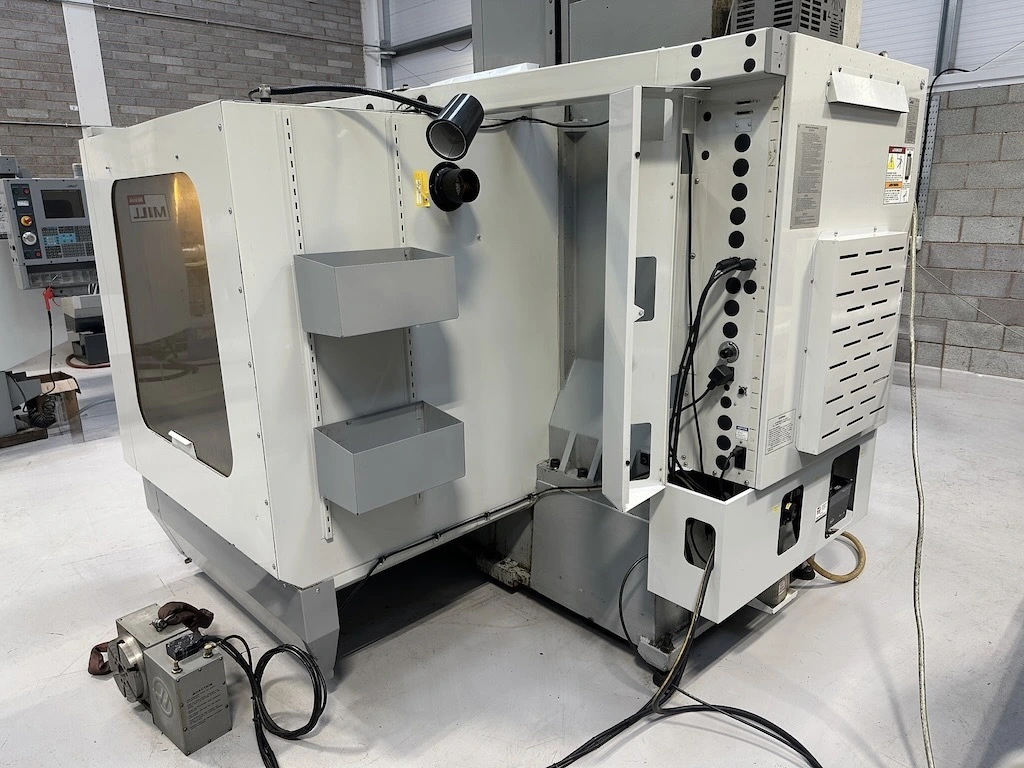

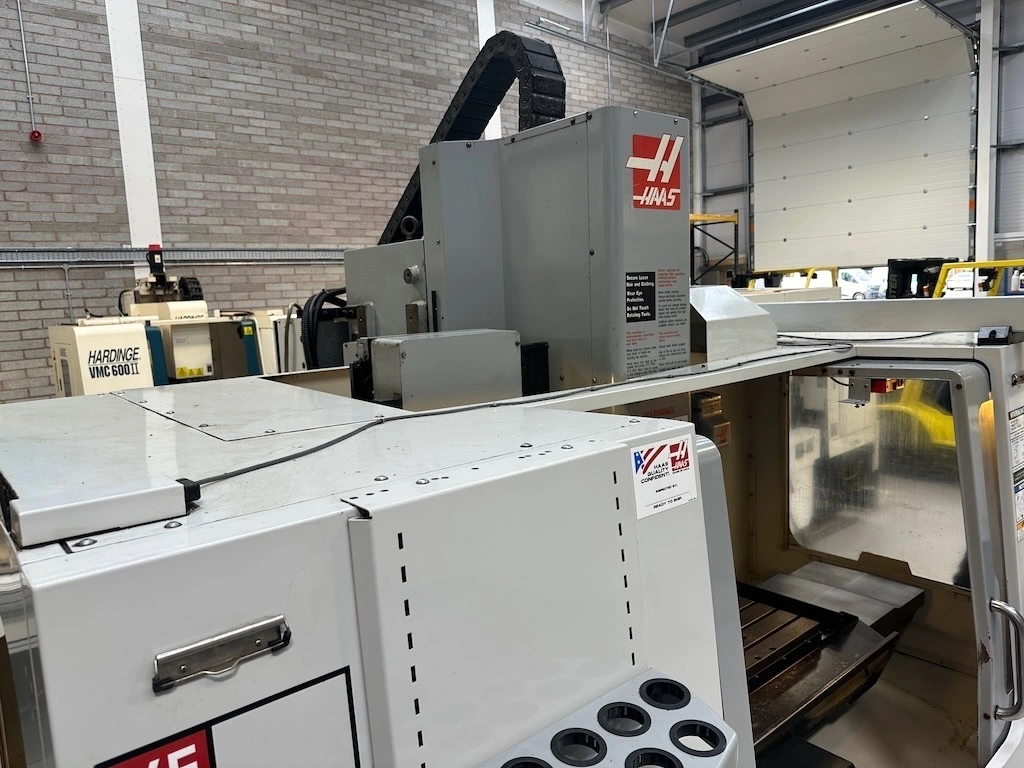

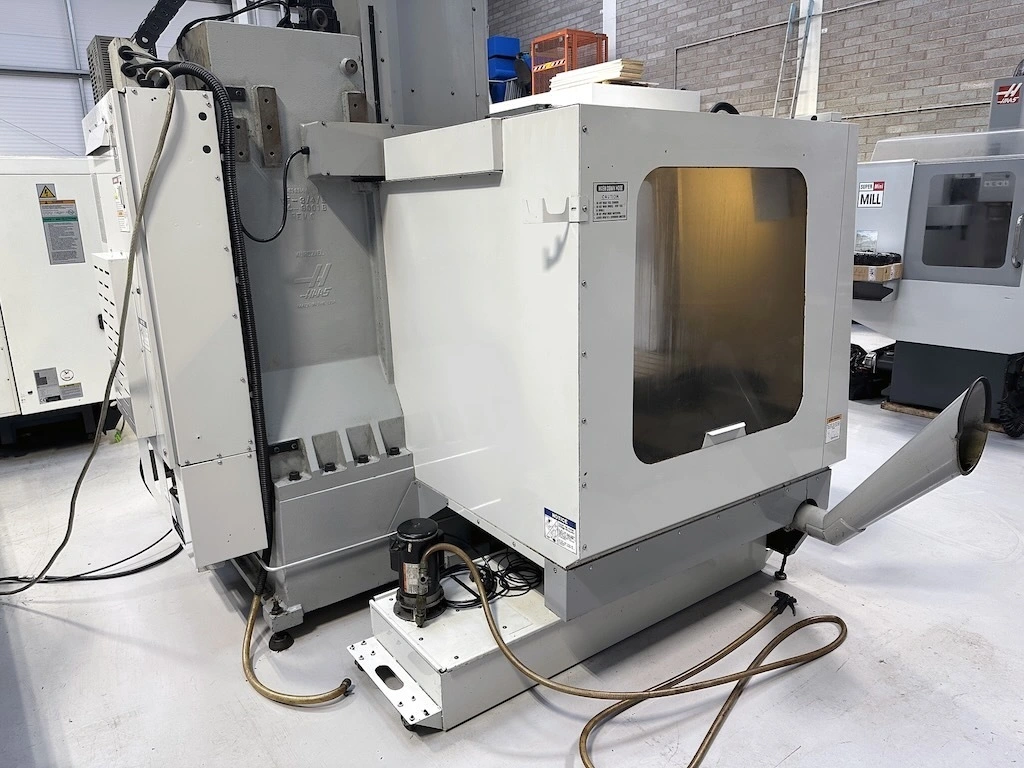

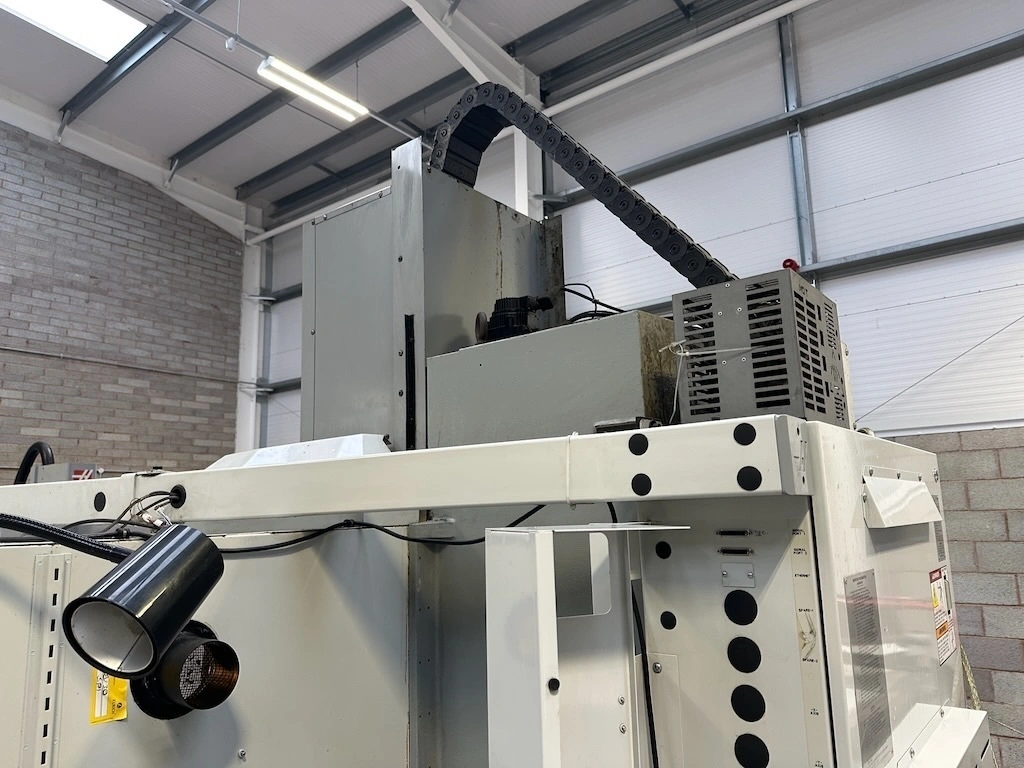

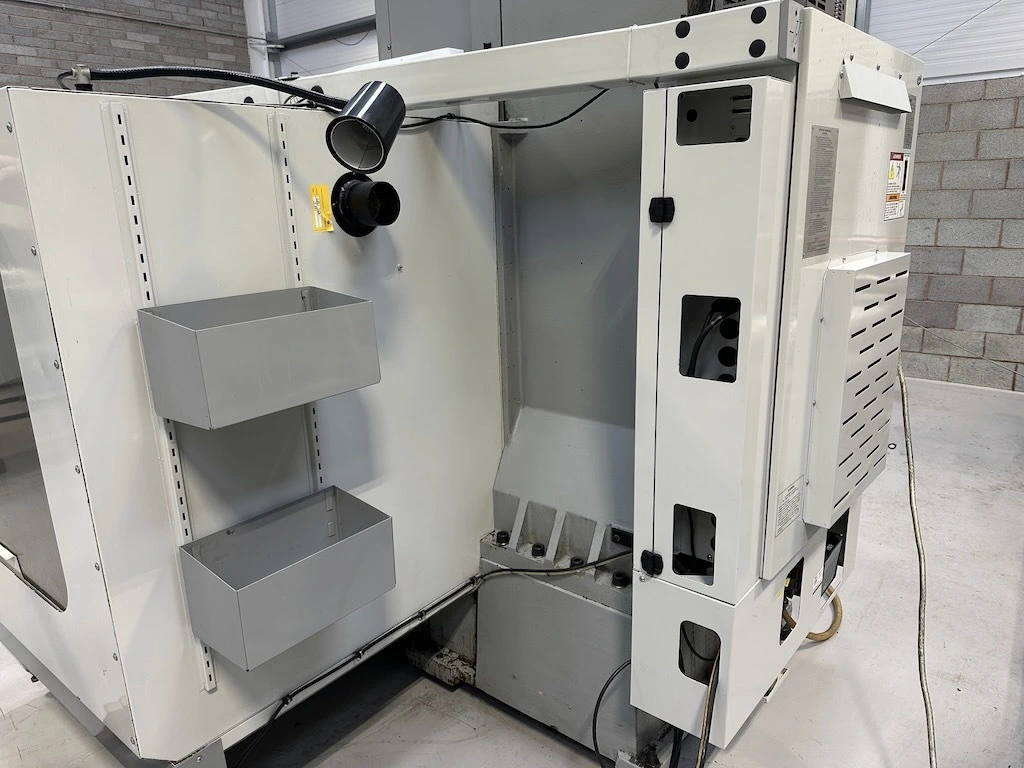

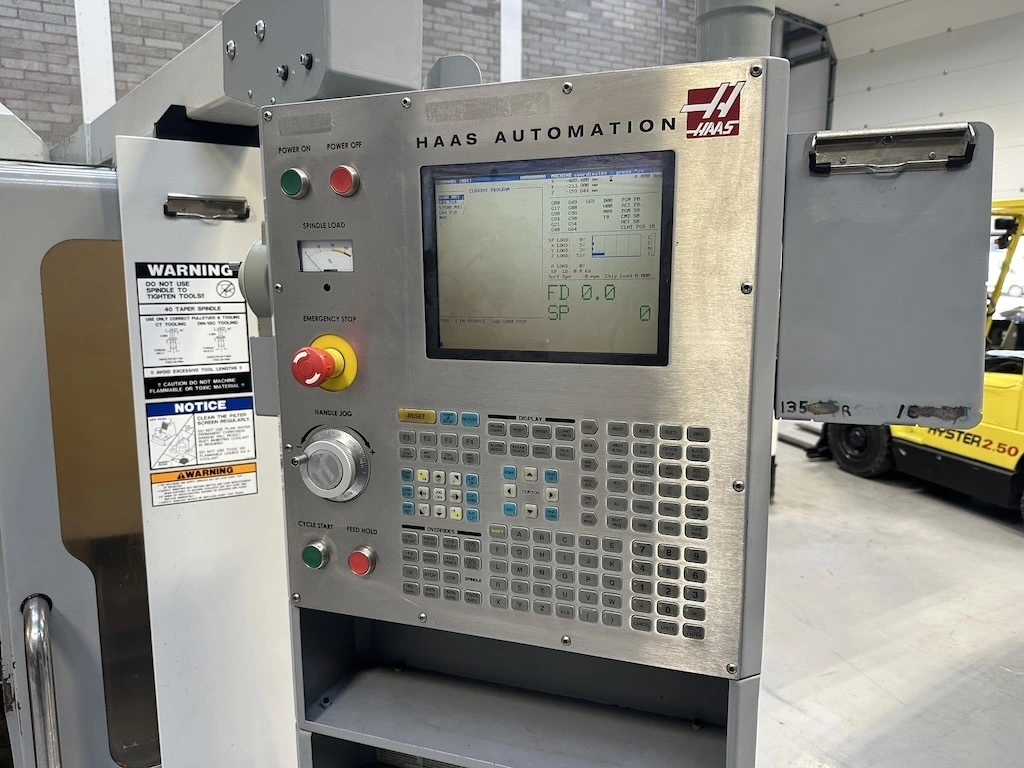

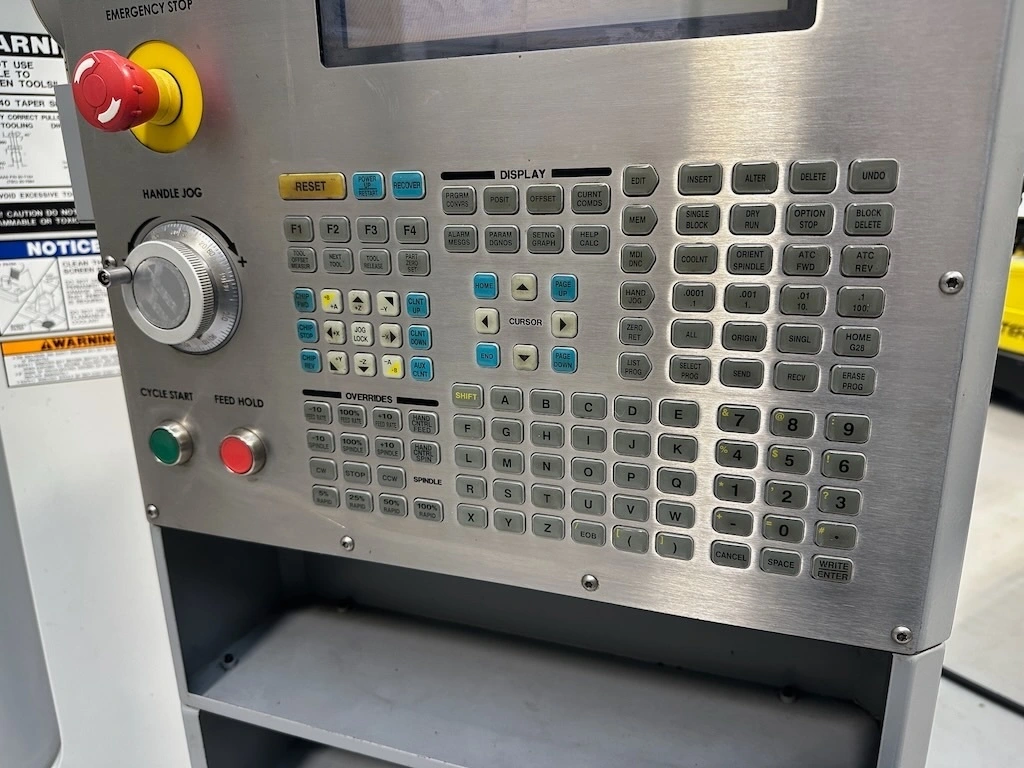

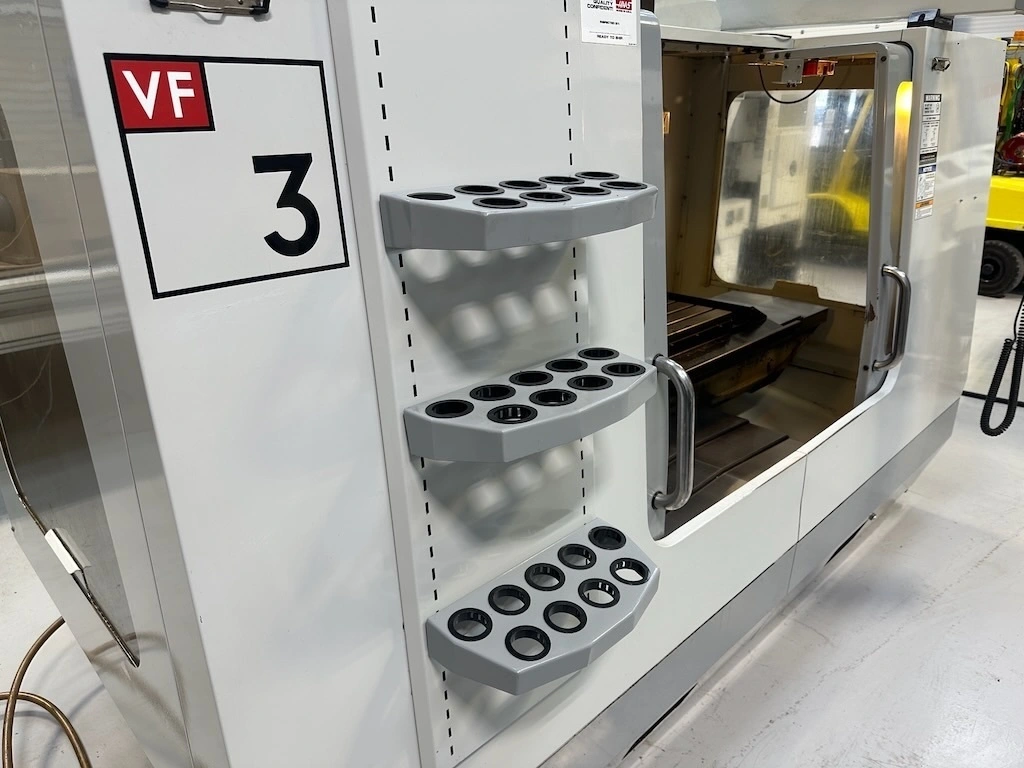

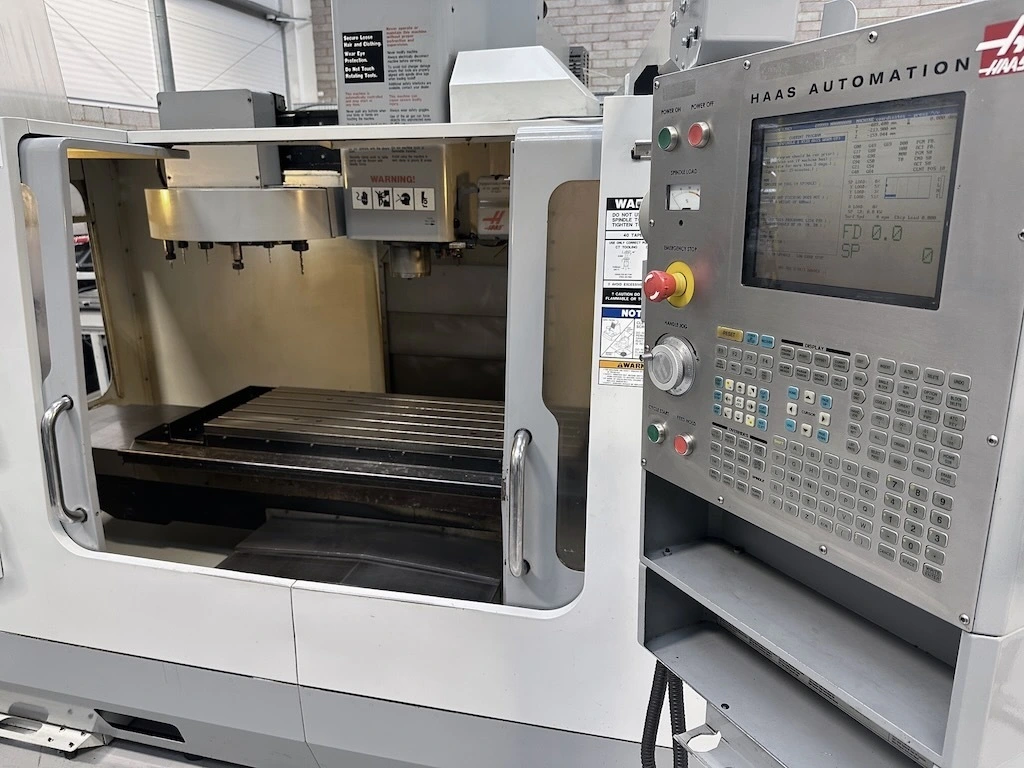

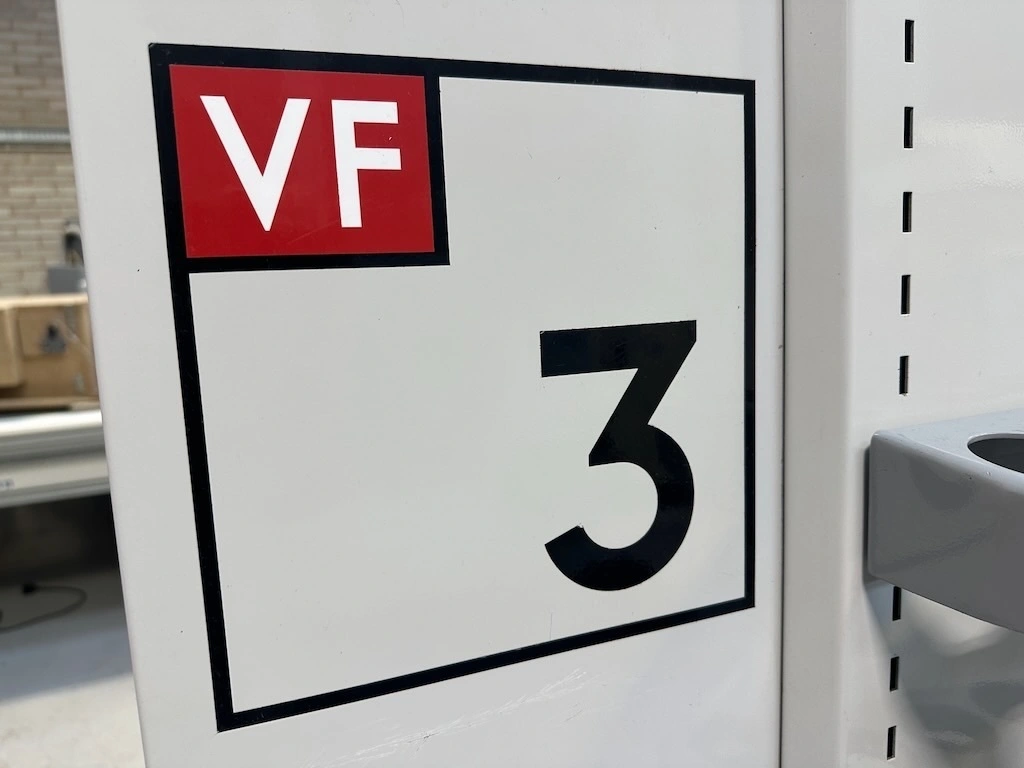

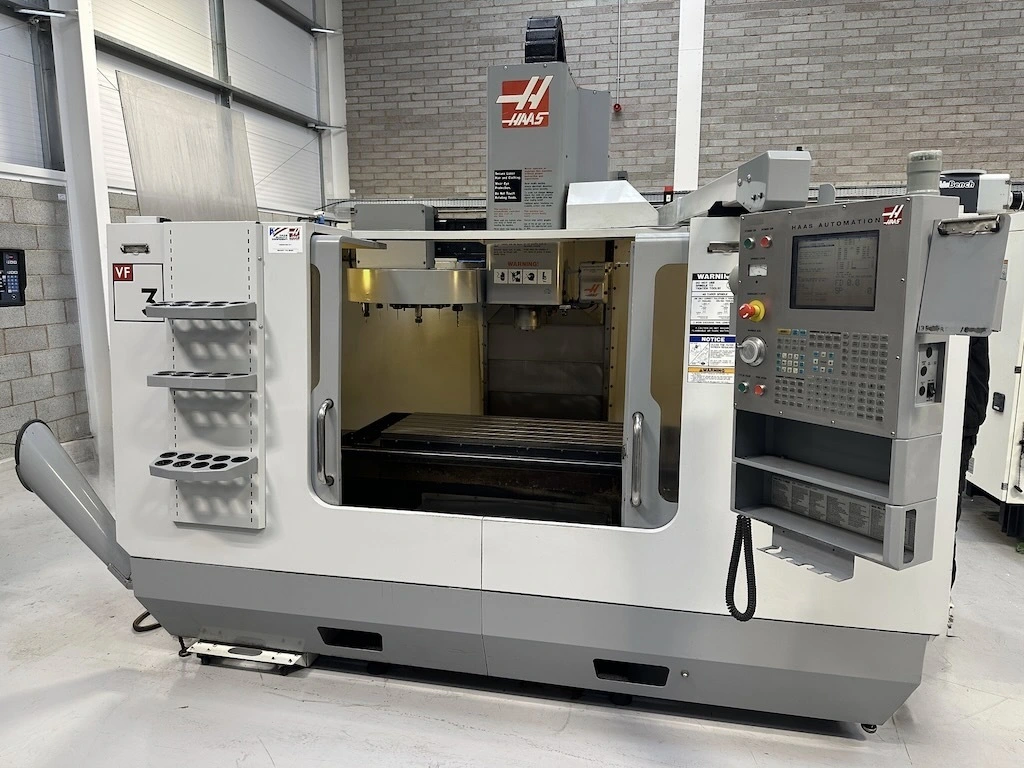

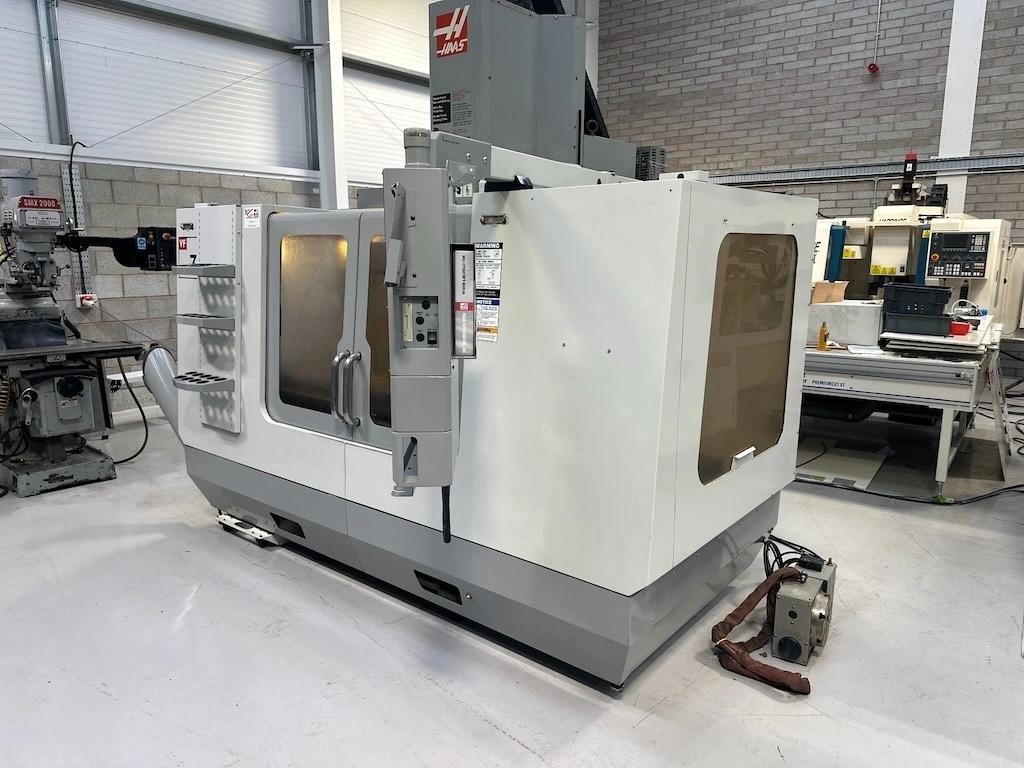

2006 Haas VF-3 vertical machining centre in good original condition, fitted with a Haas HRT160 4th axis rotary table. The VF-3 is a proven, rigid machine offering generous travels and reliable performance for general machining, subcontract work, and light to medium production. The addition of the Haas HRT160 provides full 4th-axis capability, allowing multi-sided machining in a single setup, improving accuracy and reducing cycle times. Fully integrated with the Haas control.
Equipped with
- Manuals
- Swarf Auger
- Tooling Package
Full spec sheet
Machine Specification
Travels:
• X: 1,016 mm
• Y: 508 mm
• Z: 635 mm

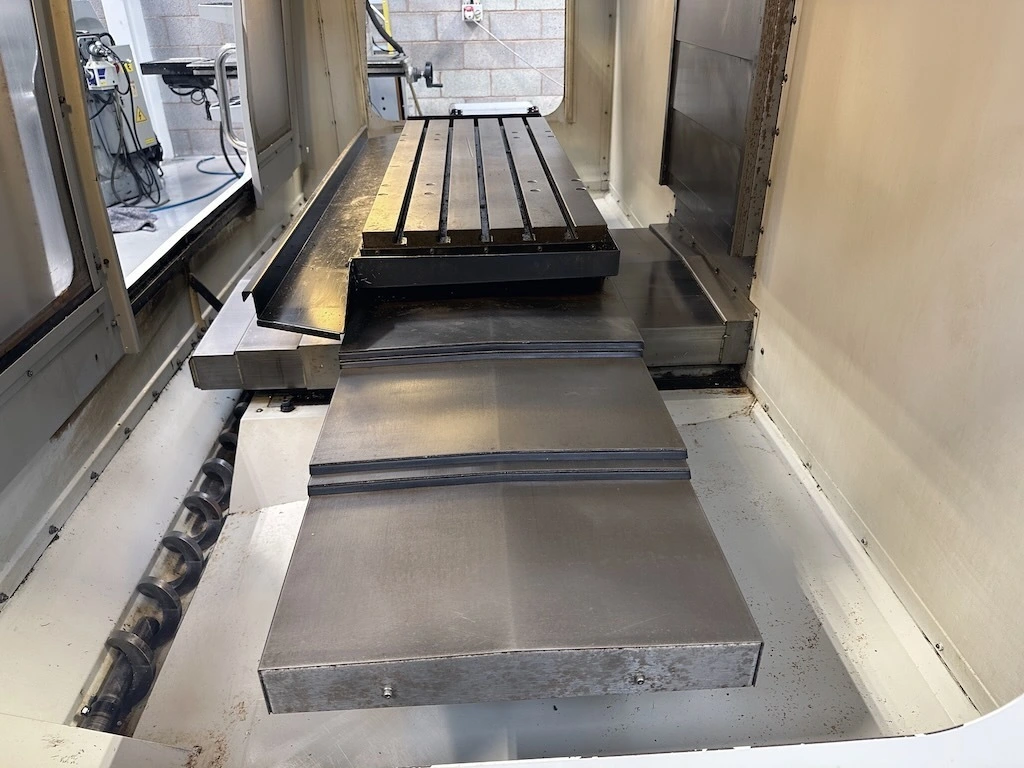

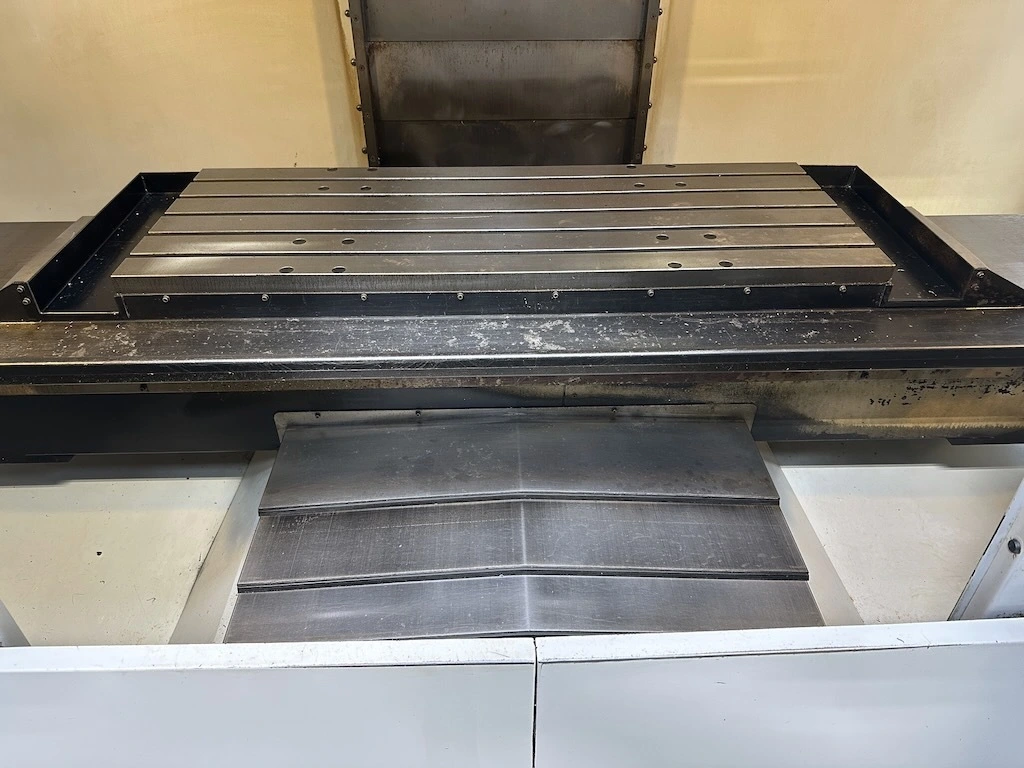

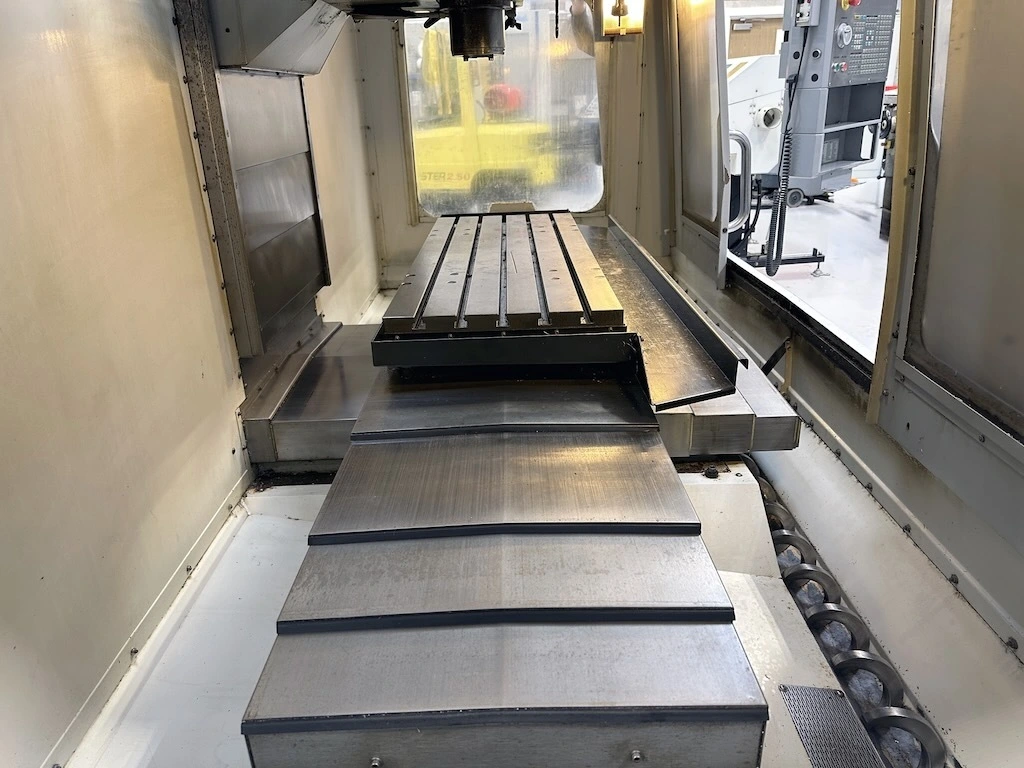

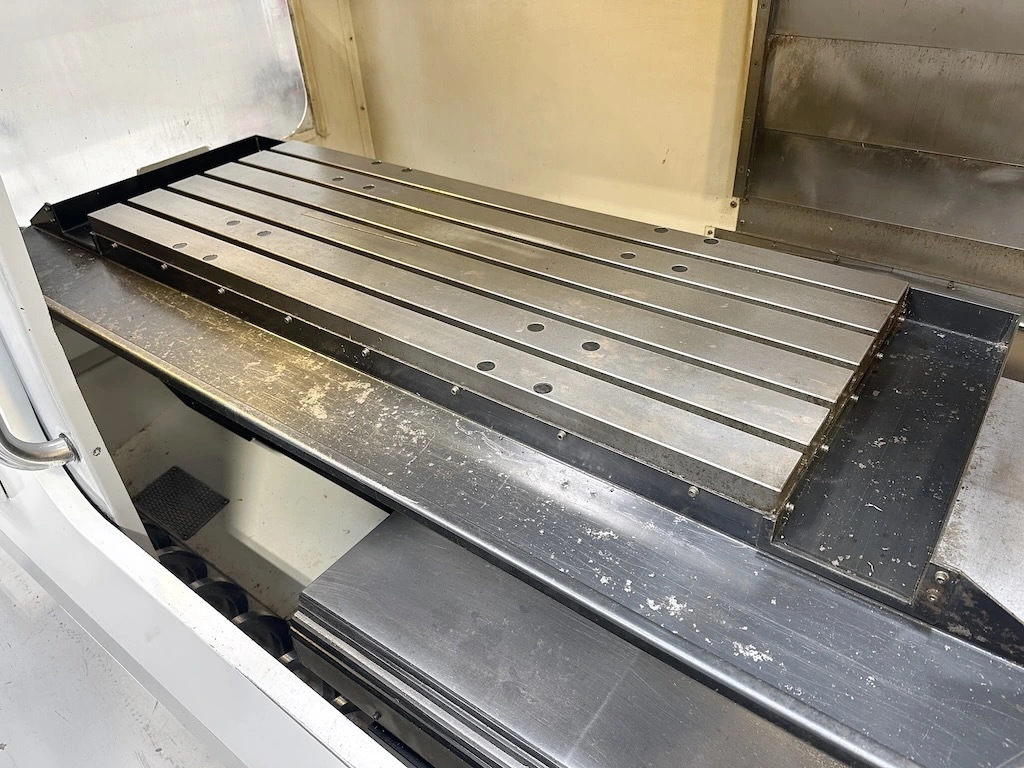

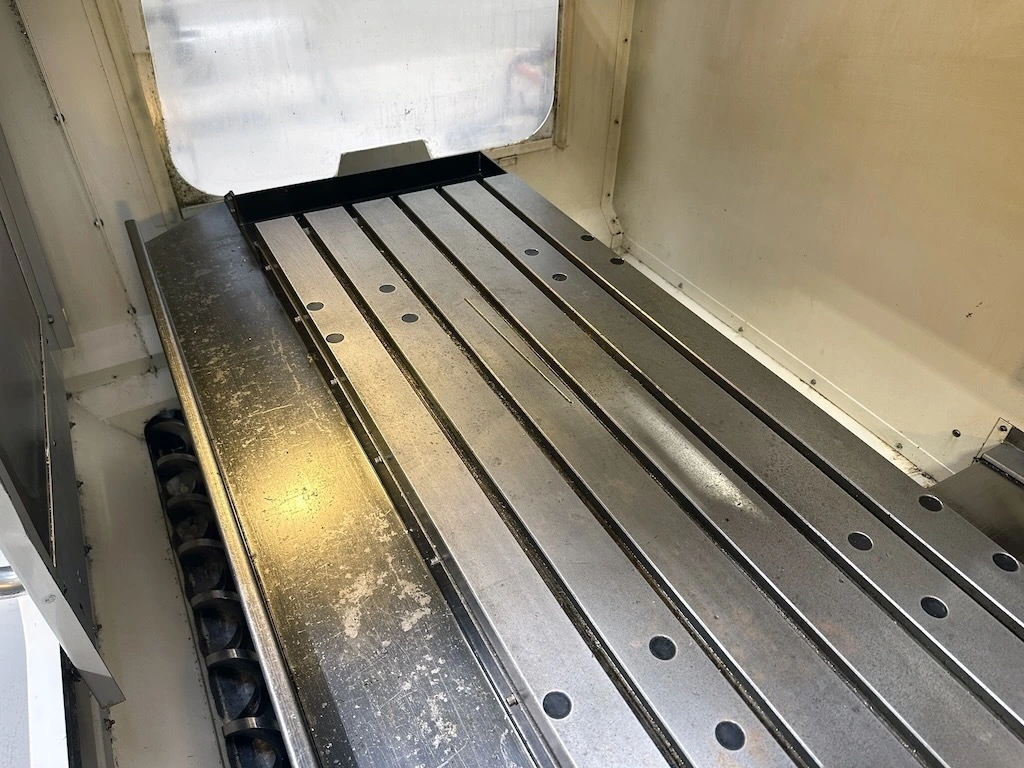

Table:
• Size: 1,219 × 457 mm
• Max load: approx. 1,600 kg

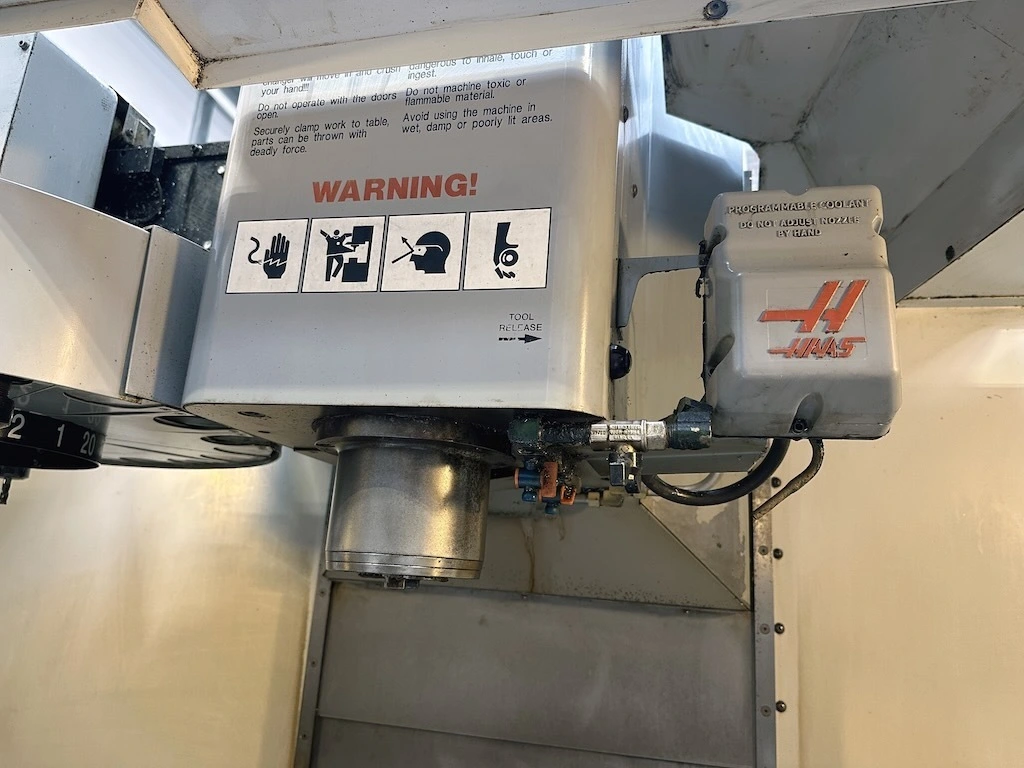

Spindle:
• CAT 40 taper
• 8,100 rpm
• 20 hp Vector drive
• Gearbox

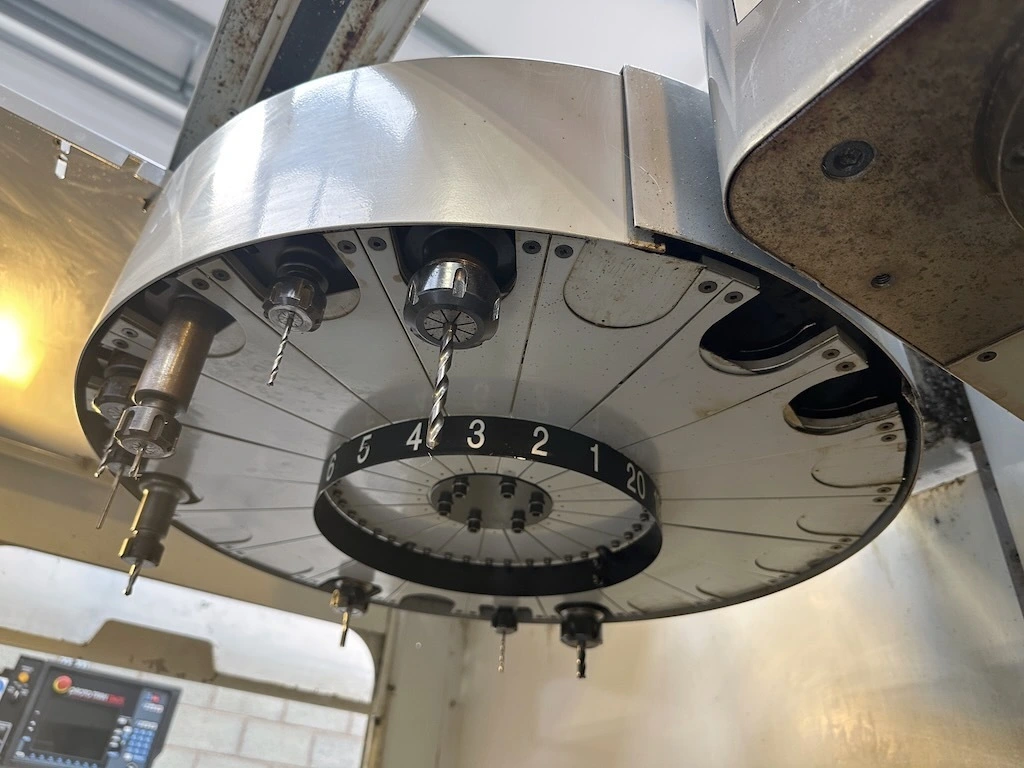

Tool Changer:
• 20 + 1 station umbrella type
Feed Rates:
• Rapid traverse: 25.4 m/min
• Cutting feed: up to 12.7 m/min

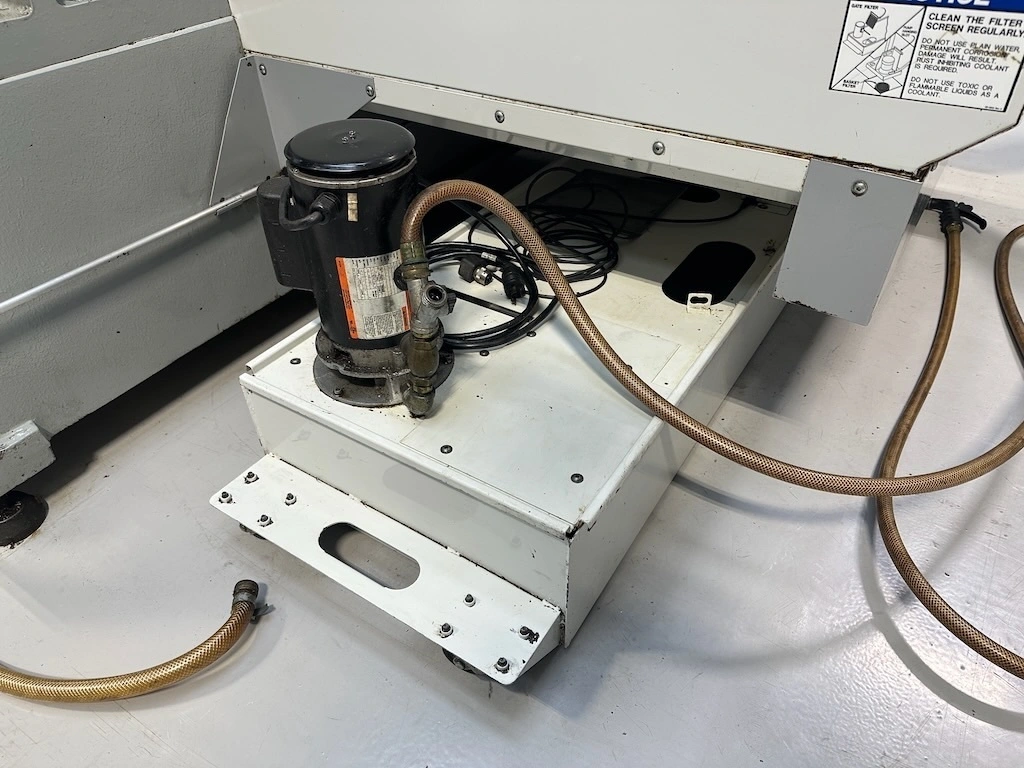

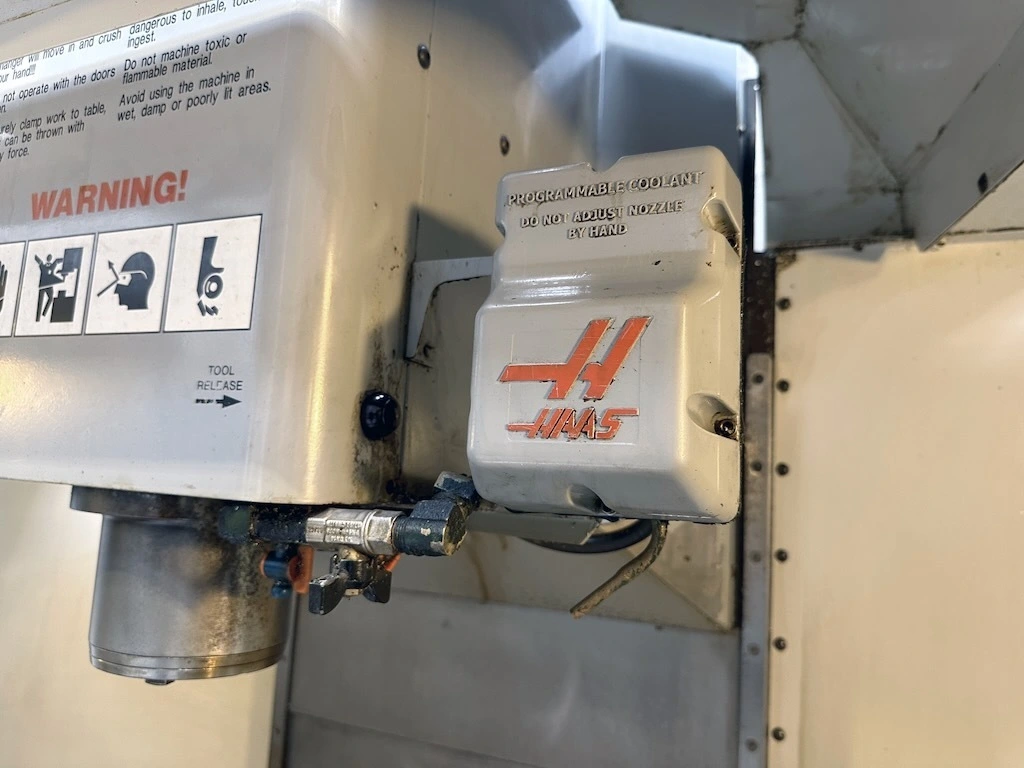

Coolant:
• Flood coolant system

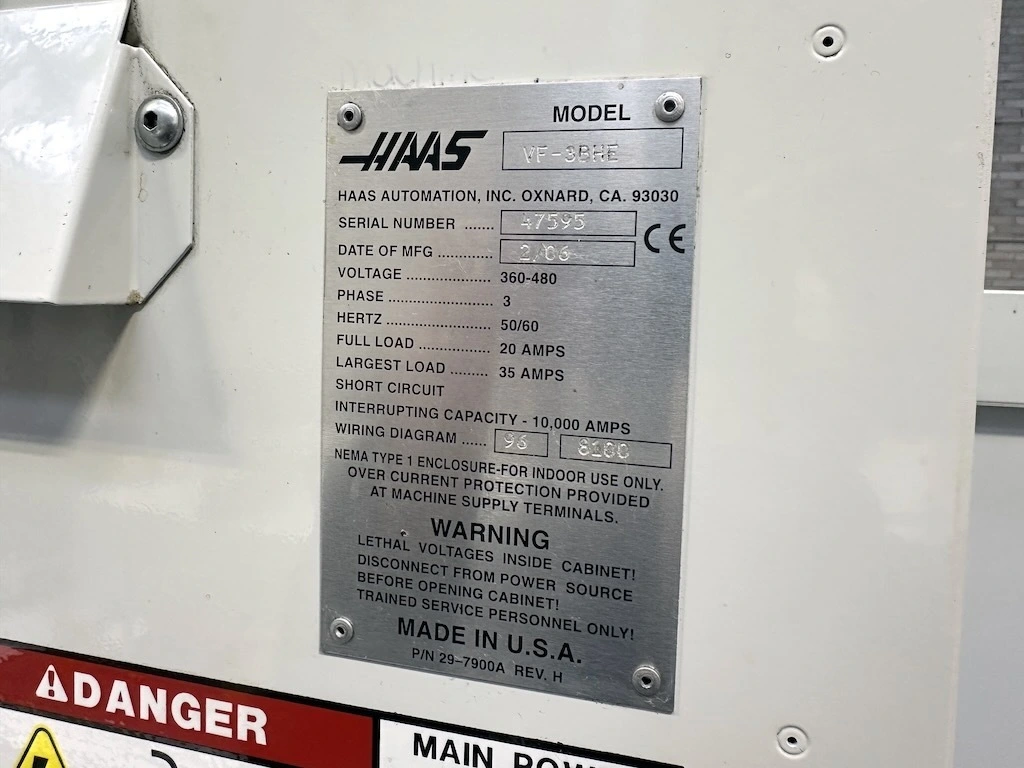

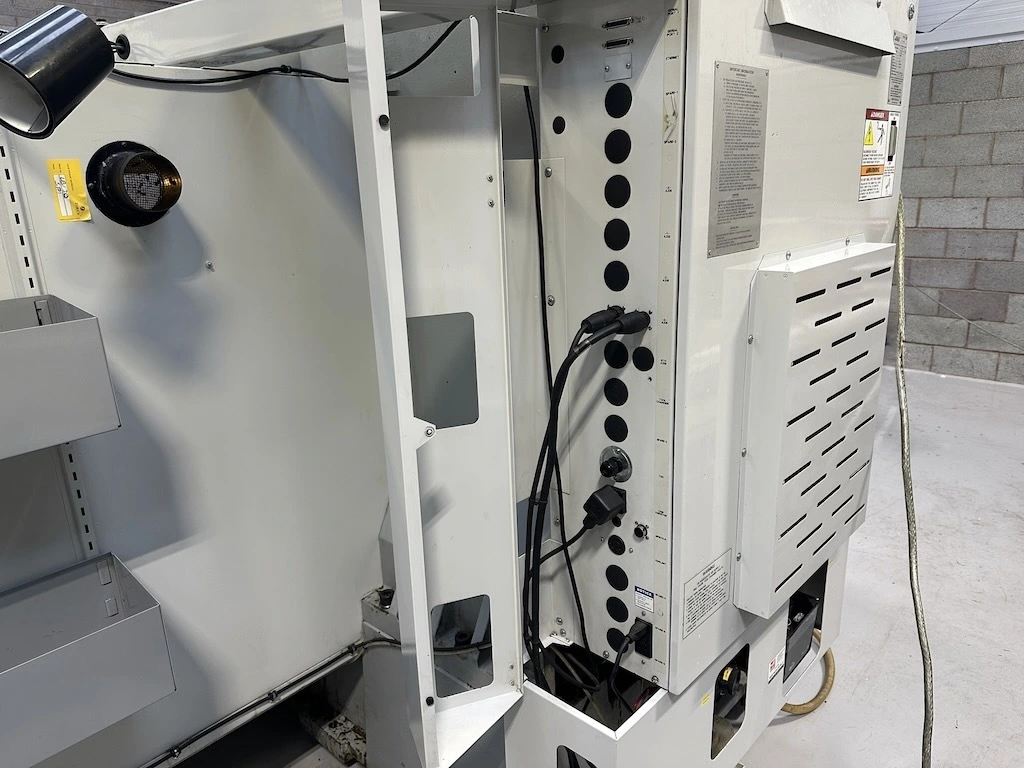

Electrical:
• 400V / 50Hz / 3 phase
Approx. Machine Weight:
• 5,600 – 5,800 kg

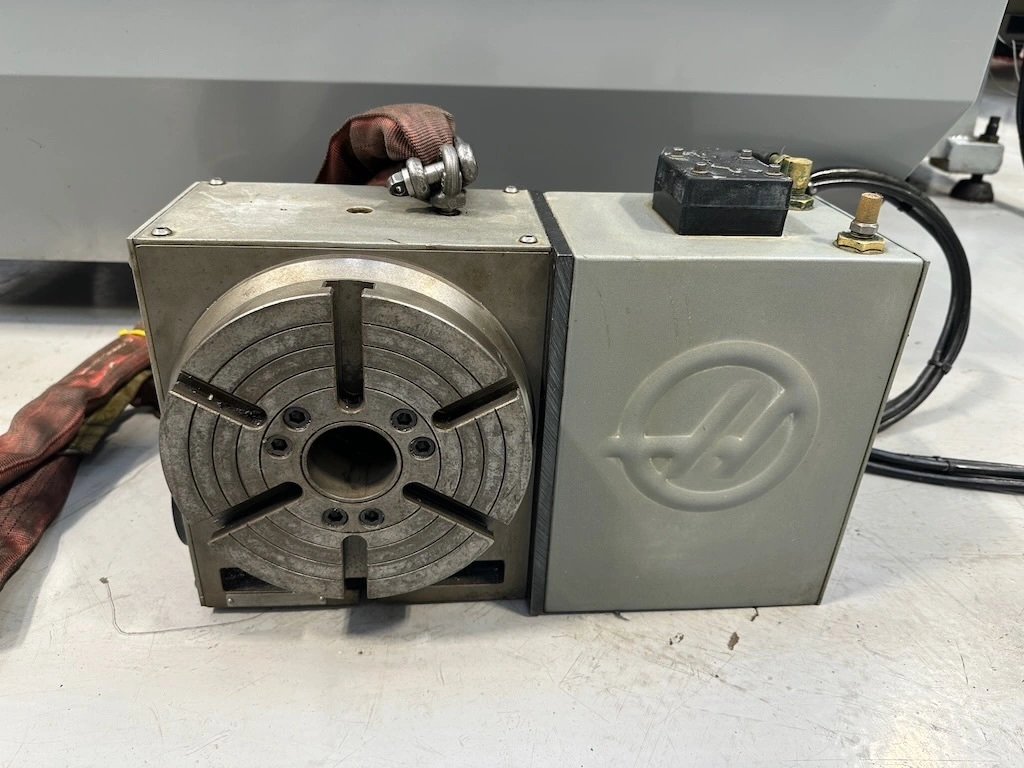

4th Axis – Haas HRT160
• Platter diameter: 160 mm
• Servo-driven, fully integrated with Haas control
• Vertical or horizontal mounting
• Positioning accuracy: approx. ±10 arc-seconds
• Repeatability: approx. ±5 arc-seconds

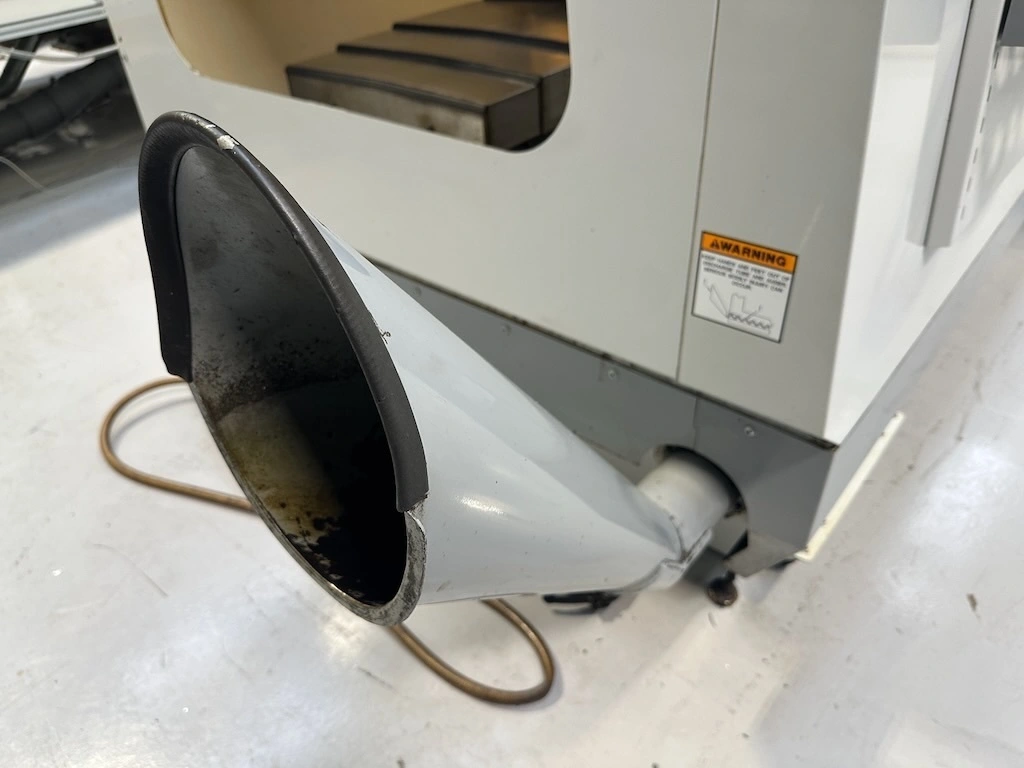

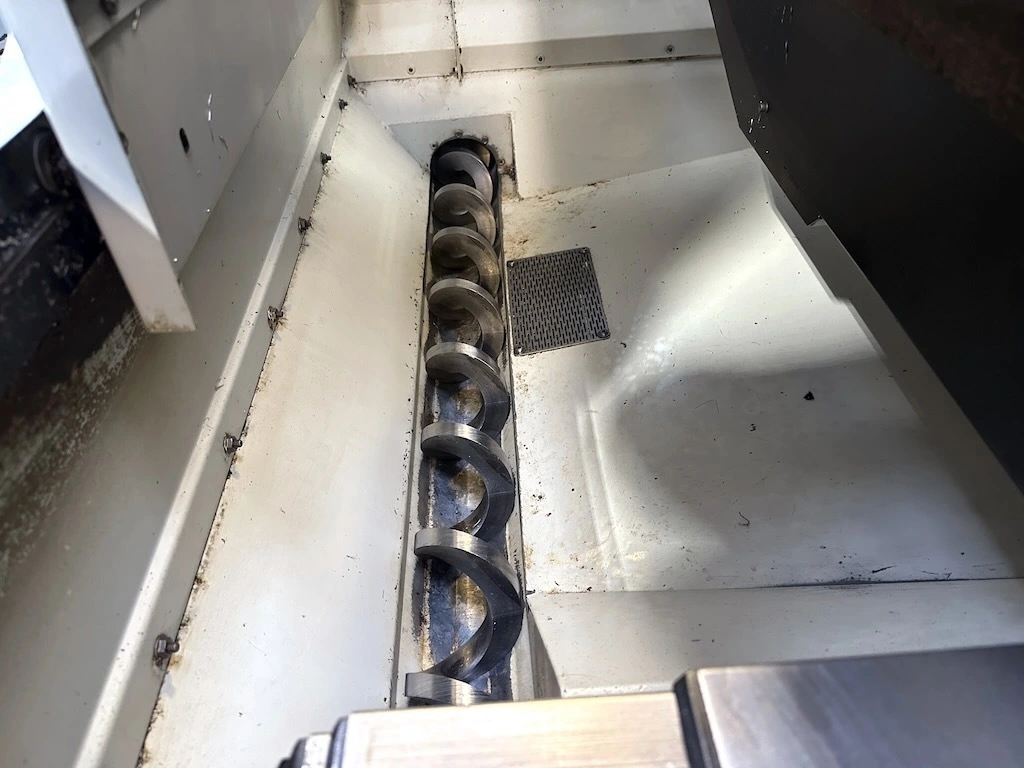

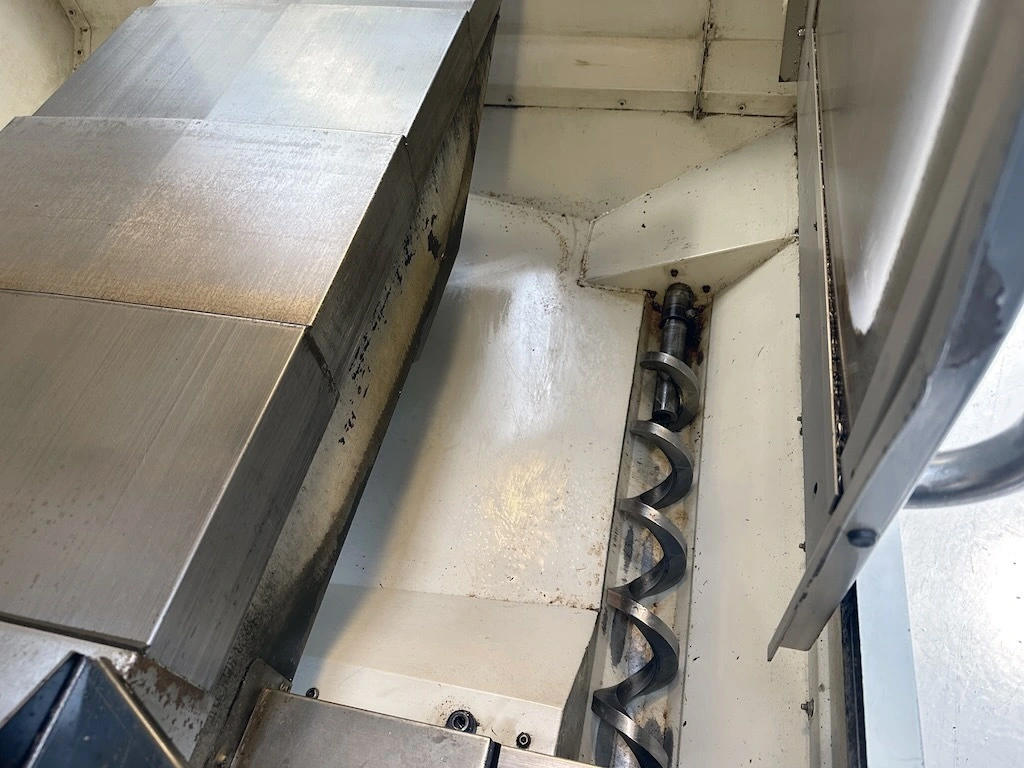

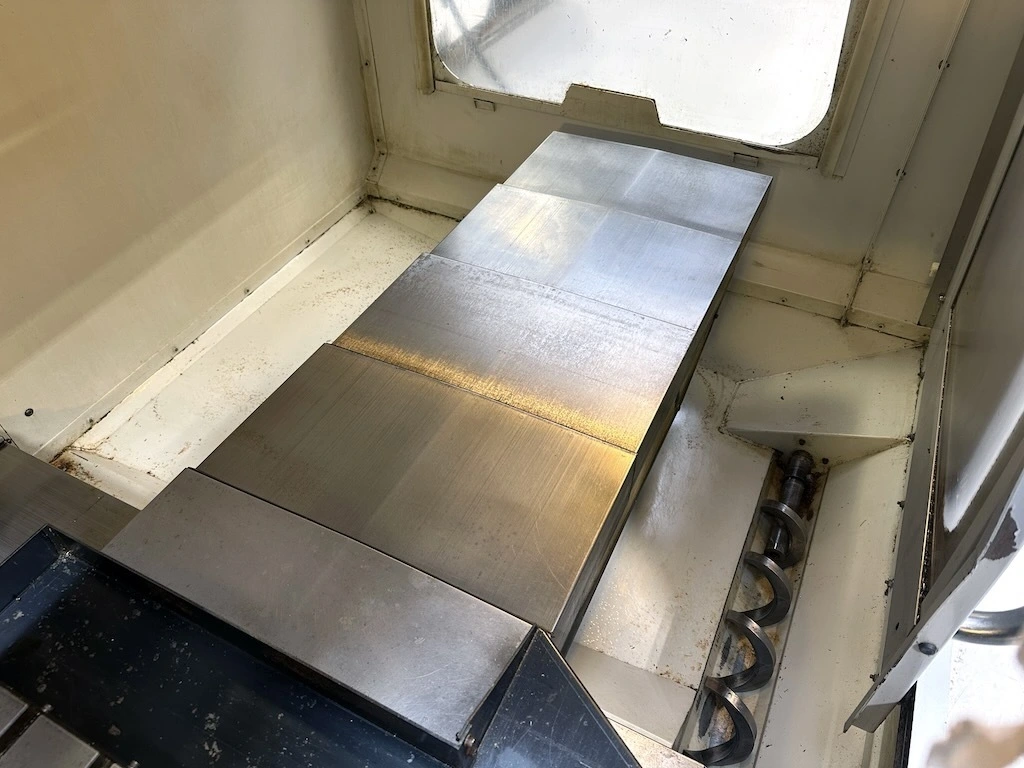

Swarf Auger

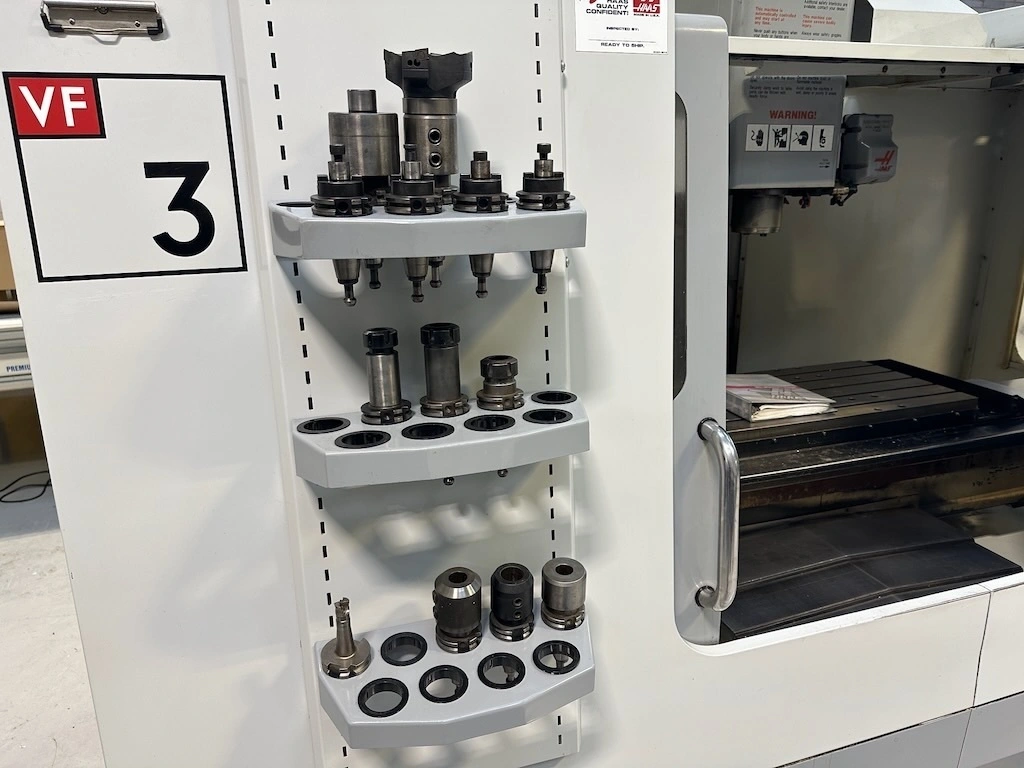

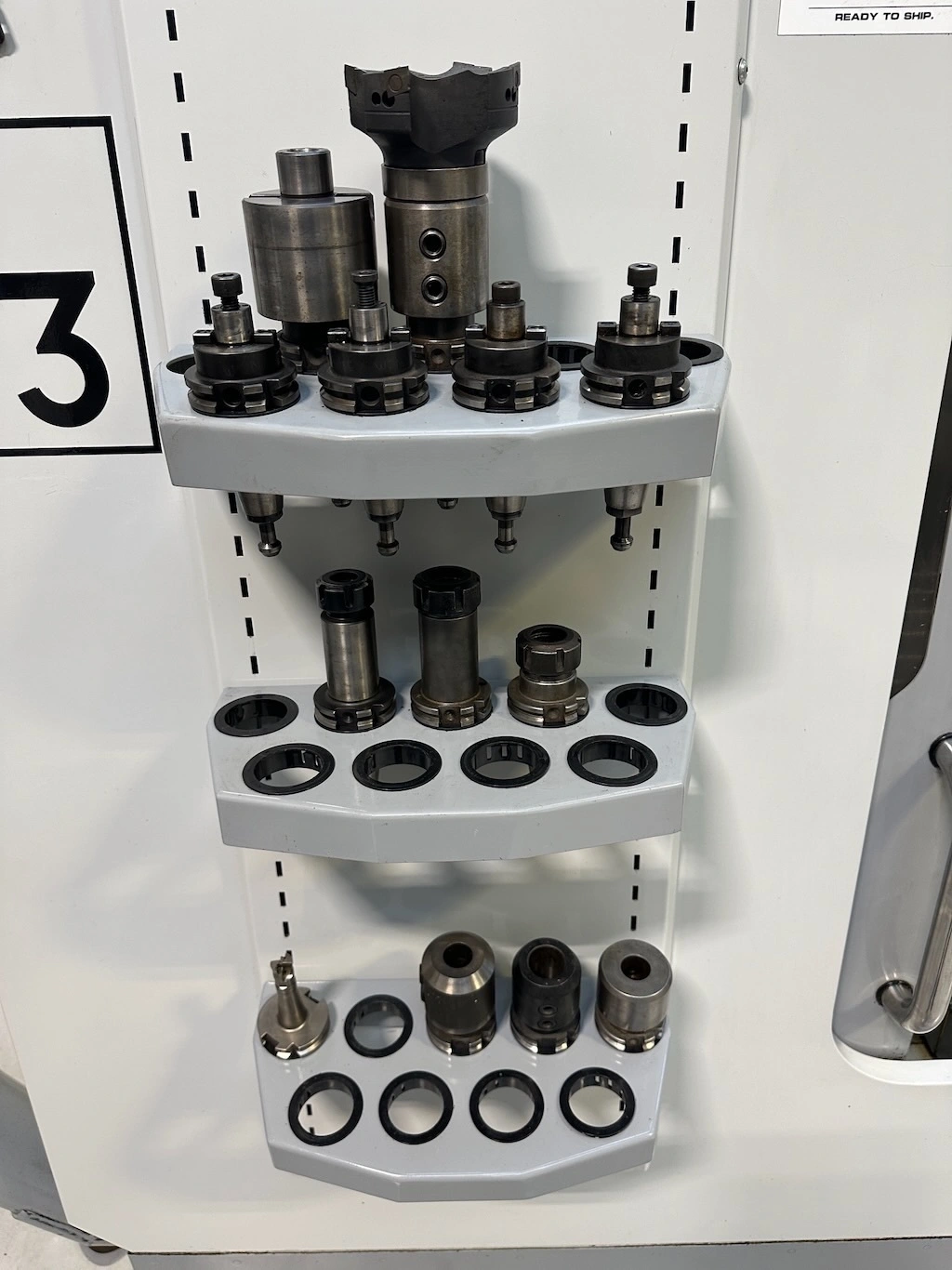

Tooling Package (21 Tools)
Manual
Specs given in good faith. Please verify on inspection.
Specifications

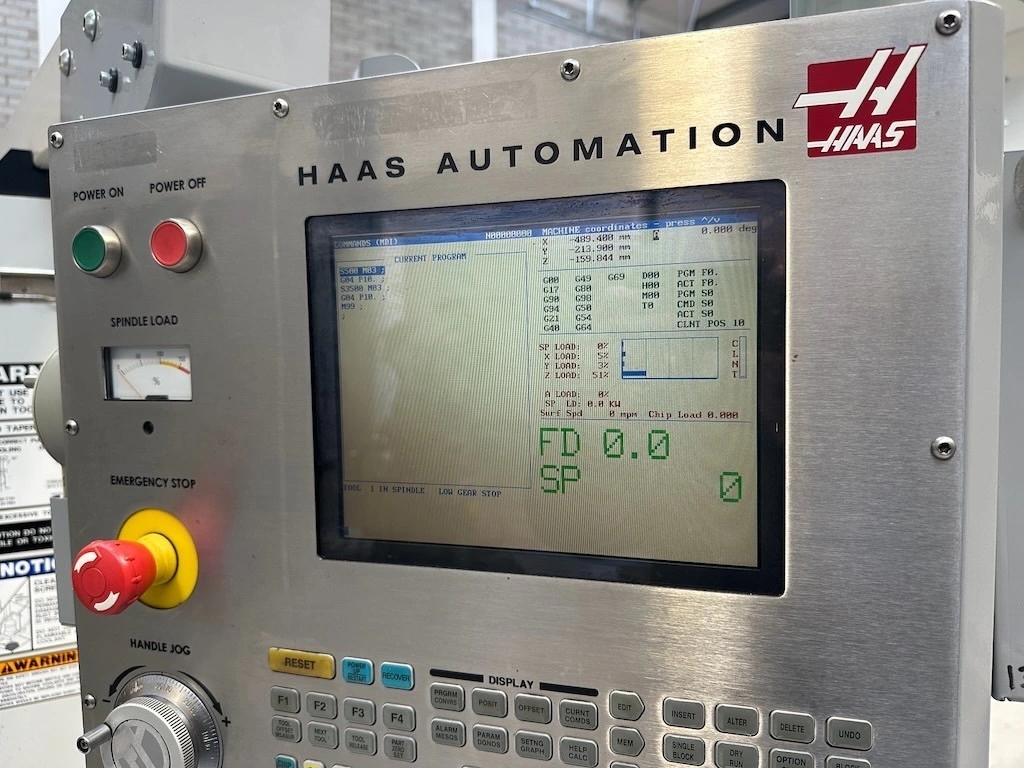

- Control
- 'HAAS'
- Weight
- 5600 kg
- X
- 1,015 mm
- Y
- 507 mm
- Z
- 635 mm
- Power
- 14.9 kW
- RPM
- 8100.0 rpm
- # ATC
- 20.0
- Taper
- CAT 40
- Table-W
- 1,193 mm
- Table-L
- 457 mm
- # Axis
- 4.0
