1 / 40About this machine

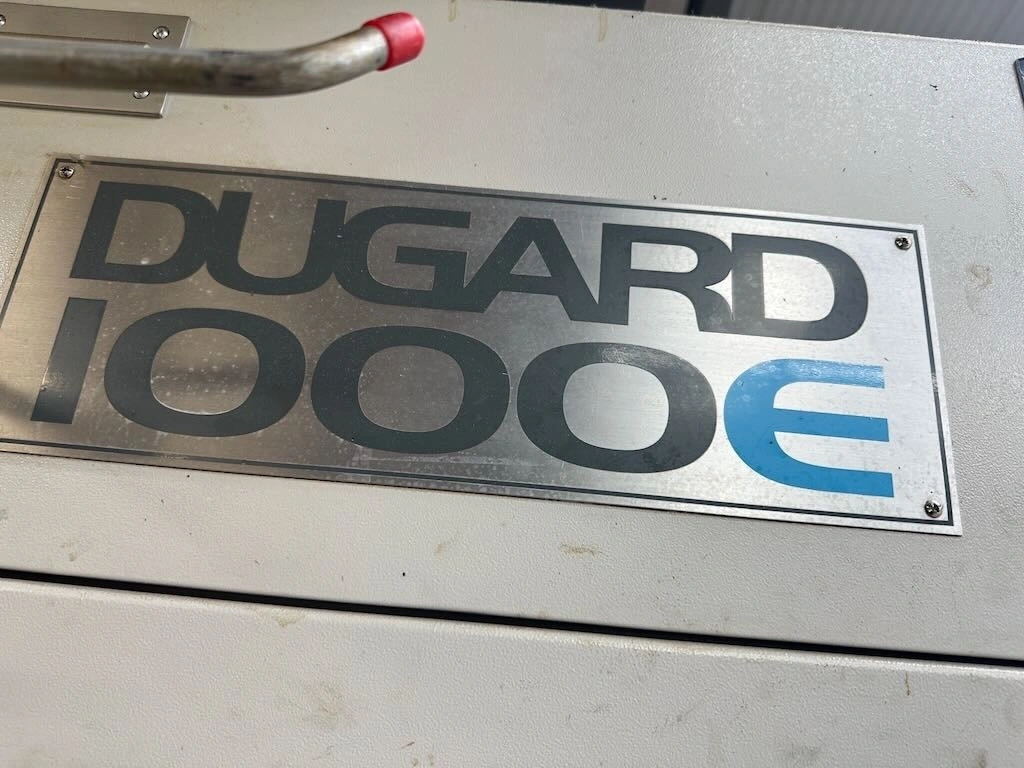

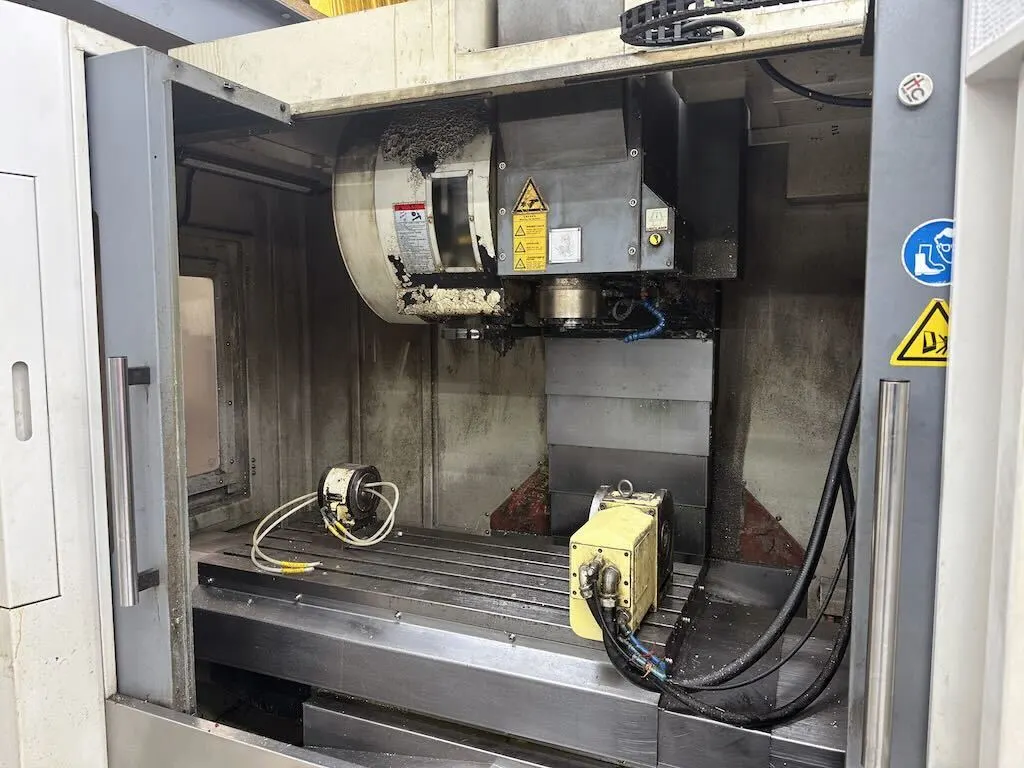

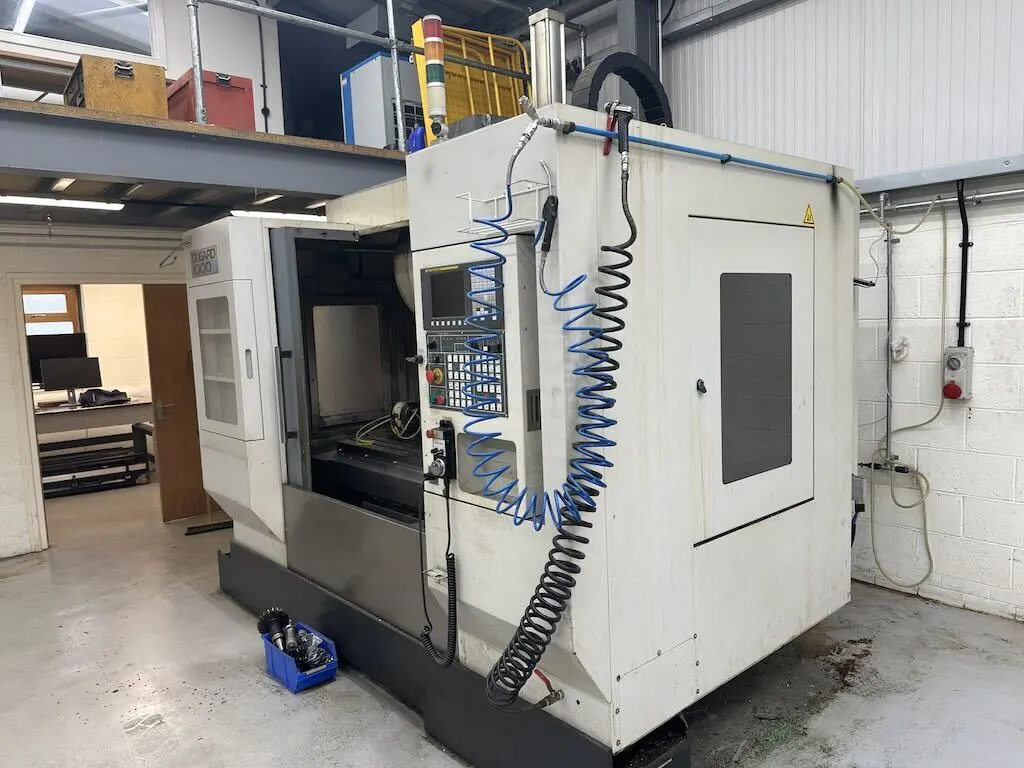

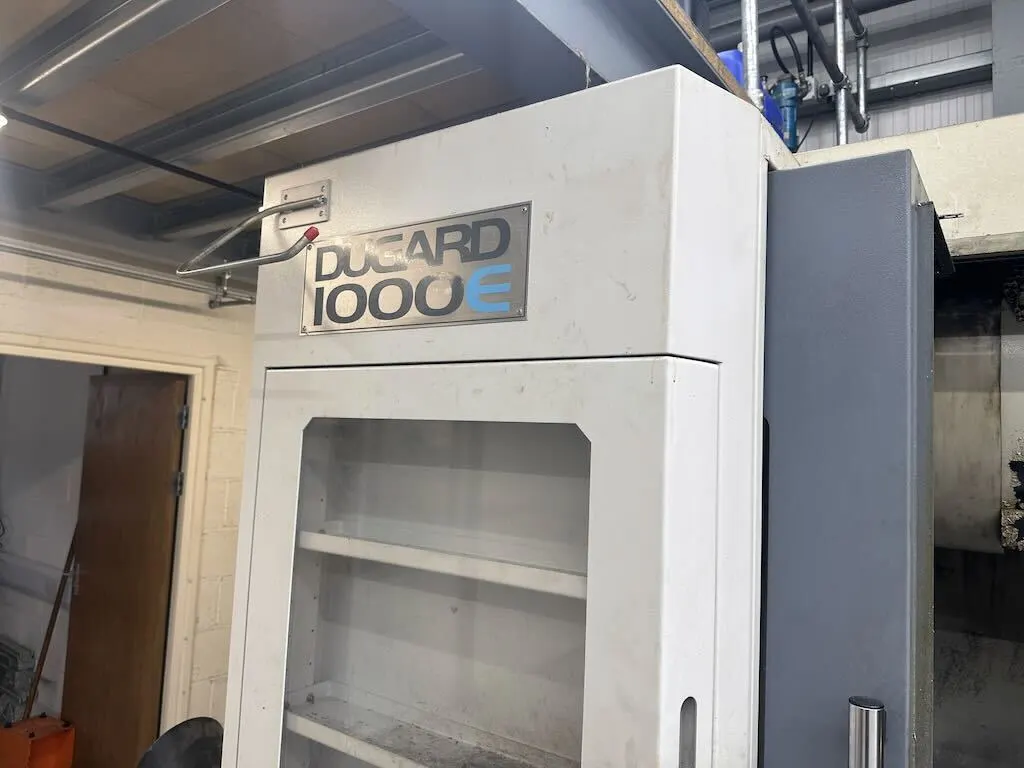

High-performance Dugard 1000E VMC featuring rigid cast-iron construction, fully enclosed guarding, and Fanuc Oi‑MD CNC control. This 3-axis machine offers a large work envelope (X 1,050 × Y 540 × Z 560 mm) and a robust 1,300 kg table load, ideal for precision milling and heavy production work. Equipped with a BT40 spindle (up to 10,000 rpm, 11–15 kW), 24-station automatic tool changer, and a Nikken 4th axis, this machine is perfect for complex, multi-sided machining. Supplied with a full tooling package and manuals, ready for production.
Full spec sheet

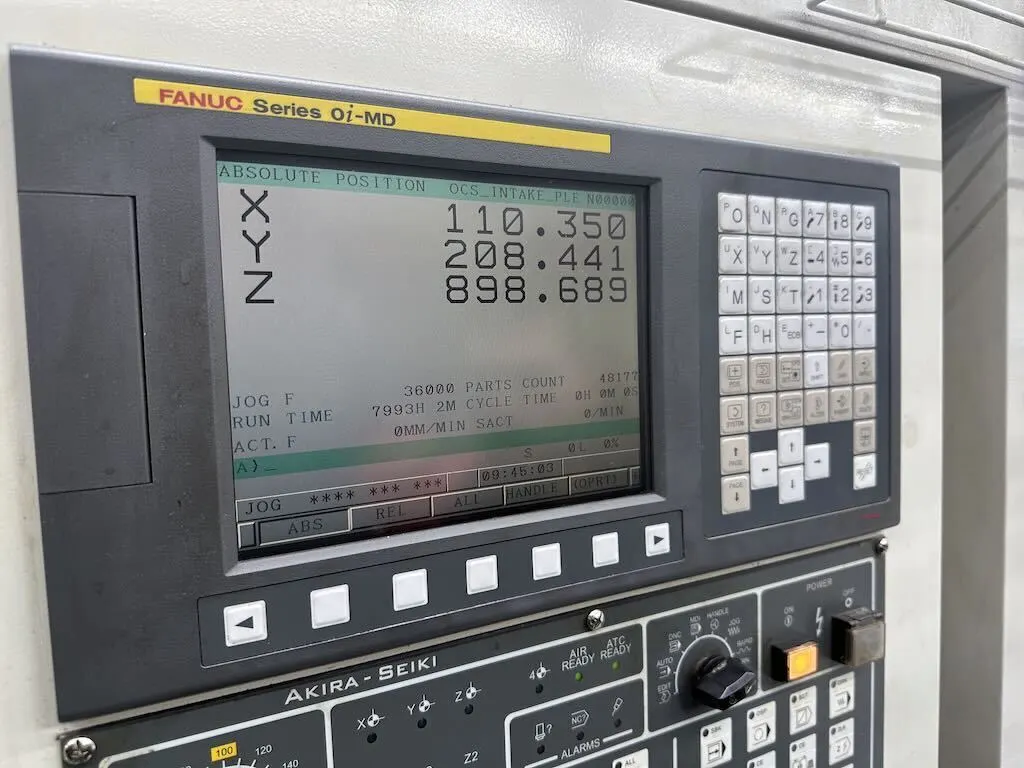

CNC Control: Fanuc Series Oi‑MD
Machine Type
3‑Axis Vertical Machining Centre (VMC)
Rigid cast‑iron construction, fully enclosed guarding
Travels & Work Envelope
X‑axis travel: 1,050 mm
Y‑axis travel: 540 mm
Z‑axis travel: 560 mm
Table size: 1,200 × 480 mm
Maximum table load: approx. 1,300 kg

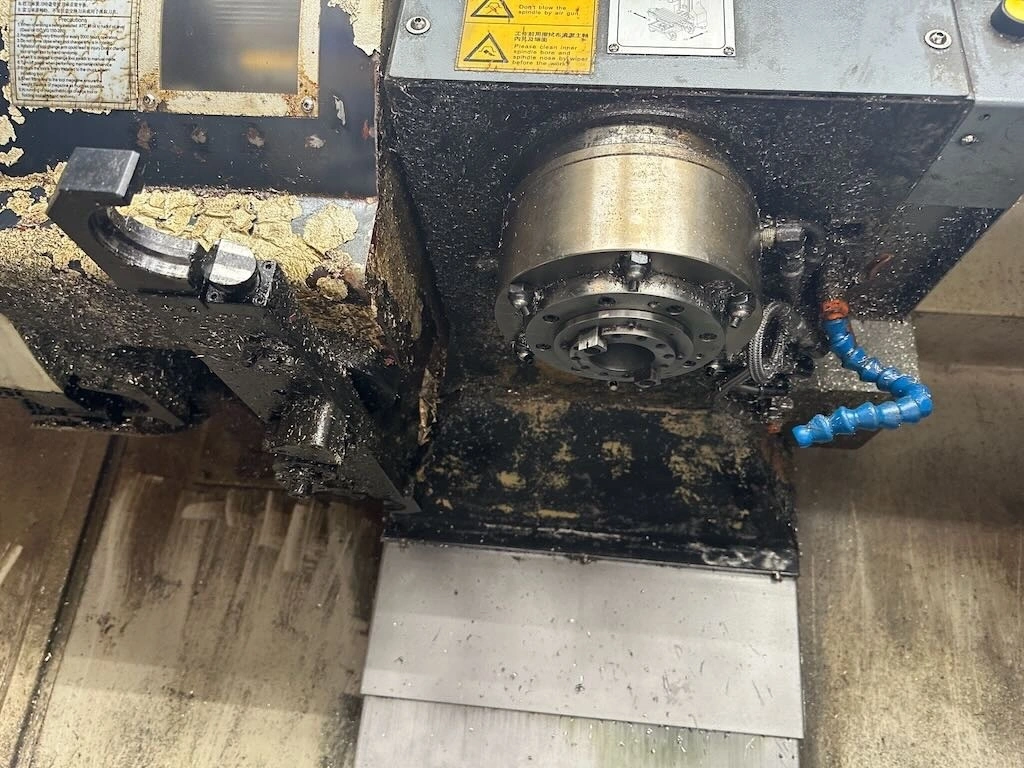

Spindle

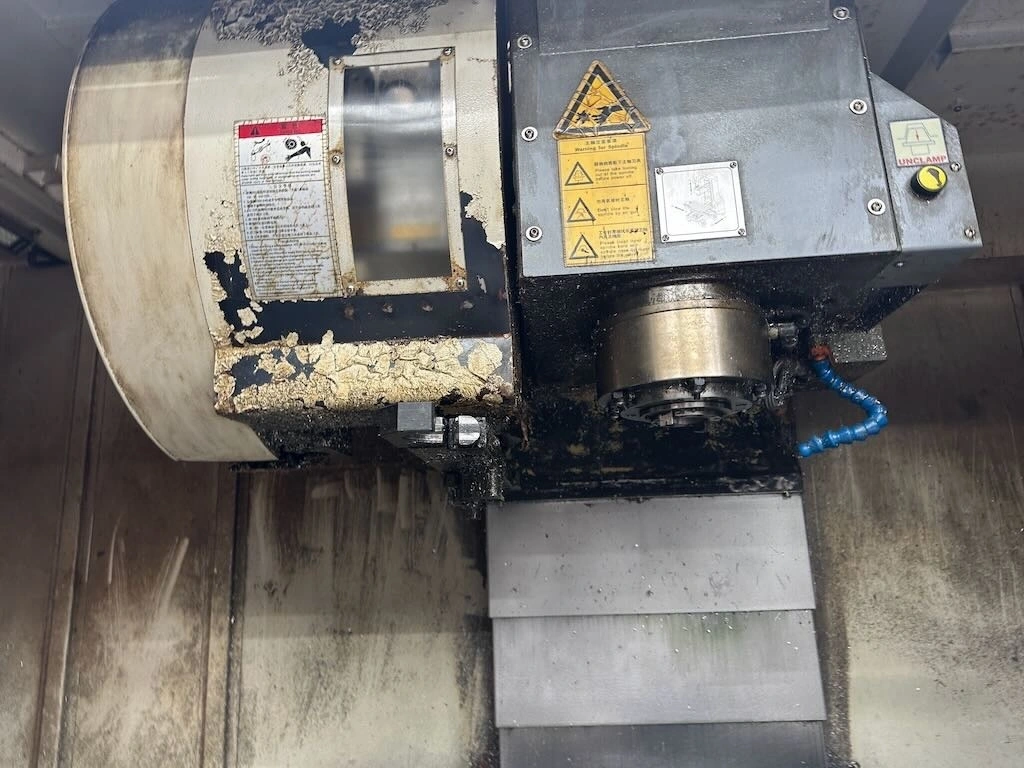

Spindle taper: BT40
Max speed: up to 10,000 rpm
Spindle motor: approx. 11–15 kW (typical for model)
Feeds & Rapid Rates
Rapid traverse (X/Y): ~32 m/min
Rapid traverse (Z): ~24 m/min
Cutting feed: approx. 10 m/min
Tool Changer
Automatic Tool Changer: 24‑station drum type
Max tool diameter (typical): up to ~75–80 mm
Max tool length: ~210–250 mm (typical)
Capacities & Dimensions
Max workpiece weight: ~1,300 kg
Machine weight: approx. 6,600 kg
Footprint (approx): 3,300 × 2,280 mm

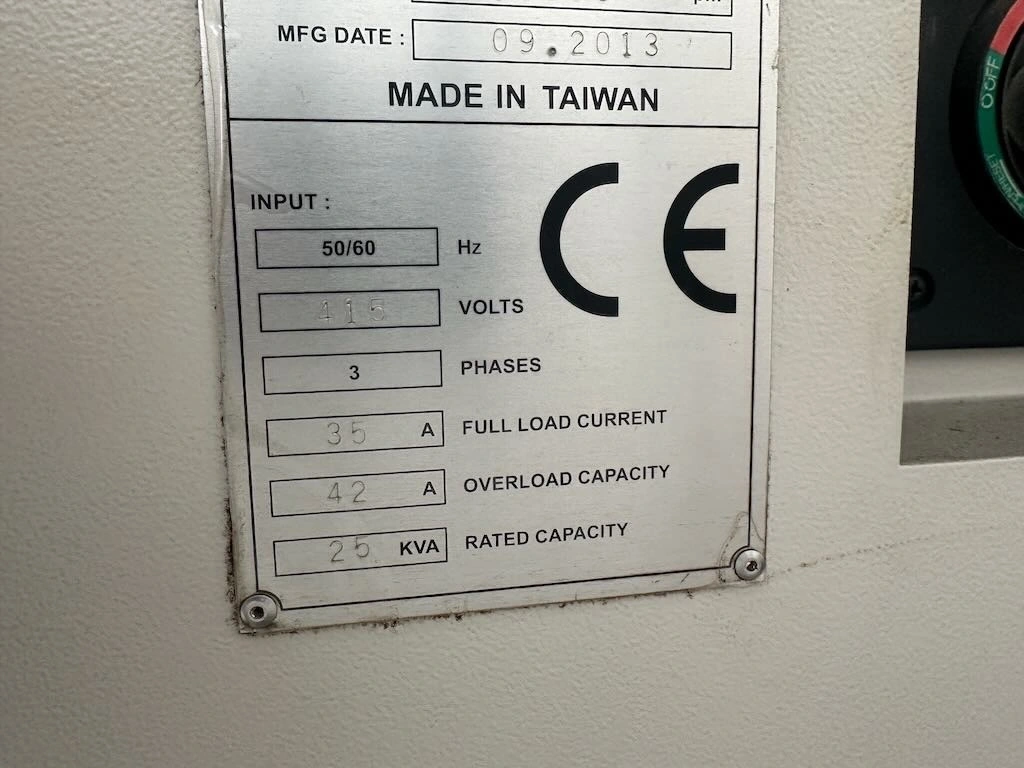

Power supply: 400 V three‑phase
Additional Features

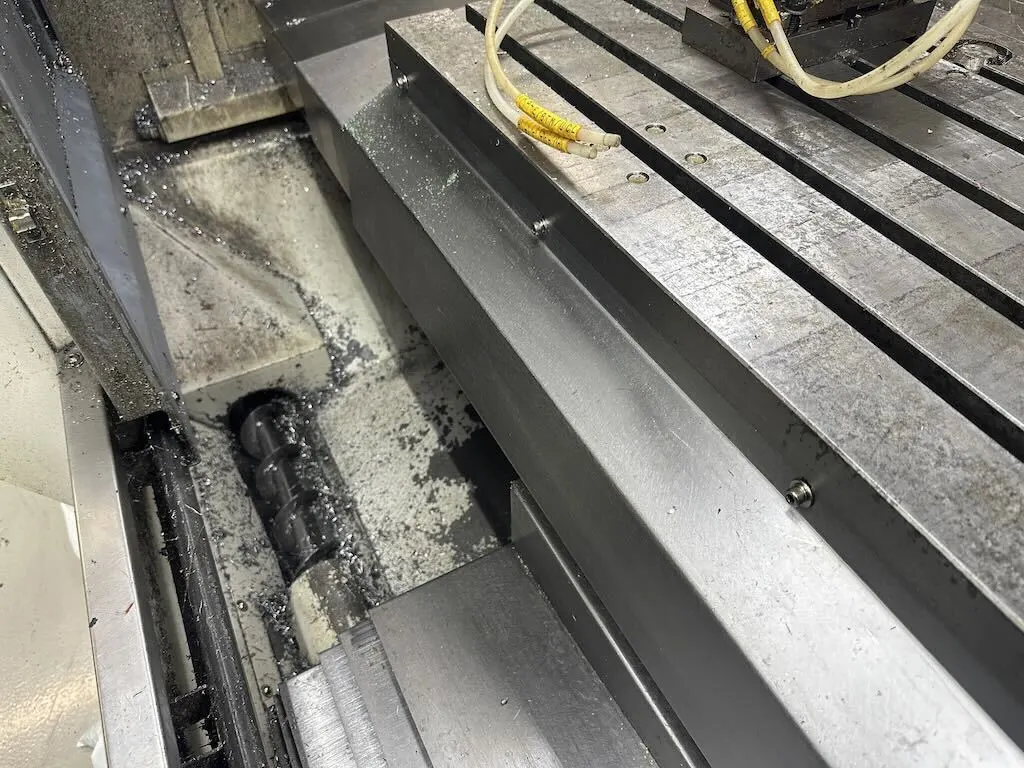

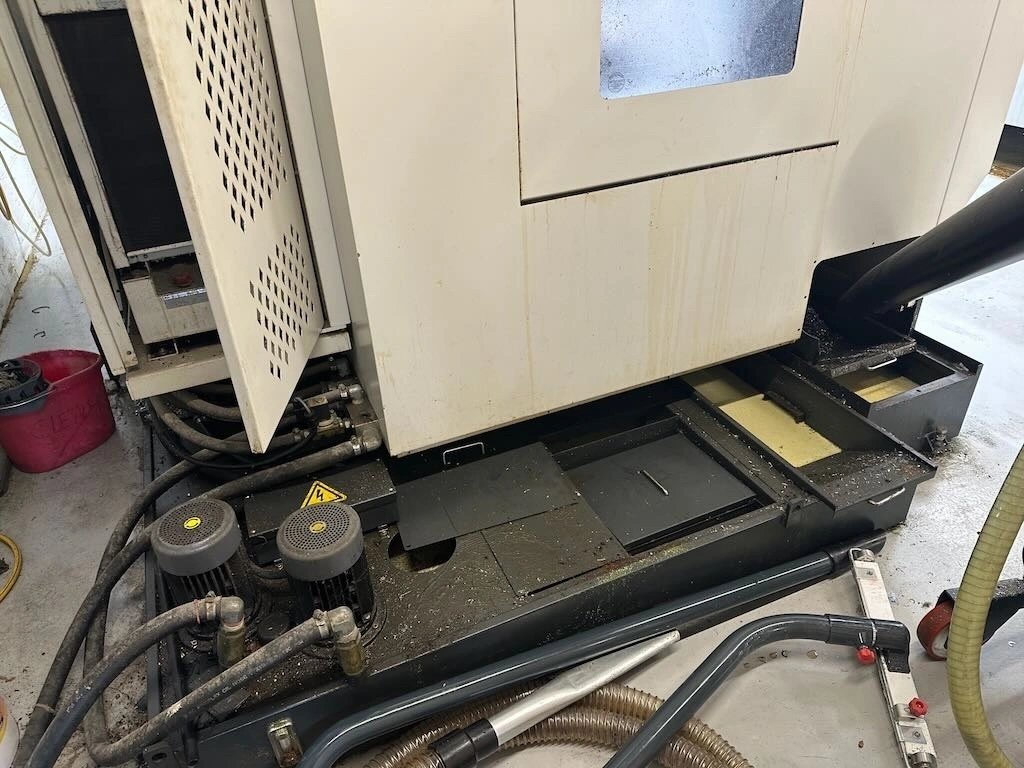

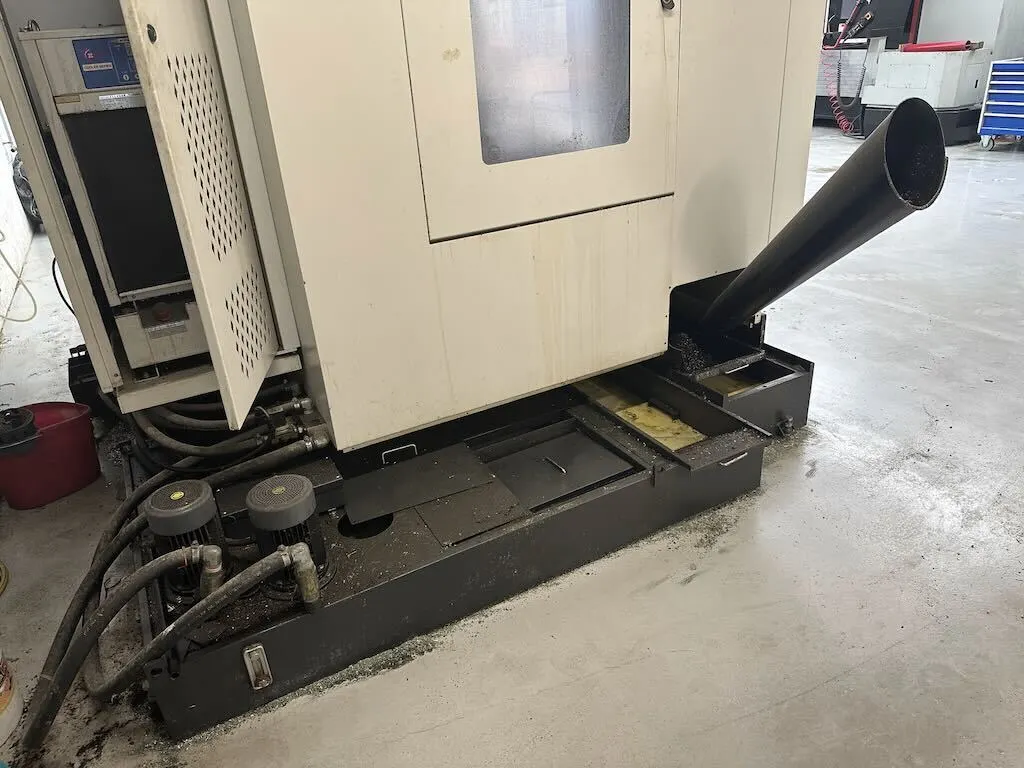

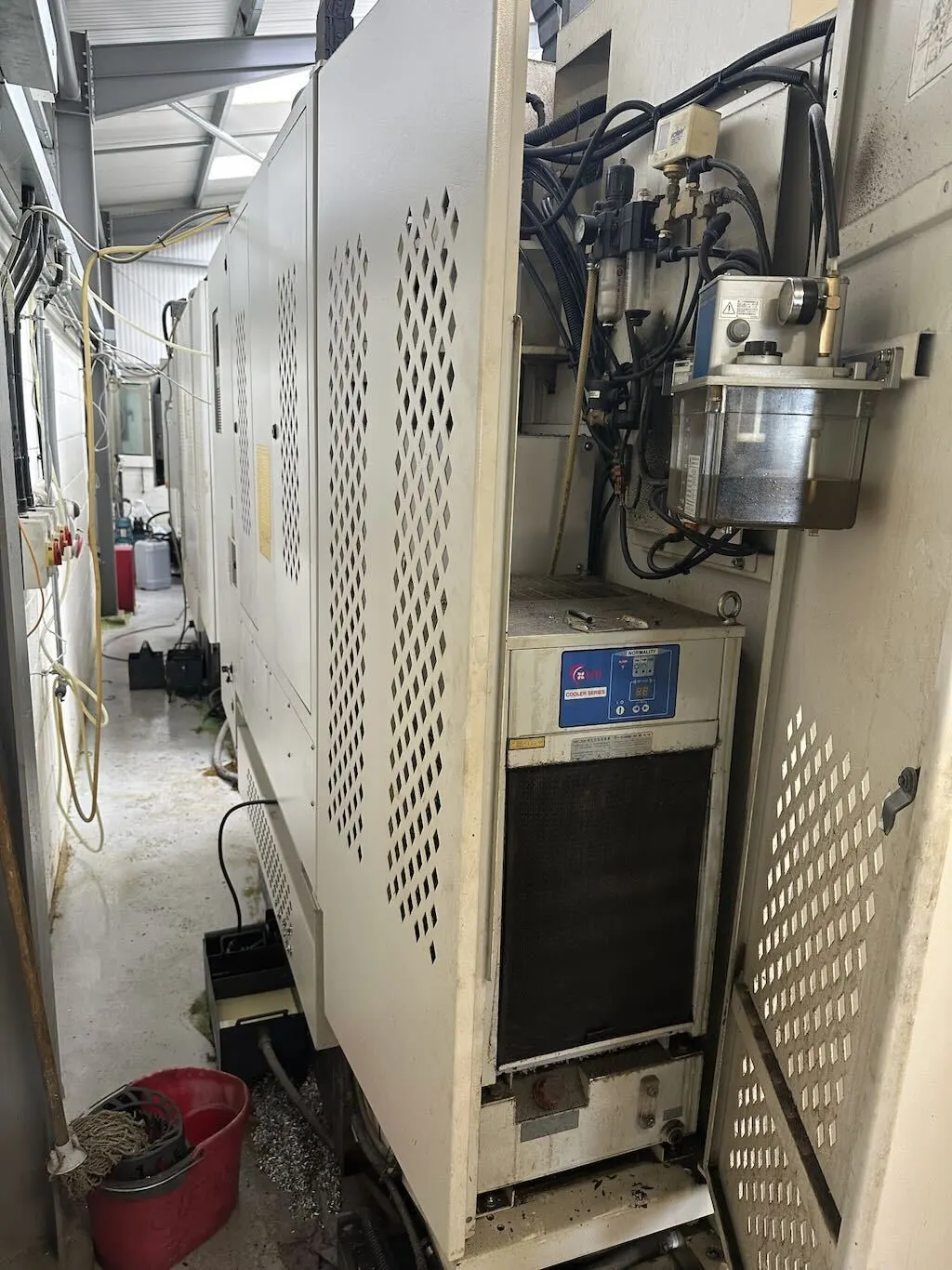

High‑power coolant system & chip auger

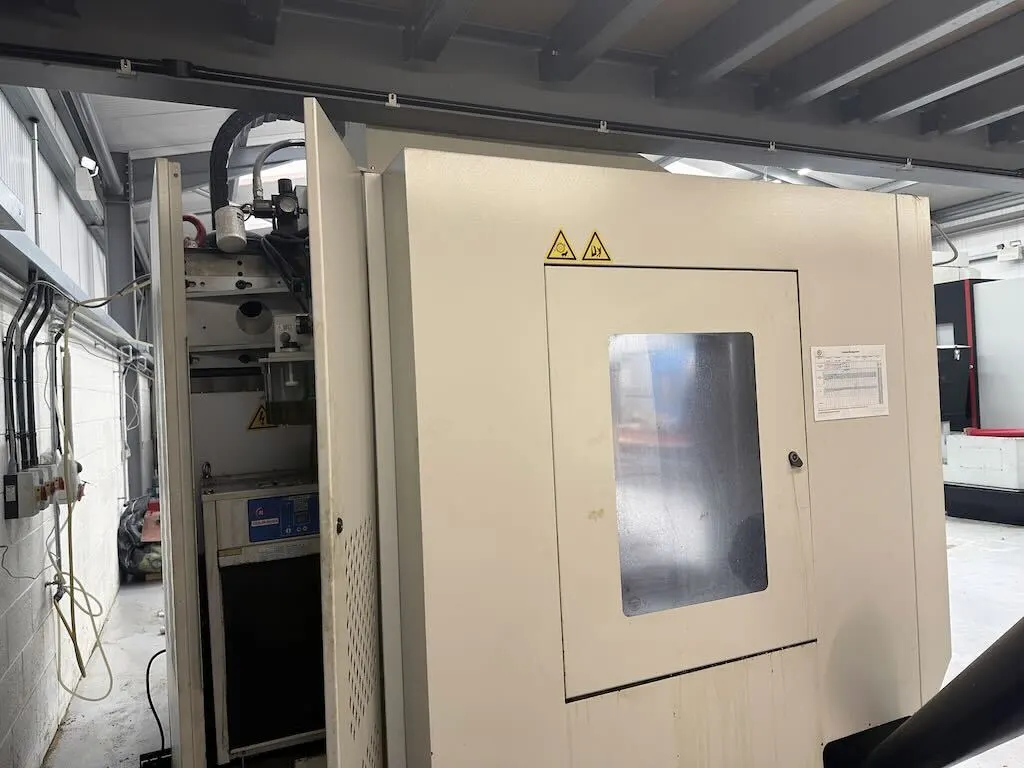

Fully enclosed guarding for safe CNC operation

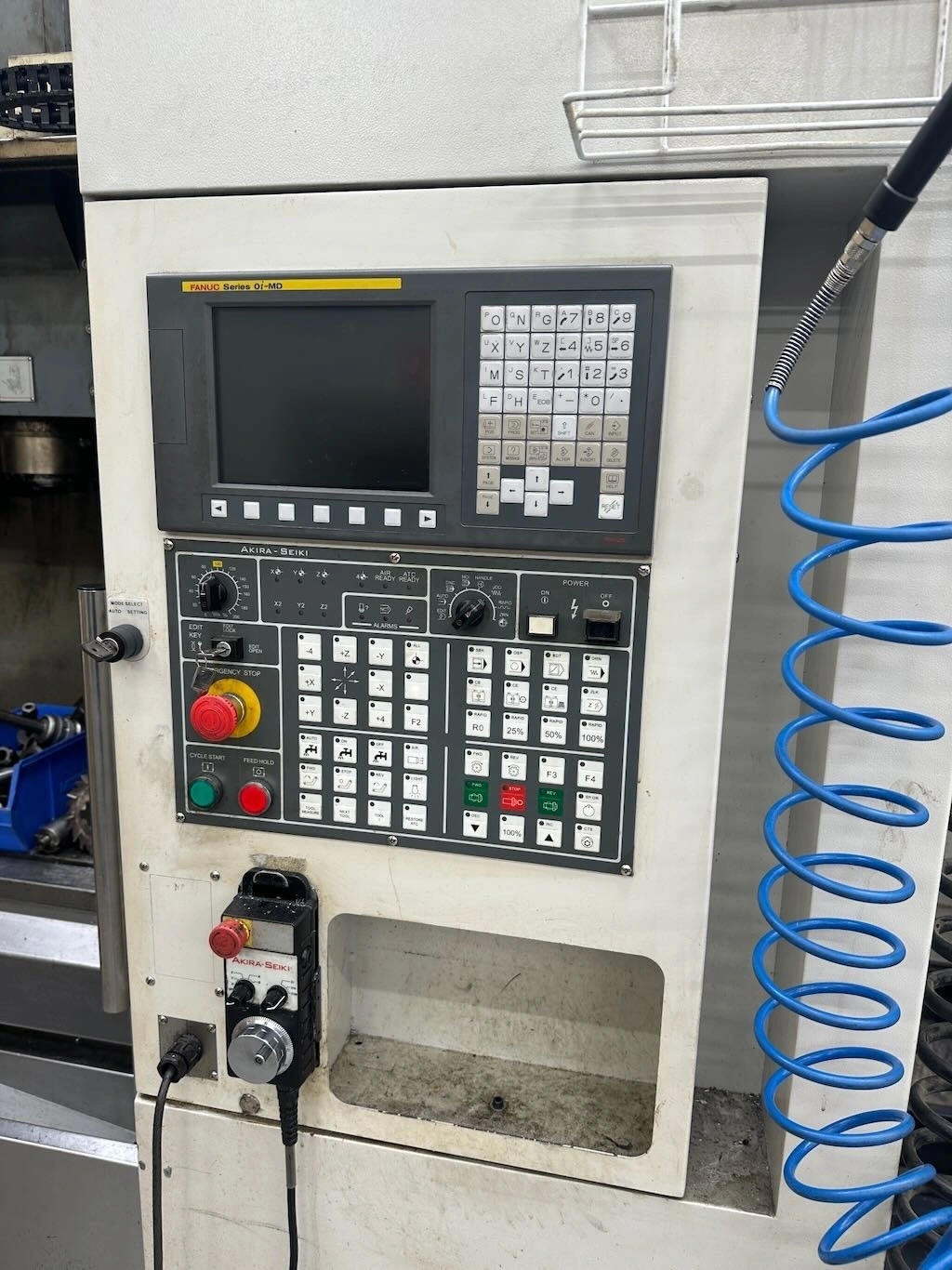

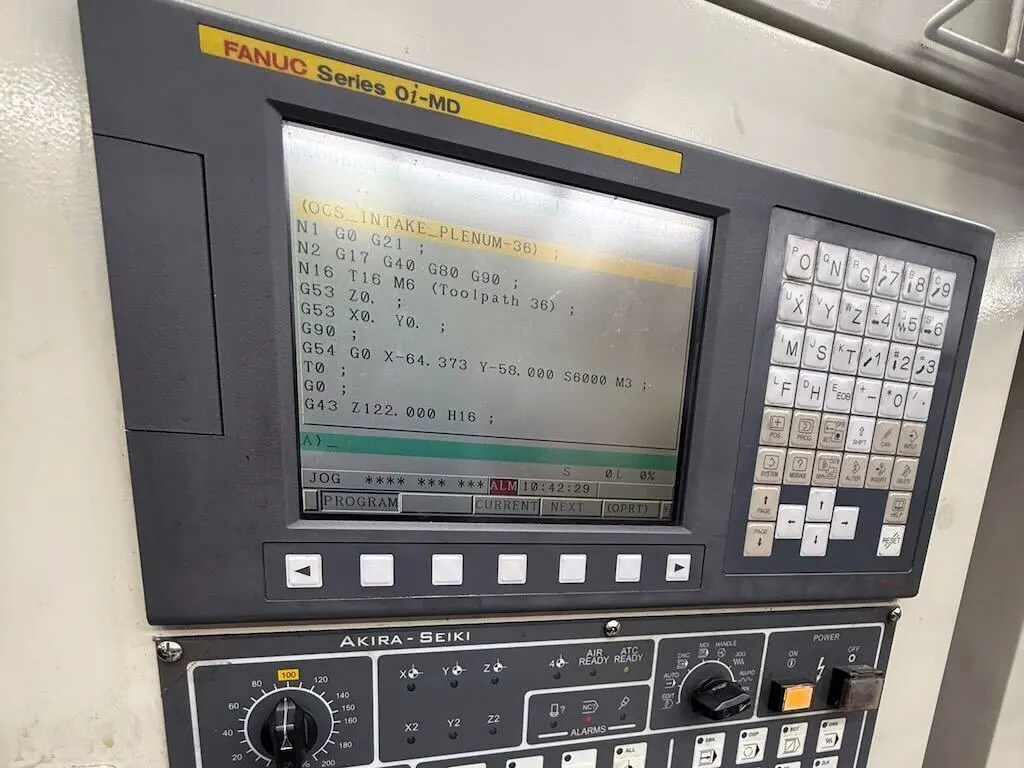

Fanuc Oi‑MD with colour display and flash card support

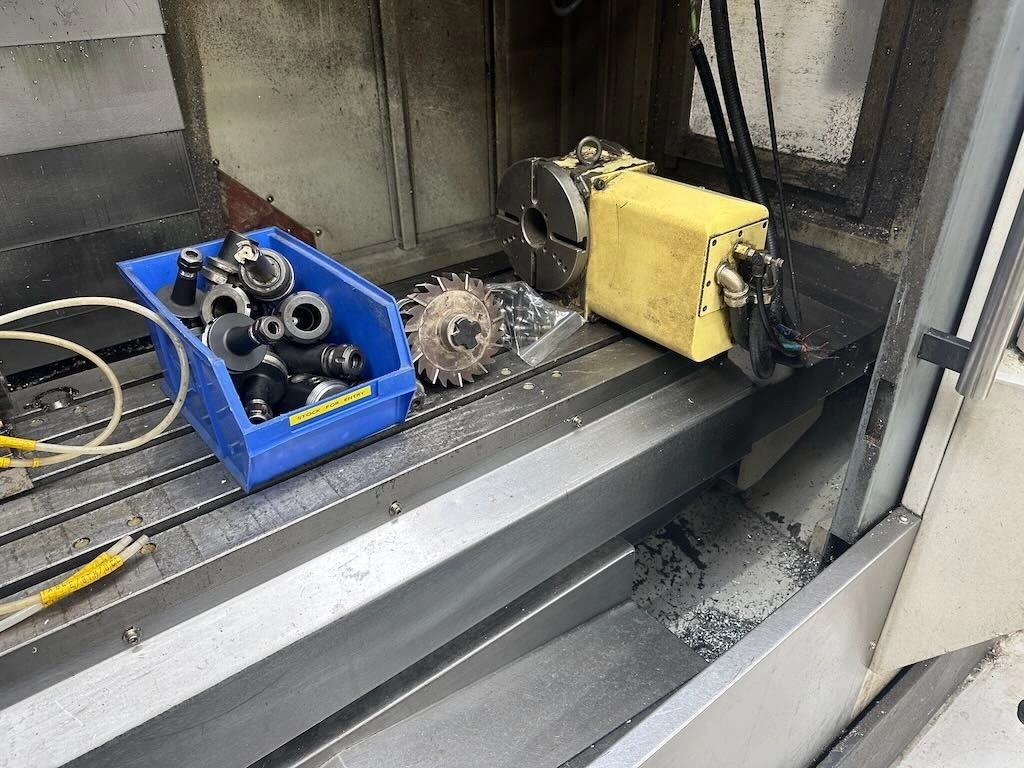

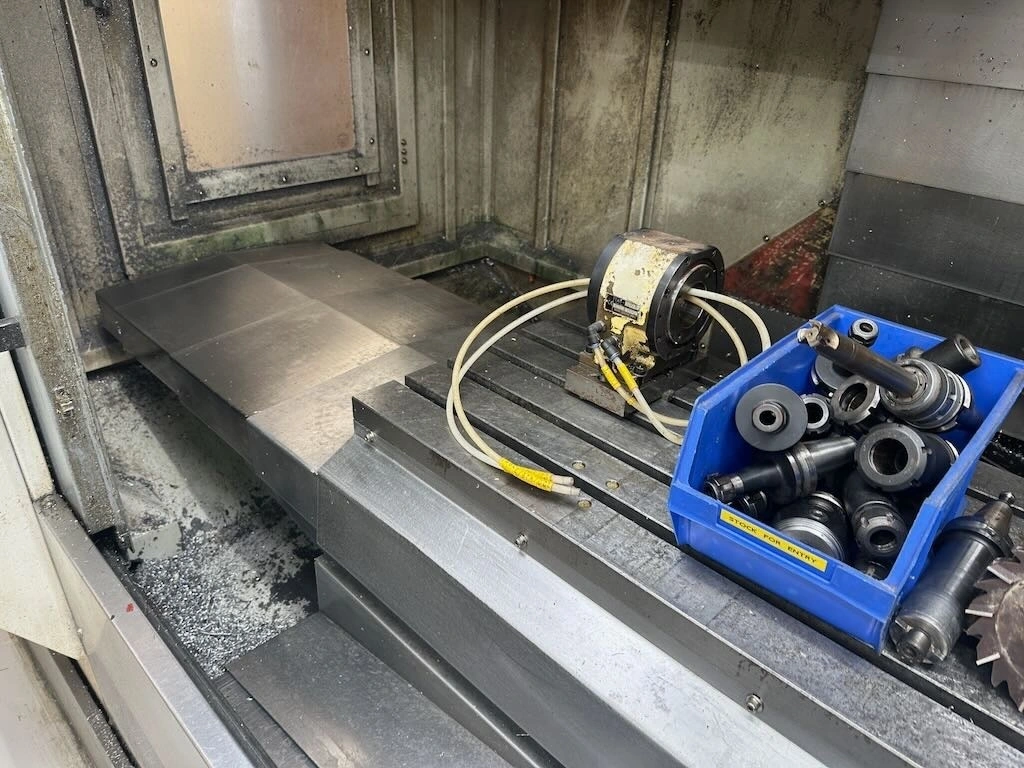

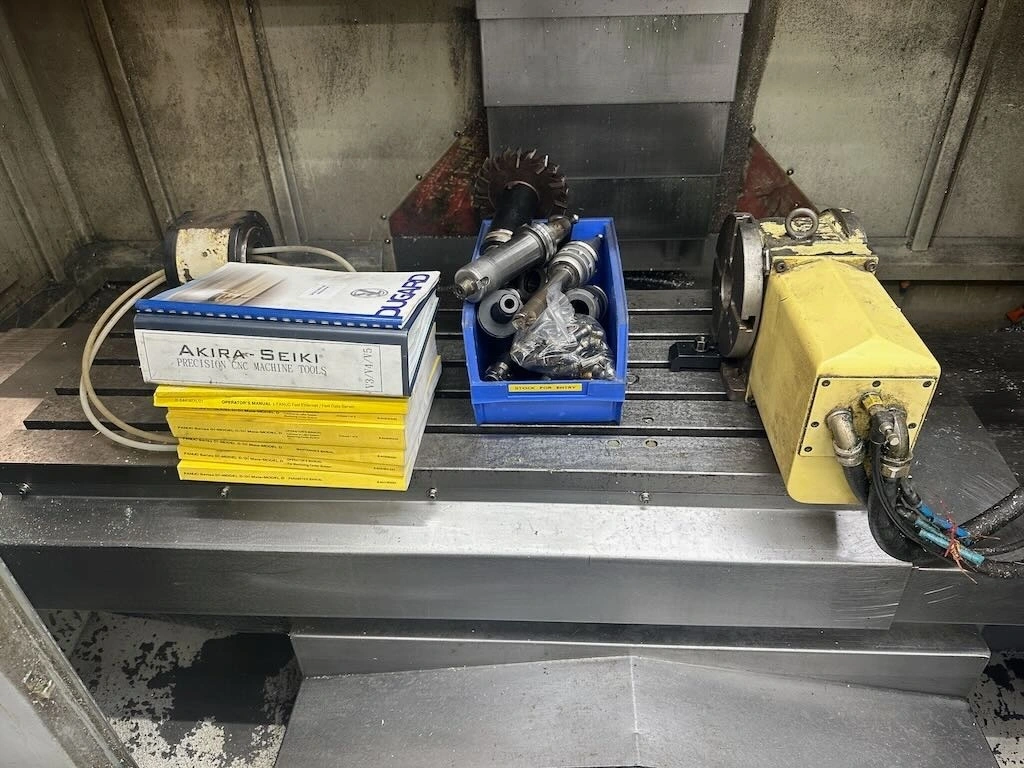

BT40 Tooling Package

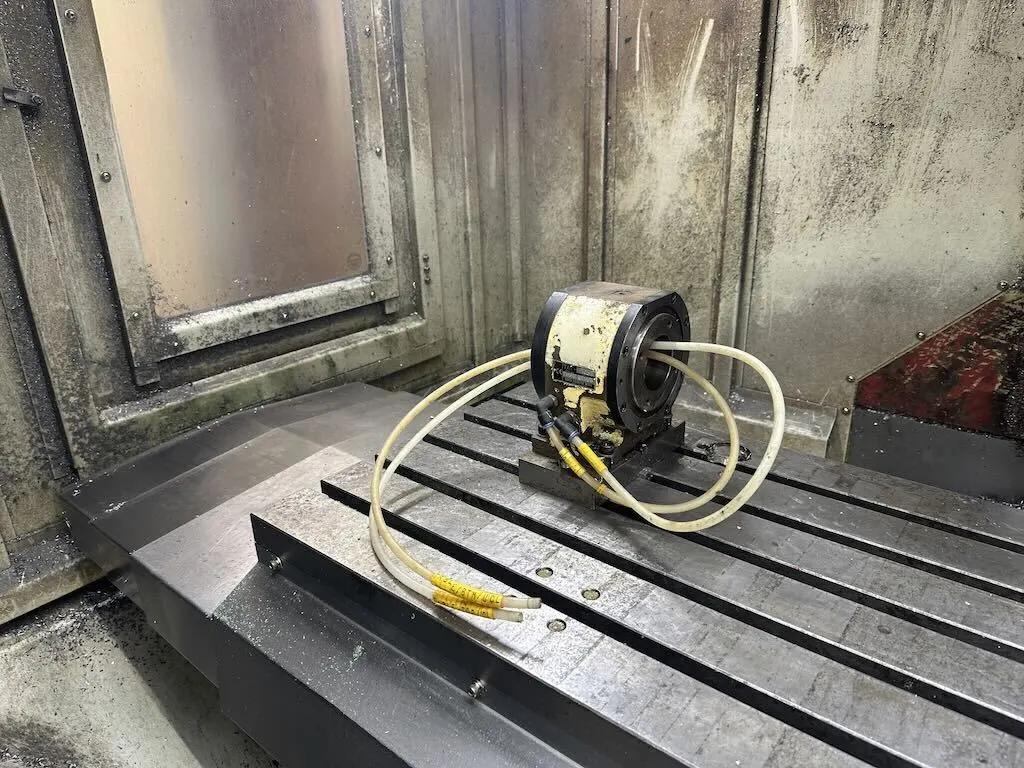

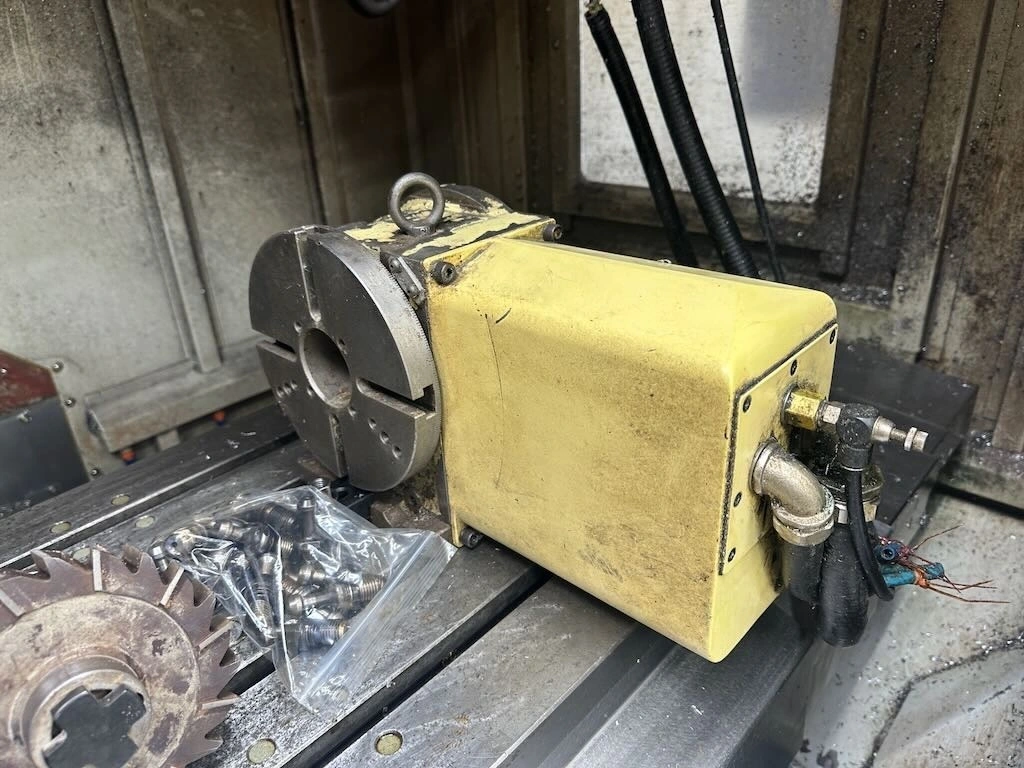

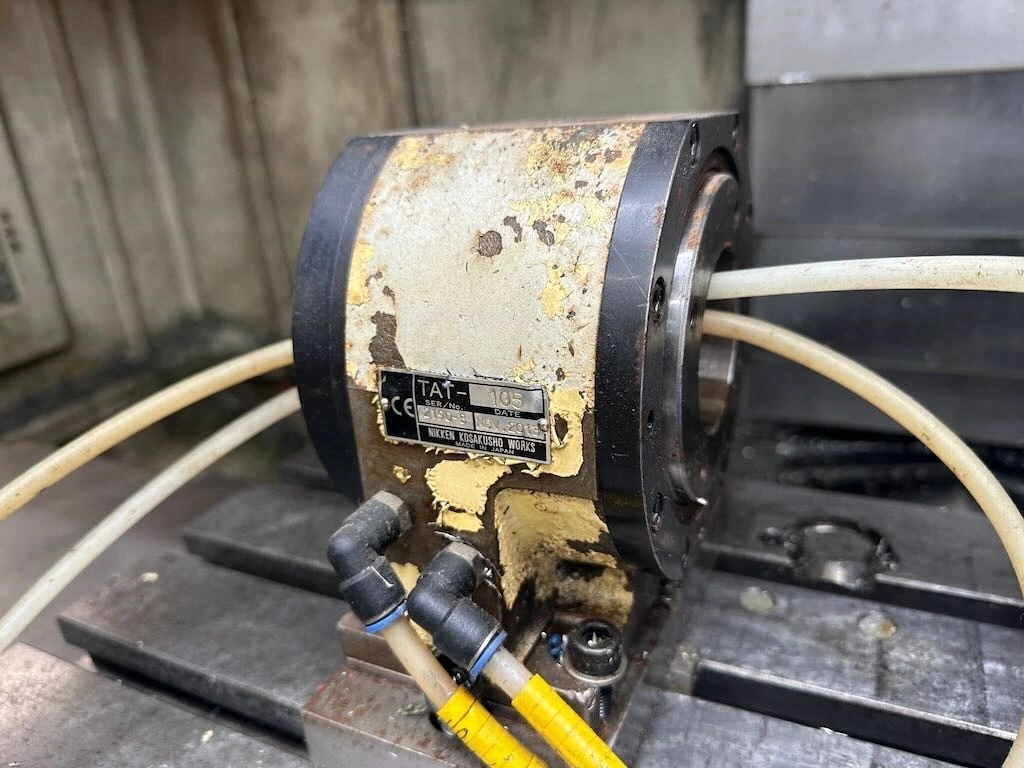

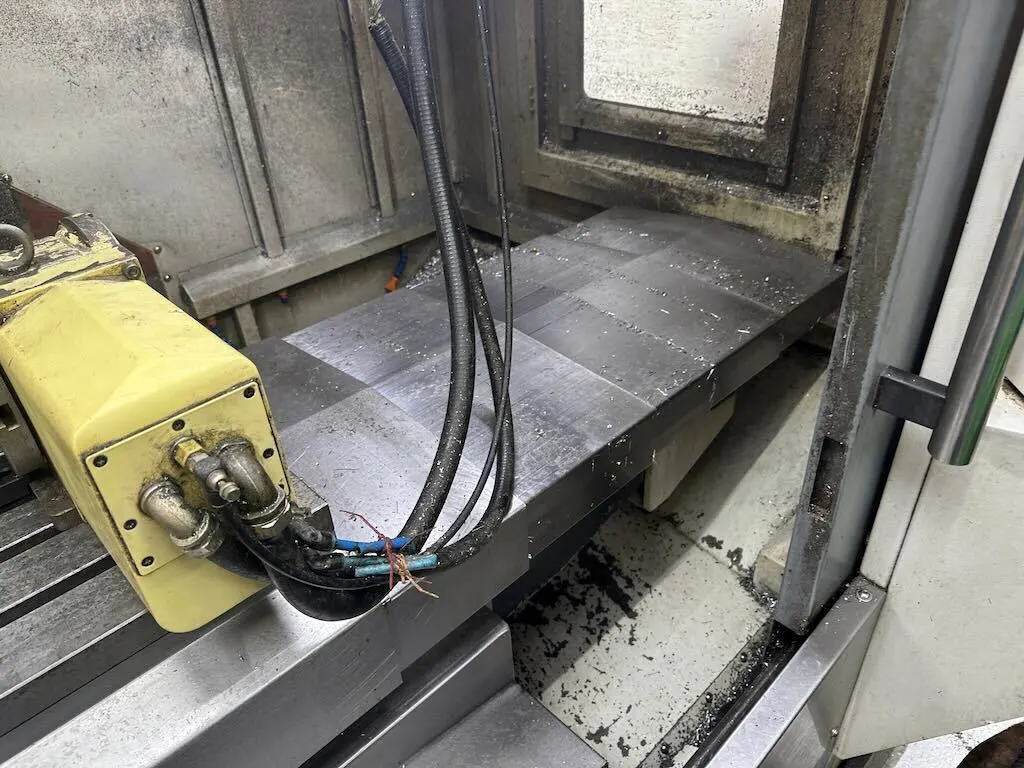

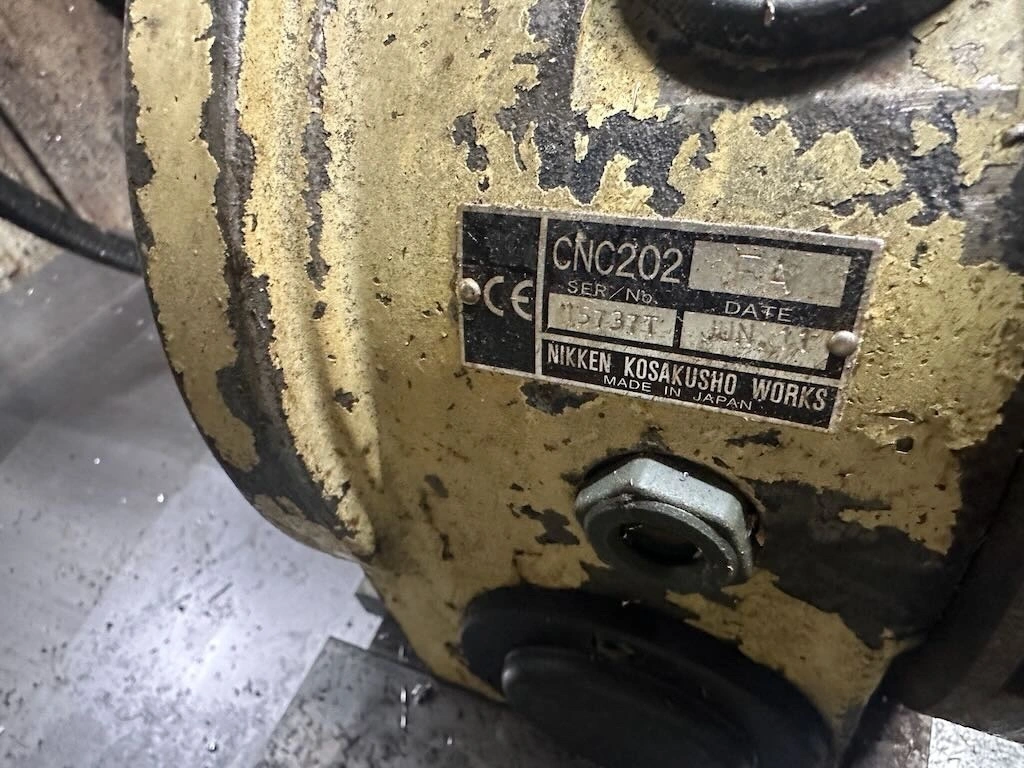

Nikken 4th Axis

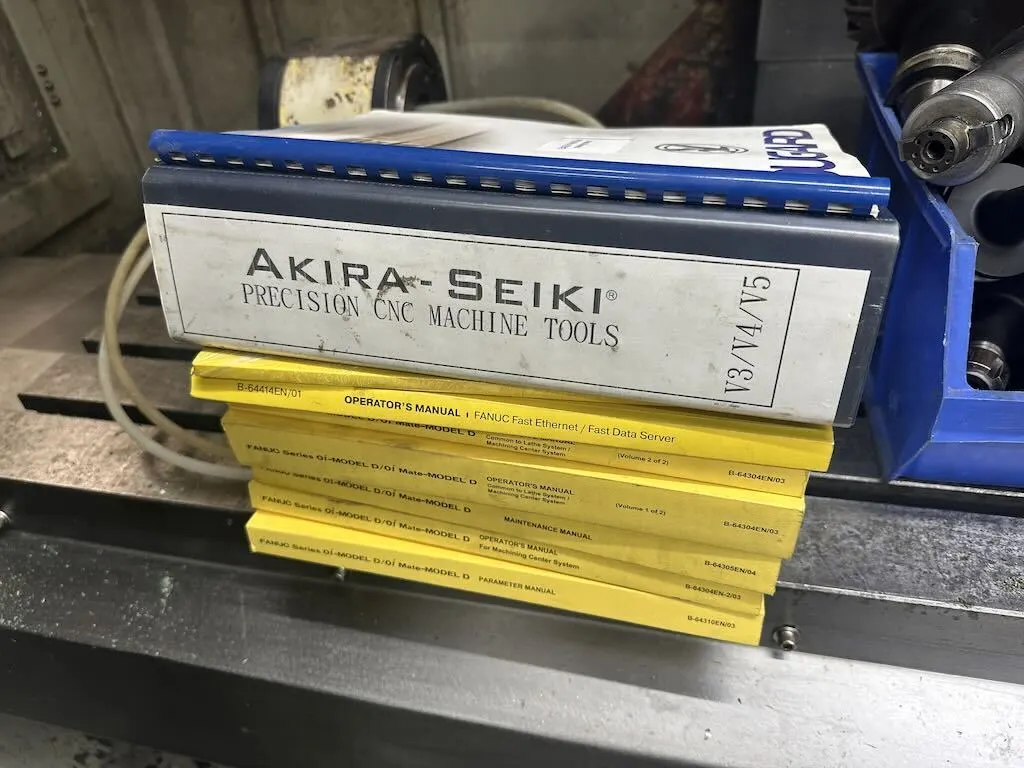

Manuals
Specs given in good faith. Please verify on inspection.
Specifications
- Weight
- 6600kg
- Dimensions
- 3300mm × 2280 mm
- X
- 1,050 mm
- Y
- 540 mm
- Z
- 560 mm
- Power
- 15 kW
- RPM
- 10000.0 rpm
- # ATC
- 24.0
- Taper
- BT40
- Table-W
- 480 mm
- Table-L
- 1,200 mm
- # Axis
- 3.0
