1 / 41About this machine
Key features
- Hi-Pressure Through-spindle coolant • Parts catcher and conveyor • LNS FOX2000 Filtermist unit • Tooling package • Full documentation and manuals

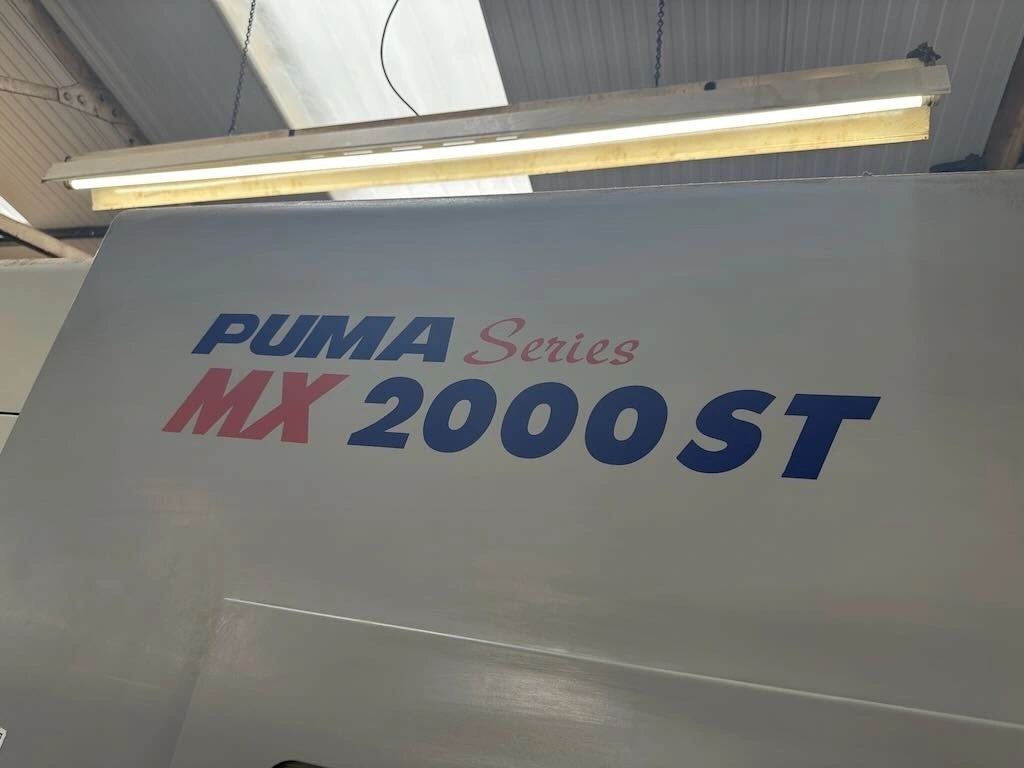

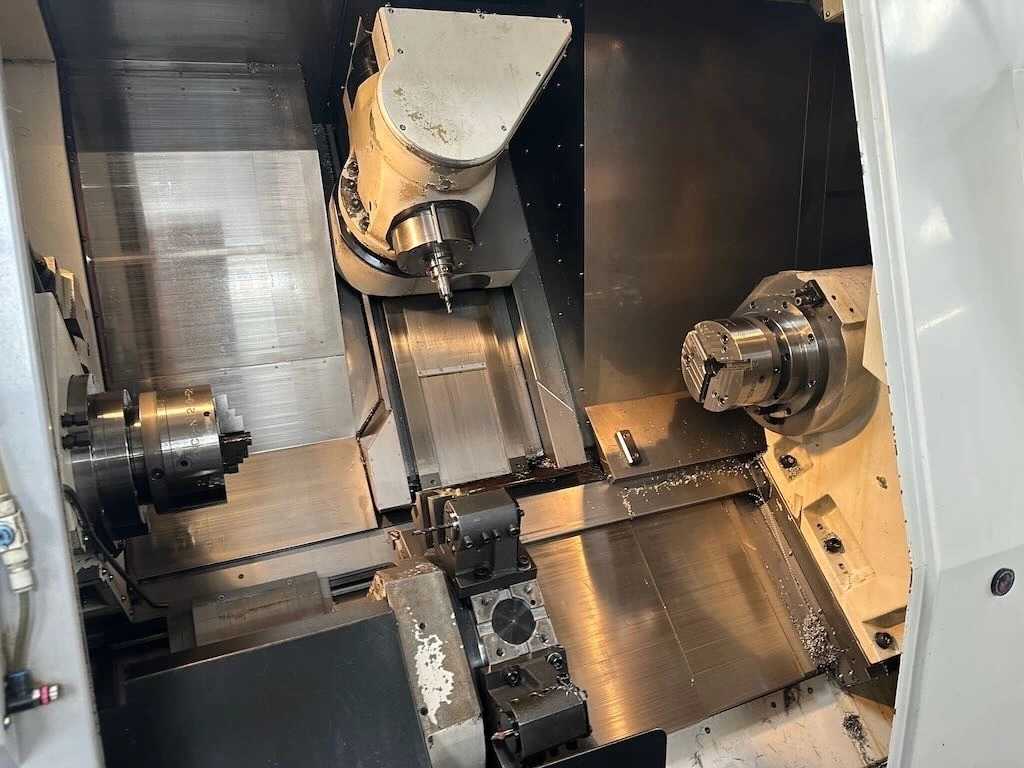

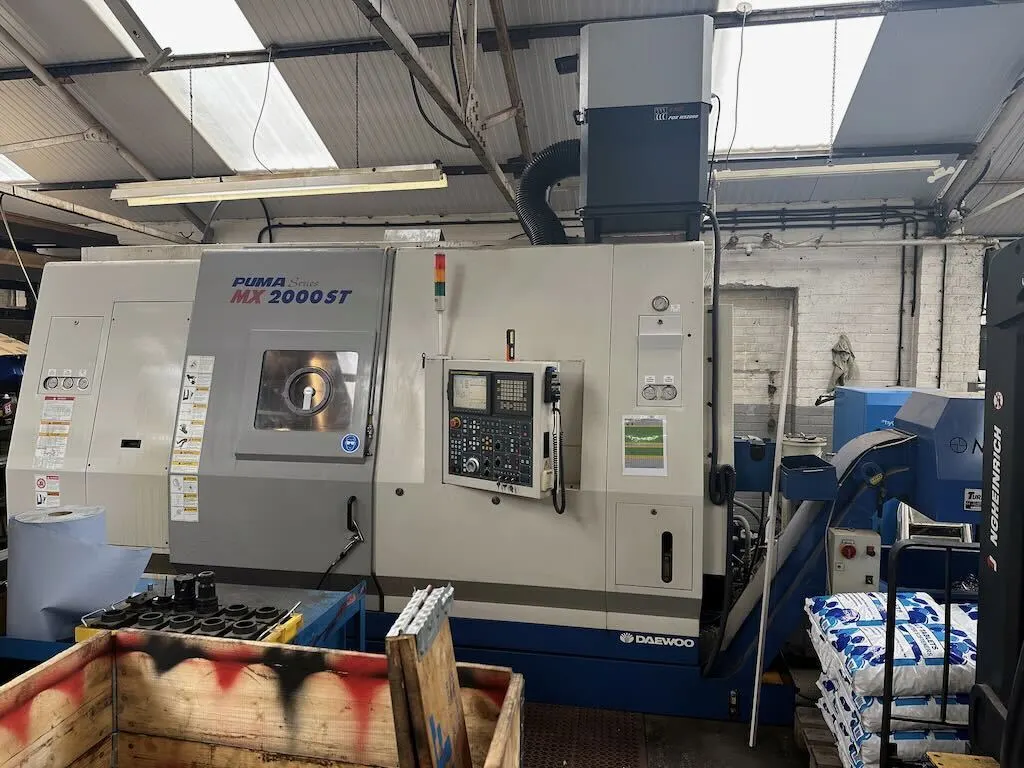

2005 Daewoo Puma MX2000ST — Multi-Axis Mill/Turn Centre The Puma MX2000ST is a powerful multi-tasking CNC centre designed to combine turning and milling operations in a single setup. Equipped with twin spindles and a lower turret, it allows simultaneous machining for improved productivity. Key features include: Twin spindles with C-axis control Maximum turning diameter approx. 550 mm, turning length approx. 1,020 mm 9 controlled axes for complex machining Live tooling with automatic tool changer Fanuc CNC control system Rigid build for accurate, heavy-duty machining A versatile solution for high-precision work, ideal for reducing setup times and handling complex components in one machine. Programmable tailstock (A-axis)
Equipped with
- Coolant
- Filtermist Unit

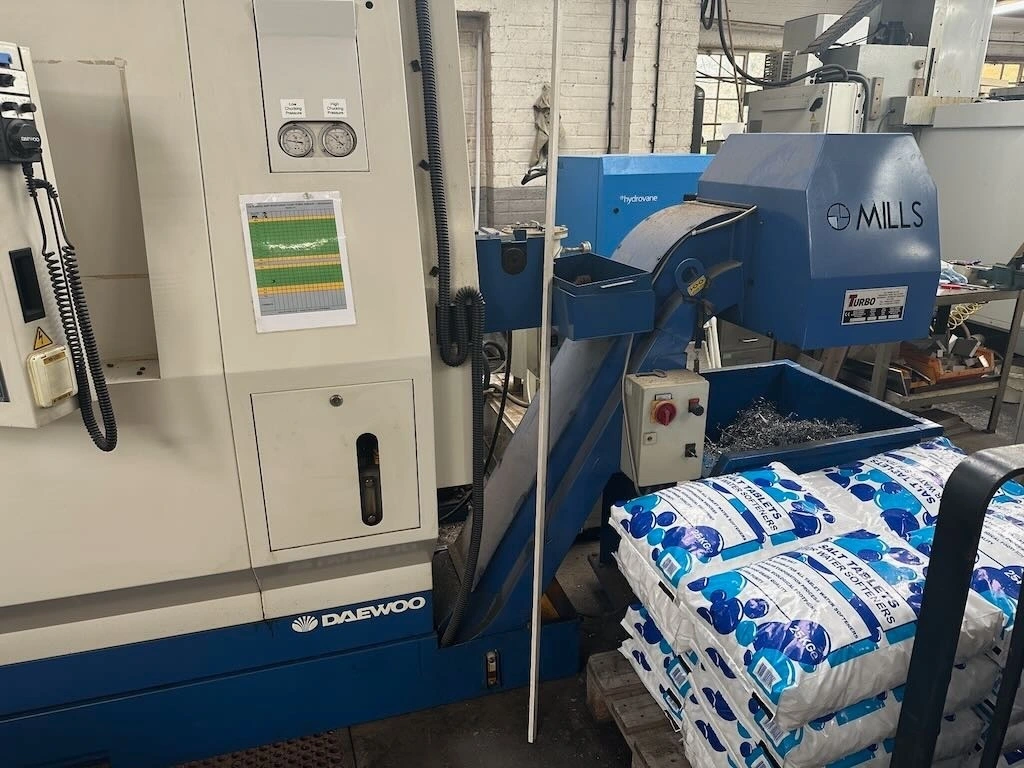

- Swarf Conveyor
- Tool Presetter
- Tooling Package
Full spec sheet

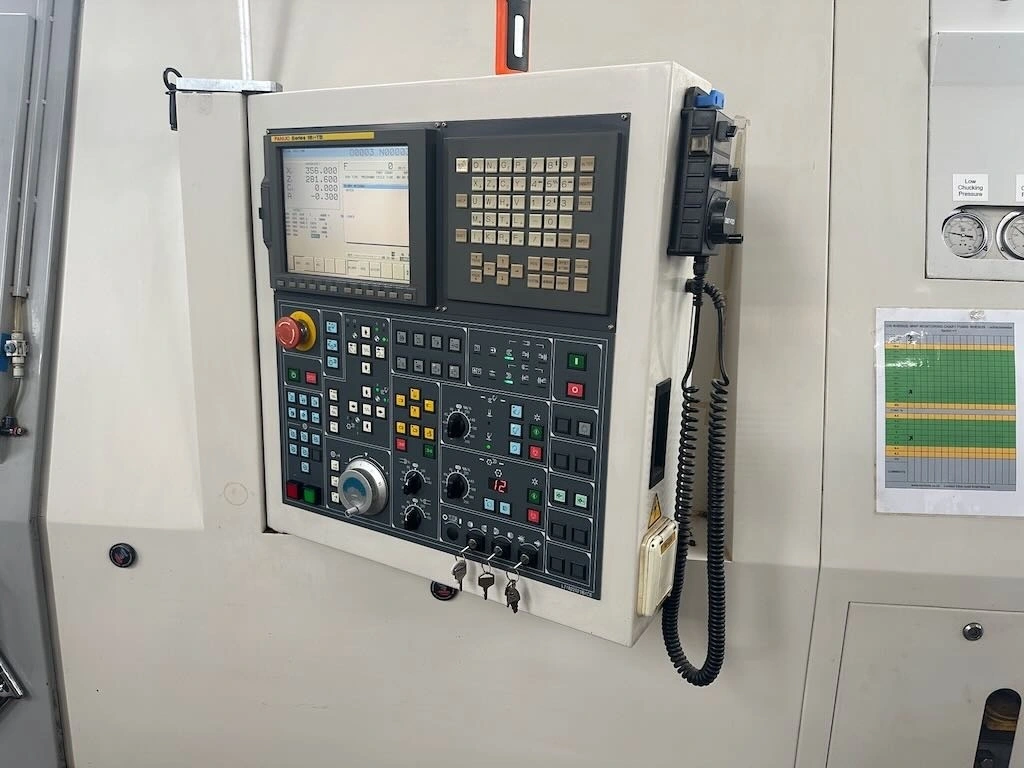

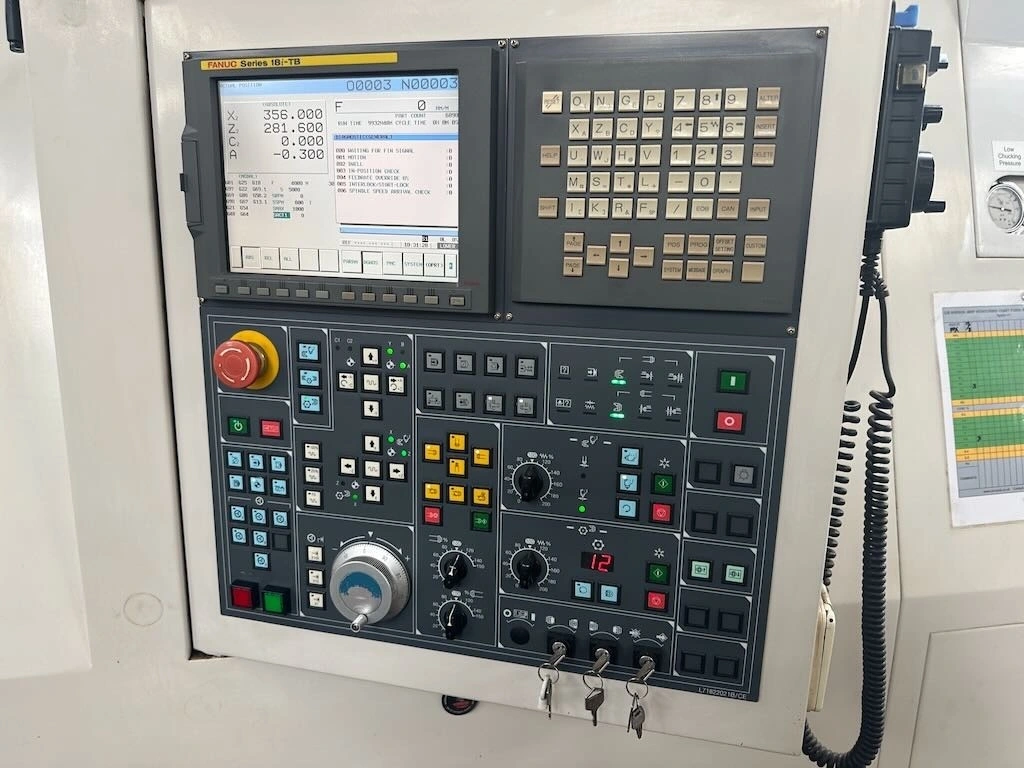

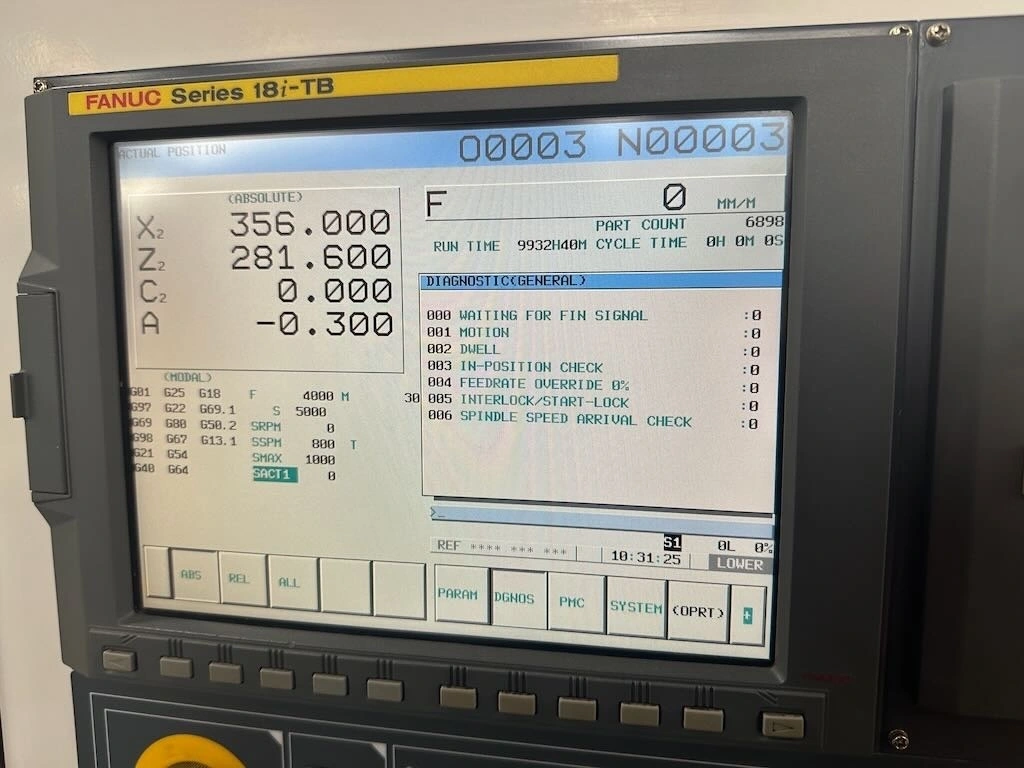

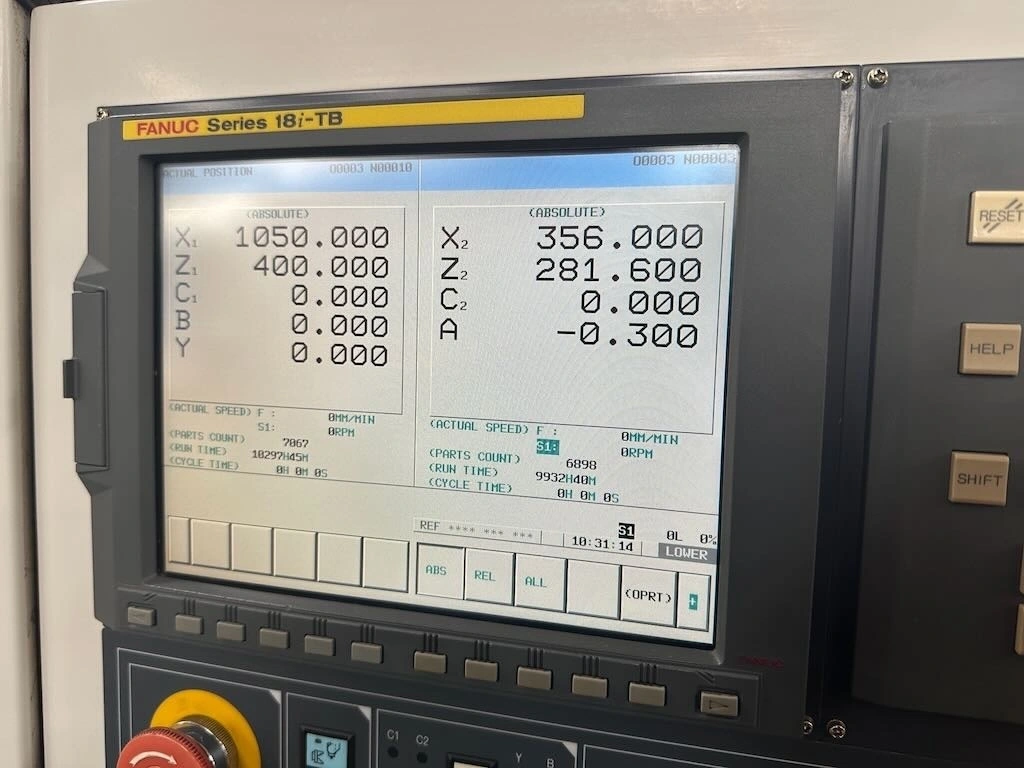

Fanuc 18i-TB CNC control
Axis Configuration
8-axis plus A-axis programmable tailstock
X1/Z1 travel (main spindle): approx. 555 mm × 1,095 mm
X2/Z2 travel (sub spindle / lower turret): approx. 185 mm × 1,095 mm
Y-axis travel: ±80 mm
B-axis indexing: ±120°
C-axes (main & sub spindle): 360° indexing, 0.001° resolution
A-axis: programmable tailstock with approx. 1,065 mm stroke

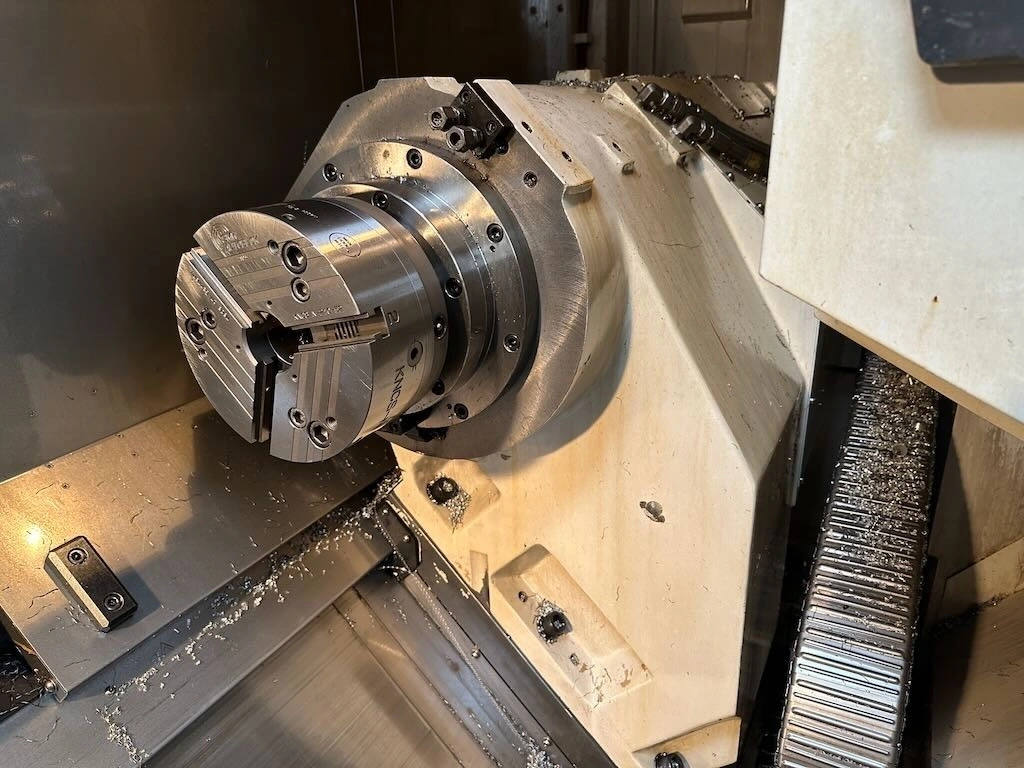

Spindle
Main & sub spindle speed: up to 5,000 rpm
Spindle motor power: approx. 22 kW (30 HP) vector drive
Spindle bore: 65 mm
Bar capacity: 65 mm
Milling / Turret System

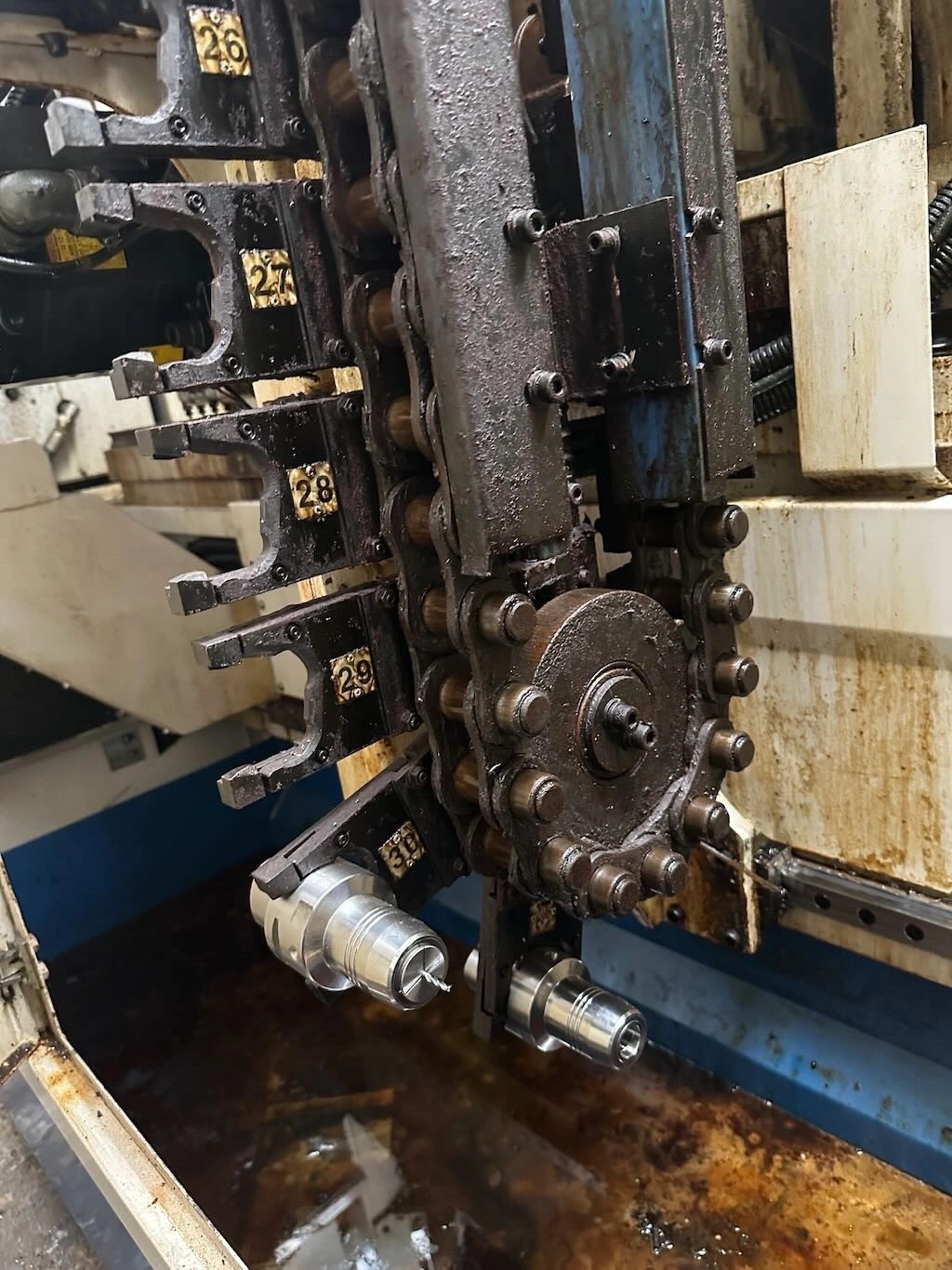

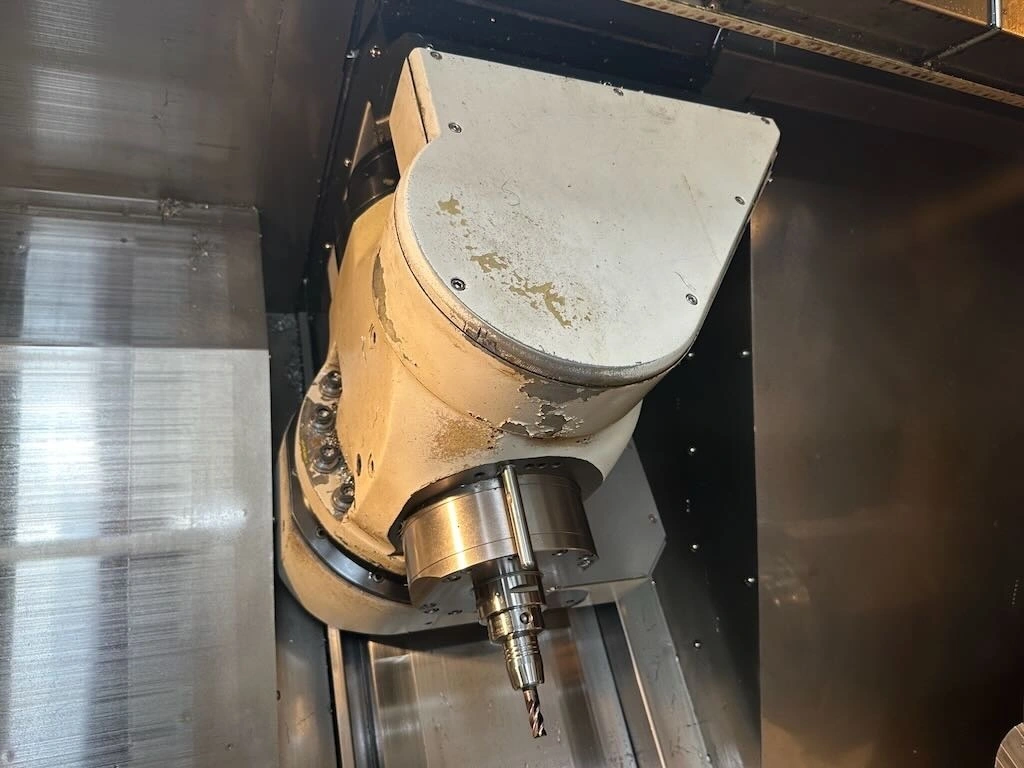

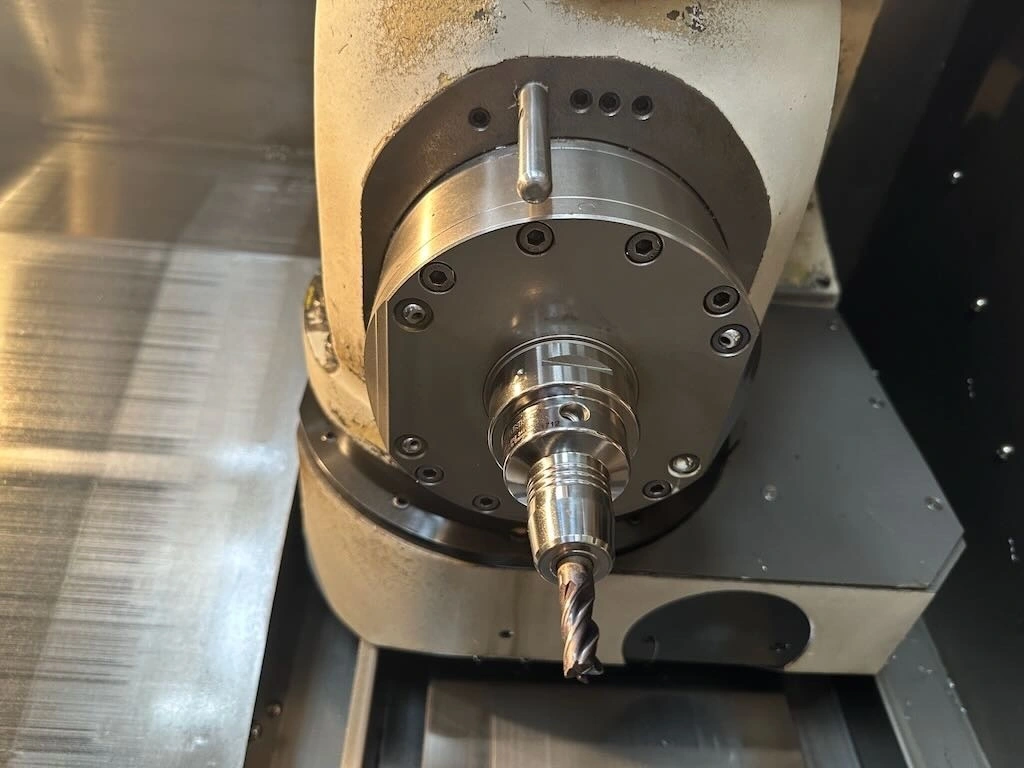

Upper milling head with 40-station automatic tool changer
Milling spindle speed: up to 10,000 rpm

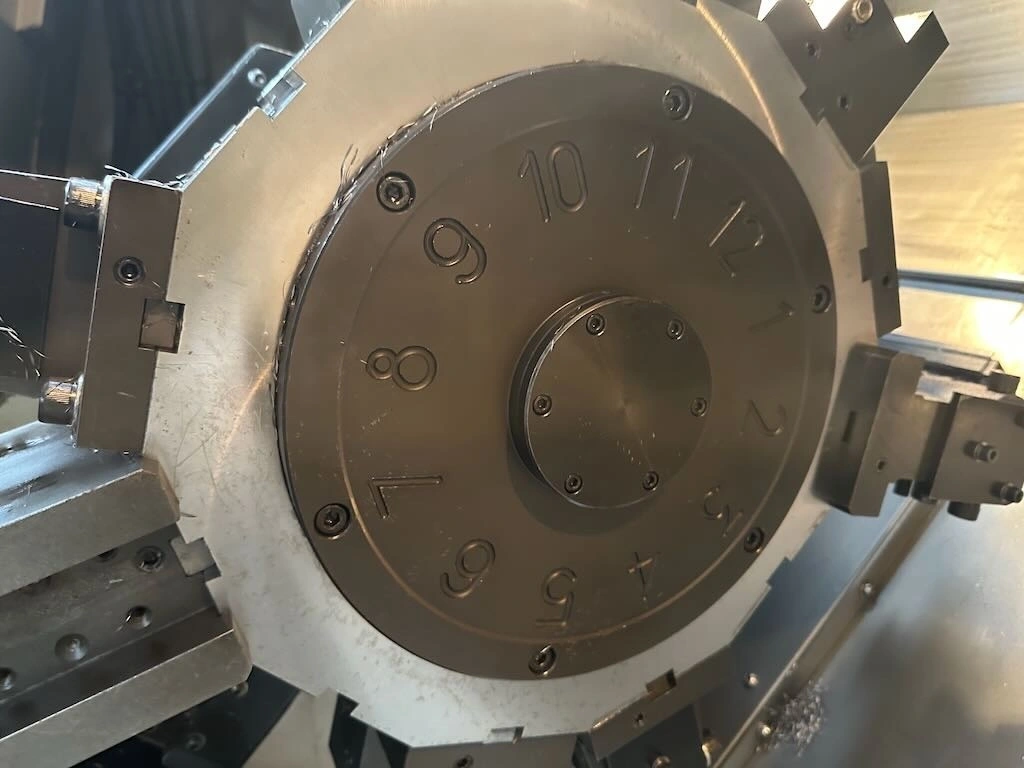

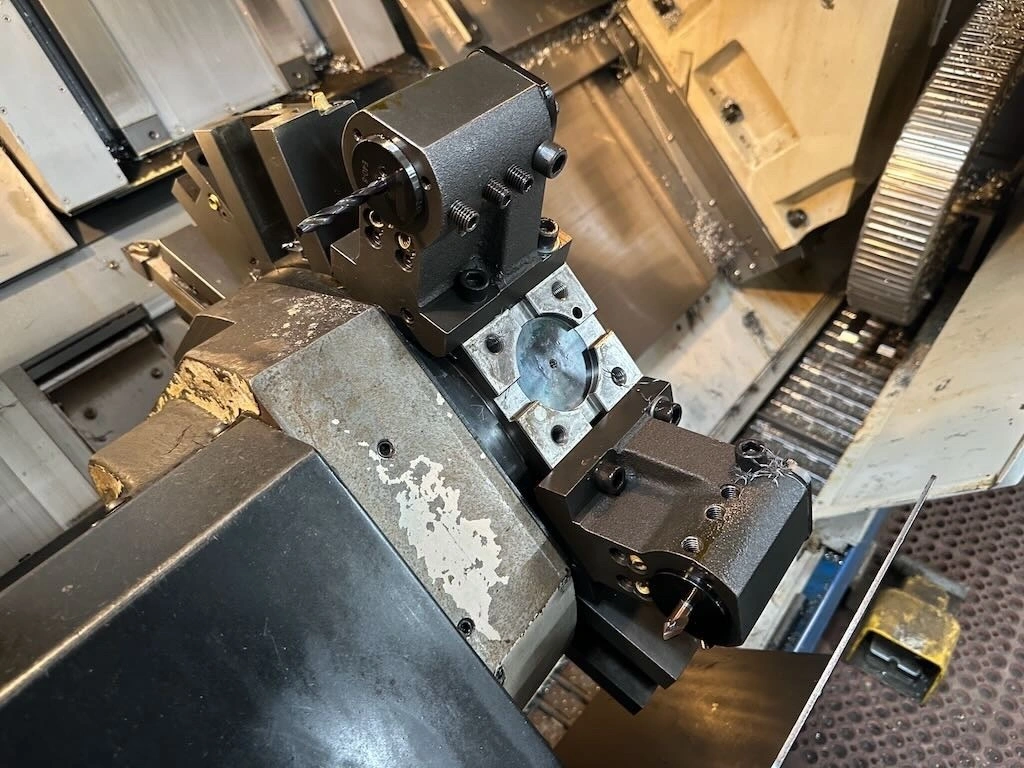

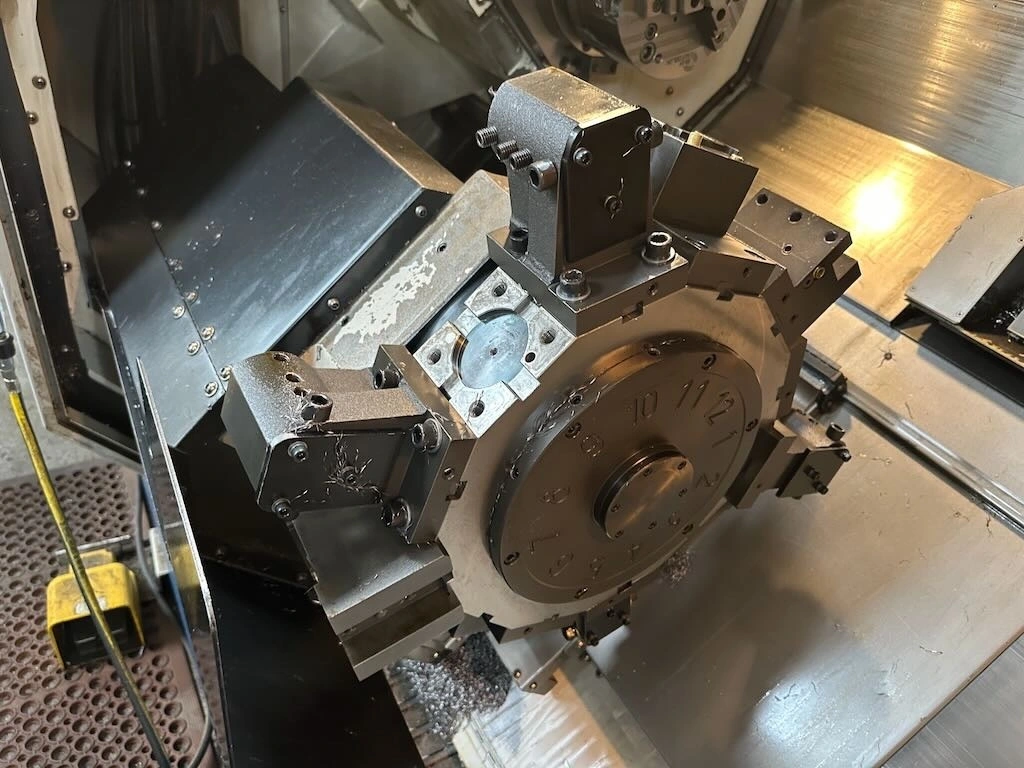

Lower turret: 12 stations, live tooling capable
Tool change time: approx. 1.5 sec
Max tool length: 300 mm
Max tool diameter: 120 mm (adjacent-free)
Capacity
Max turning diameter: 550 mm
Max turning length: 1,020 mm
Swing over bed: approx. 750 mm
Dimensions / Weight
Machine footprint: approx. 4,520 mm × 2,495 mm
Height: approx. 2,600 mm
Machine weight: approx. 12,500 kg
Utilities
Power supply: 380–440V / 3-phase / 50 Hz
Power consumption: approx. 81 kVA
Equipped with a chip conveyor, coolant system, tool presetter, and swarf handling
Additional Features
Programmable tailstock (A-axis)
Hi Pressure Through-spindle coolant
Parts catcher and conveyor

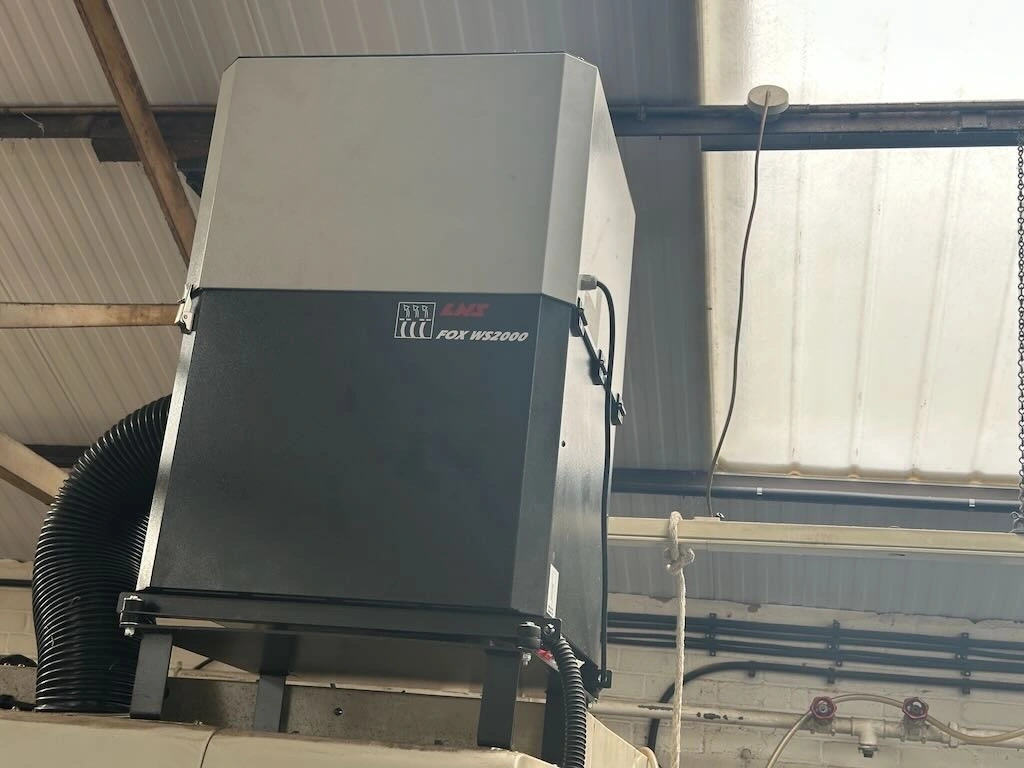

LNS FOX2000 Filtermist unit
Tooling package

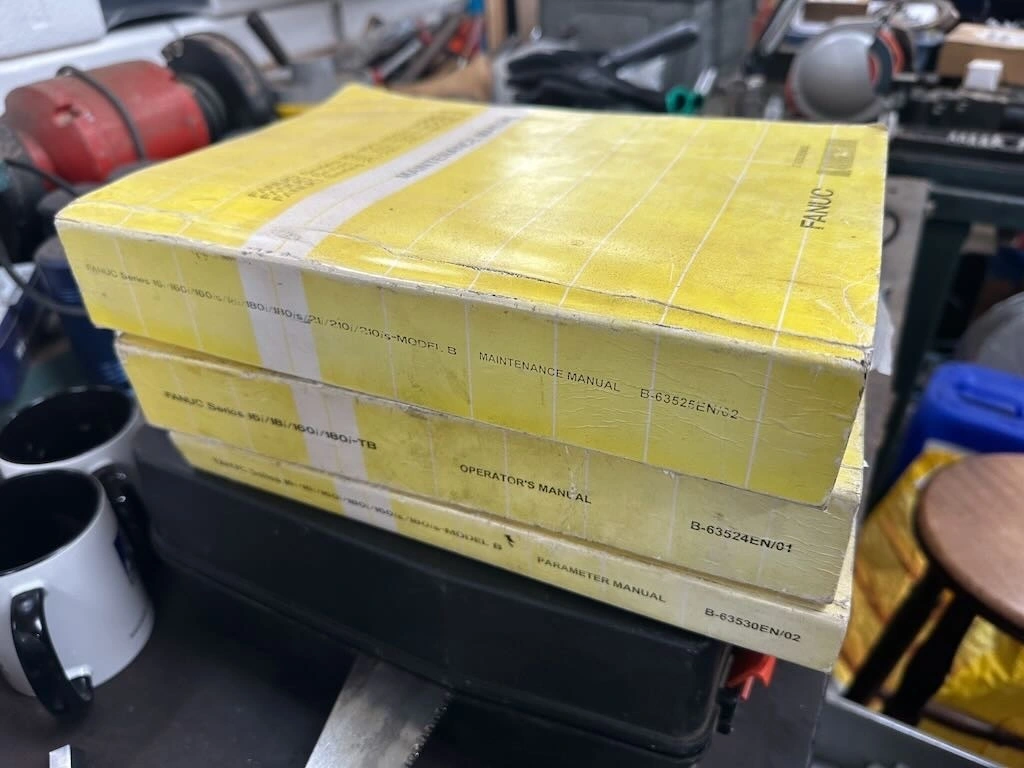

Full documentation and manuals
Specs given in good faith. Please verify on inspection.
Specifications
- Control
- Fanuc 18i-TB
- Weight
- 12,500 kg
- Dimensions
- 177.953 x 98.2677
- Swing
- 750 mm
- Machining Length
- 1,020 mm
- # Axis
- 8.0

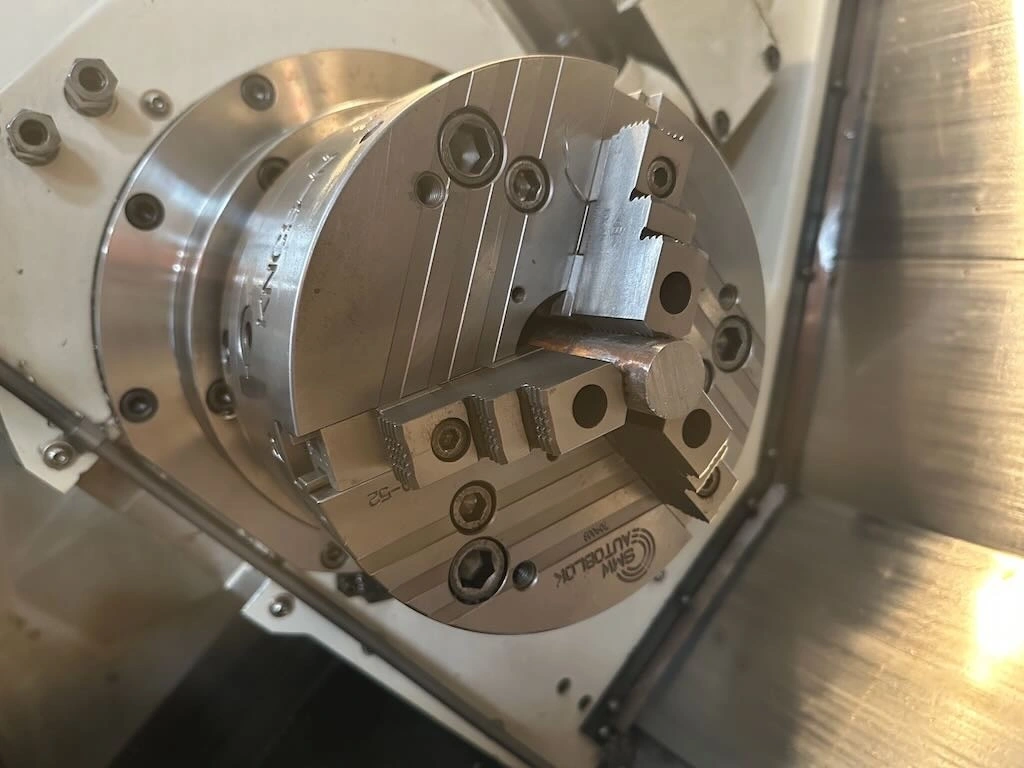

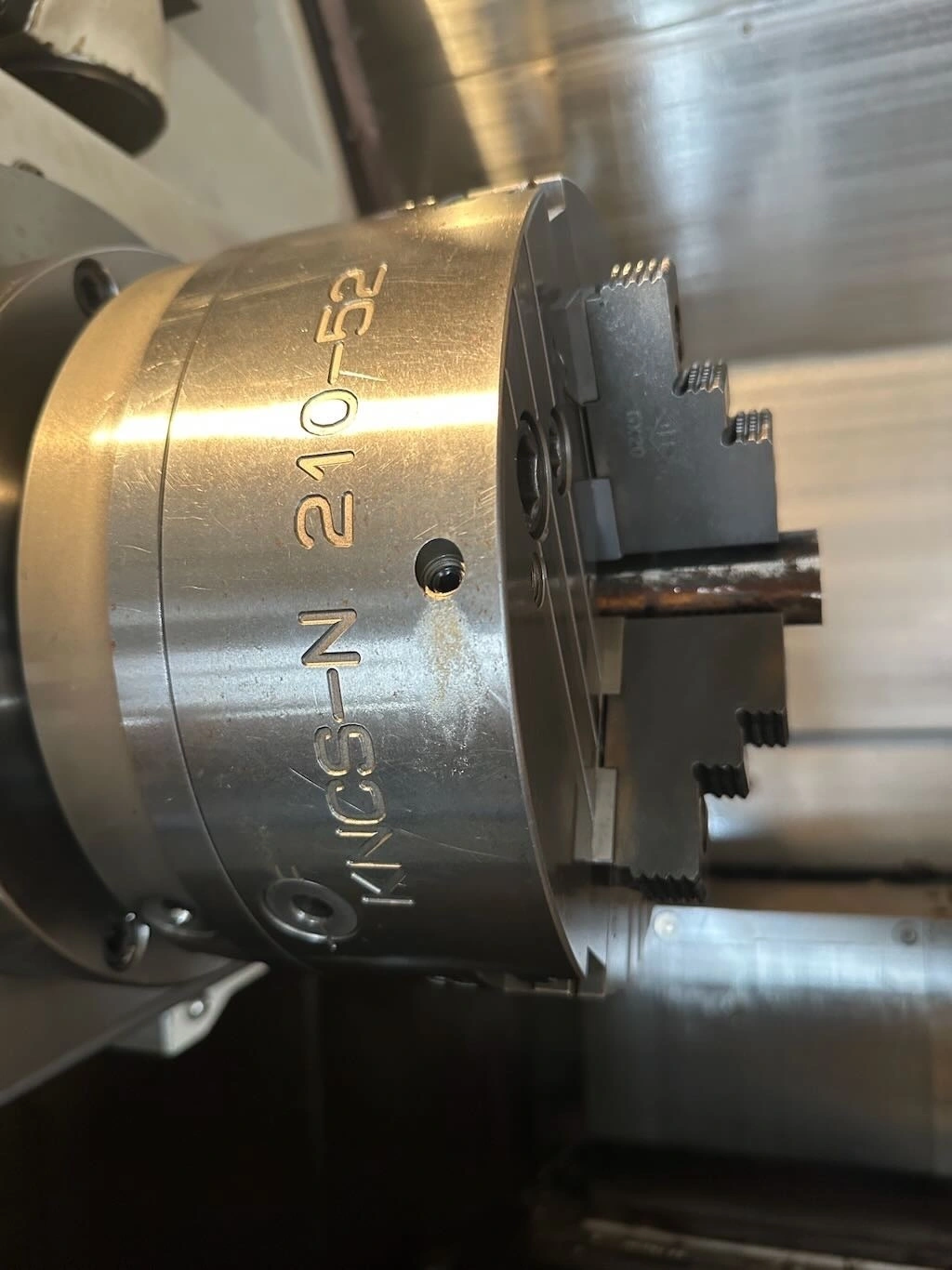

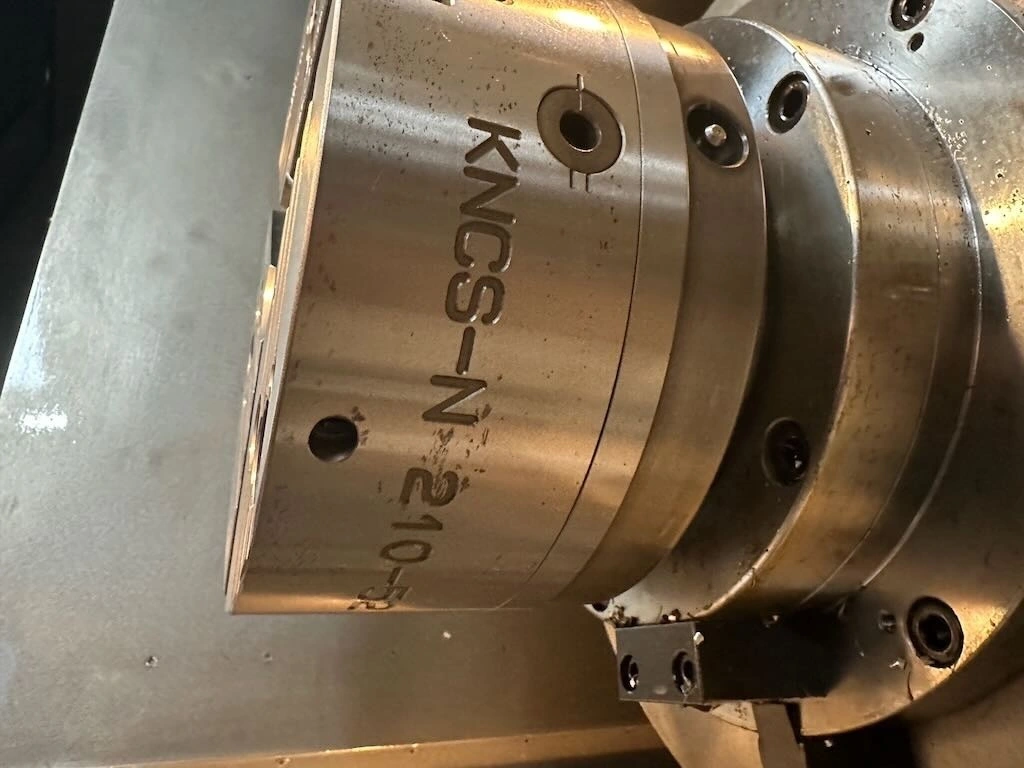

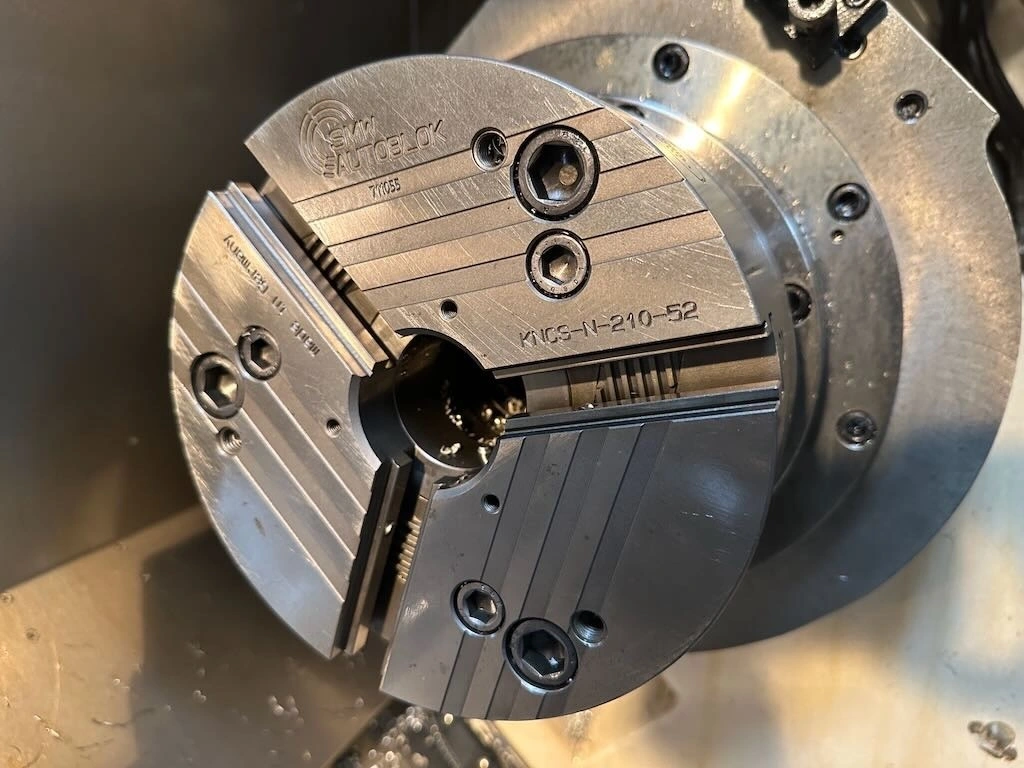

- Chuck Size
- 203 mm
- Bar Capacity
- 65 mm
- Power
- 30 kW
- Max RPM
- 5000.0 rpm
- Turning Dia
- 550 mm
- Tailstock
- 'Yes'
- Live Tooling
- 'Yes'
- Sub Spindle
- 'Yes'
