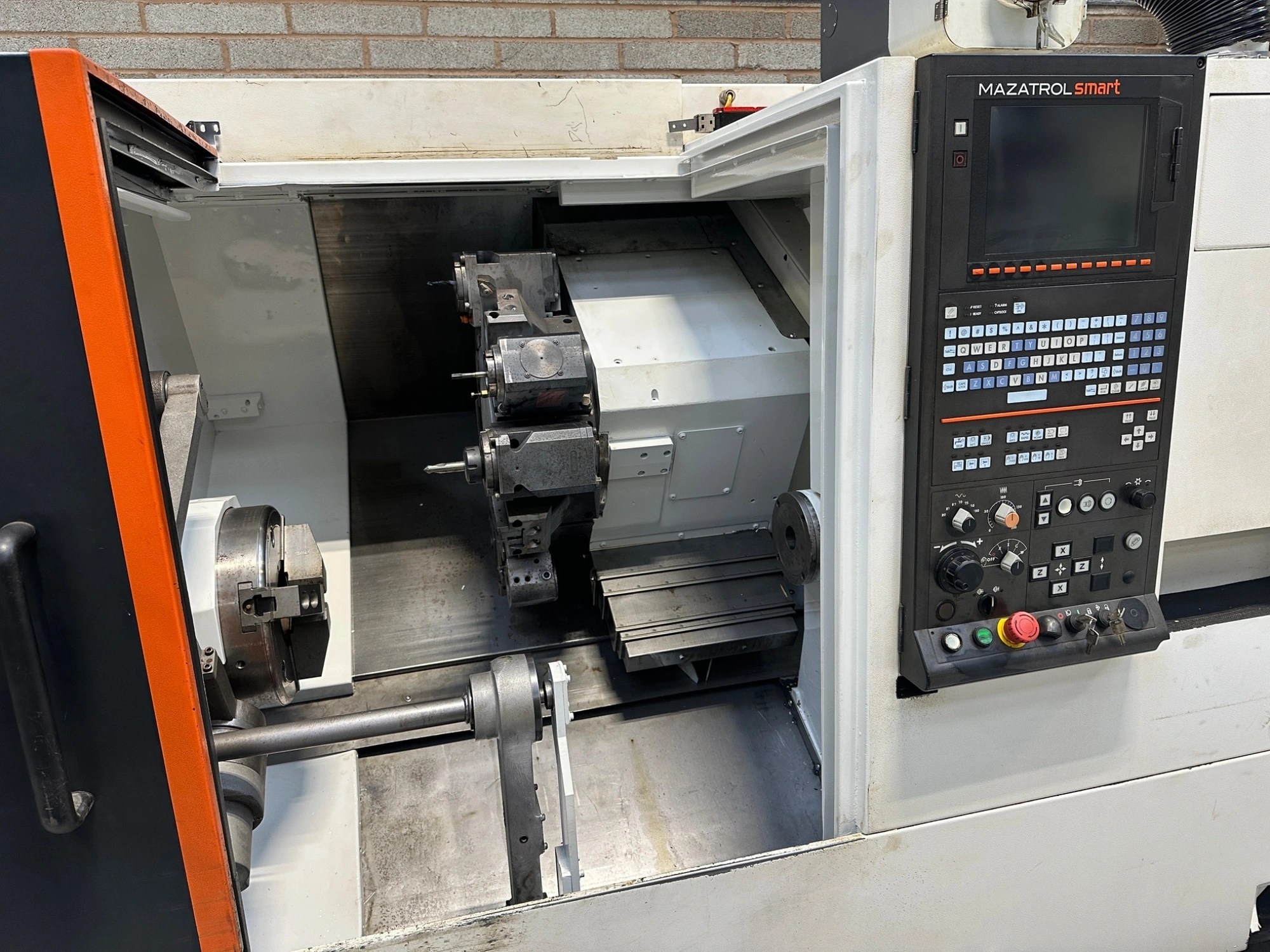

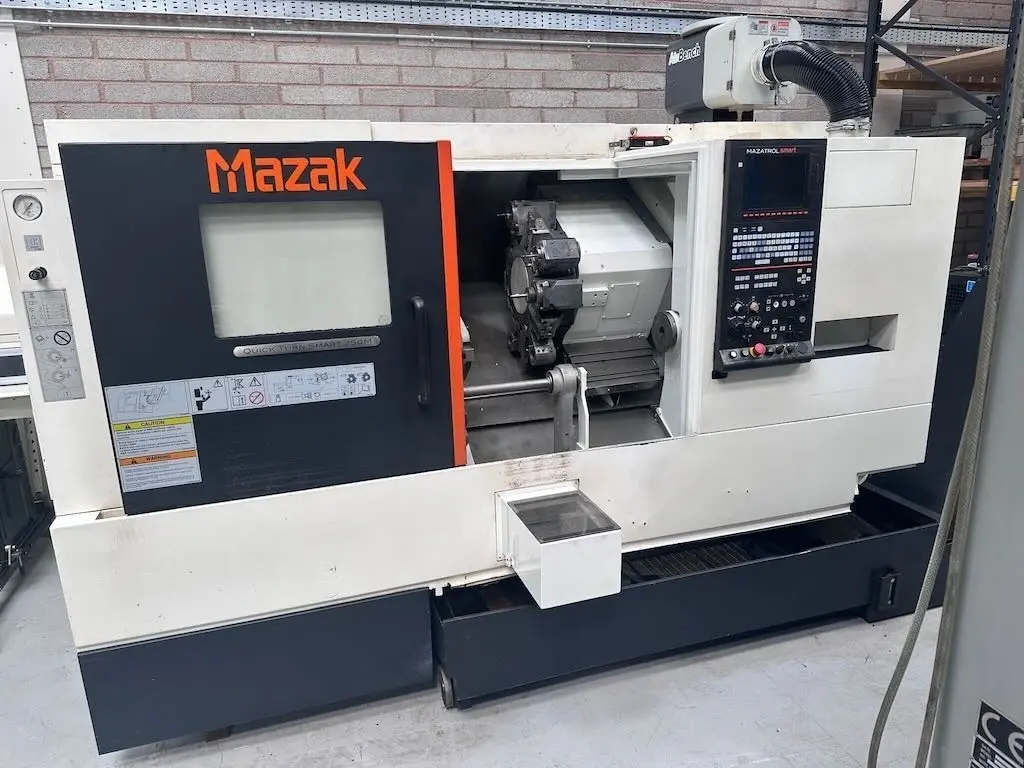

MAZAK Quick Turn Smart 350M CNC Lathe, 2014 model. Ideal for precision machining, known for reliability and efficiency. A solid choice for enhancing your production capabilities with quality technology.
Specifications
- Manufacturer
- MAZAK
- Year
- 2014
- Control
- MAZATROL
- Weight
- 7,060 kg
- Swing
- 749 mm
- Machining Length
- 605 mm
- # Axis
- 3.0
- Chuck Size
- 305 mm
- Bar Capacity
- 102 mm
- Power
- 29.8 kW
- Max RPM
- 3330.0 rpm
- Turning Dia
- 419 mm
- Tailstock
- 'Yes'
- Live Tooling
- 'Yes'
- Sub Spindle
- ''
View full spec sheetHide full spec sheet
- MAZAK QUICK TURN SMART 350M – 2014 – Standard Bed
- General
- Model
- Quick Turn Smart 350M
- Machine Type
- CNC turning centre with milling capability

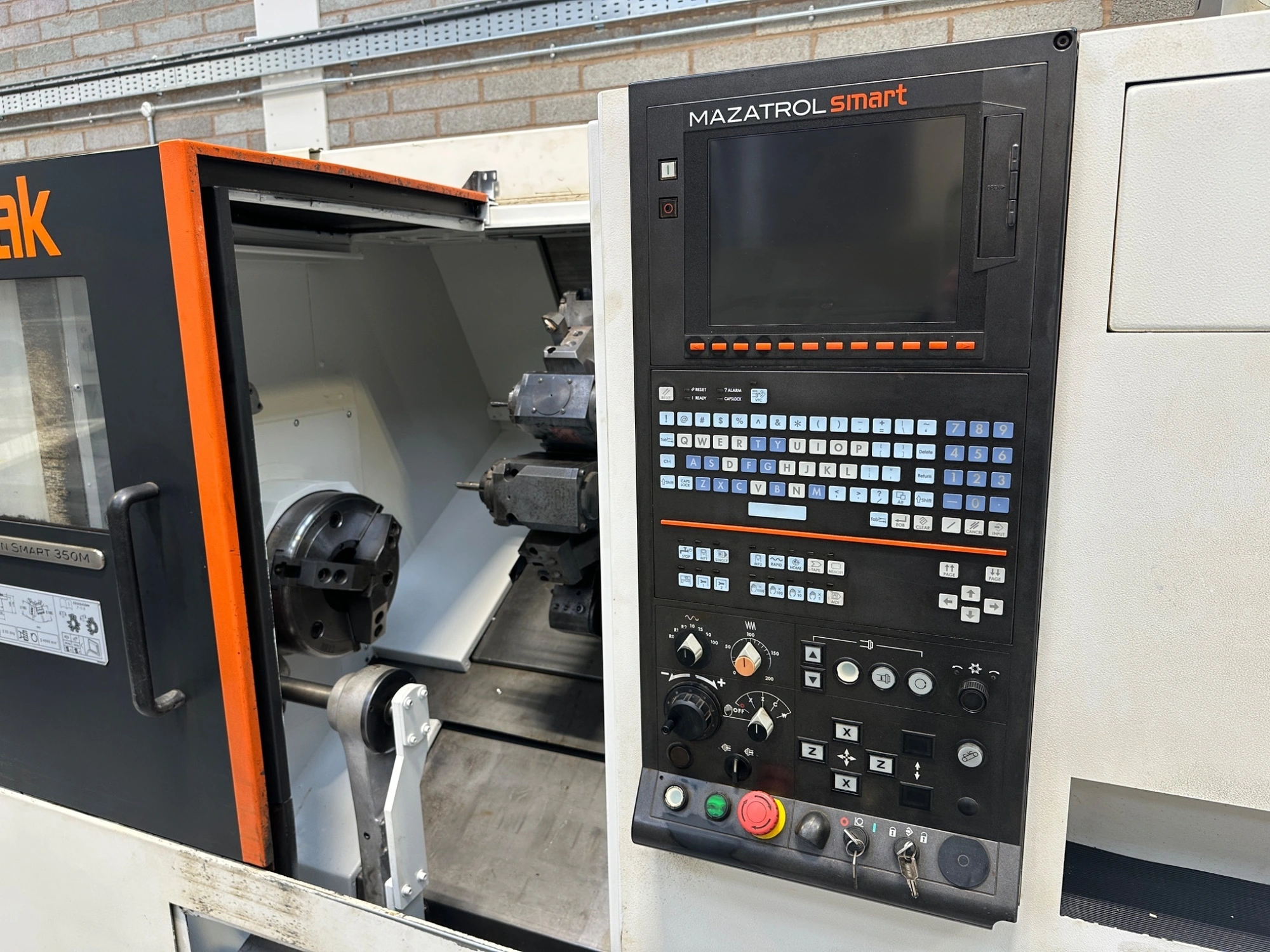

- Control
- MAZATROL Smart control (factory standard for the Smart-series machines in this period)
- Construction
- High-rigidity slant-bed CNC lathe with integrated motor spindle
Capacity (Standard 26" Bed)
- Maximum machining diameter
- 419 mm (16.5")
- Maximum turning length
- 605 mm (23.8")
- Maximum bar capacity
- 102 mm (4")
- Maximum swing
- 749 mm (29.5")

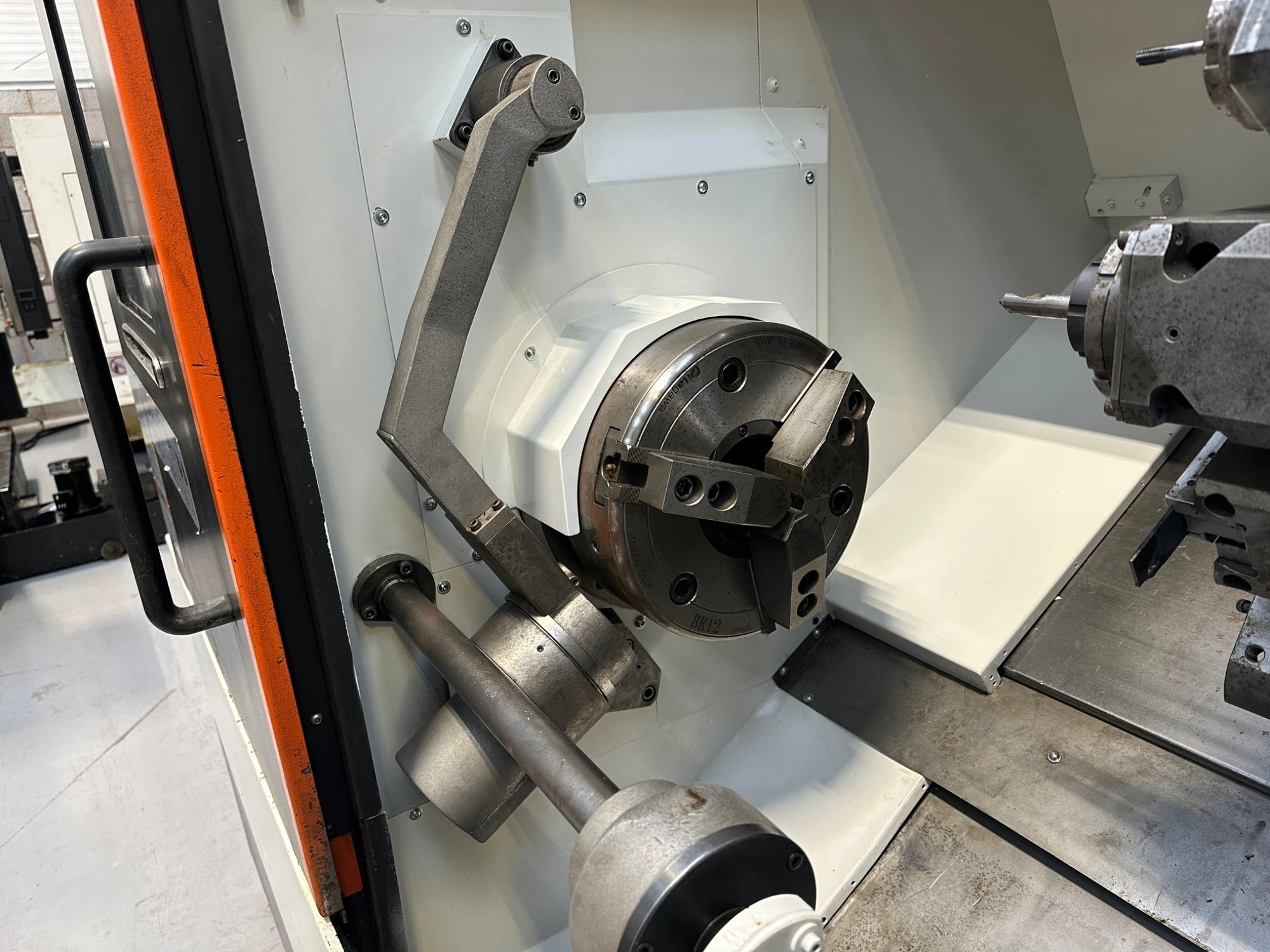

Main Spindle
- Chuck size
- 12" hydraulic chuck
- Maximum spindle speed
- 3,330 rpm
- Spindle motor output
- 40 hp (30 kW)

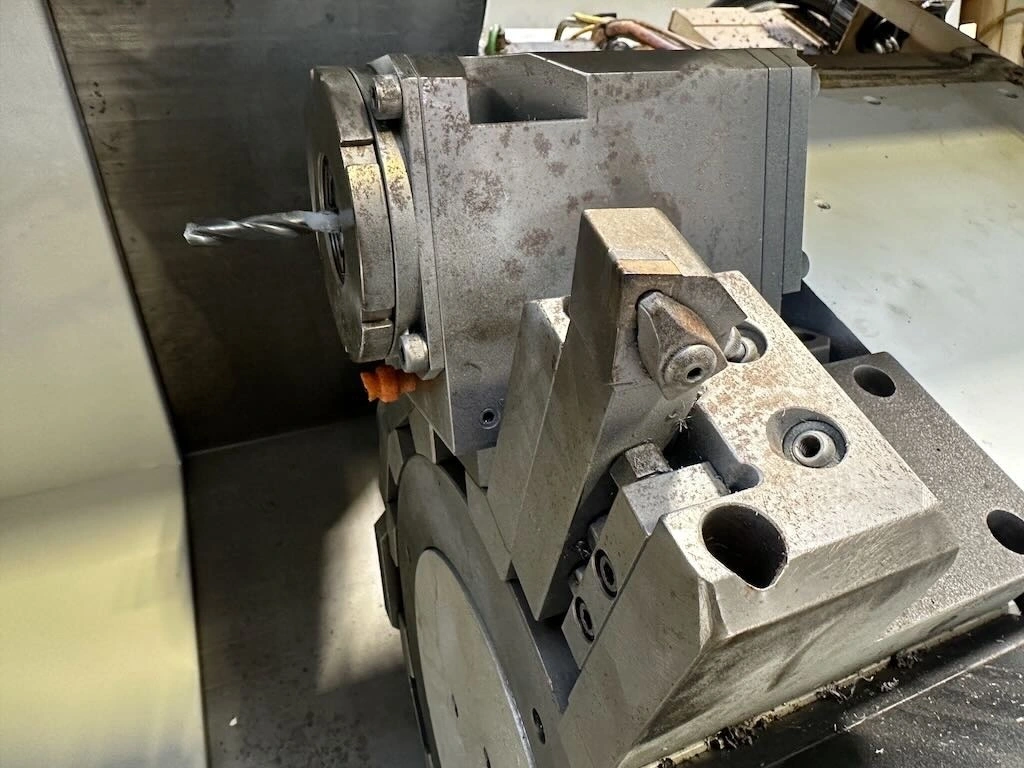

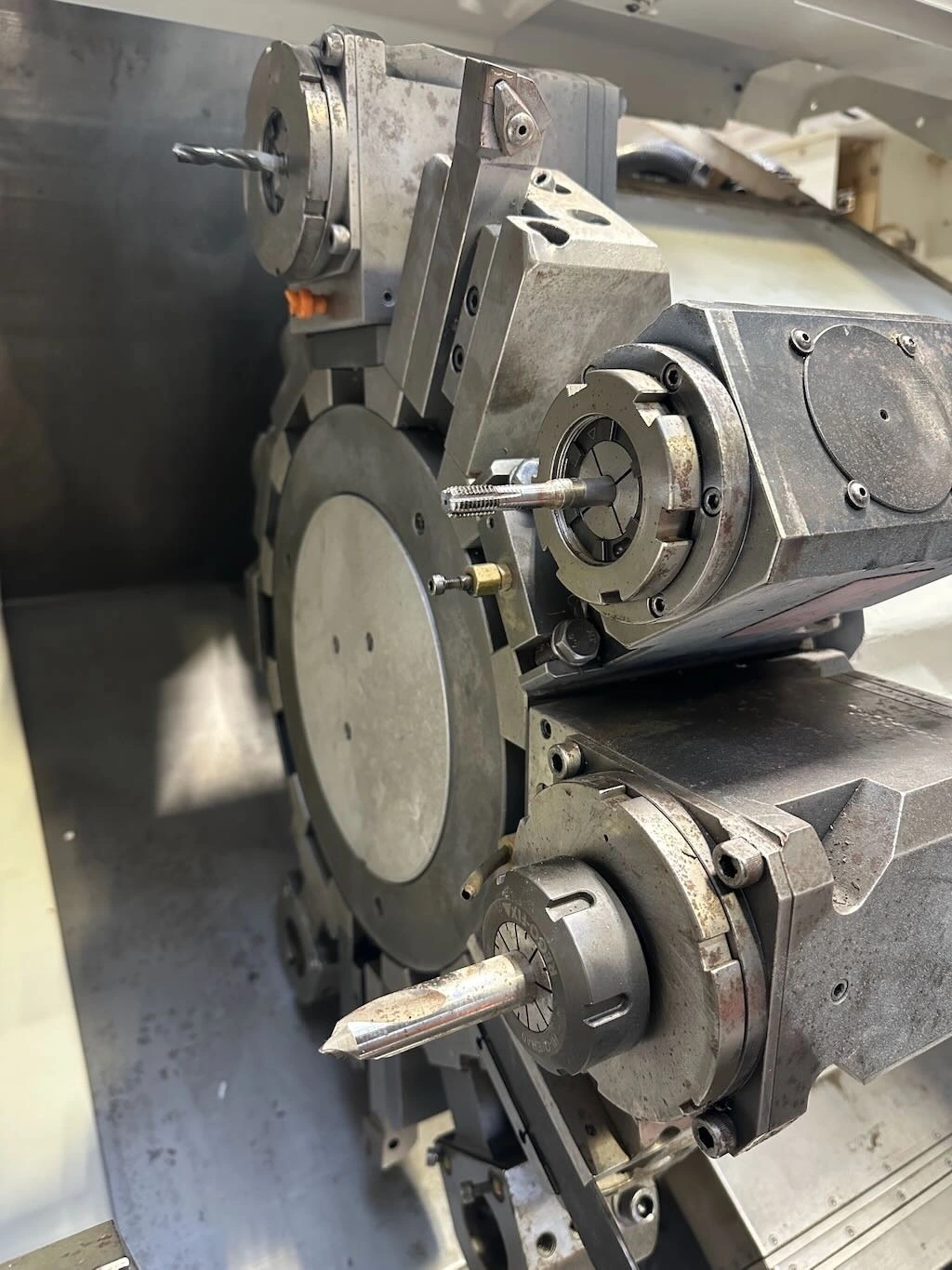

Turret & Milling Capability

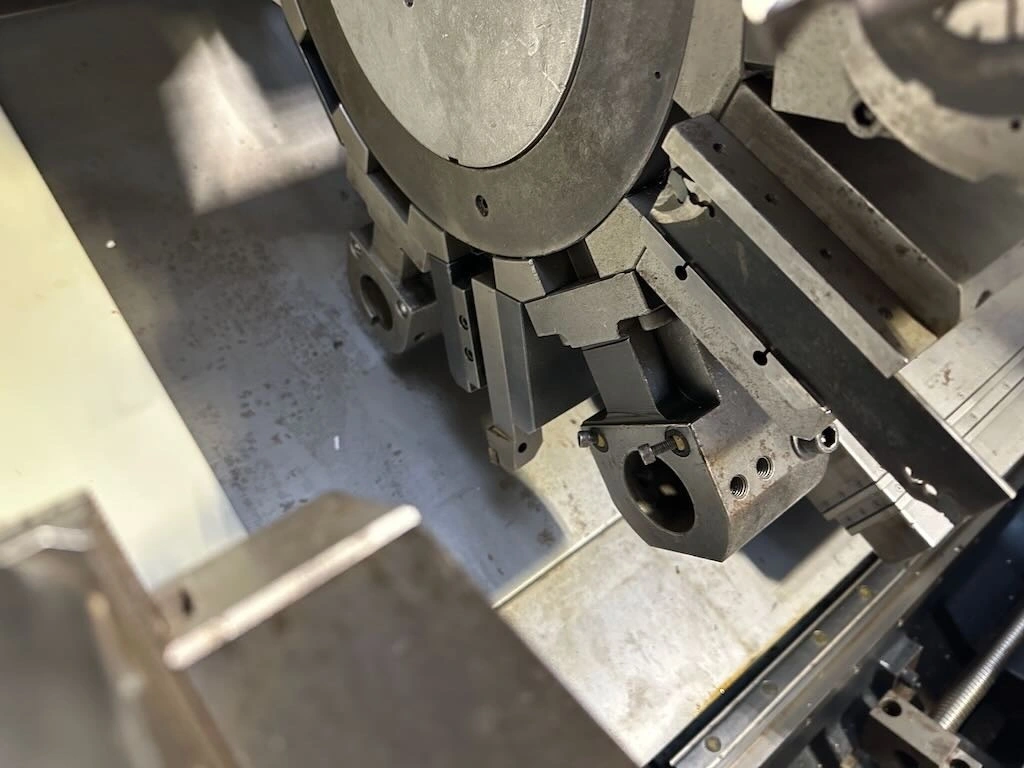

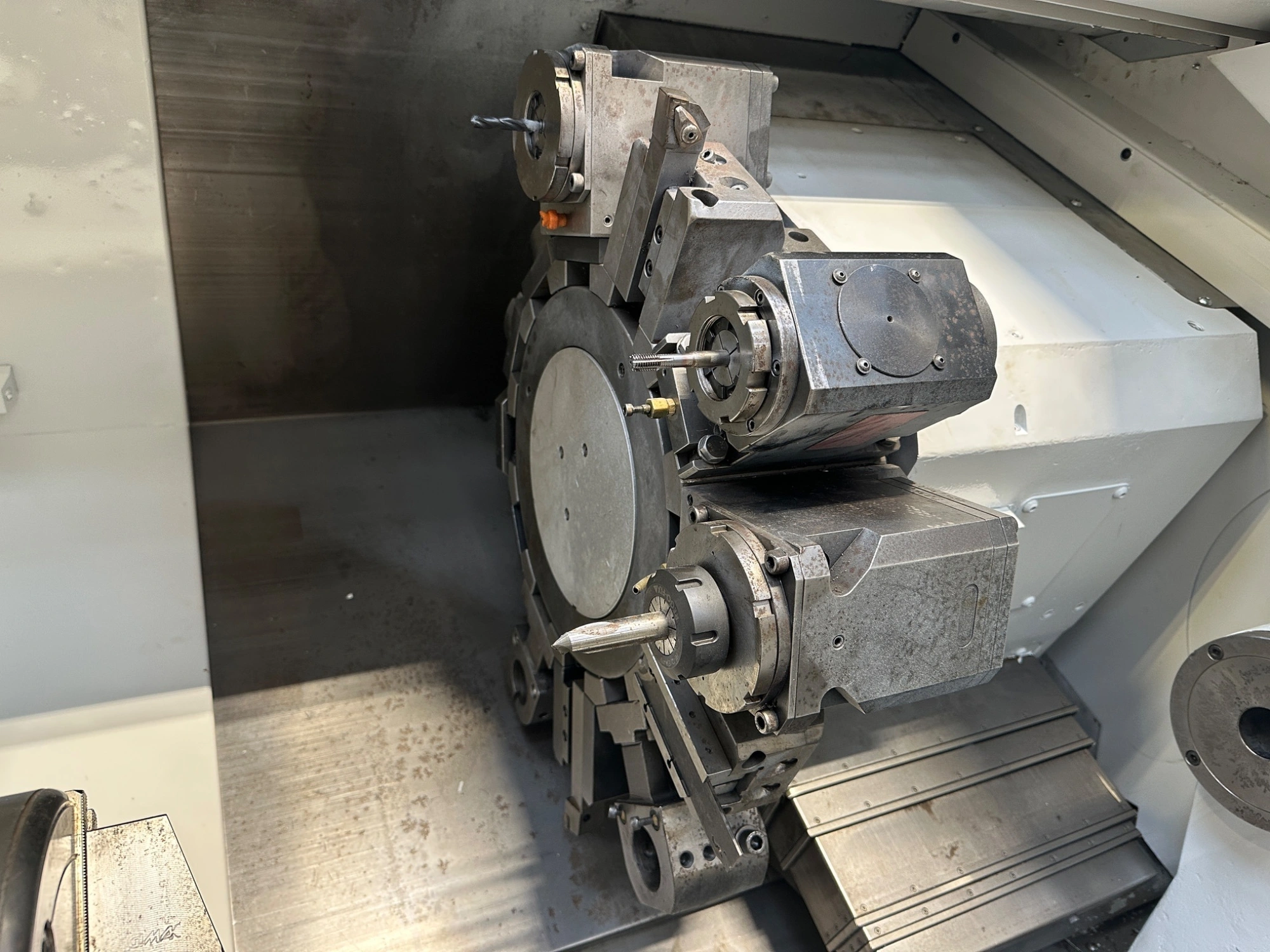

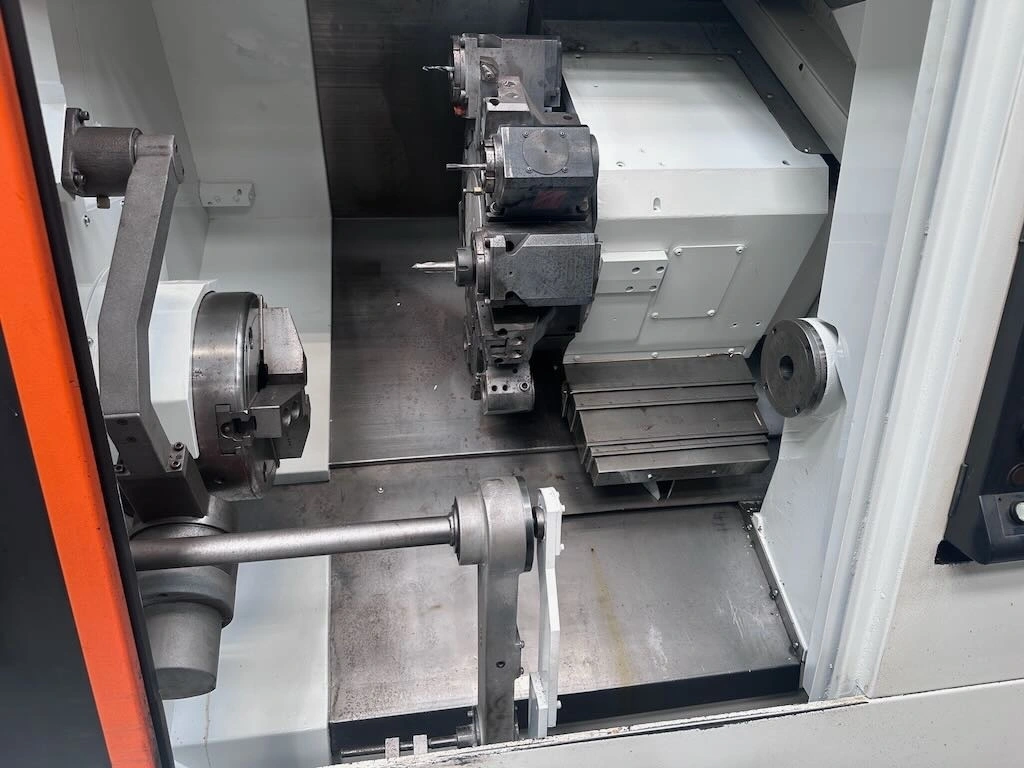

- Turret
- 12-station drum turret

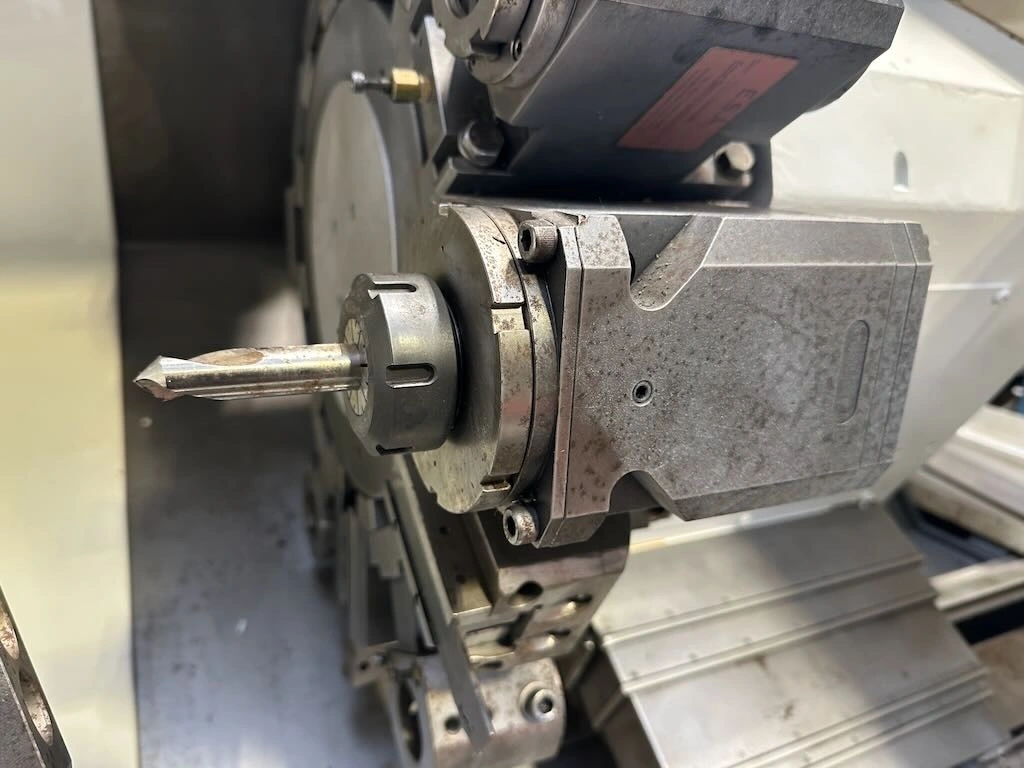

- Live tooling speed
- up to 6,000 rpm
- Live tool motor
- 7.5 kW (10 hp)
- C-axis
- Standard for milling, drilling and tapping operations
Axis Travel
- X-axis travel
- 257 mm
- Z-axis travel (standard bed)
- 670 mm
- Tailstock travel
- 648 mm
- Machine Features
- Integrated motor spindle for improved accuracy and reduced vibration
- High-rigidity slant-bed construction
- High-speed drum turret with automatic indexing
- Designed for turning, milling, drilling and multi-operation machining in a single setup
- Machine Options

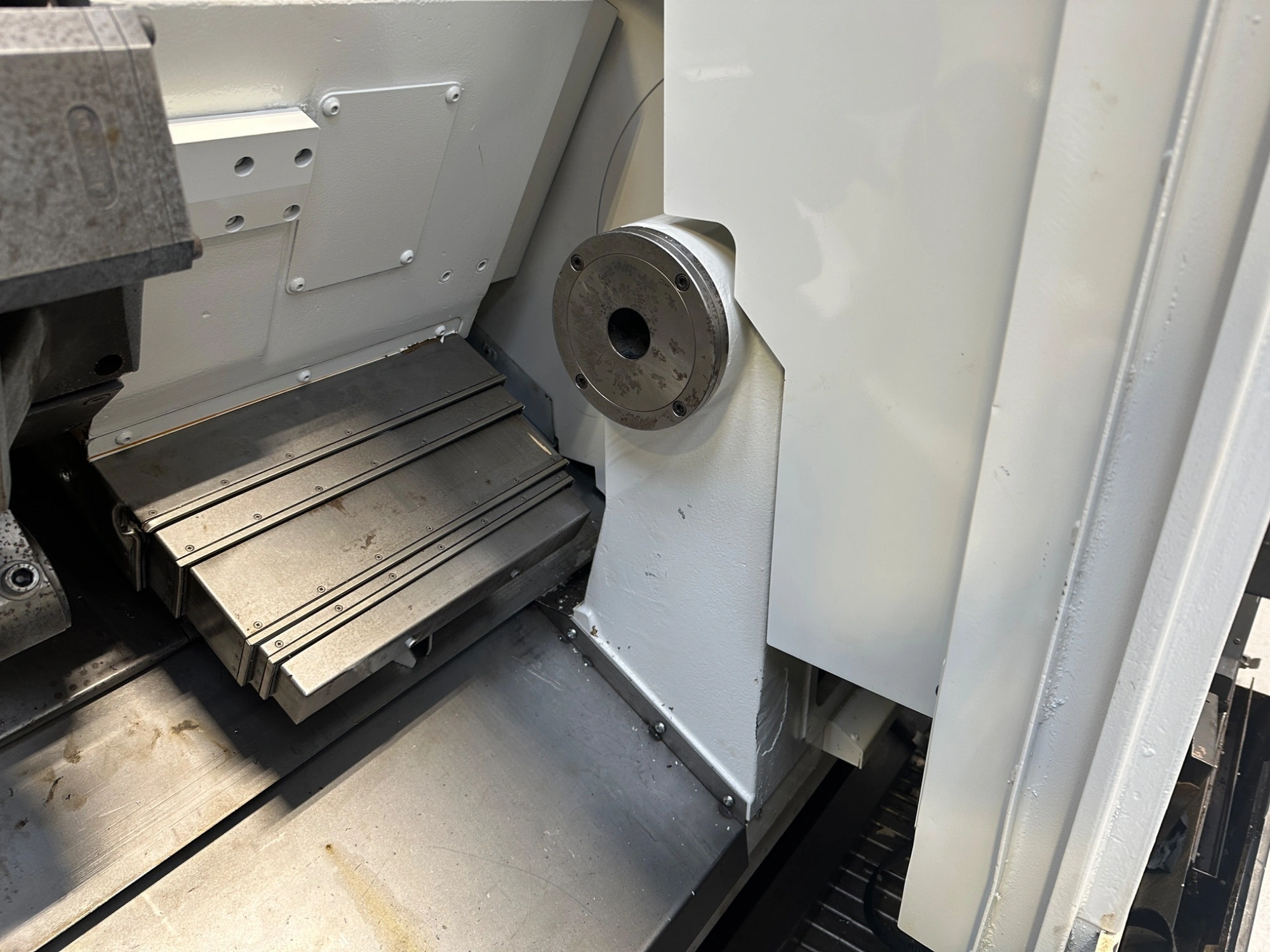

- Tailstock
- Tool presetter
- Parts catcher
- Chip conveyor

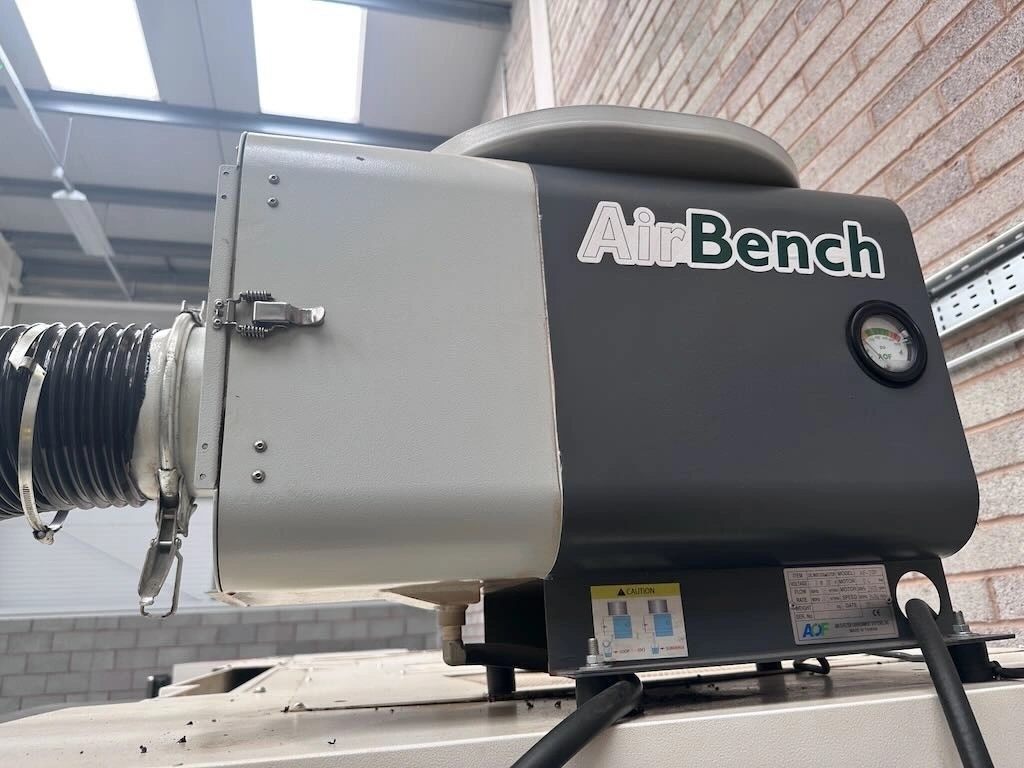

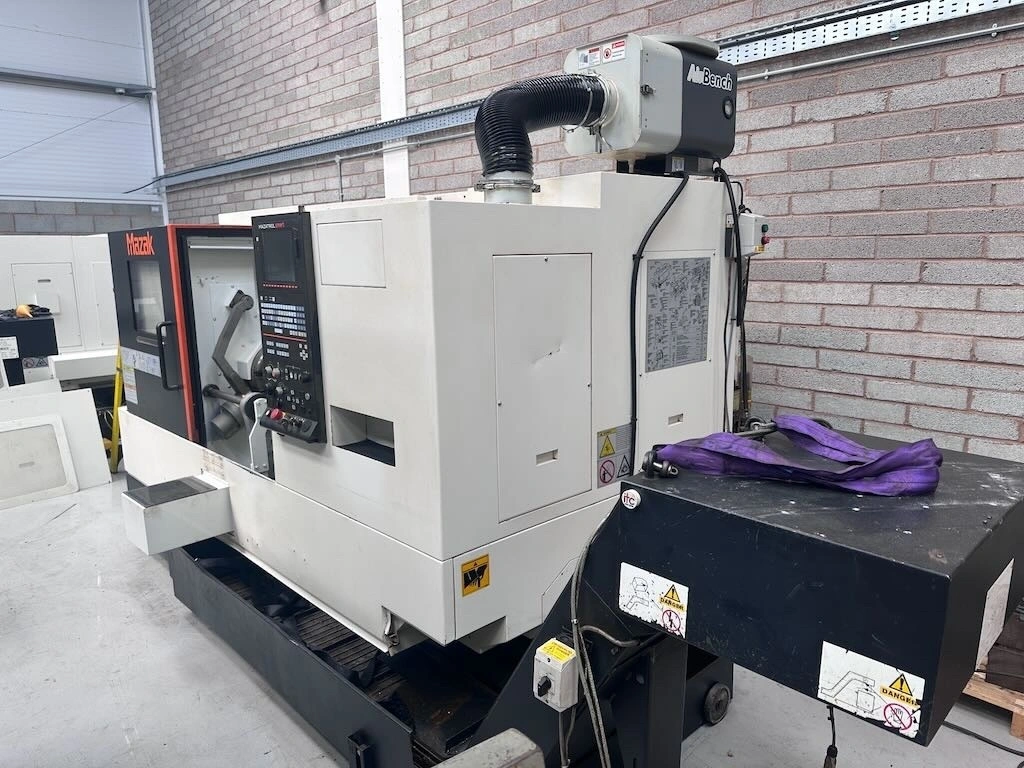

- Air Bench Filter System

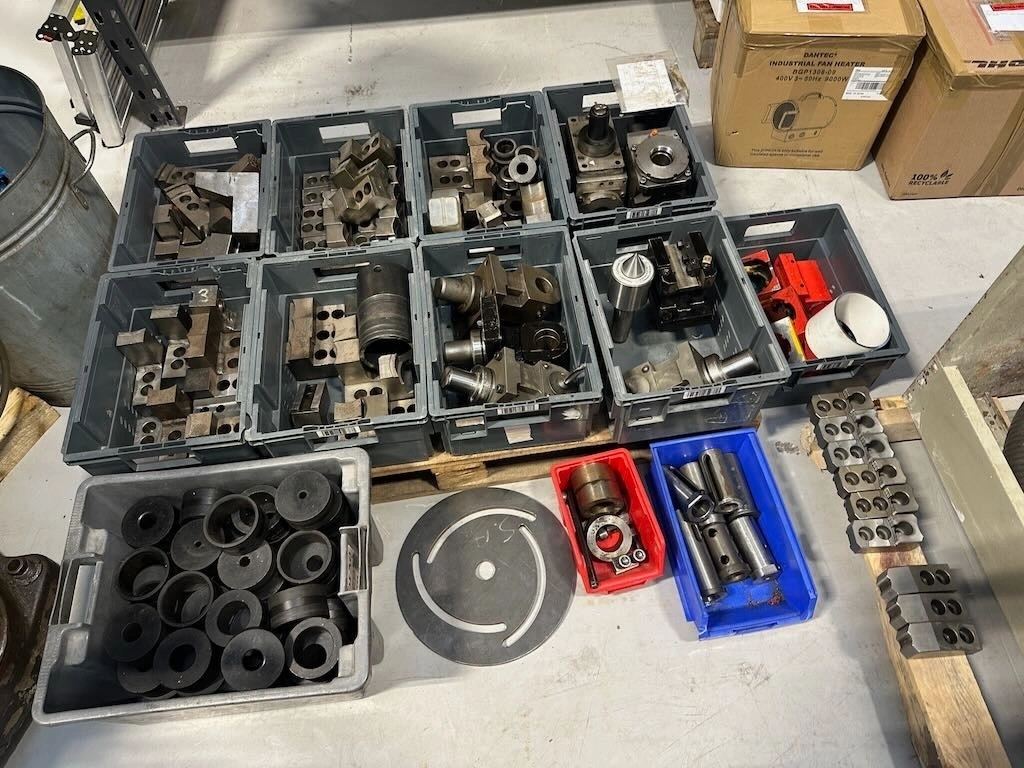

Includes

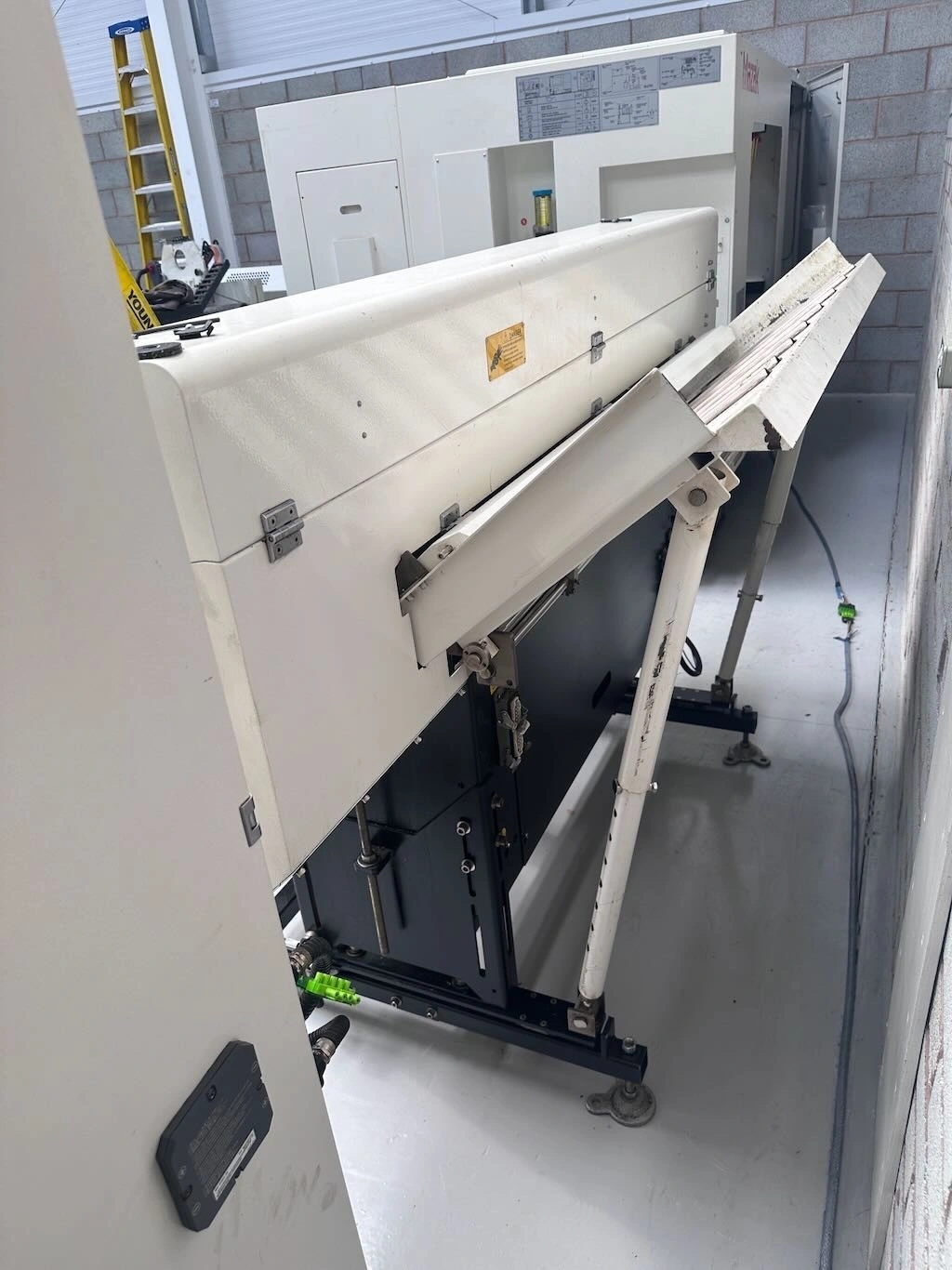

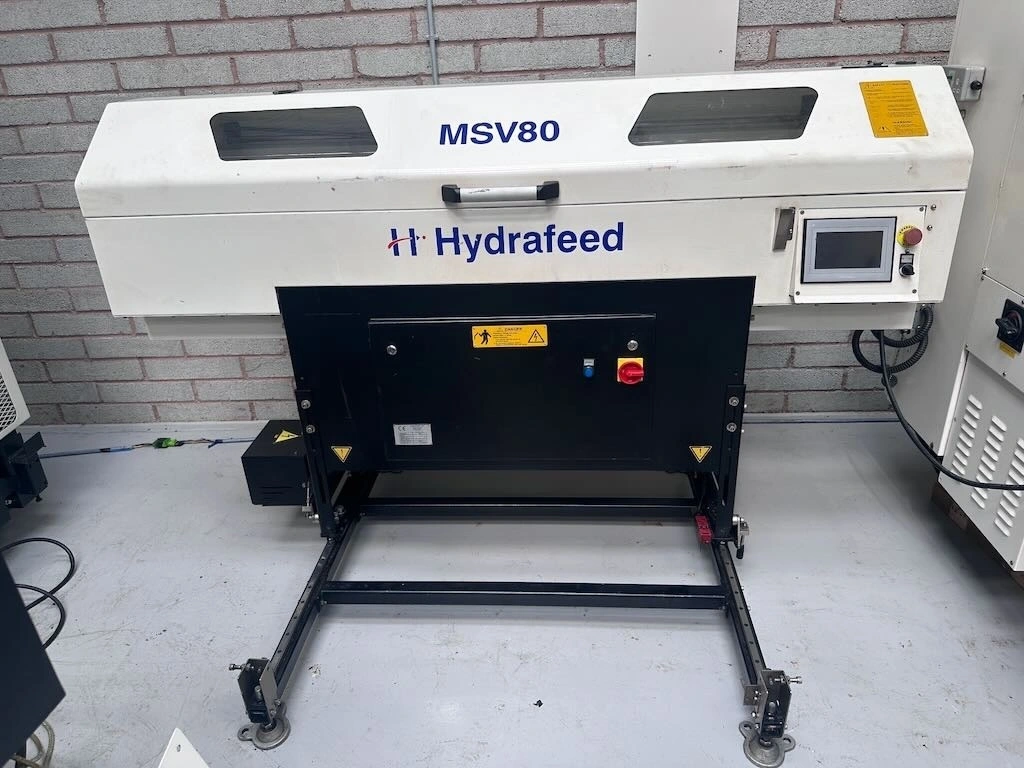

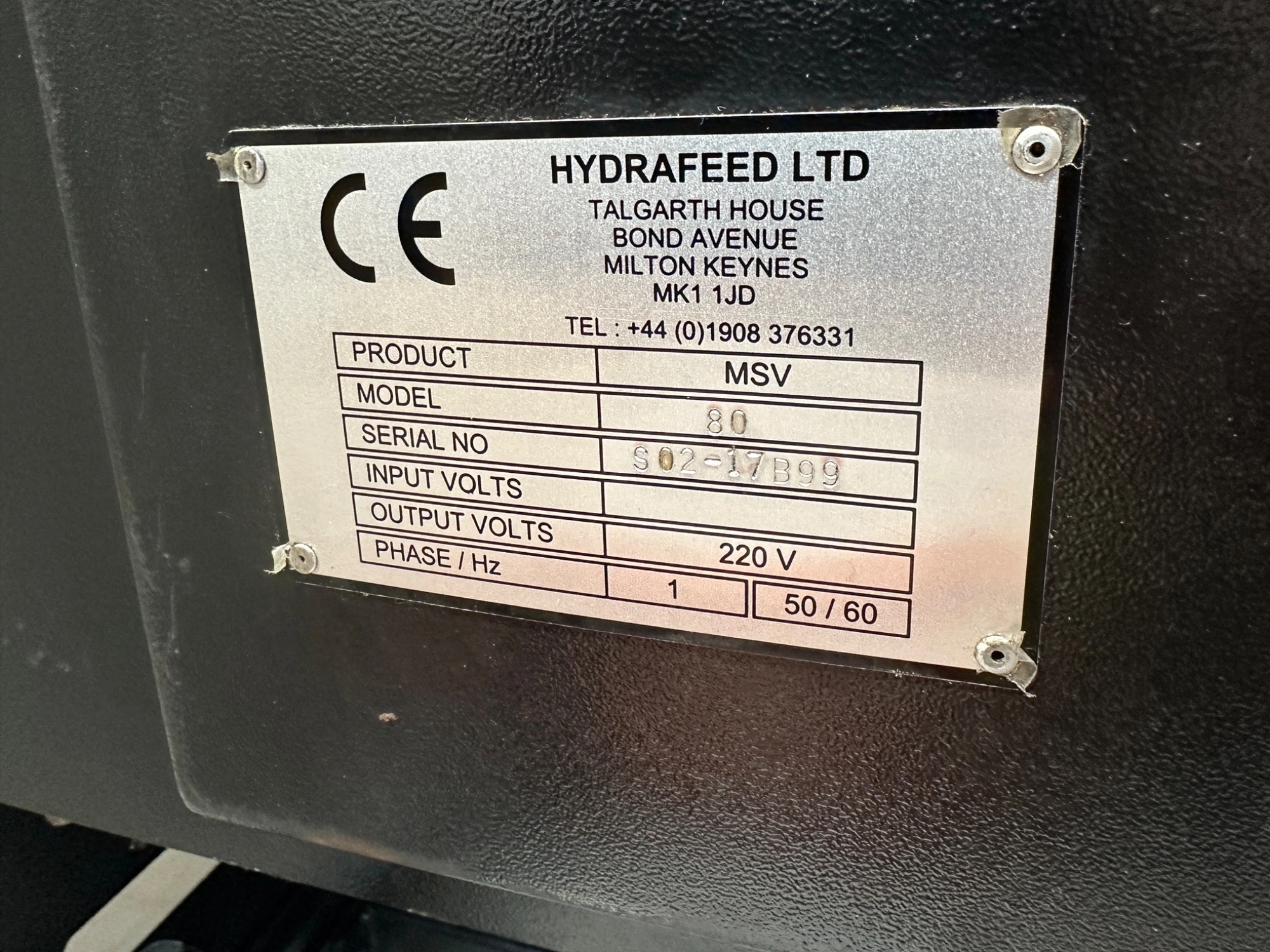

- Hydrafeed MSV80 Barfeed

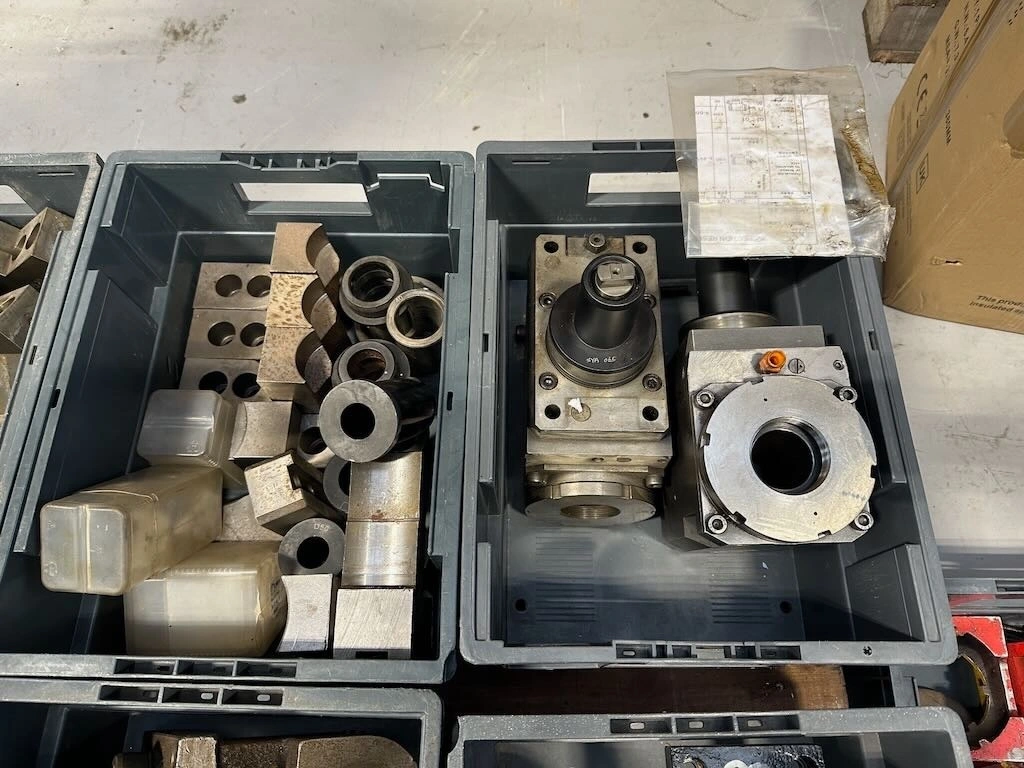

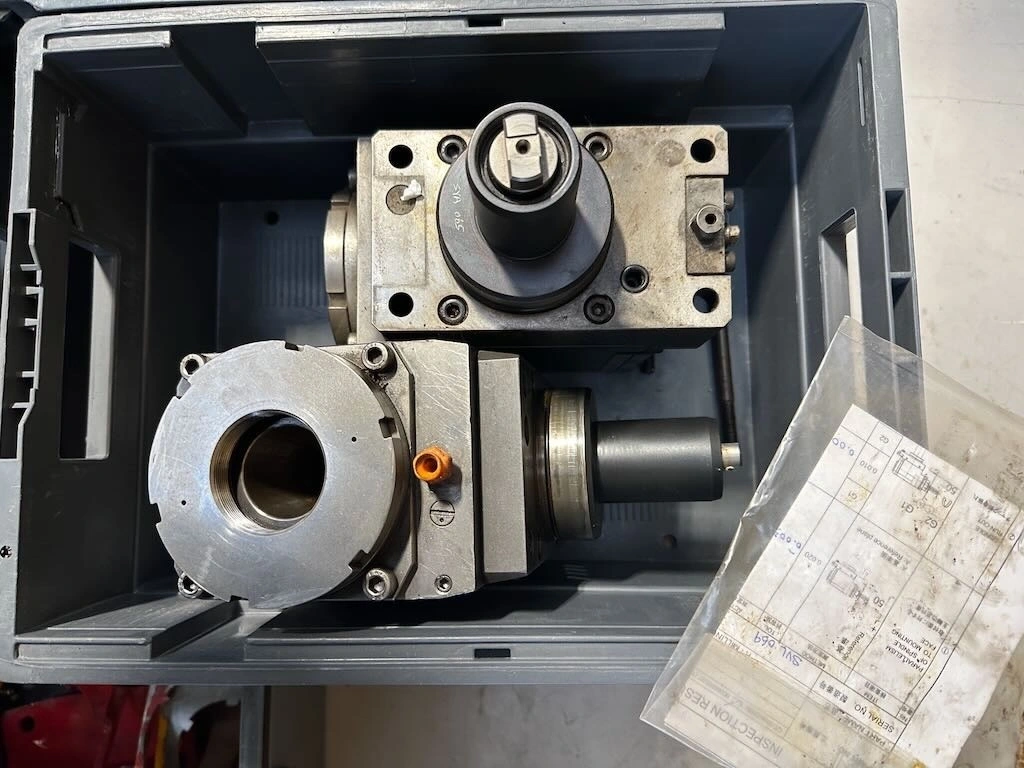

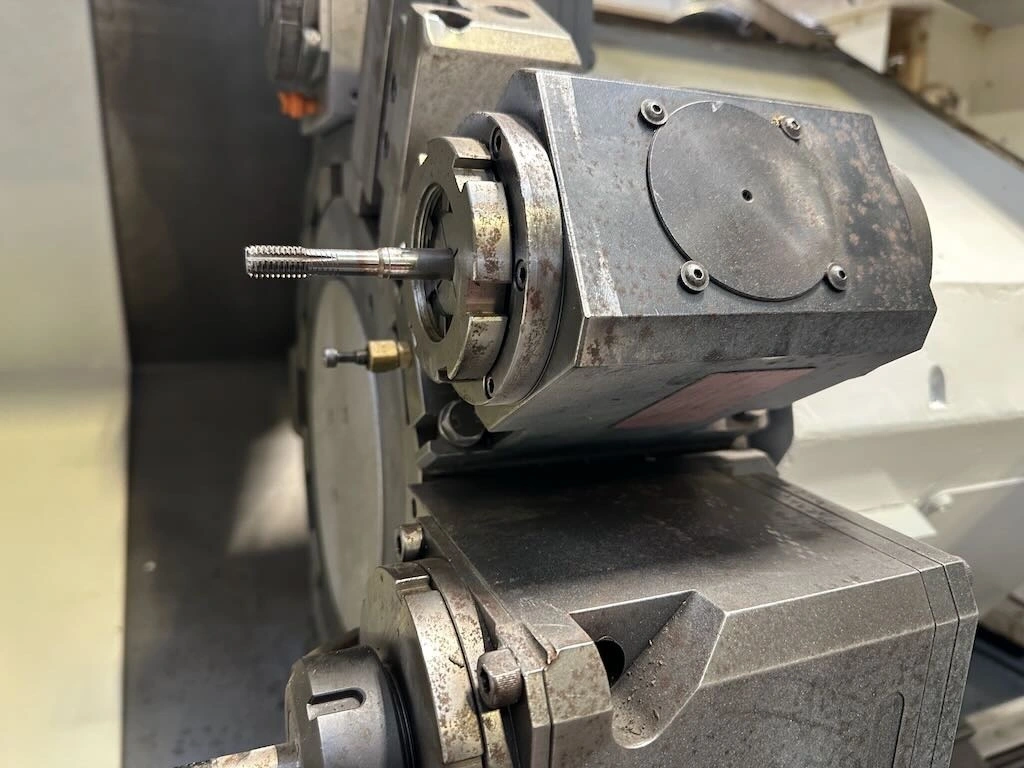

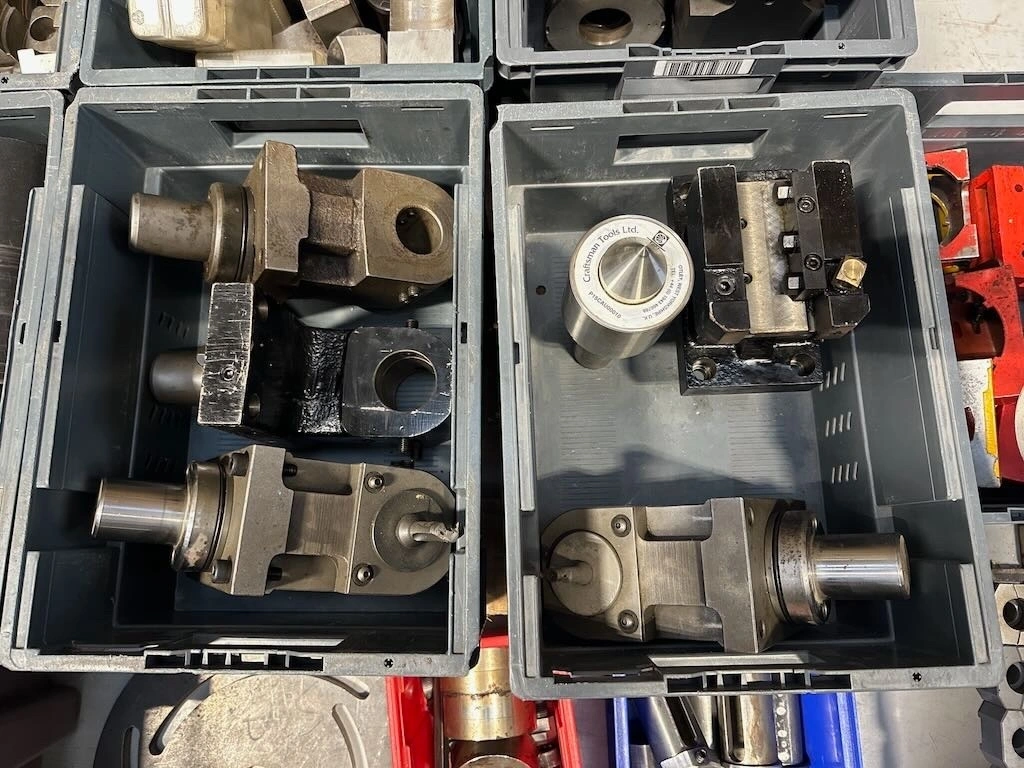

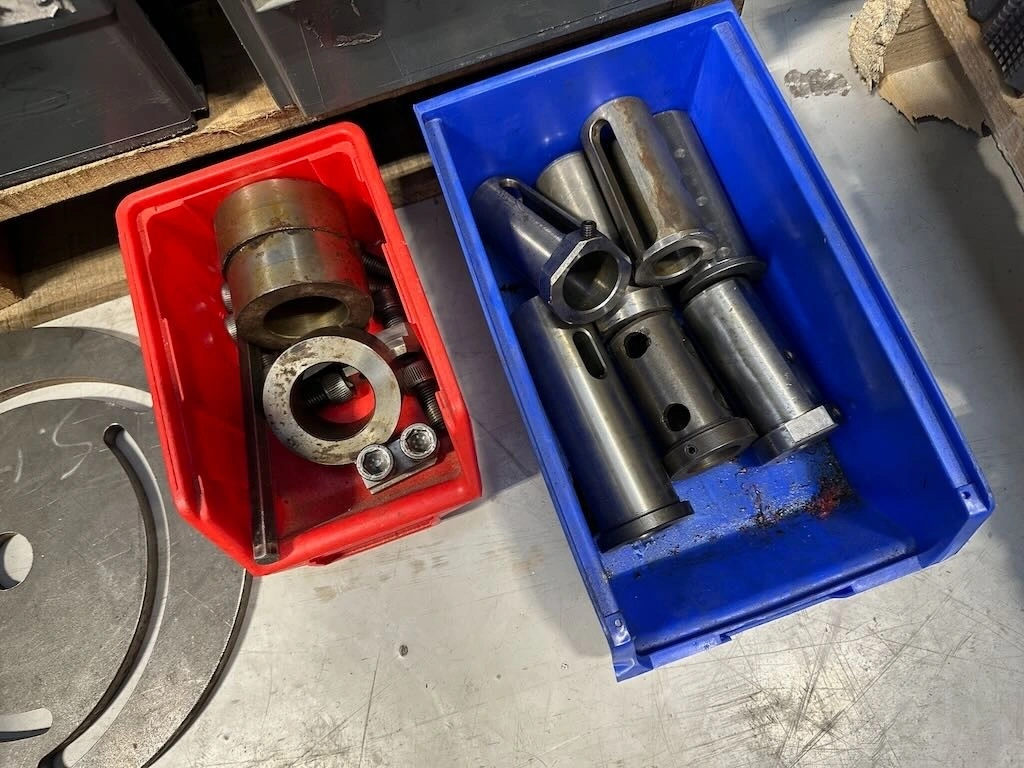

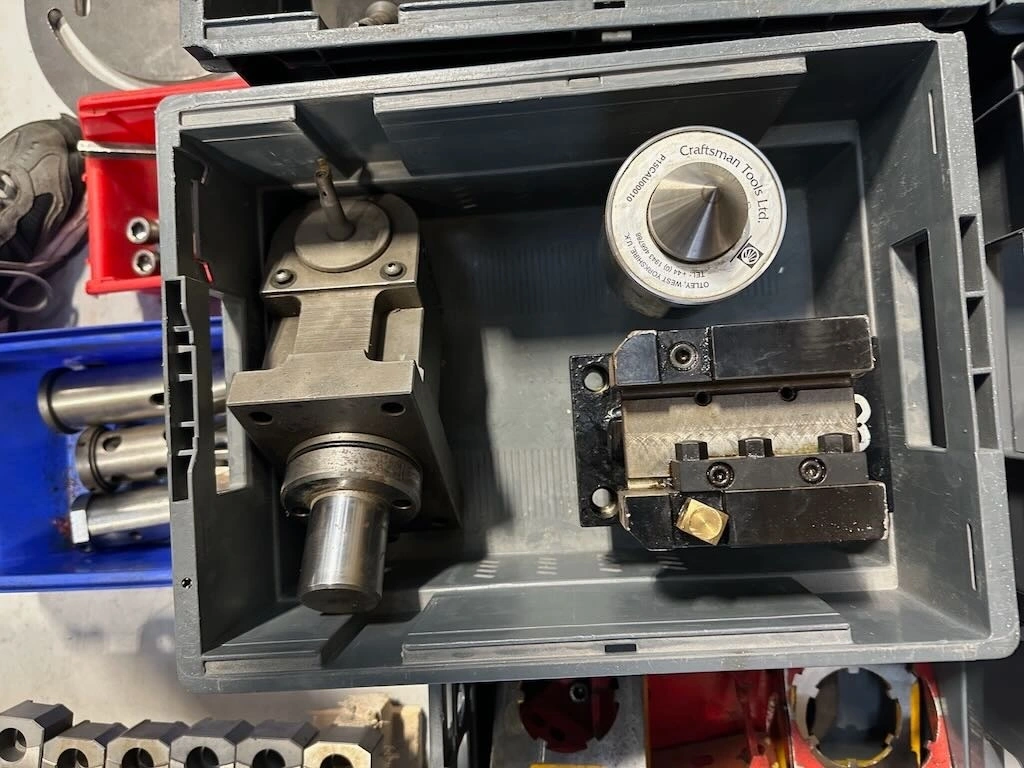

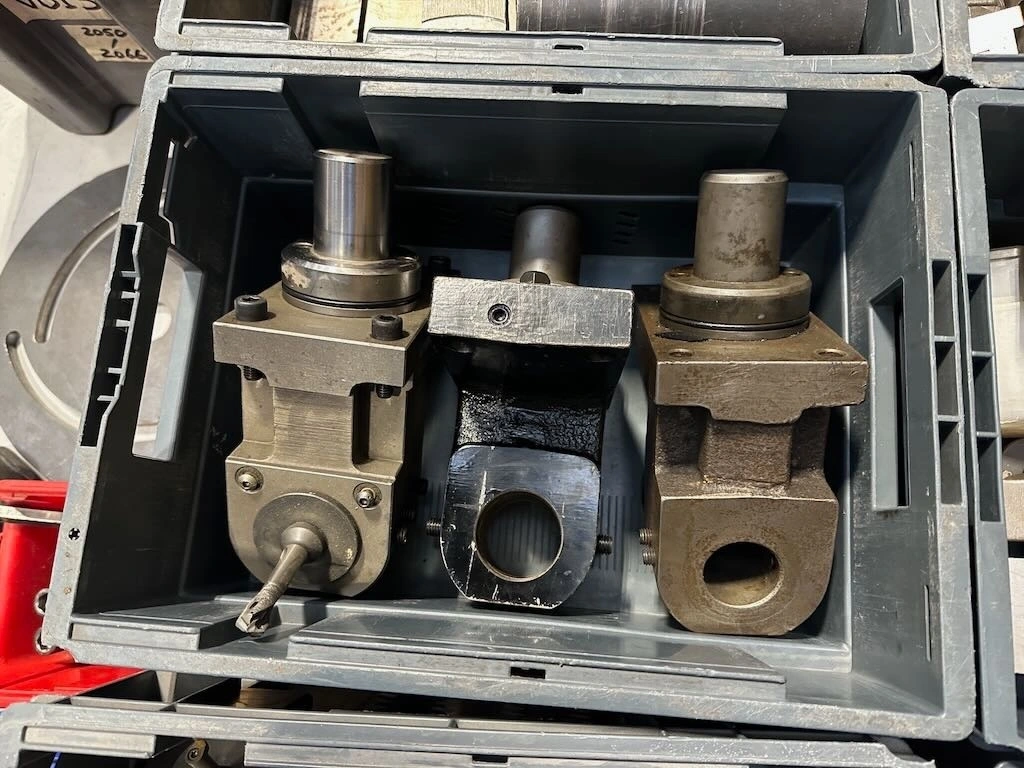

- Static and Driven Tooling.

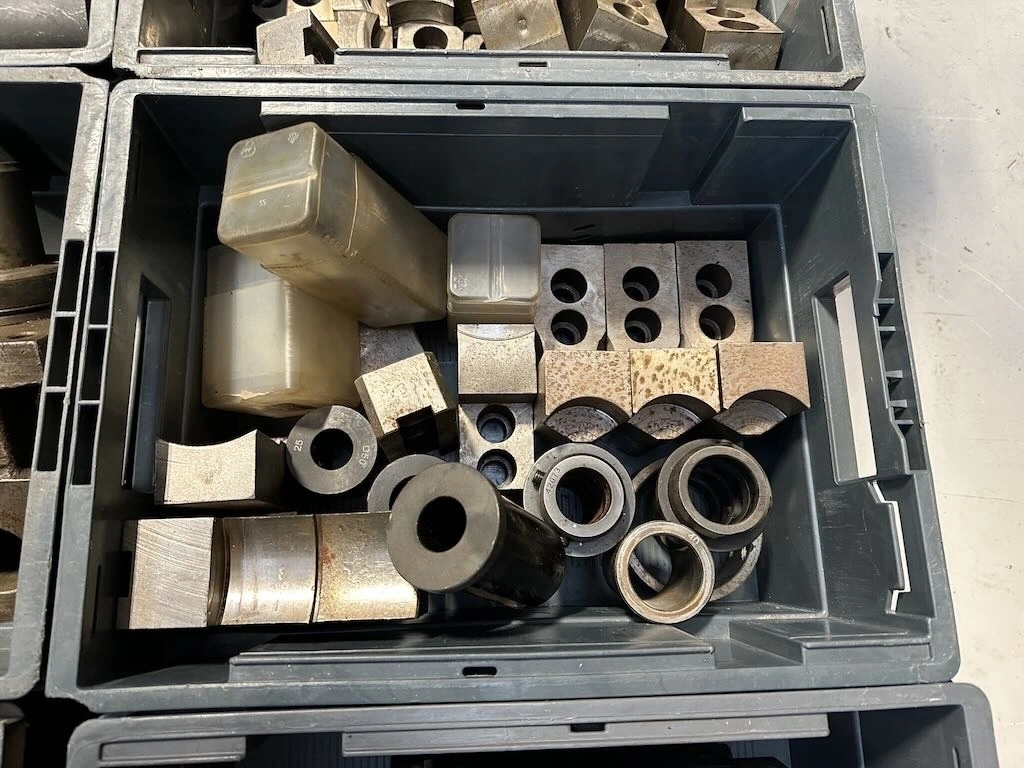

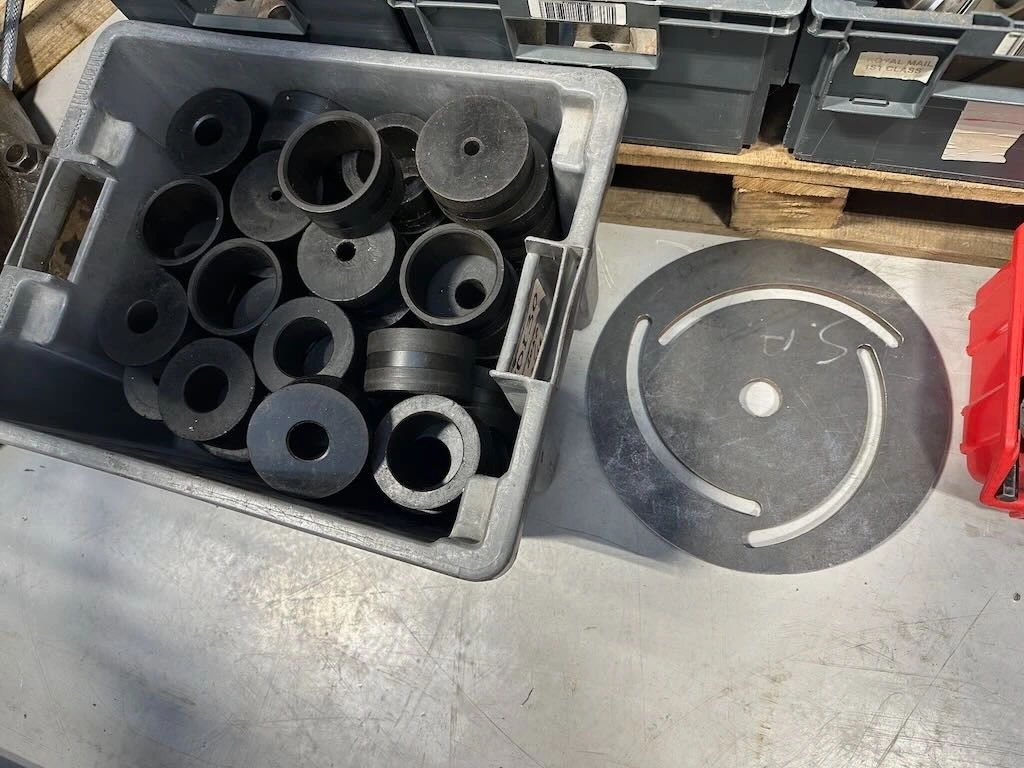

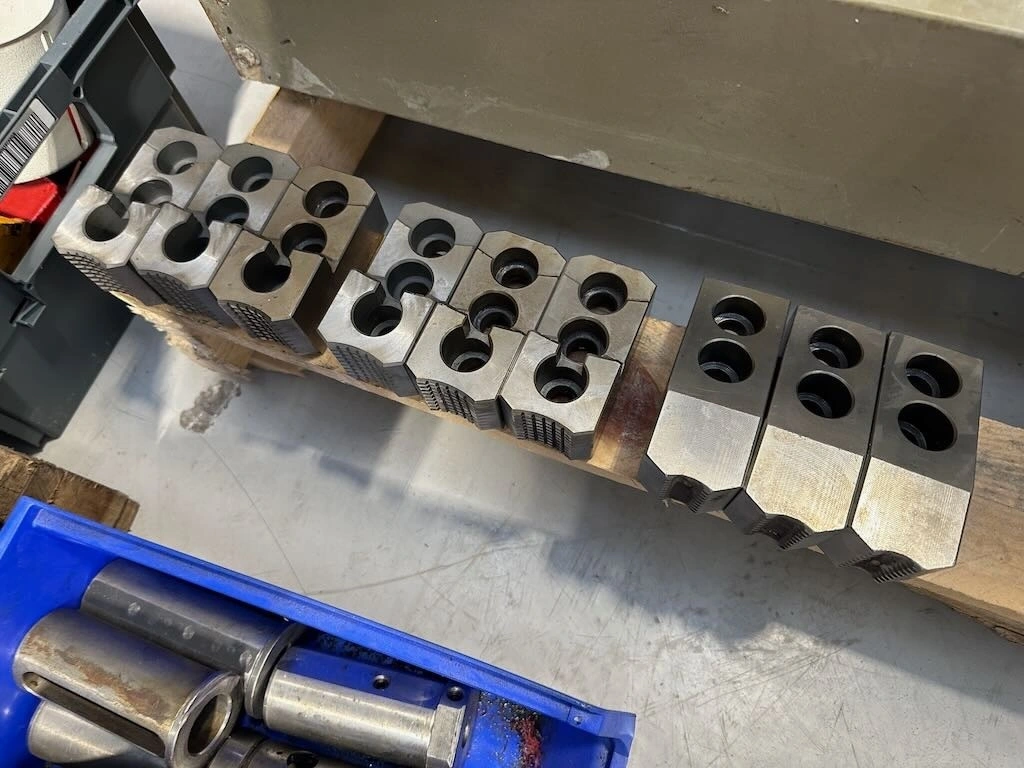

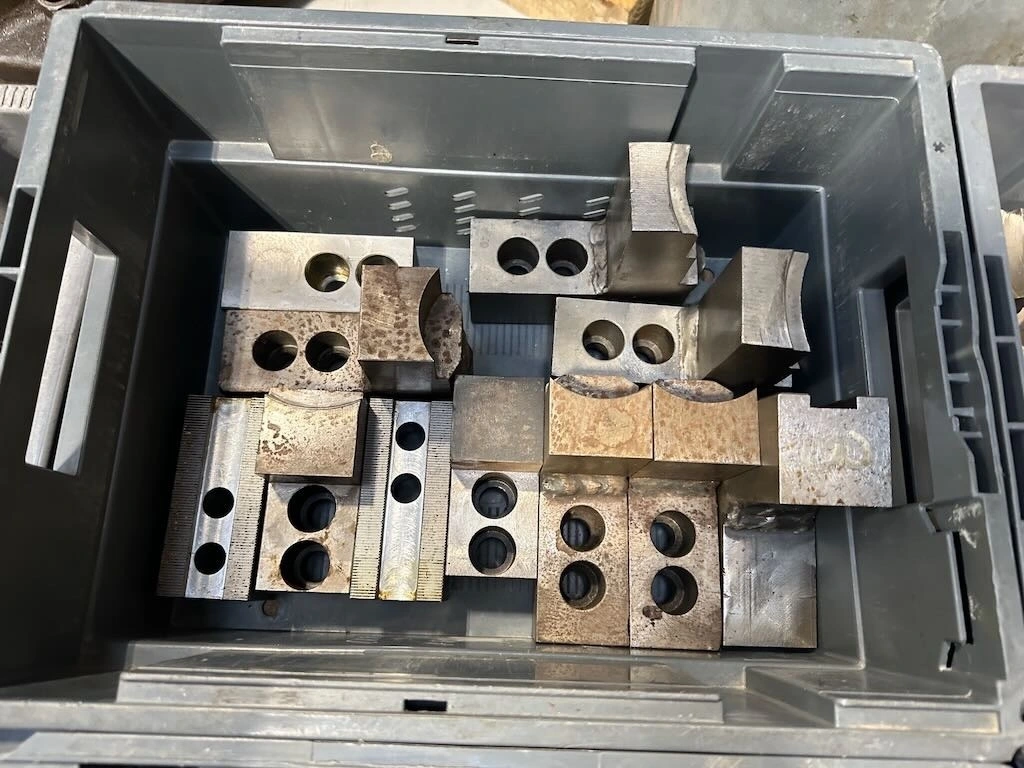

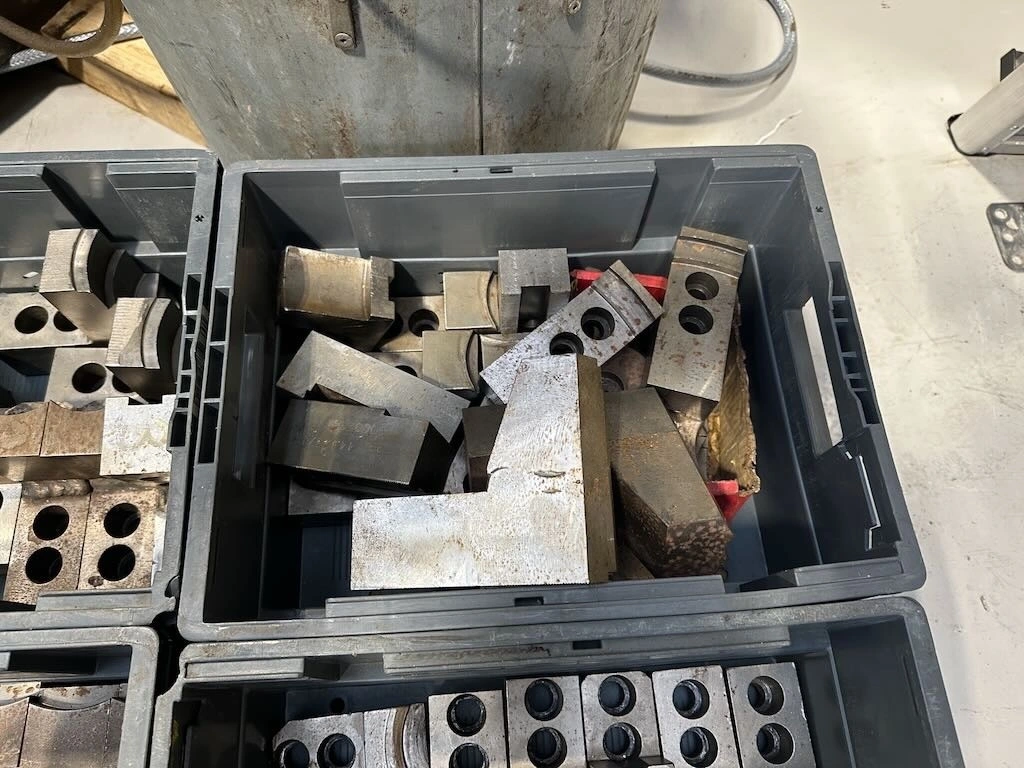

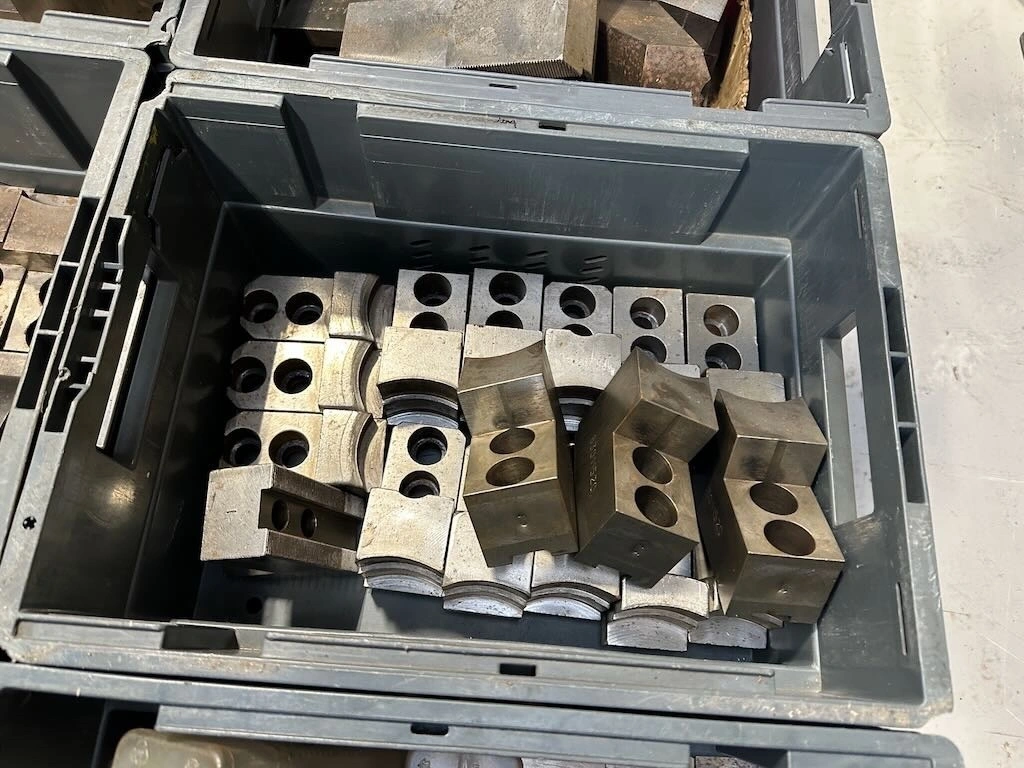

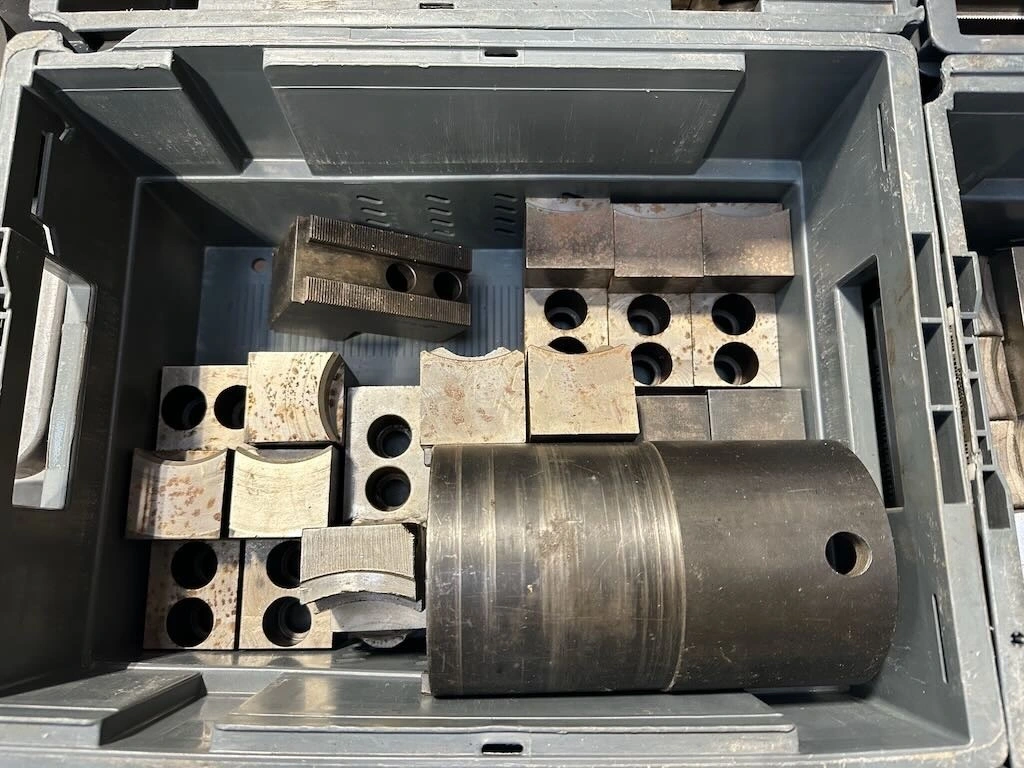

- Large Quantity of Hard and Soft Jaws.
- Plus other Accessories.
- Manuals
As supplied by the seller. Figures are converted between systems where a unit applies; anything without one is shown as quoted.
