DAEWOO PUMA MX2000ST

Year2005ManufacturerDAEWOOCategoryCNC LathesConditionUsedLocationUnited Kingdom
Ref8407281

Description

Overview

Supplied by the seller

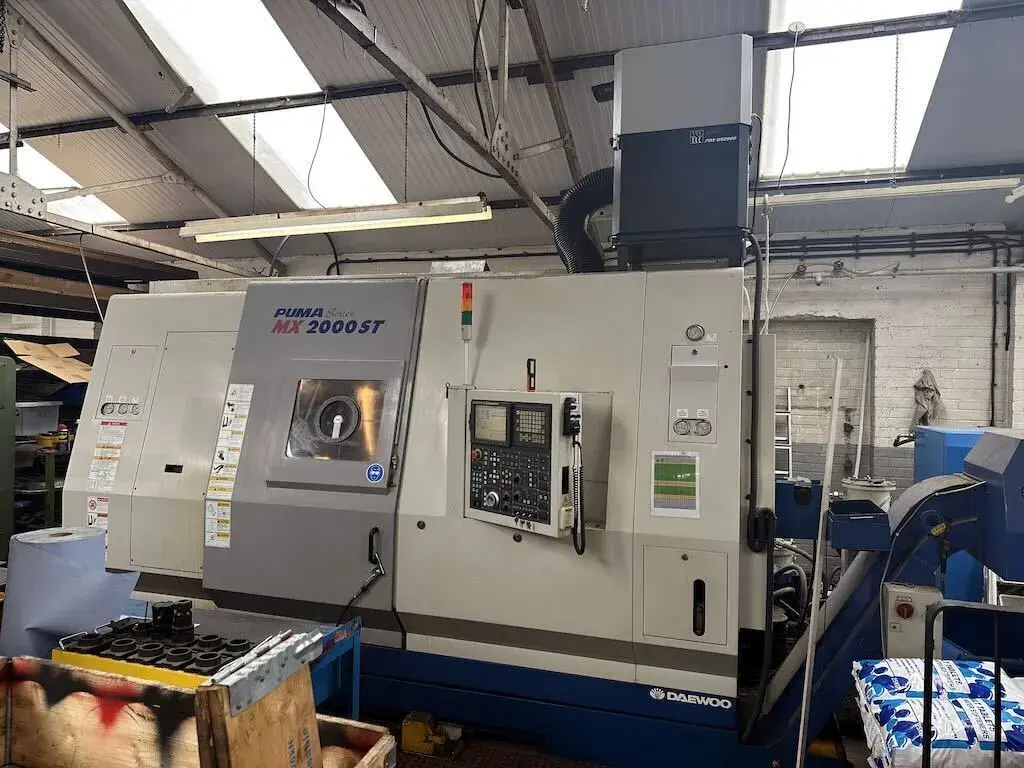

2005 Daewoo Puma MX2000ST — Multi-Axis Mill/Turn Centre The Puma MX2000ST is a powerful multi-tasking CNC centre designed to combine turning and milling operations in a single setup. Equipped with twin spindles and a lower turret, it allows simultaneous machining for improved productivity. Key features include: Twin spindles with C-axis control Maximum turning diameter approx. 550 mm, turning length approx. 1,020 mm 9 controlled axes for complex machining Live tooling with automatic tool changer Fanuc CNC control system Rigid build for accurate, heavy-duty machining A versatile solution for high-precision work, ideal for reducing setup times and handling complex components in one machine. Programmable tailstock (A-axis) • Hi-Pressure Through-spindle coolant • Parts catcher and conveyor • LNS FOX2000 Filtermist unit • Tooling package • Full documentation and manuals

Included

  • Coolant
  • Filtermist Unit
  • Swarf Conveyor
  • Tool Presetter
  • Tooling Package

Specifications

Manufacturer
DAEWOO
Year
2005
Control
Fanuc 18i-TB
Weight
12,500 kg
Dimensions
177.953 x 98.2677
Swing
750 mm
Machining Length
1,020 mm
# Axis
8.0
Chuck Size
203 mm
Bar Capacity
65 mm
Power
30 kW
Max RPM
5000.0 rpm
Turning Dia
550 mm
Tailstock
'Yes'
Live Tooling
'Yes'
Sub Spindle
'Yes'
View full spec sheetHide full spec sheet
  • Axis Configuration
  • 8-axis plus A-axis programmable tailstock
X1/Z1 travel (main spindle)
approx. 555 mm × 1,095 mm
X2/Z2 travel (sub spindle / lower turret)
approx. 185 mm × 1,095 mm
Y-axis travel
±80 mm
B-axis indexing
±120°
C-axes (main & sub spindle)
360° indexing, 0.001° resolution
A-axis
programmable tailstock with approx. 1,065 mm stroke

Spindle

Main & sub spindle speed
up to 5,000 rpm
Spindle motor power
approx. 22 kW (30 HP) vector drive
Spindle bore
65 mm
  • Milling / Turret System
  • Upper milling head with 40-station automatic tool changer
Milling spindle speed
up to 10,000 rpm
Lower turret
12 stations, live tooling capable
Tool change time
approx. 1.5 sec
Max tool length
300 mm
Max tool diameter
120 mm (adjacent-free)

Capacity

Max turning length
1,020 mm
Swing over bed
approx. 750 mm
  • Dimensions / Weight
Machine footprint
approx. 4,520 mm × 2,495 mm
Height
approx. 2,600 mm
Machine weight
approx. 12,500 kg

Utilities

Power supply
380–440V / 3-phase / 50 Hz
Power consumption
approx. 81 kVA
  • Equipped with a chip conveyor, coolant system, tool presetter, and swarf handling
  • Additional Features
  • Programmable tailstock (A-axis)
  • Hi Pressure Through-spindle coolant
  • Parts catcher and conveyor
  • LNS FOX2000 Filtermist unit
  • Tooling package
  • Full documentation and manuals

As supplied by the seller. Figures are converted between systems where a unit applies; anything without one is shown as quoted.
