Description
Overview
Supplied by the seller

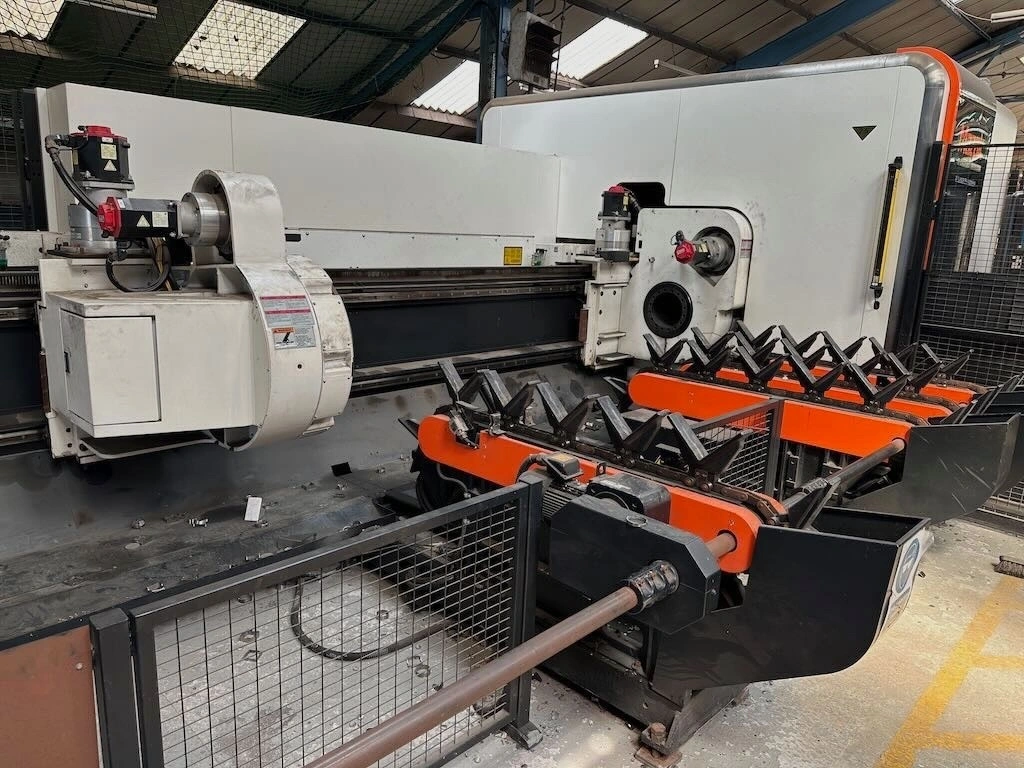

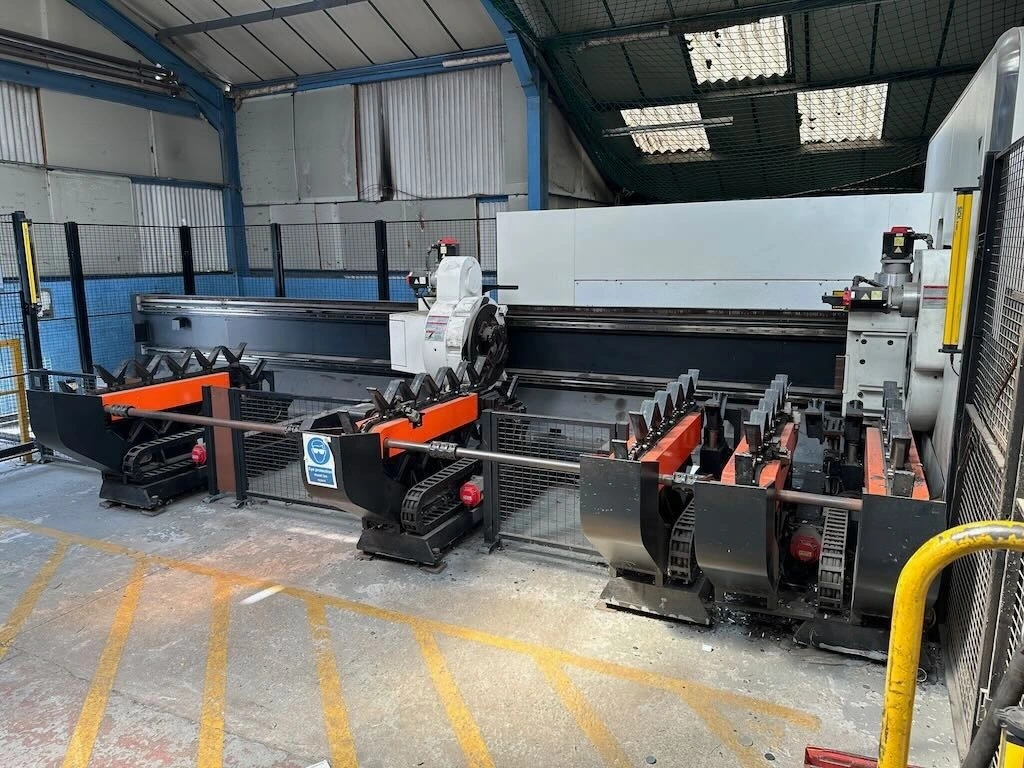

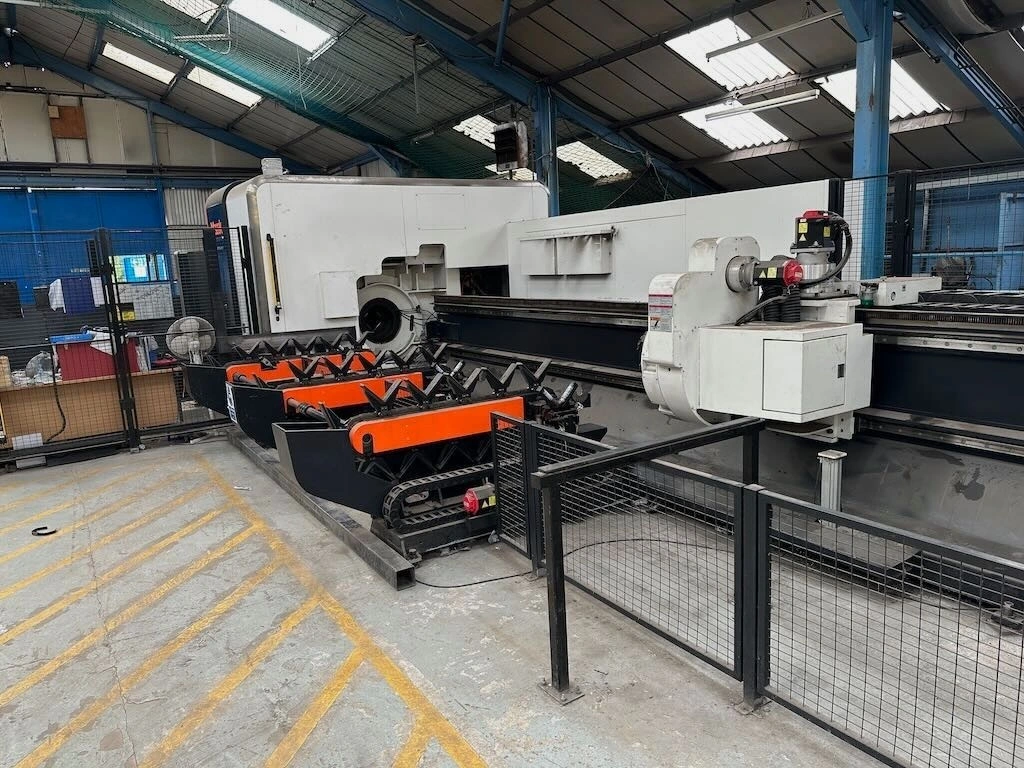

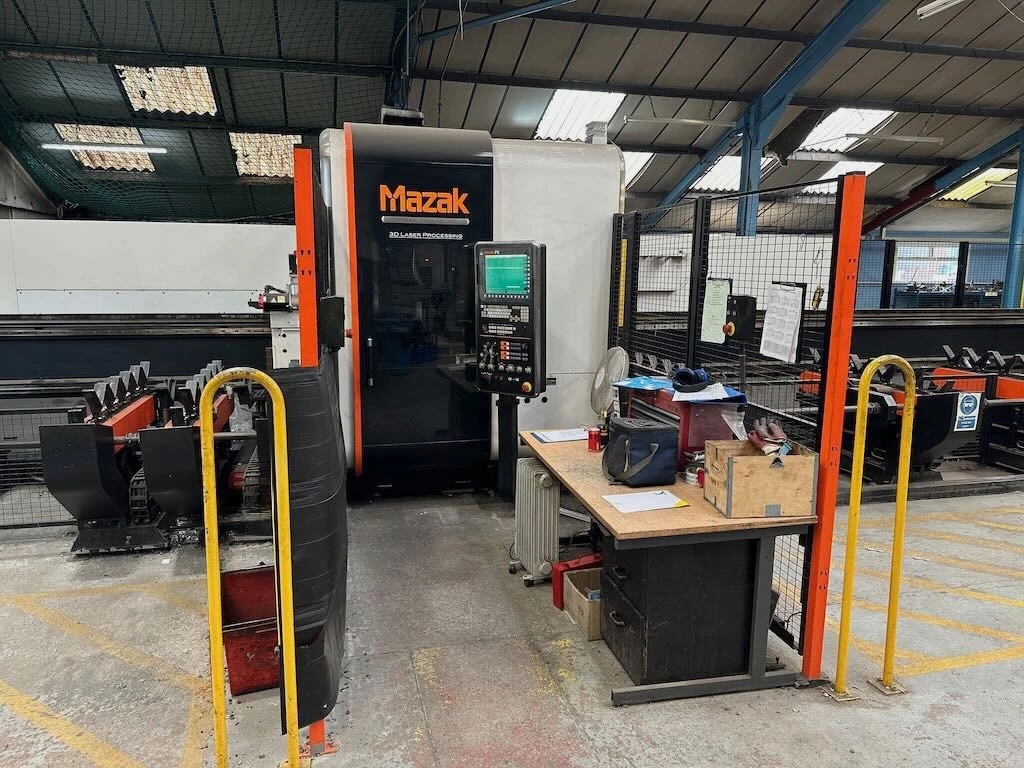

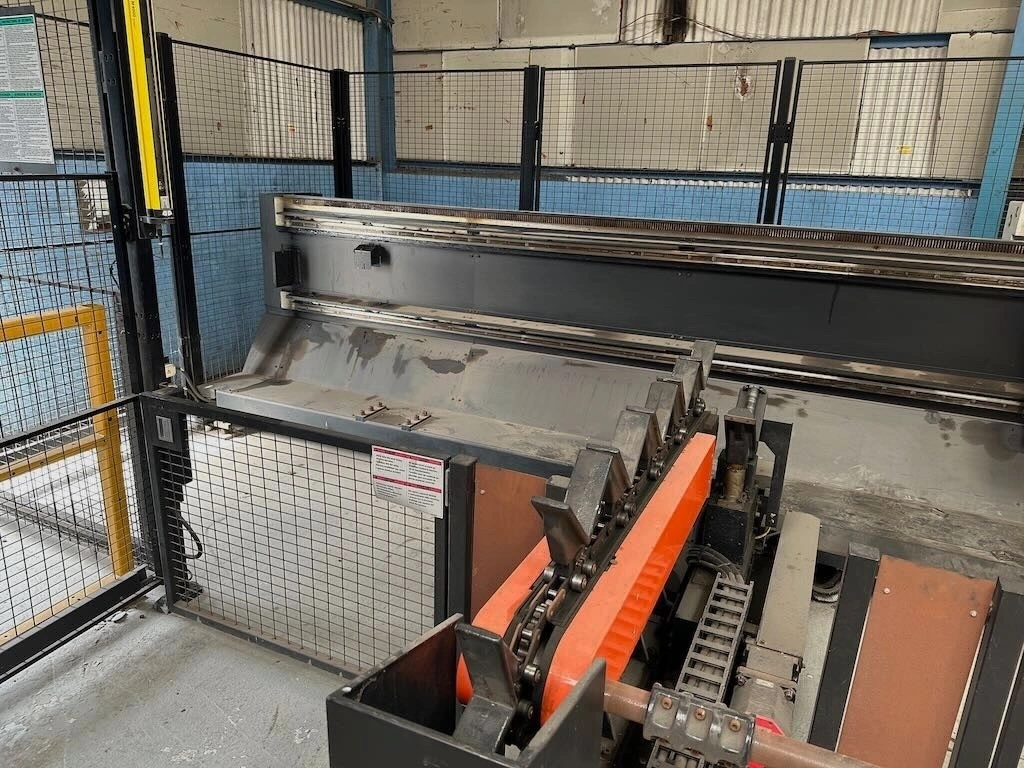

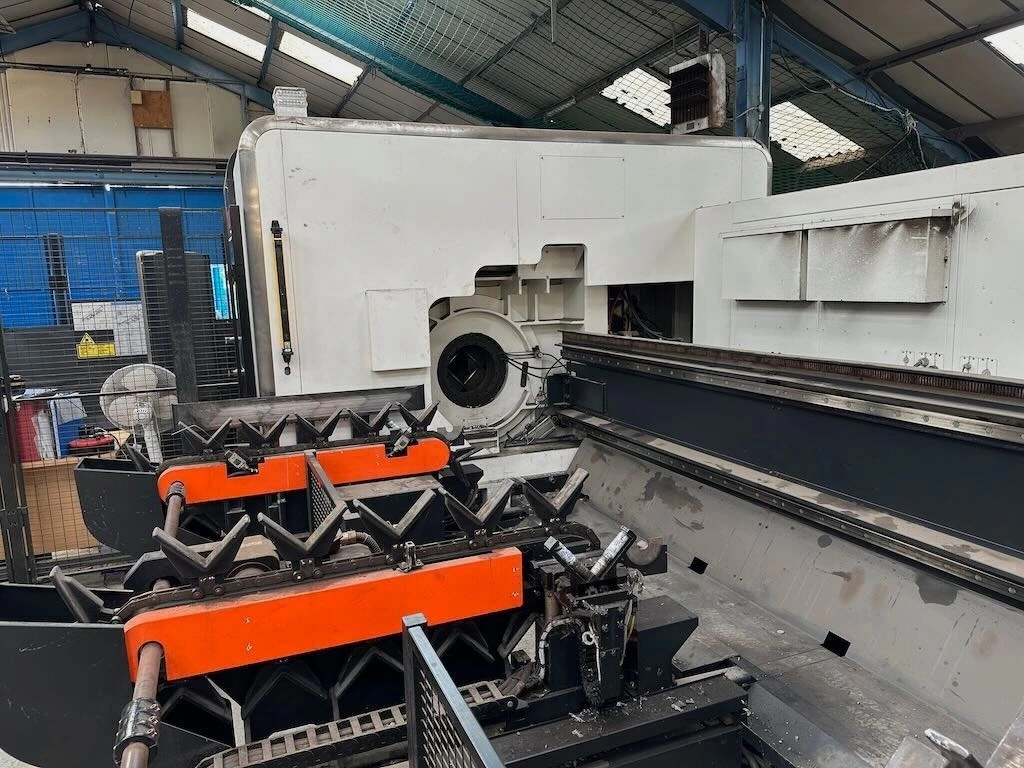

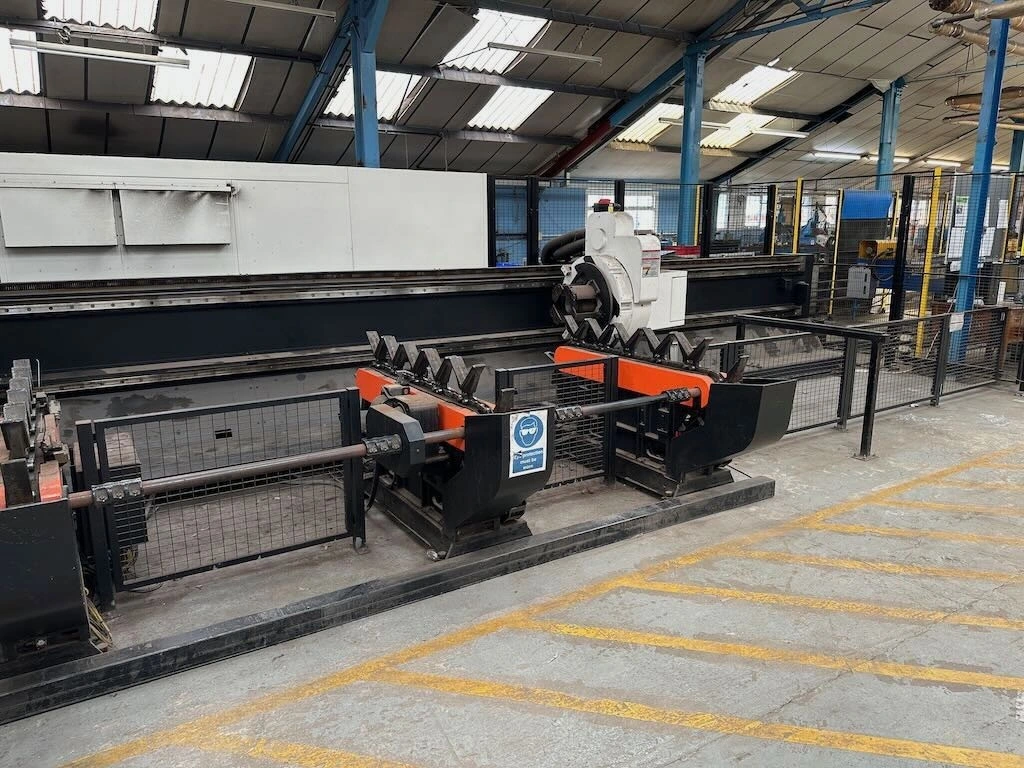

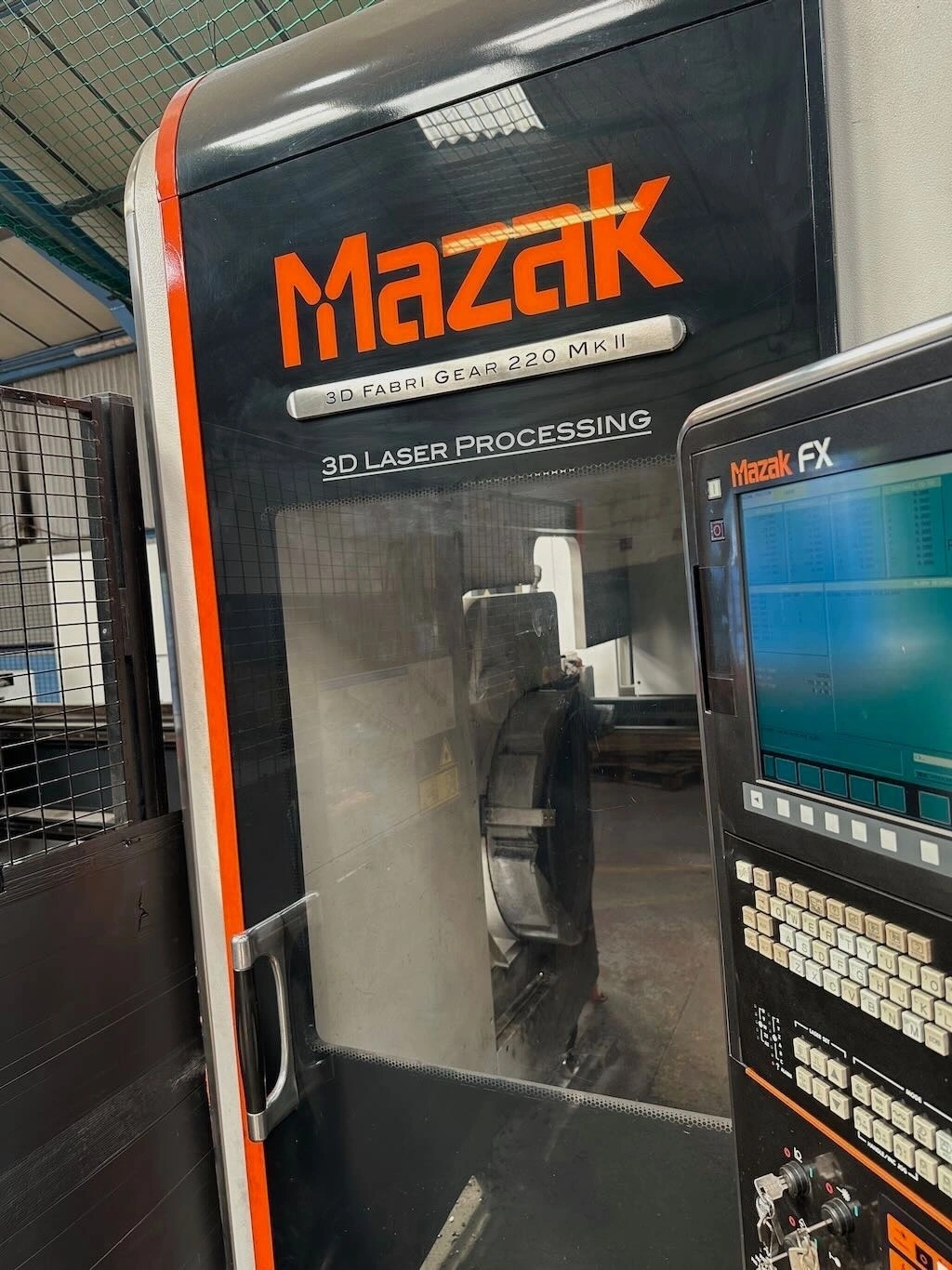

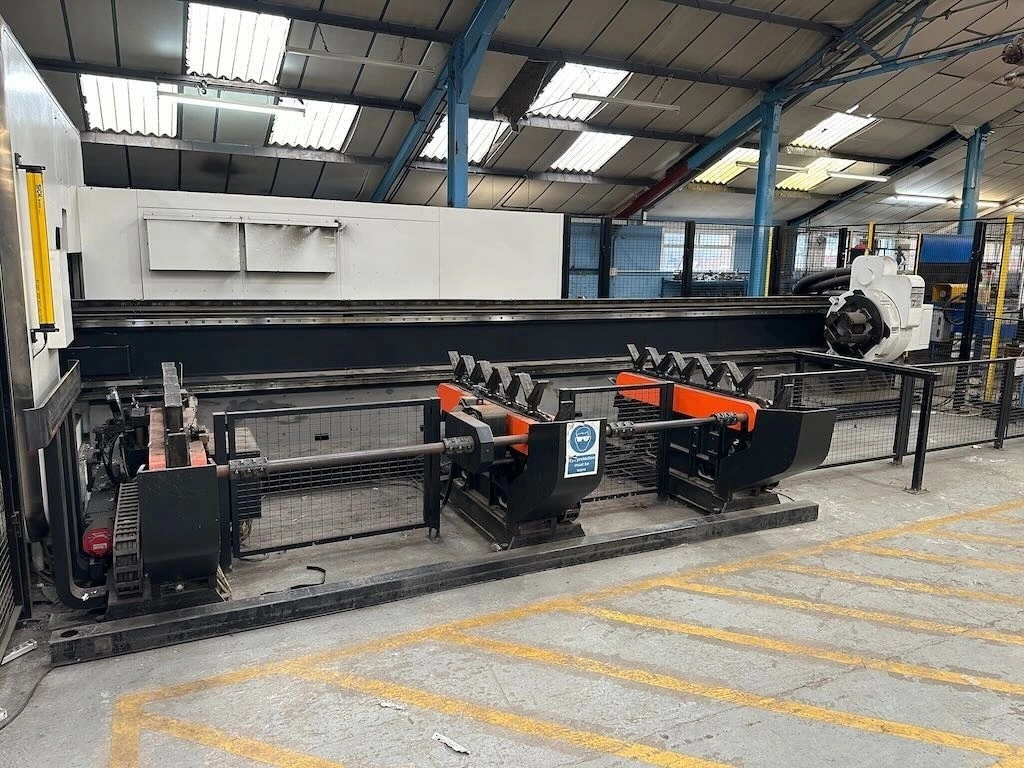

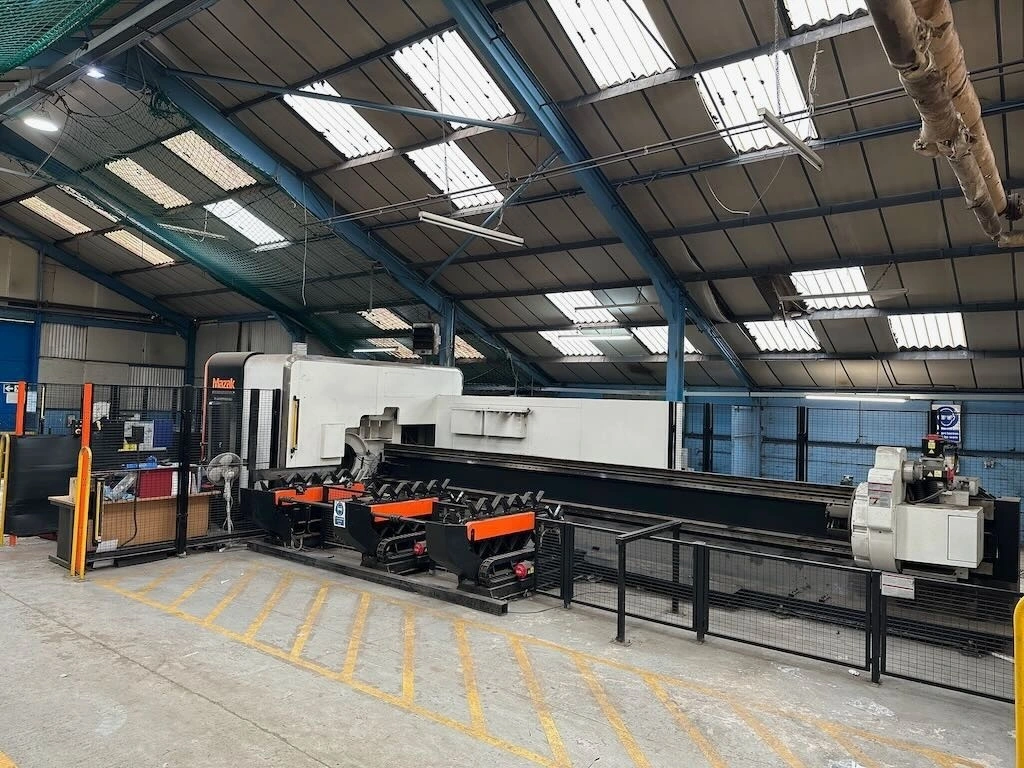

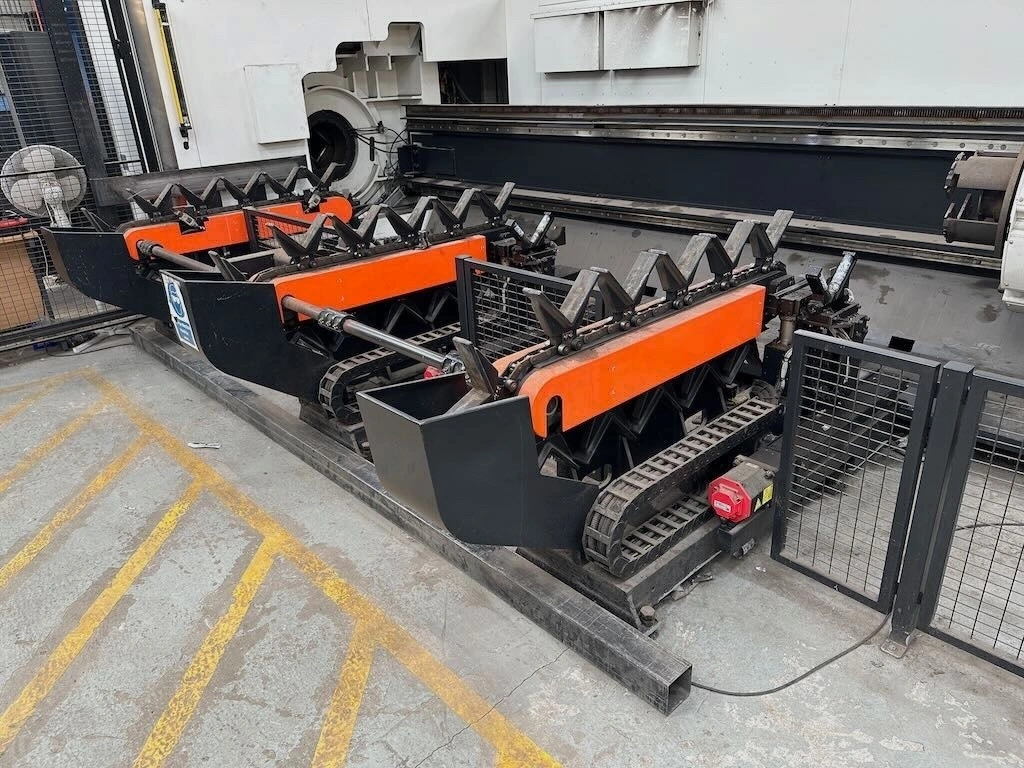

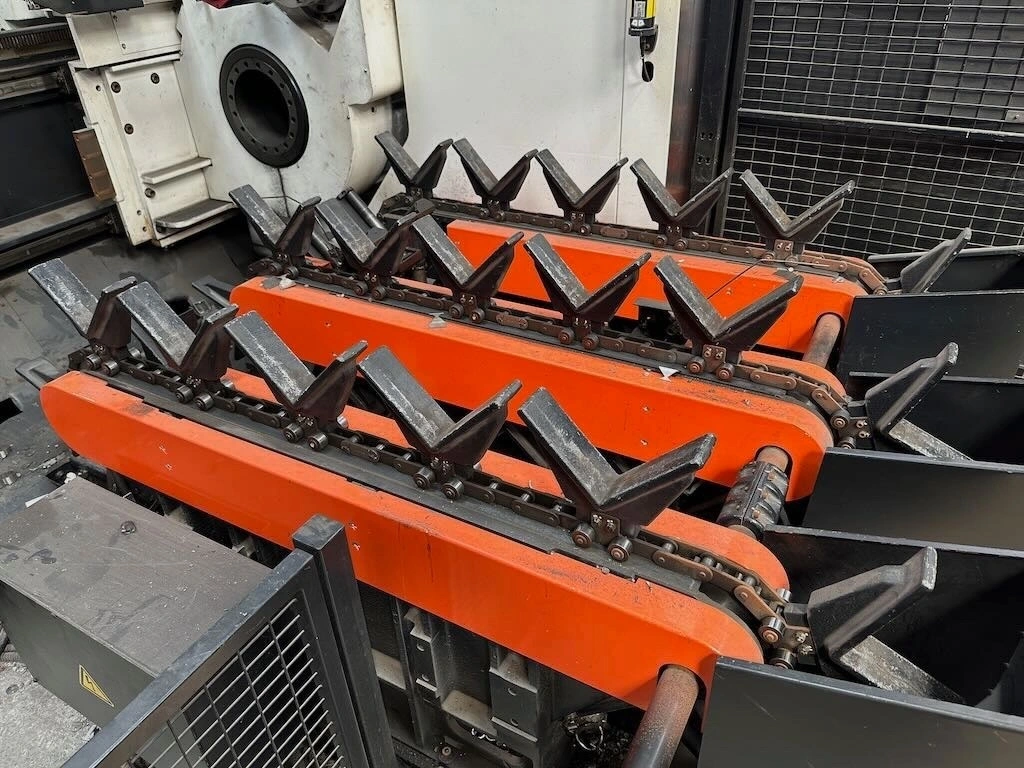

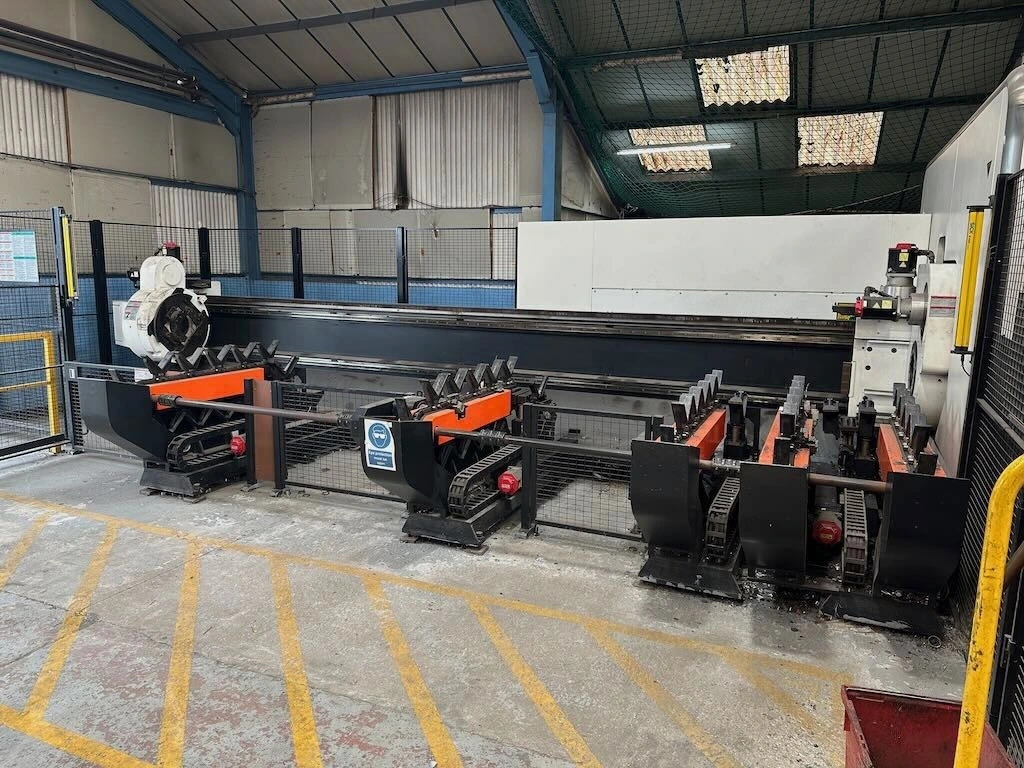

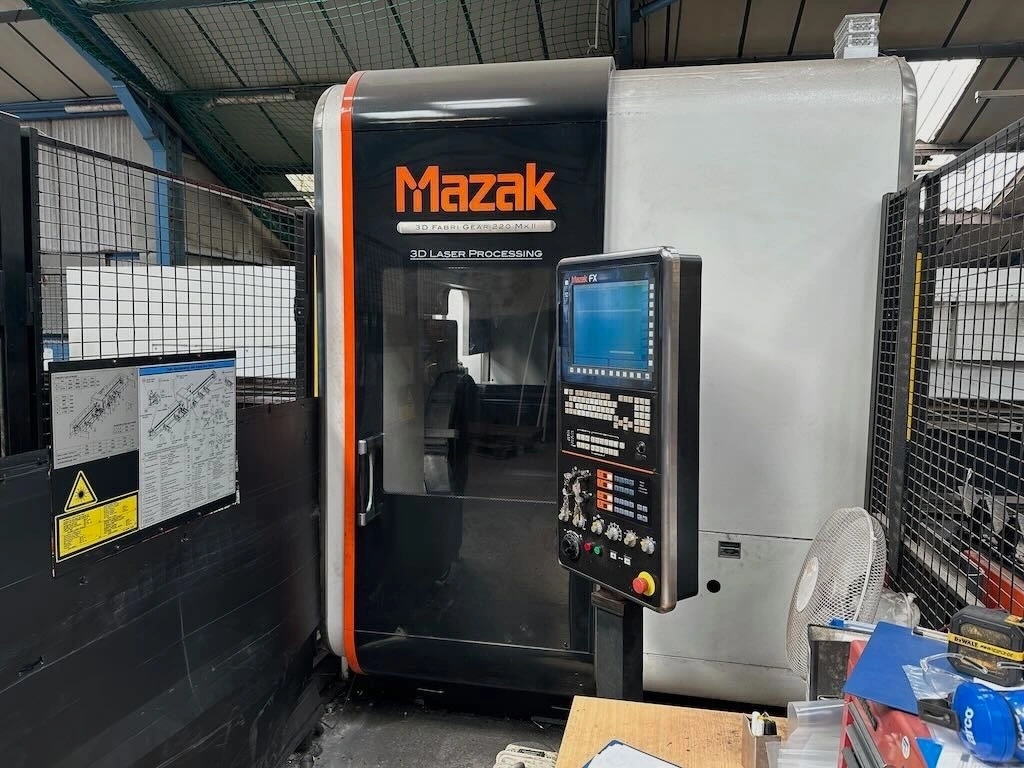

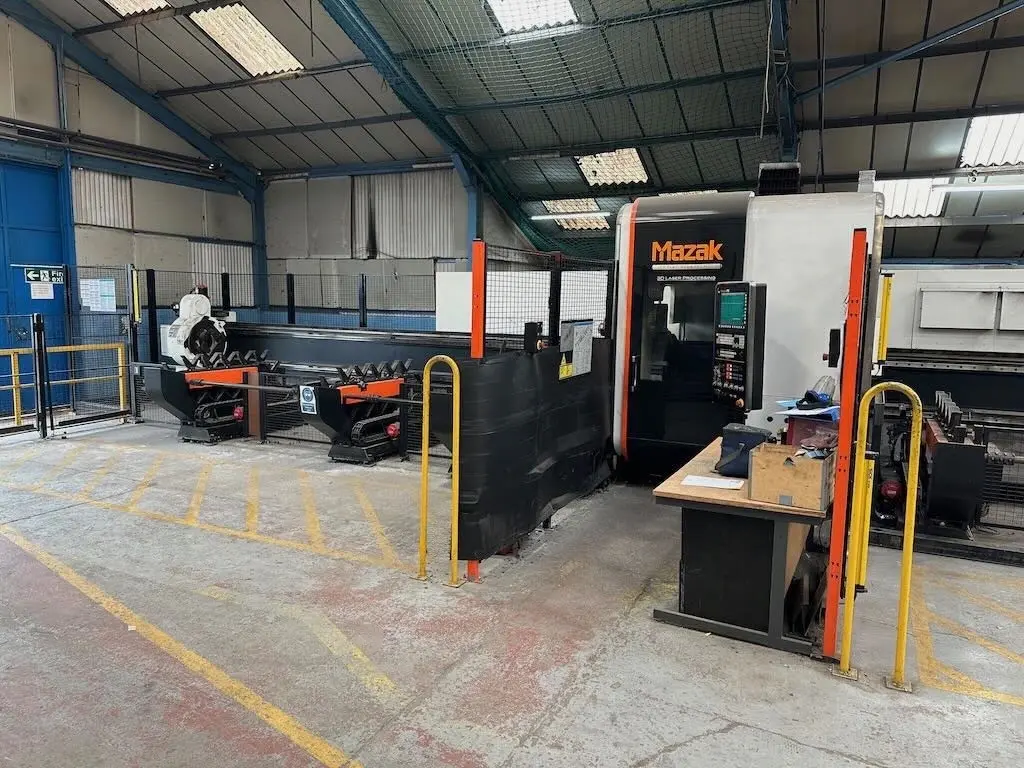

For Sale: 2015 3D FABRI GEAR 220 II cuts a wide variety of tubes and pipes, including round, square, rectangular and triangular. It can also process I and H beams, C-channel, angle iron and additional user-defined shapes from mild or stainless steel. 7 Axis 3D 2.5kW LASER, 6m Load, 6m Unload
Specifications
- Manufacturer
- MAZAK
- Year
- 2015

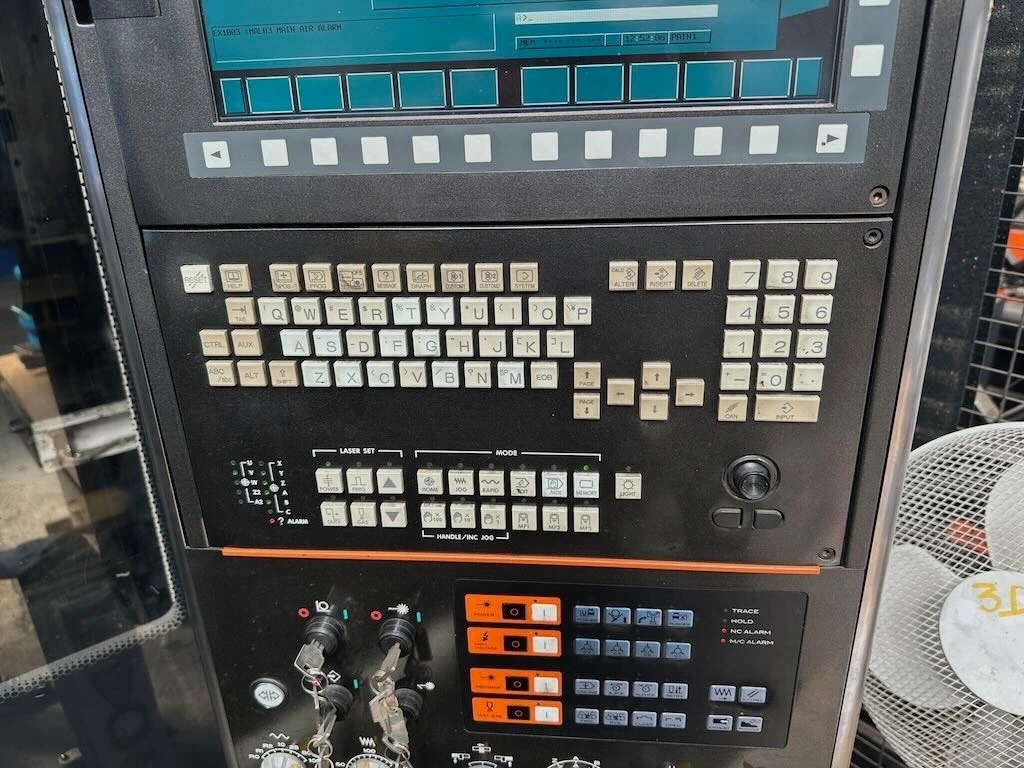

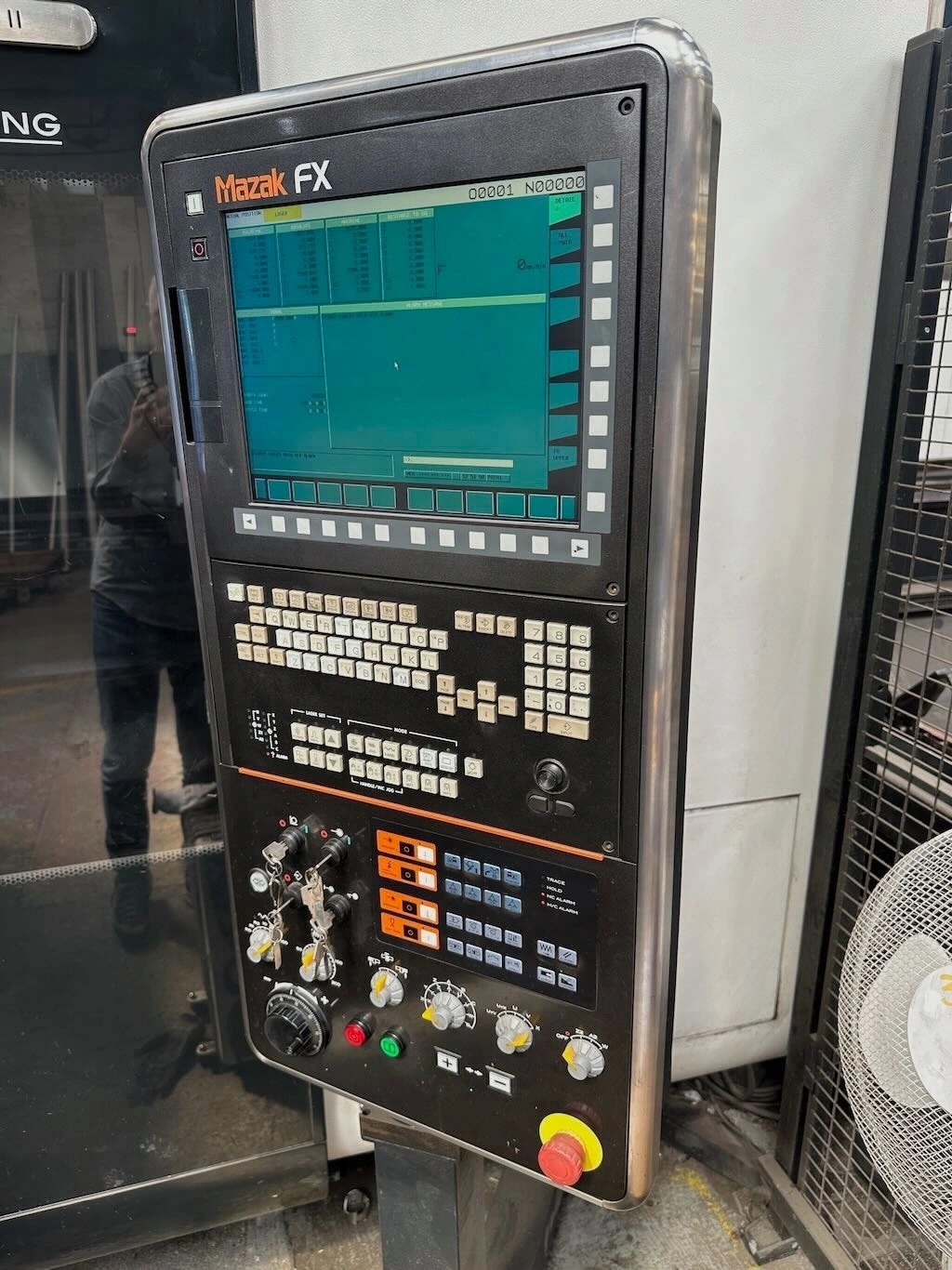

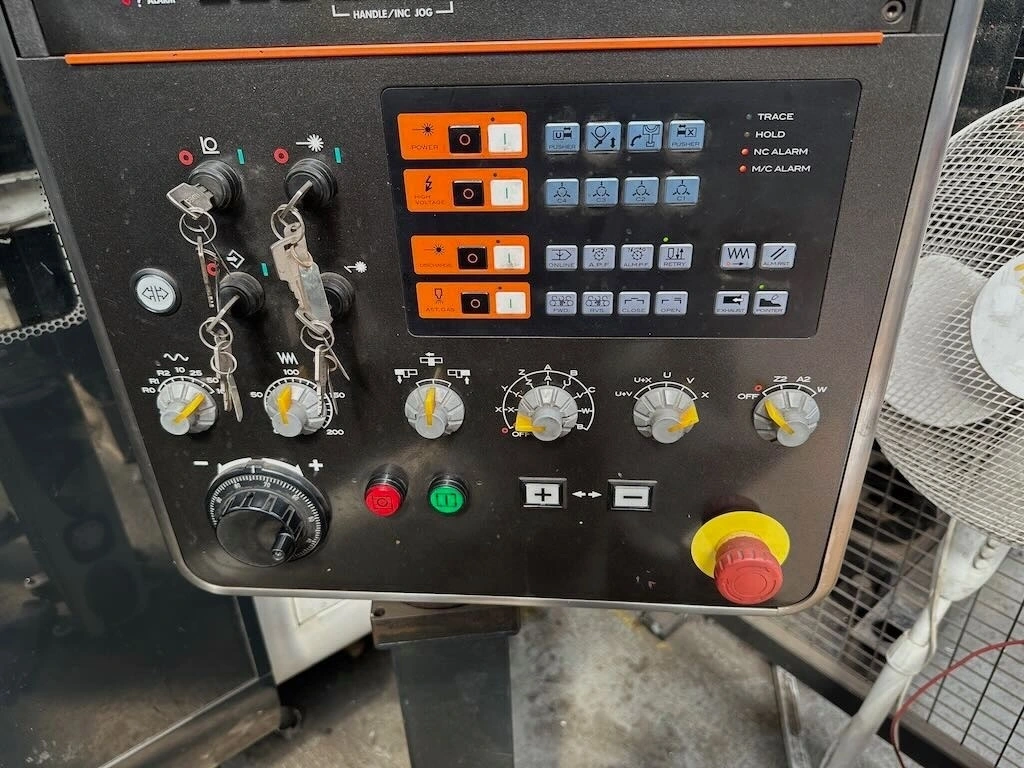

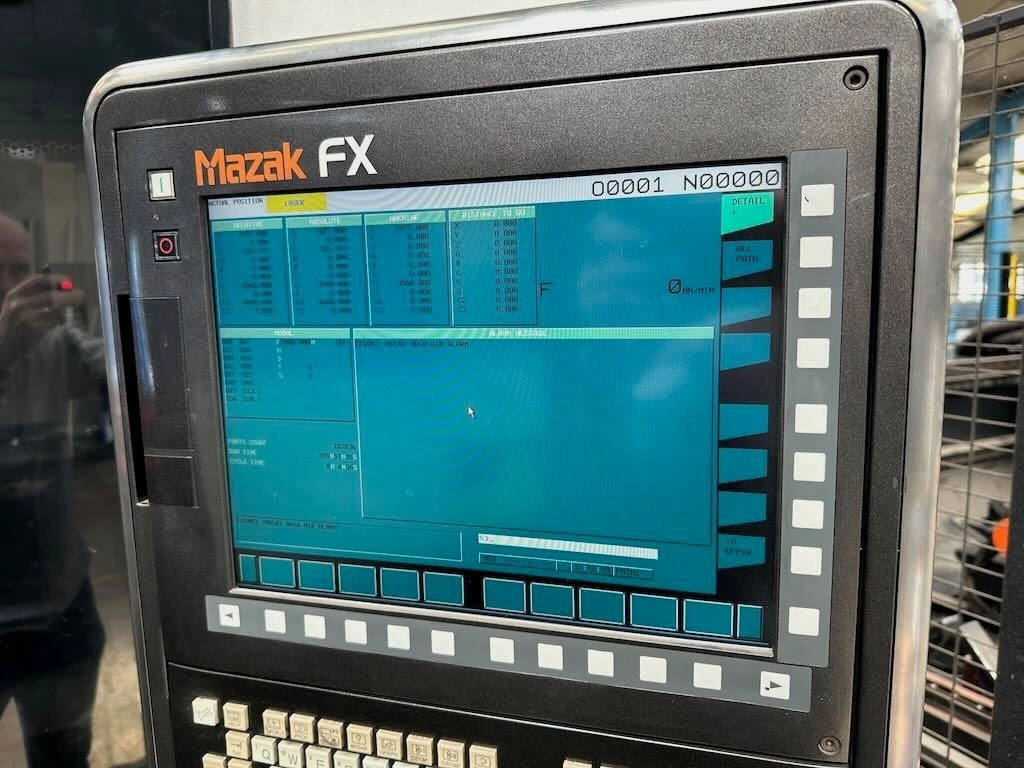

- Control

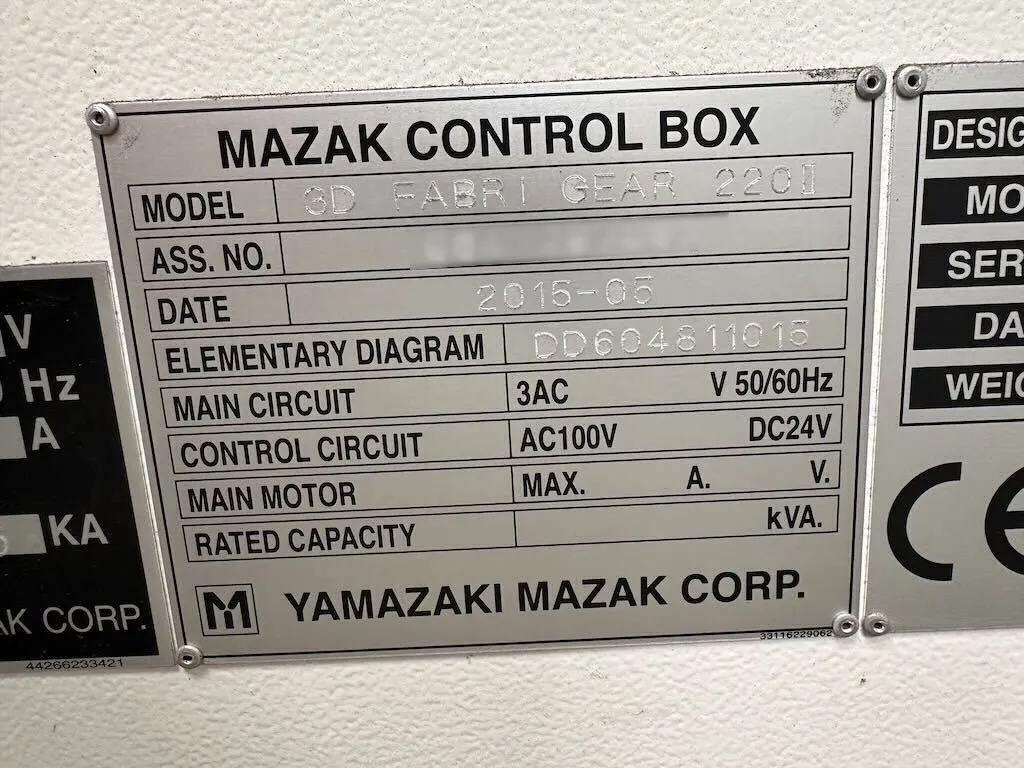

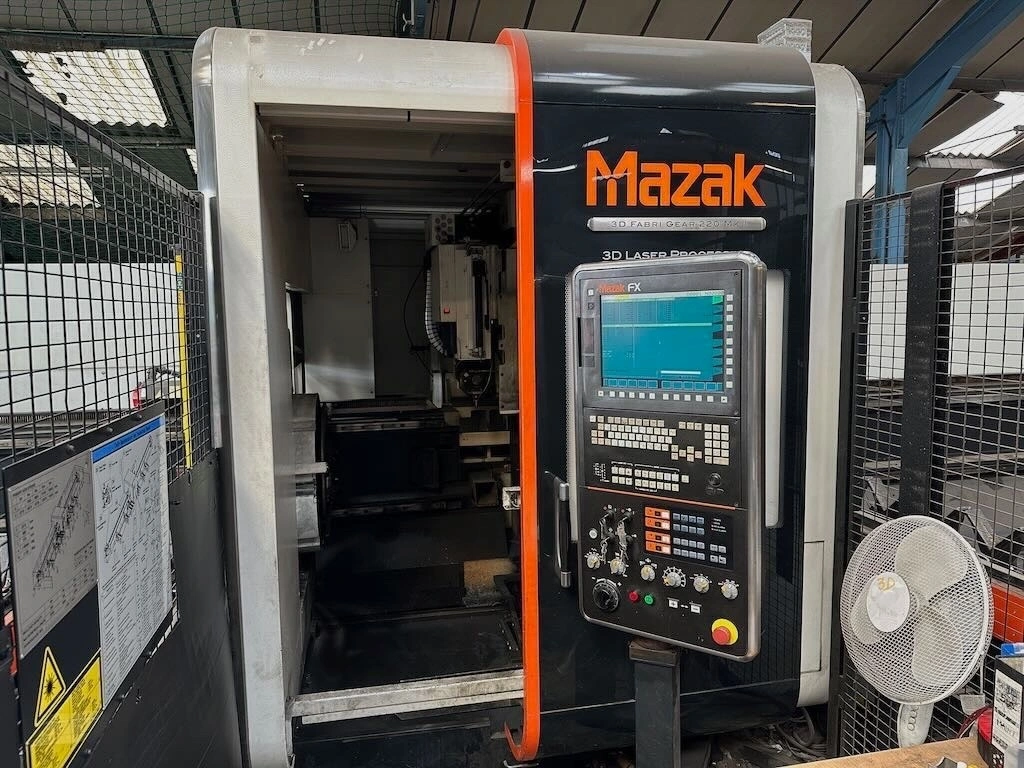

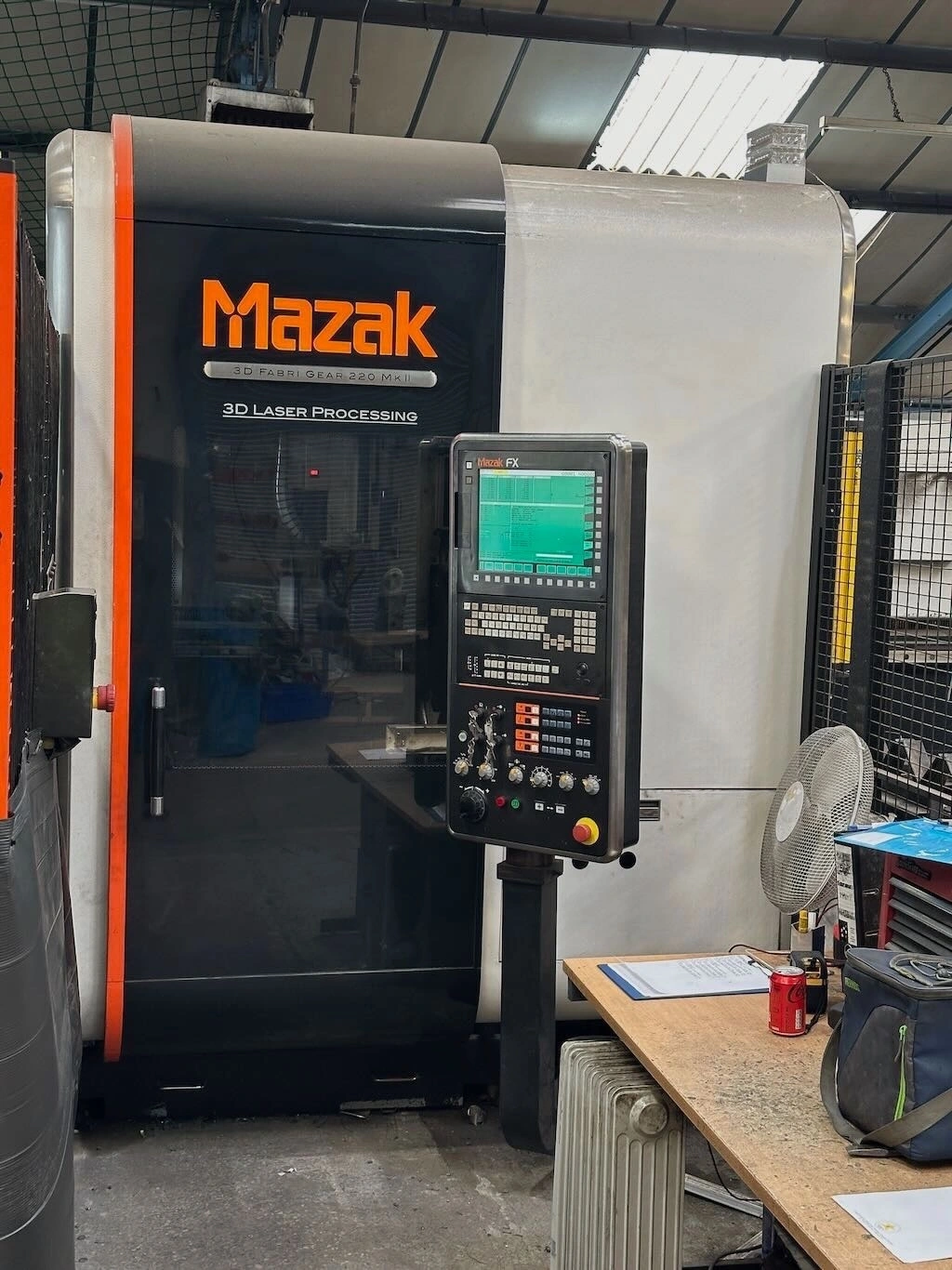

- Mazak FX Control Unit
- Sheet-W
- 220 mm
- Sheet-L
- 8,011 mm
- Wattage
- 2.5 kw
- IPM
- 3937.0 ipm
- X
- 9,055 mm
- Y
- 985 mm
- Z
- 370 mm
View full spec sheetHide full spec sheet

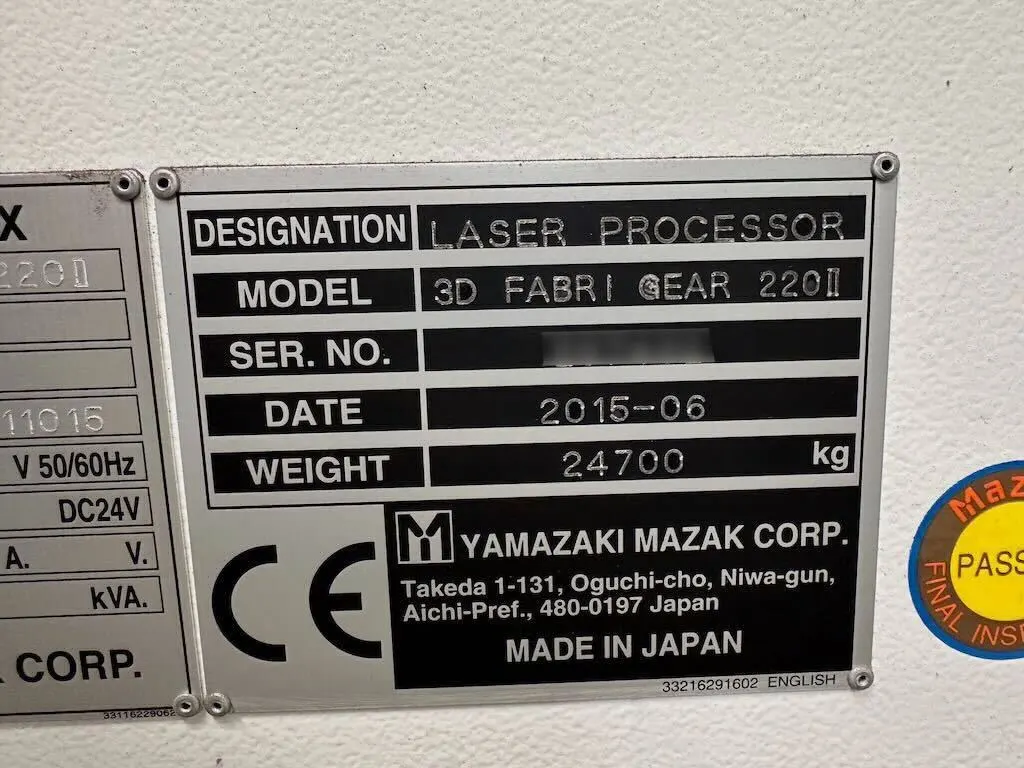

- Model
- Mazak Fabri-gear 220 II
- Control Display Cutting Hours
- 360
- Machine on Resonator Hours
- 18,000
- Laser Output
- 2.5kW
- Laser Gas
- He, N2, CO₂
- Max. Material Thicknesses
- Mild Steel: 21.9964mm, Stainless: 9.9822mm, Aluminium: 7.9756mm
- Max. Workpiece Length (Load/Unload)
- 8001mm
- Max Material Dia (Round)
- 219.964mm
- Max Material Dia (Square)
- 152.4mm
- Max Workpiece Weight
- 356kg

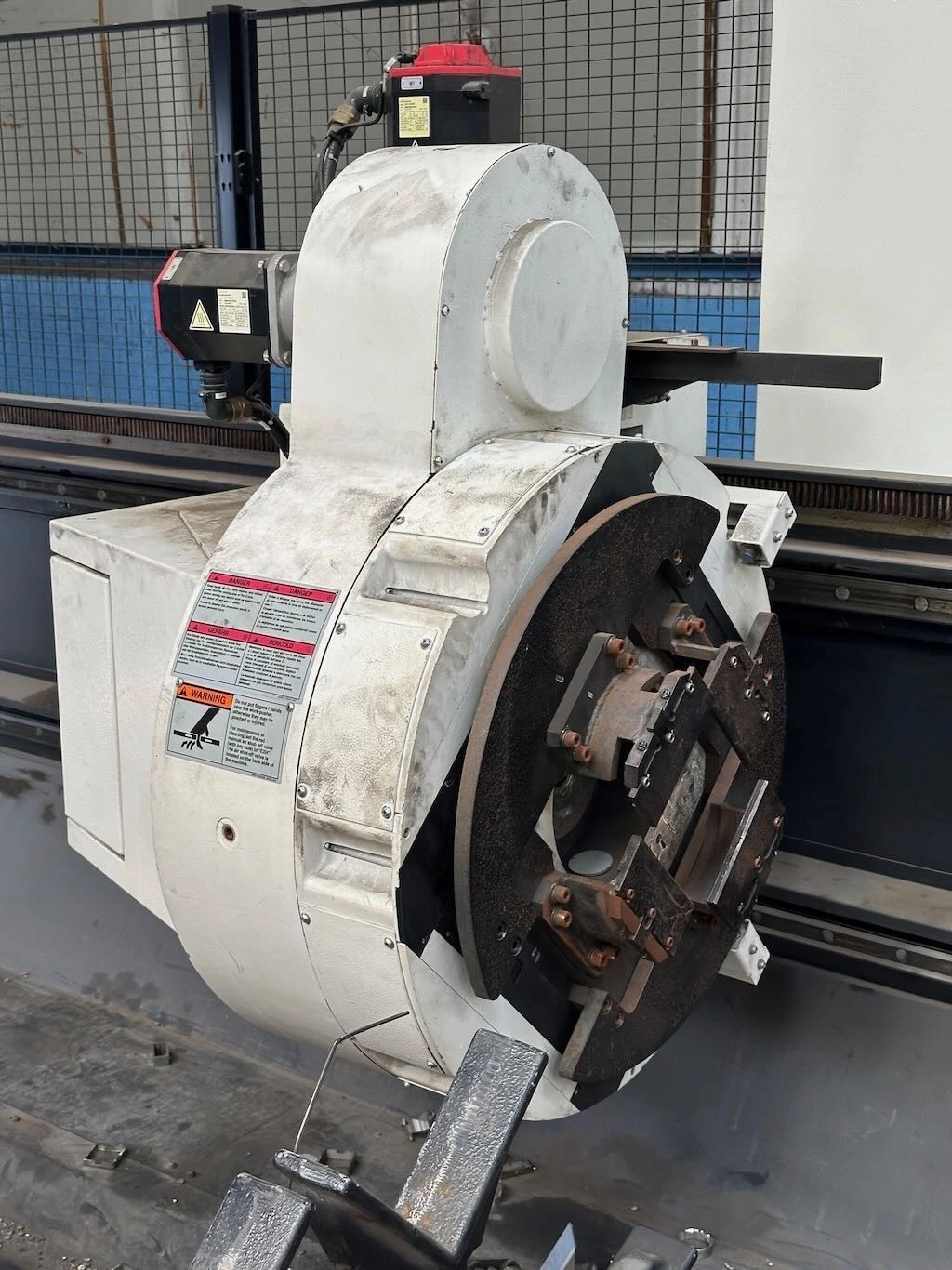

- Stroke X Chuck (Left/Right)
- 9055.19mm
- Stroke U Chuck (Left/Right)
- 8989.06mm
- Stroke V Chuck (Left/Right)
- 2314.956mm
- Stroke Y Head (Back/Forth)
- 985.012mm
- Stroke Z Head (Up/Down)
- 370.078mm
- Stroke A Head Rotation
- ±99,999.999°
- Stroke B Head Swing
- ±135°
As supplied by the seller. Figures are converted between systems where a unit applies; anything without one is shown as quoted.
