Description
Overview
Supplied by the seller

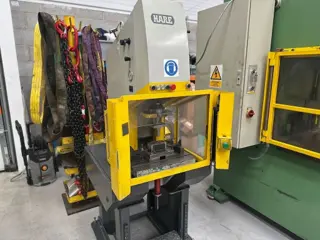

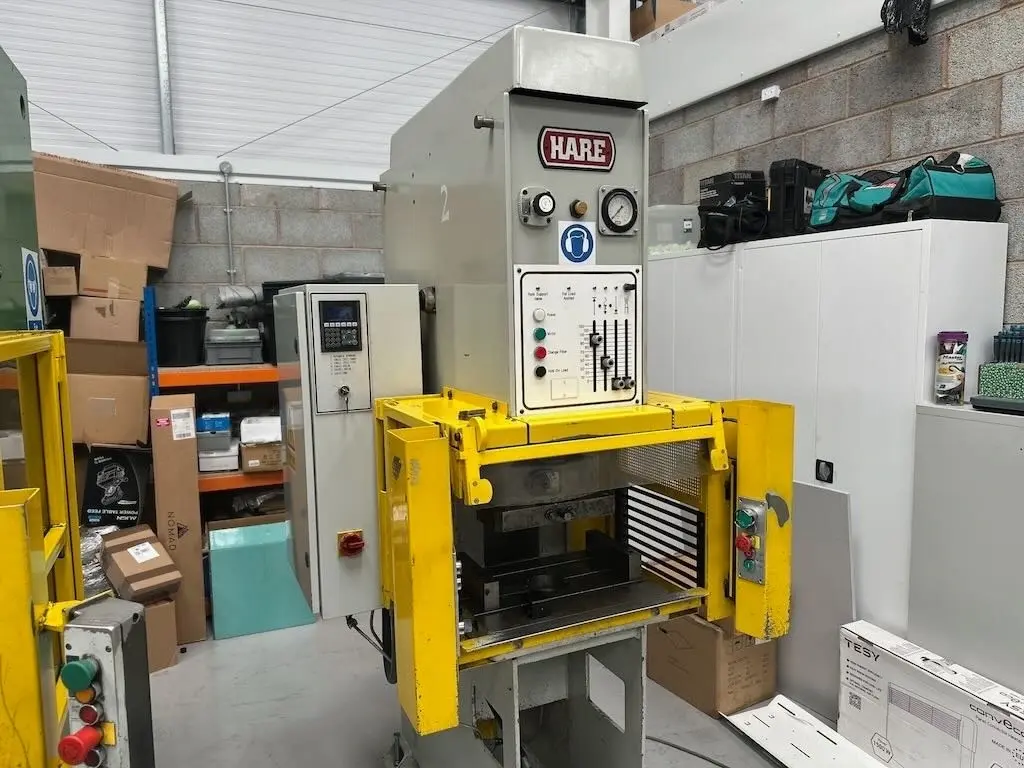

Heavy-duty British-manufactured hydraulic C-frame press with a rated capacity of 100 kN / approximately 10 tonnes and 125 mm ram stroke.
This well-equipped example incorporates an electronic cycle controller with selectable Automatic Running, Single Cycle/Hand, Single Cycle/Foot, Single Break, Double Break and Tool Setting operating modes.
The press is equipped with adjustable ram-cycle position controls, adjustable hydraulic pressure/load setting, hold-on-load facility, ram support system and combined tonnes/kN load indication.
Safety equipment includes manufacturer-specified light-screen guarding, guarded working area, emergency-stop controls and keyed operating-mode selection. Foot pedal and hand-cycle operation are both provided.
Complete with fitted upper and lower production tooling/bolster arrangement as photographed.
415 V, 3-phase, with 3 kW hydraulic motor, 30-litre hydraulic reservoir and 4–10 bar air requirement.
Specifications
- Manufacturer
- HARE
- Year
- 1990
- Weight
- 800 kg
- Model
- 10HP
- Serial No.
- 90D3078
- Capacity
- 100 kN / 10 Ton
- Stroke
- 125 mm
- Motor
- 3 kW
- Electrical Supply
- 415 V, 3 Phase
- Air Supply
- 4–10 Bar
View full spec sheetHide full spec sheet
- Oil Capacity
- 30 Litres
- Maximum Top Tool Weight
- 50 kg
- Safety Guarding
- Light Screen
- Foot Pedal
- Yes
- Electronic Cycle Control
- Yes
- Operating Modes
- Automatic Running
- Single Cycle / Hand
- Single Cycle / Foot
- Single Break
- Double Break
- Tool Setting
- Features
- Adjustable ram position
- Adjustable pressing load
- Hold-on-load function
- Tonnes / kN pressure gauge
- Foot pedal operation
- Emergency stop
- Light-screen safety guarding
- Fitted upper and lower tooling
As supplied by the seller. Figures are converted between systems where a unit applies; anything without one is shown as quoted.
