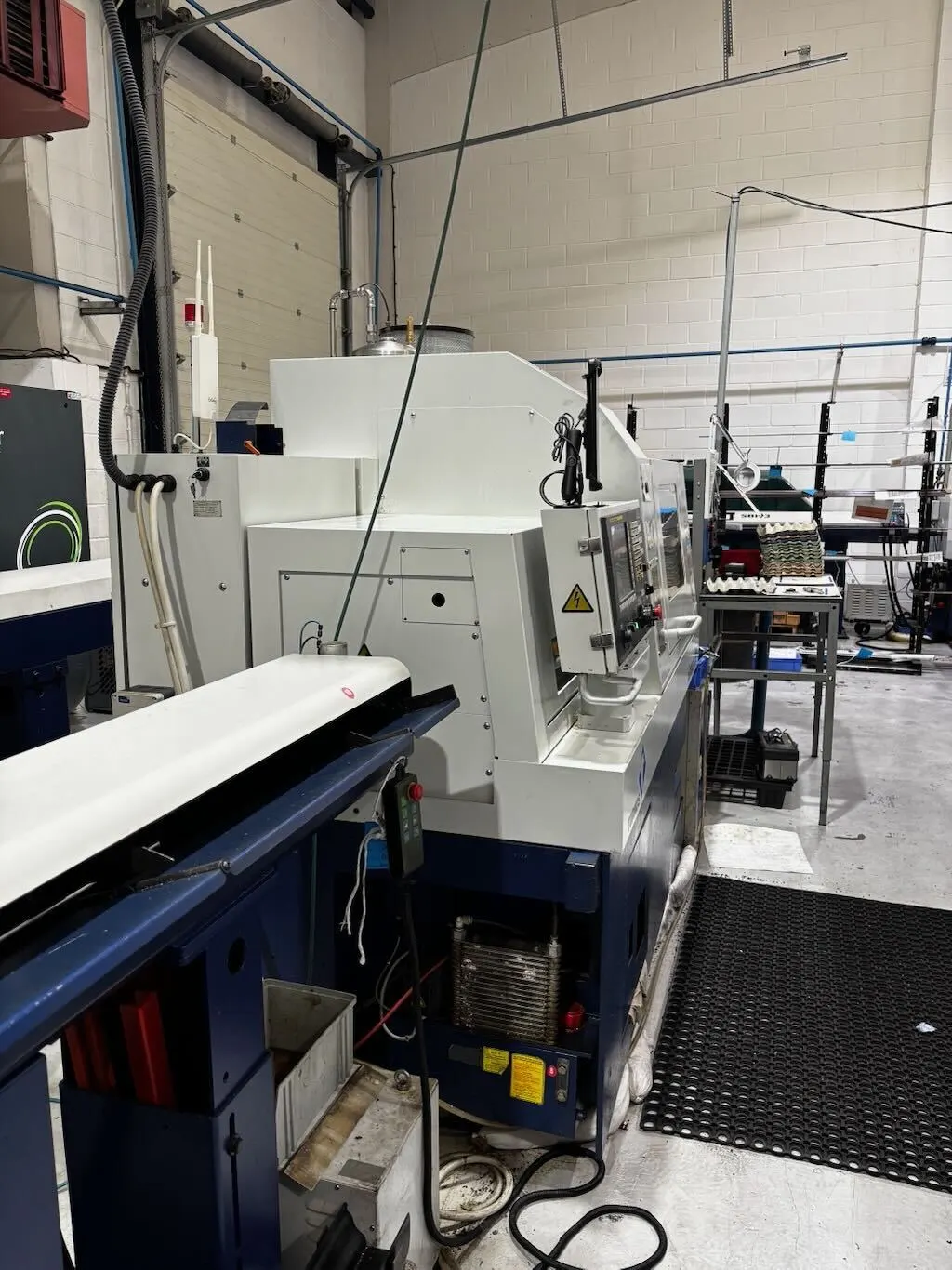

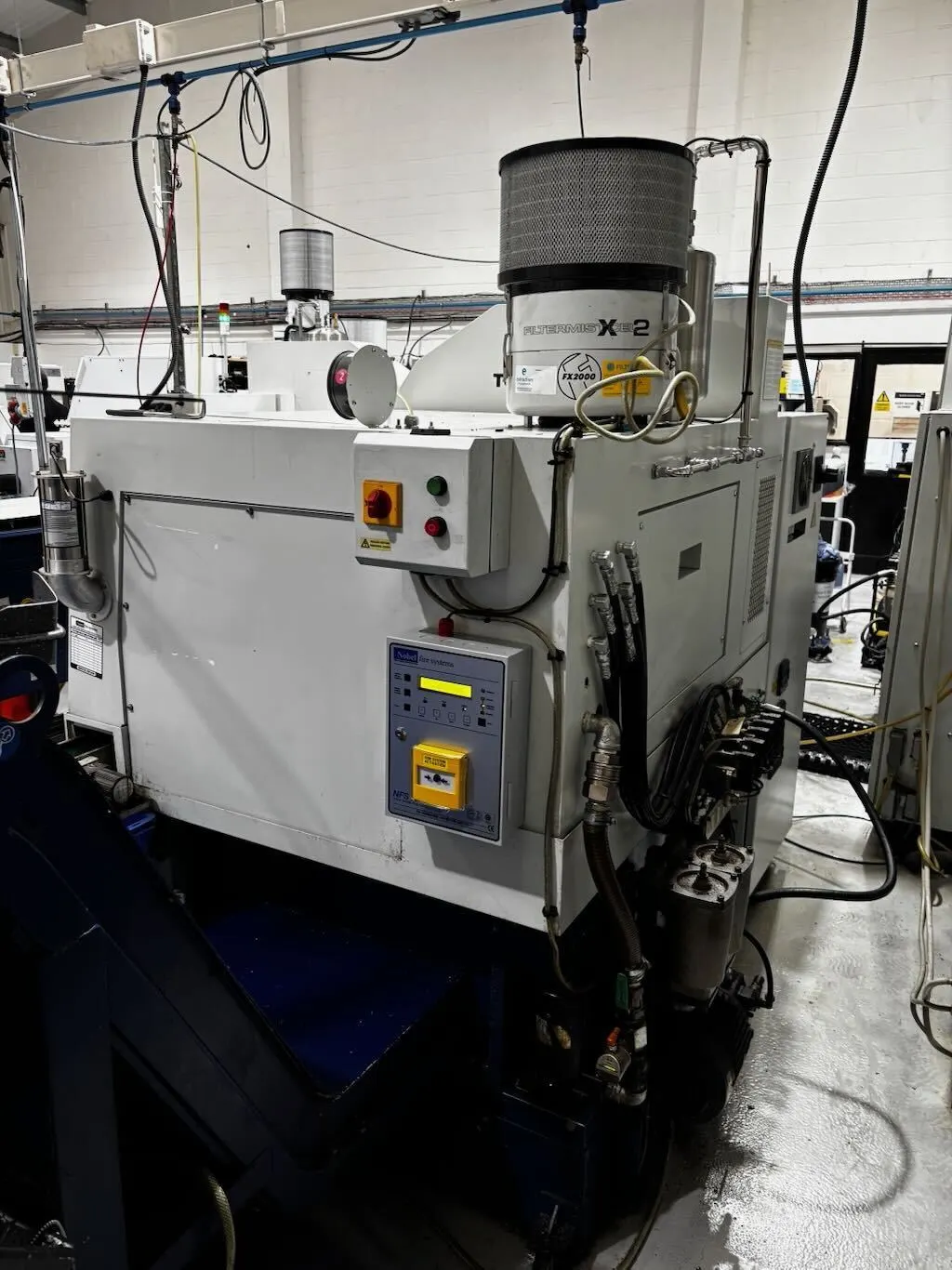

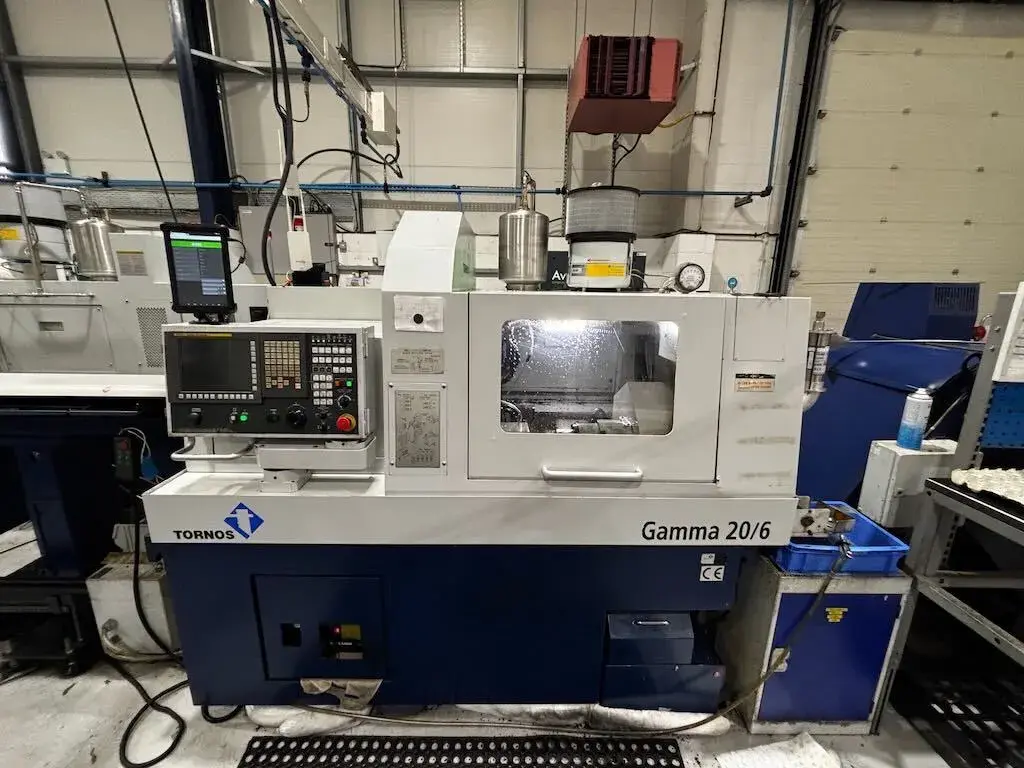

TORNOS GAMMA 20/6 Swiss-Type CNC Lathe – 2010 – Twin Spindle / 6-Axis Well-maintained TORNOS GAMMA 20/6 sliding-head CNC lathe, manufactured in 2010 and designed for high-precision small-part production. This model offers twin spindles with 6-axis capability, making it ideal for complex turned components and high-volume work. The machine has a 20 mm bar capacity and is equipped with main and counter spindles running up to 12,000 rpm, together with a large multi-tool configuration including live tooling for full front and back-working operations. A compact, high-speed Swiss-type machine suitable for precision engineering, medical components, and production subcontract machining.
Full spec sheet

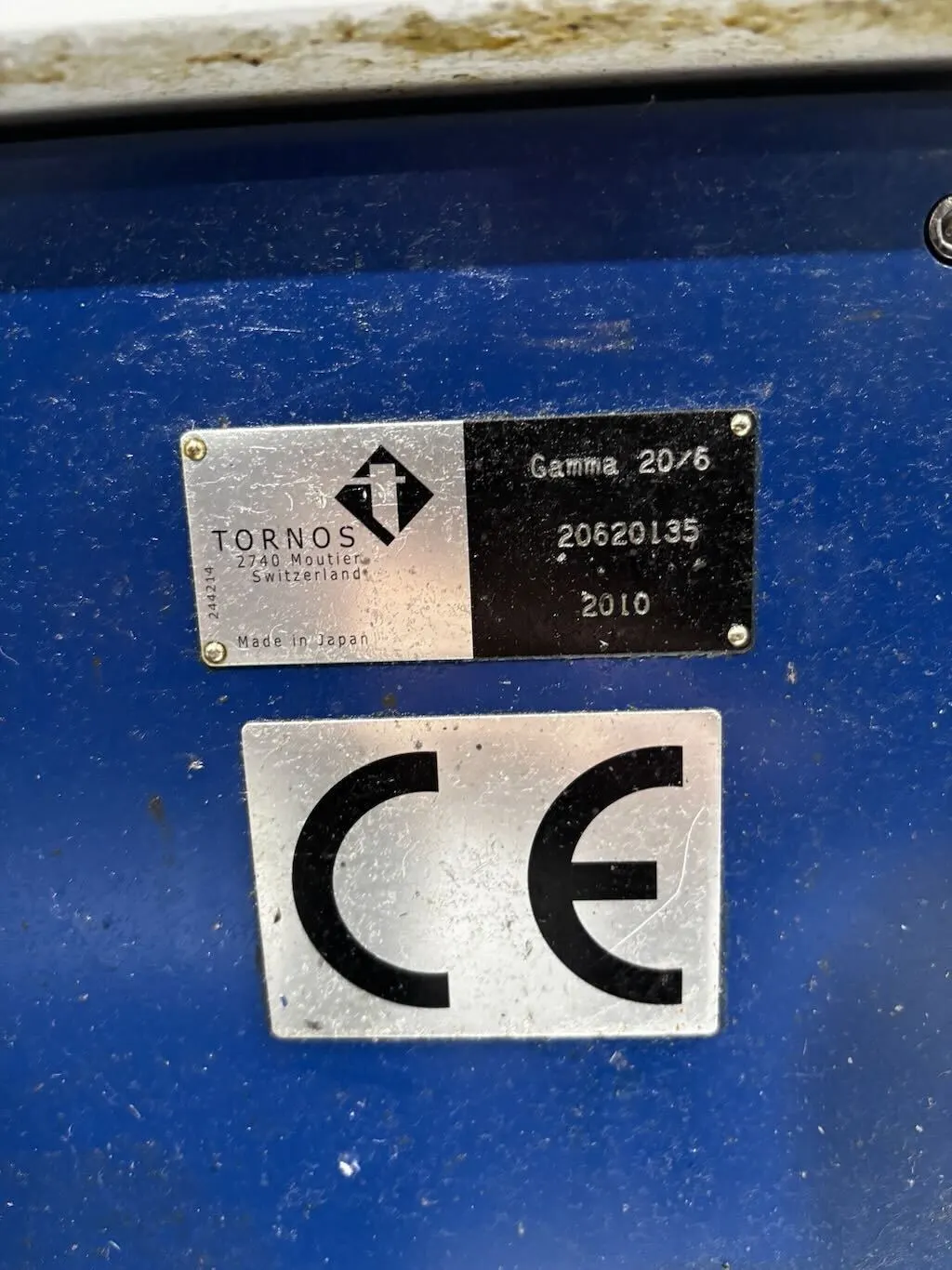

TORNOS GAMMA 20/6 – Swiss-Type CNC Lathe
Year: 2010

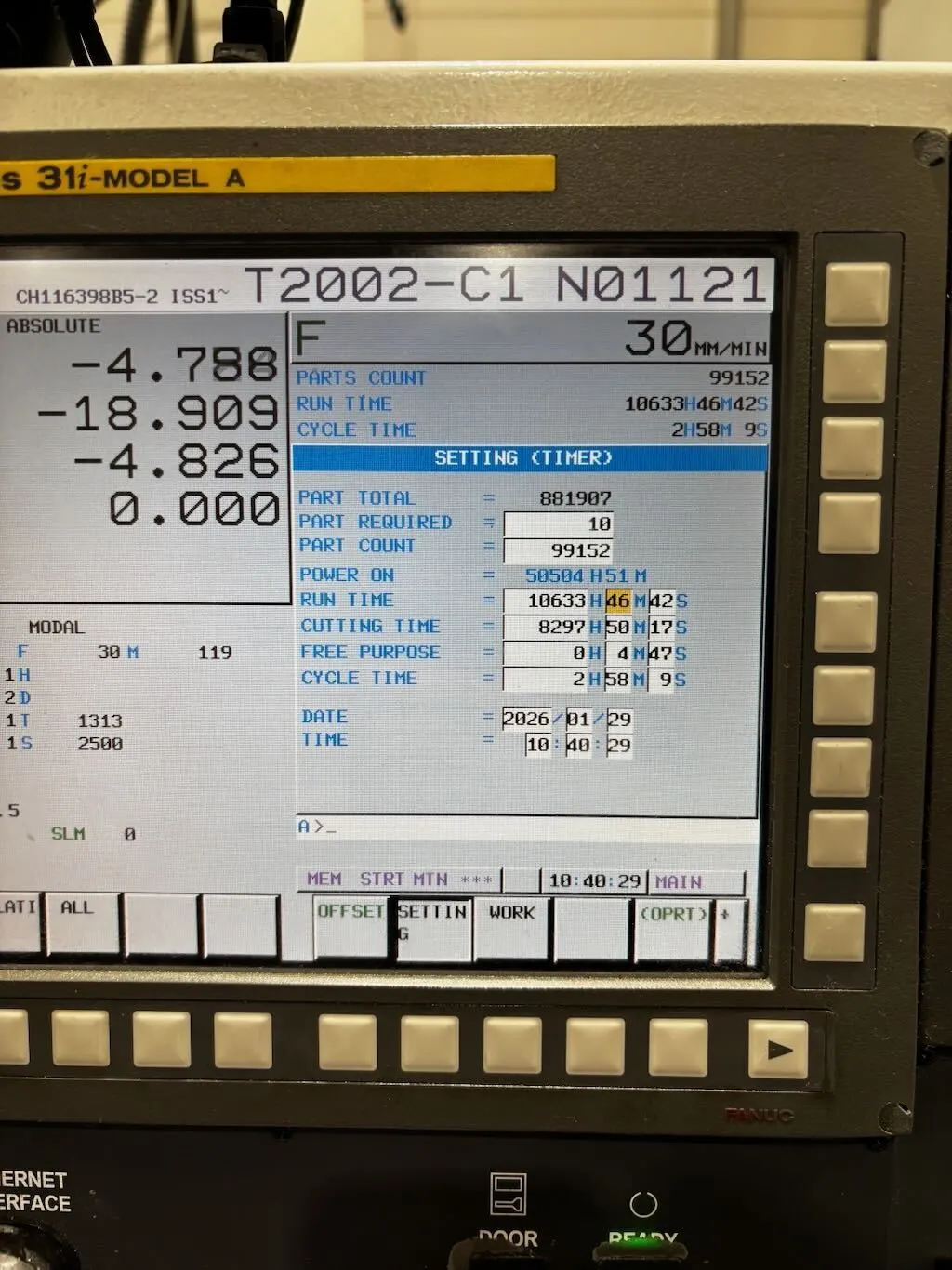

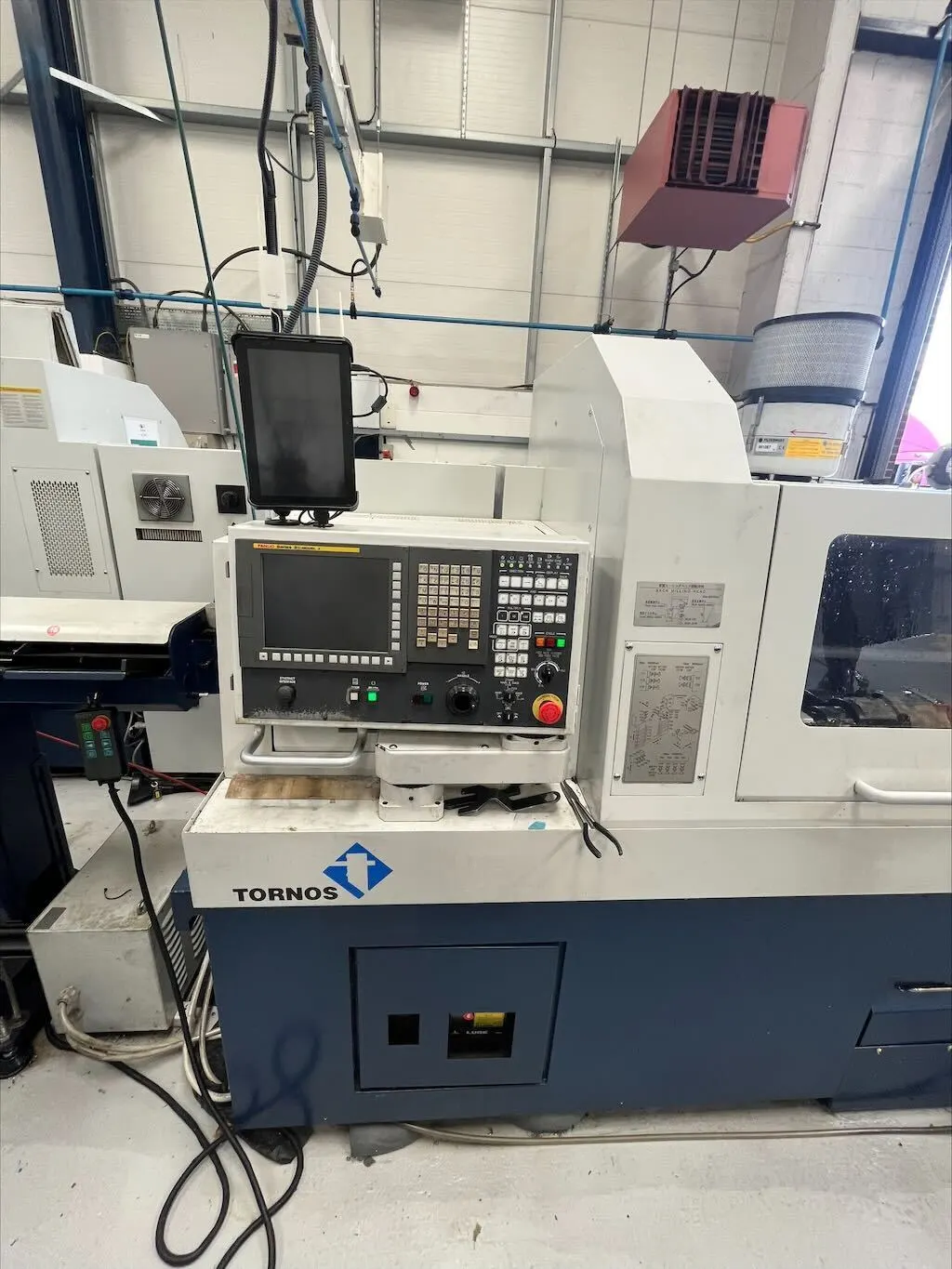

Control: Fanuc 31i-A
General Machine Specification
Type: Sliding headstock / Swiss-type CNC lathe
Number of axes: 6 linear + 2 C-axes (typical configuration)
Number of spindles: 2 (main spindle + counter spindle)
Maximum bar diameter: 20 mm
Maximum turning length: 210–250 mm (depending on guide bush setup)
Maximum number of tools: approx. 39 tools
Main Spindle
Maximum bar capacity: 20 mm
Maximum spindle speed: 12,000 rpm
Spindle motor power: approx. 3.7 kW
C-axis indexing precision: 0.001°
Counter Spindle
Maximum bar capacity: 20 mm
Maximum spindle speed: 12,000 rpm
Spindle motor power: approx. 3.7 kW
C-axis indexing precision: 0.001°

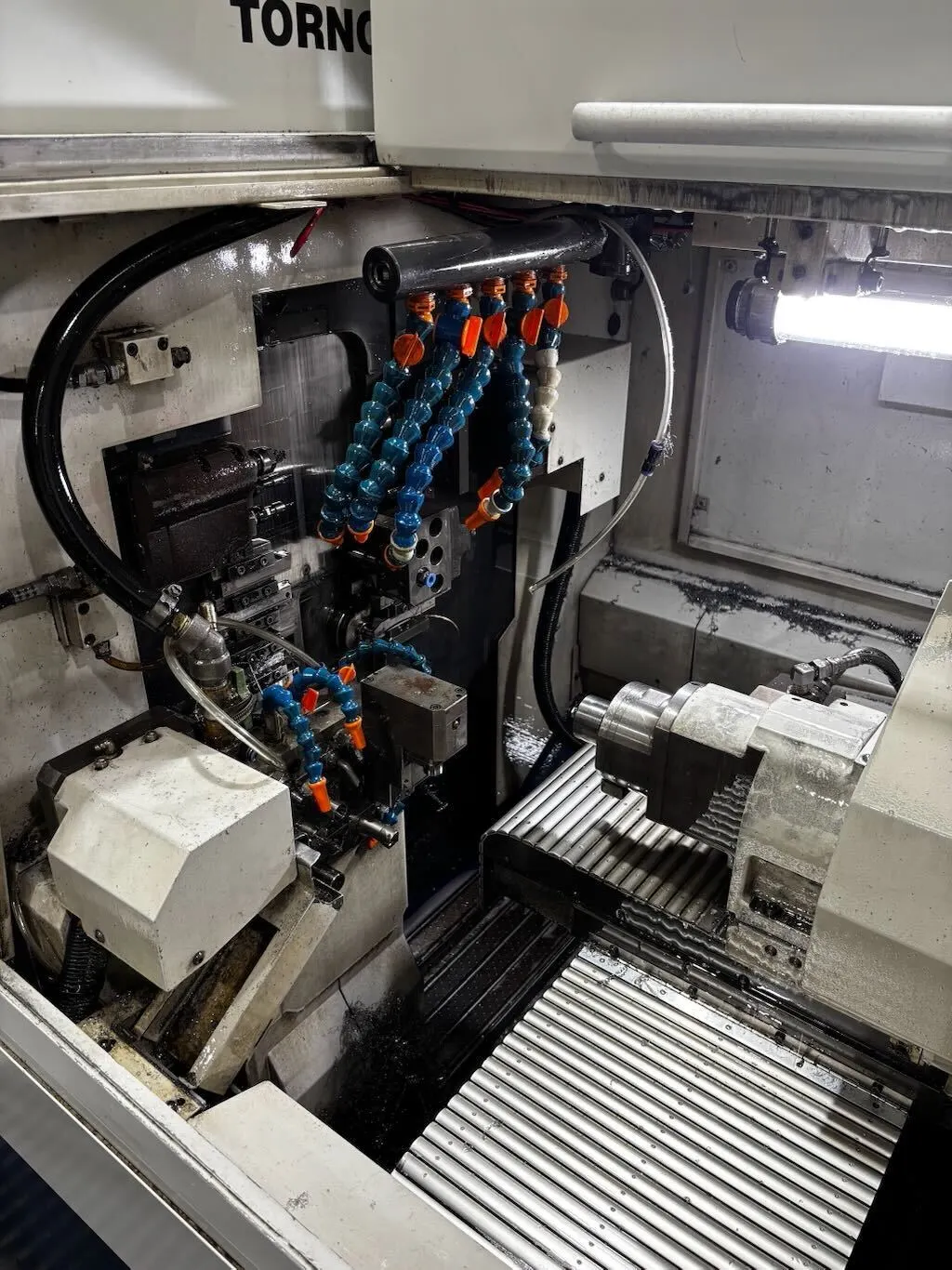

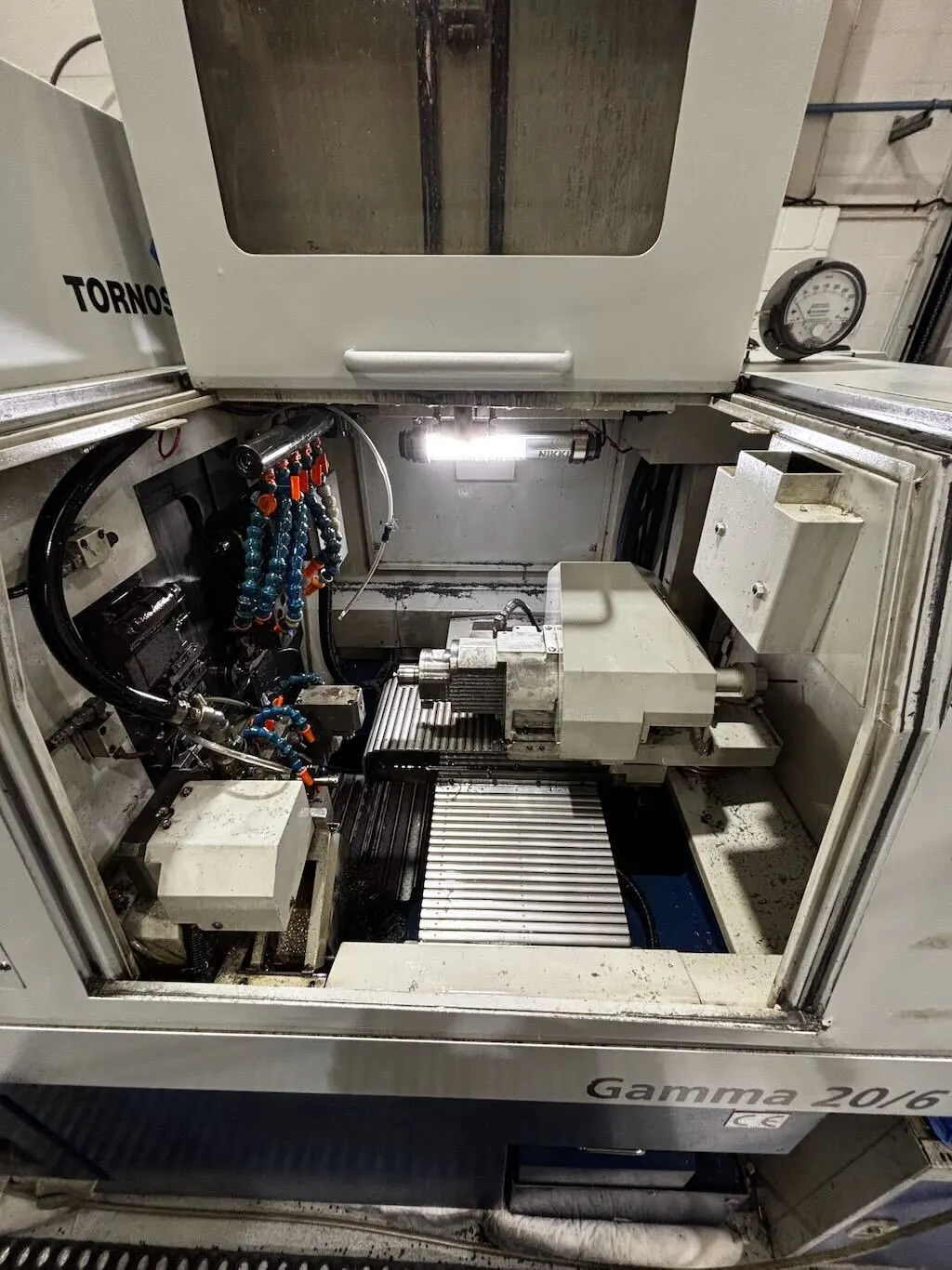

Tooling System
Guide bush holders: 2
Tool positions (front guide bush):
8 positions (3 motorised)
Tool positions (rear guide bush):
5 positions (2 motorised)
End attachment: 11 tool positions
Secondary operation/back working:
Up to 16 tool positions
Live tooling speed: up to 8,000 rpm
Machine Dimensions & Capacity
Machine size: approx. 2,100 × 1,200 × 1,900 mm
Machine weight: approx. 3,200–3,300 kg

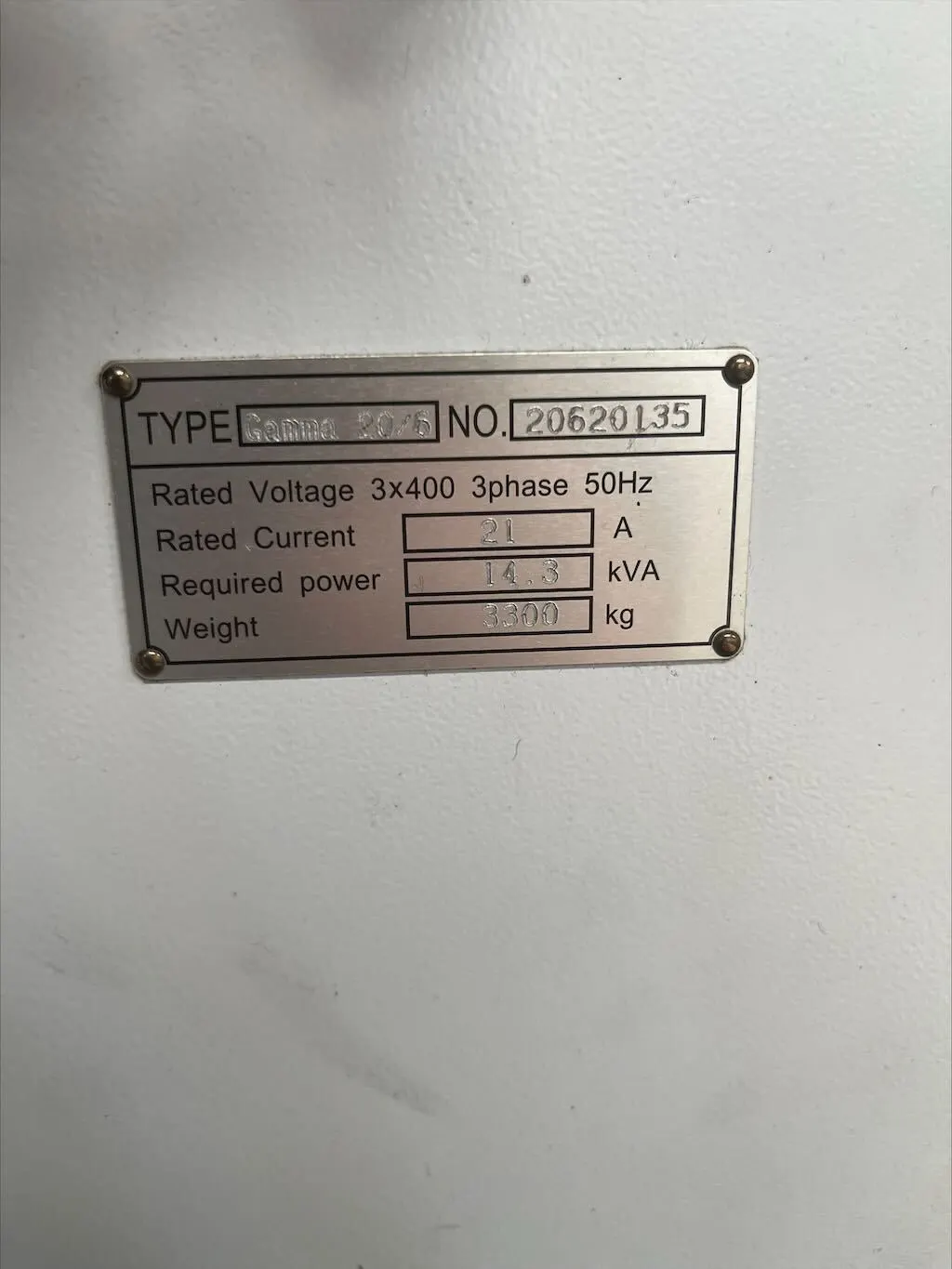

Power supply: 400 V
Includes
Swarf Conveyor

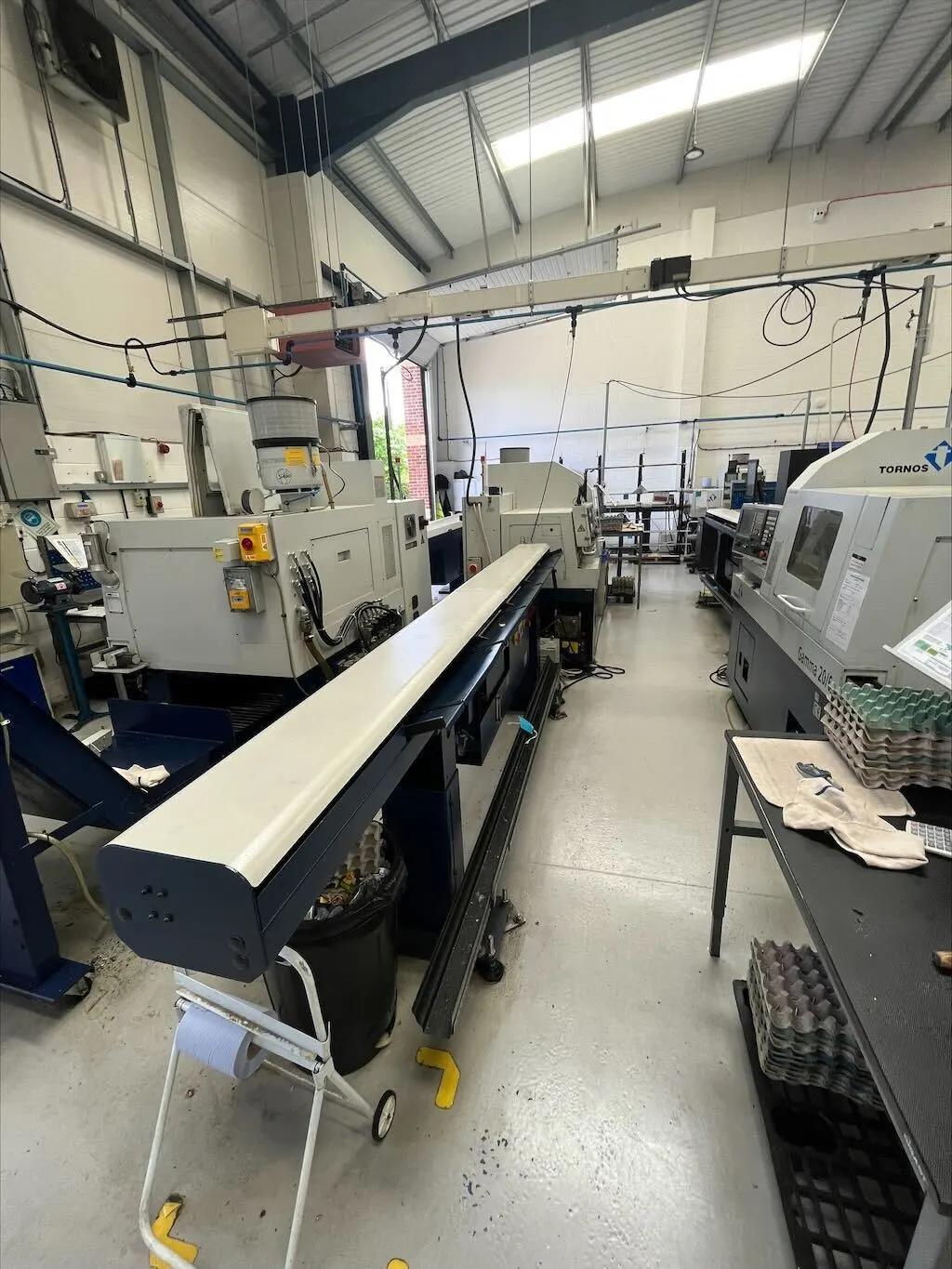

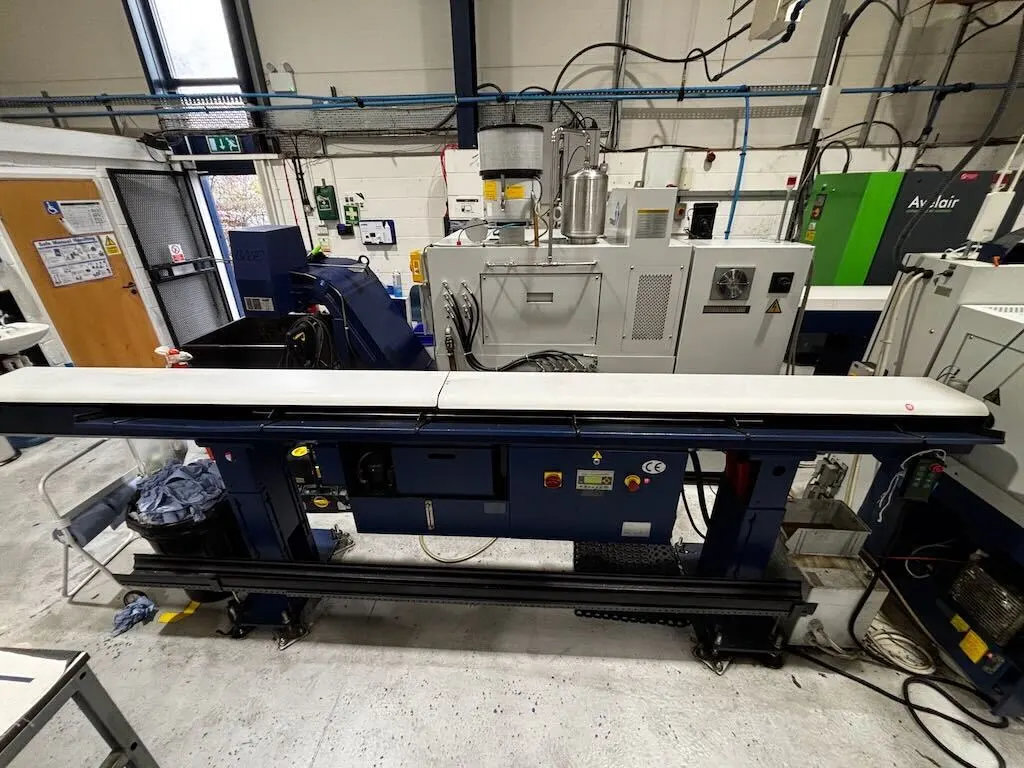

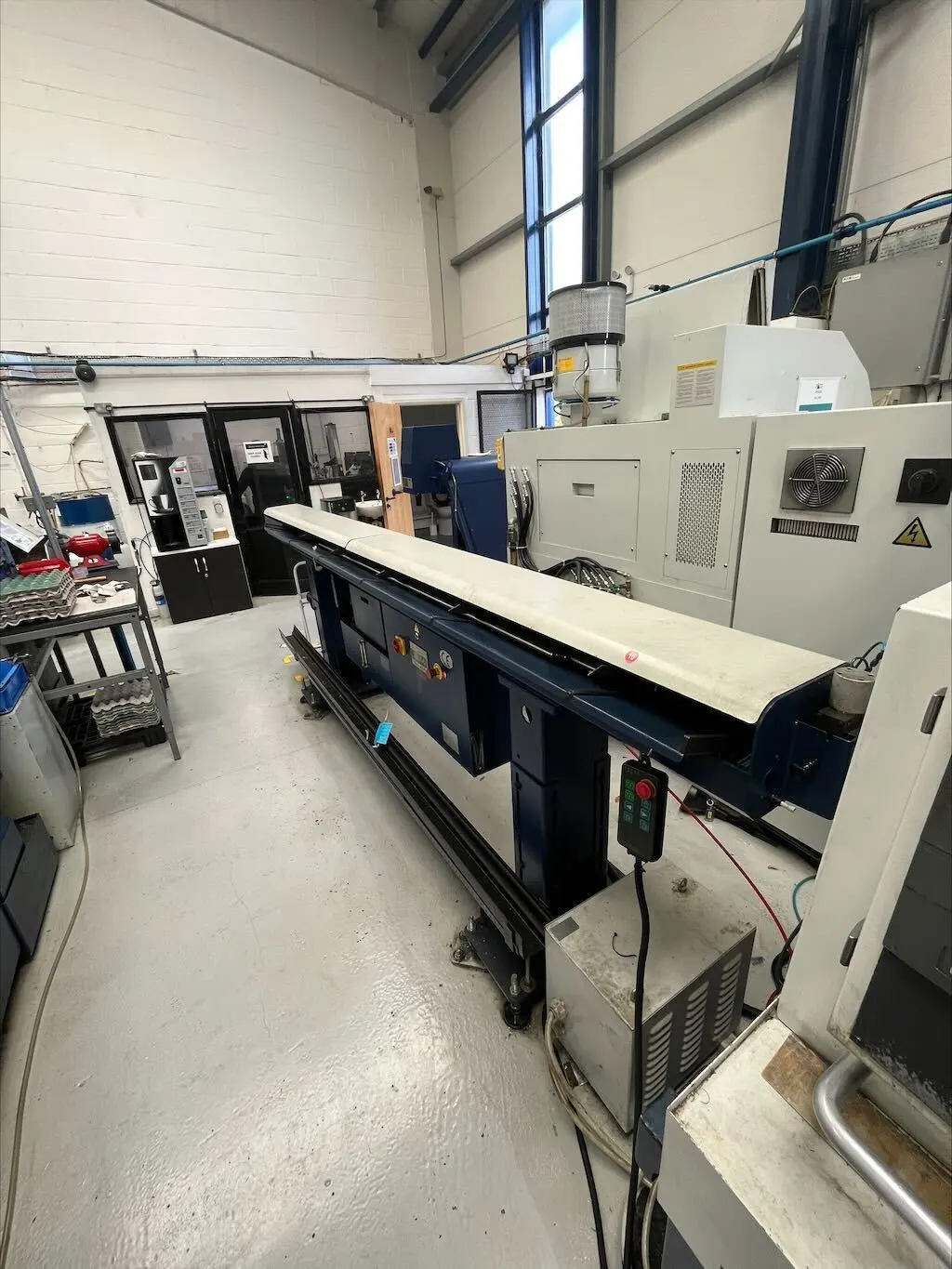

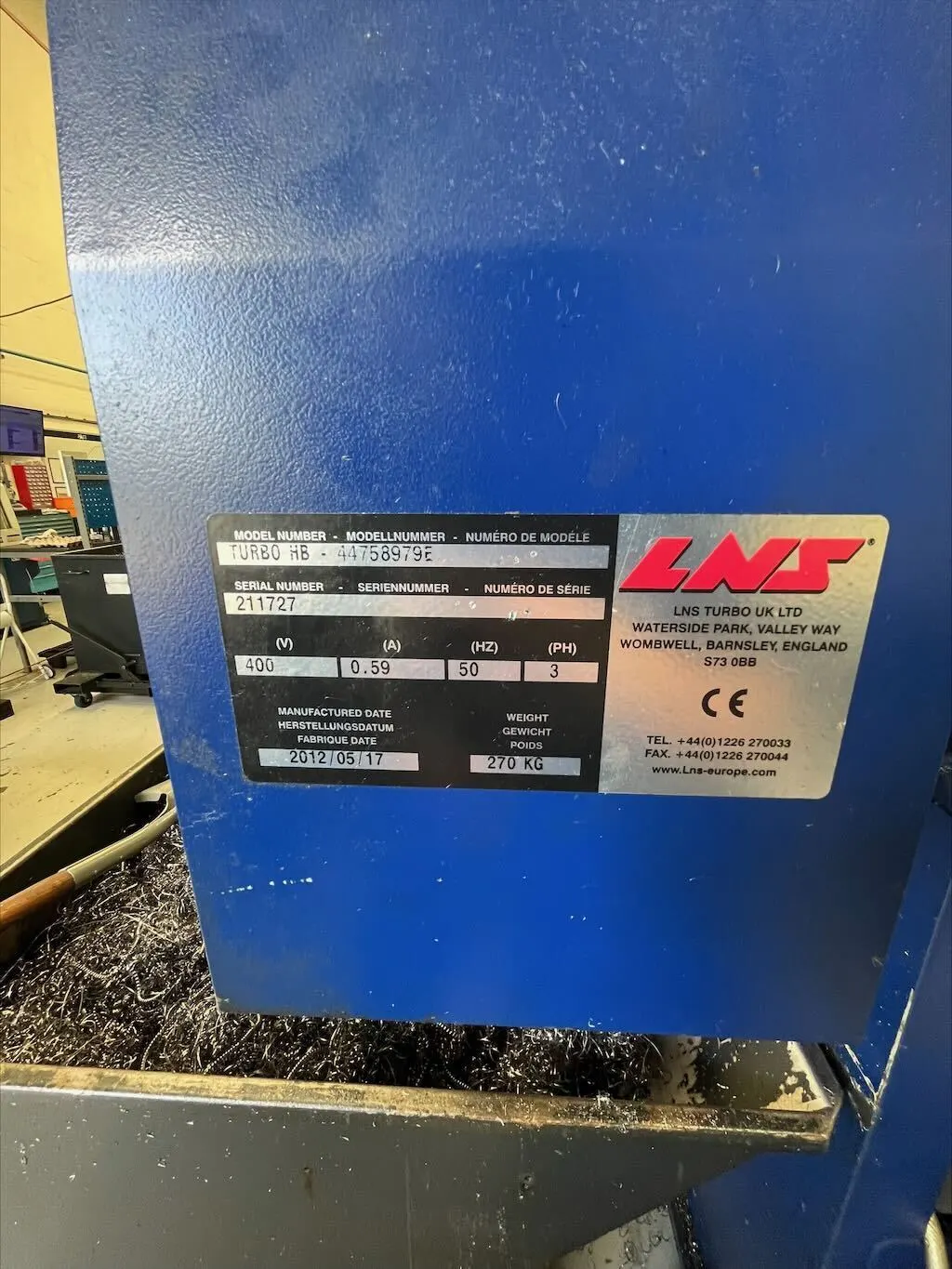

LNS Turbo HB 3m Barfeed

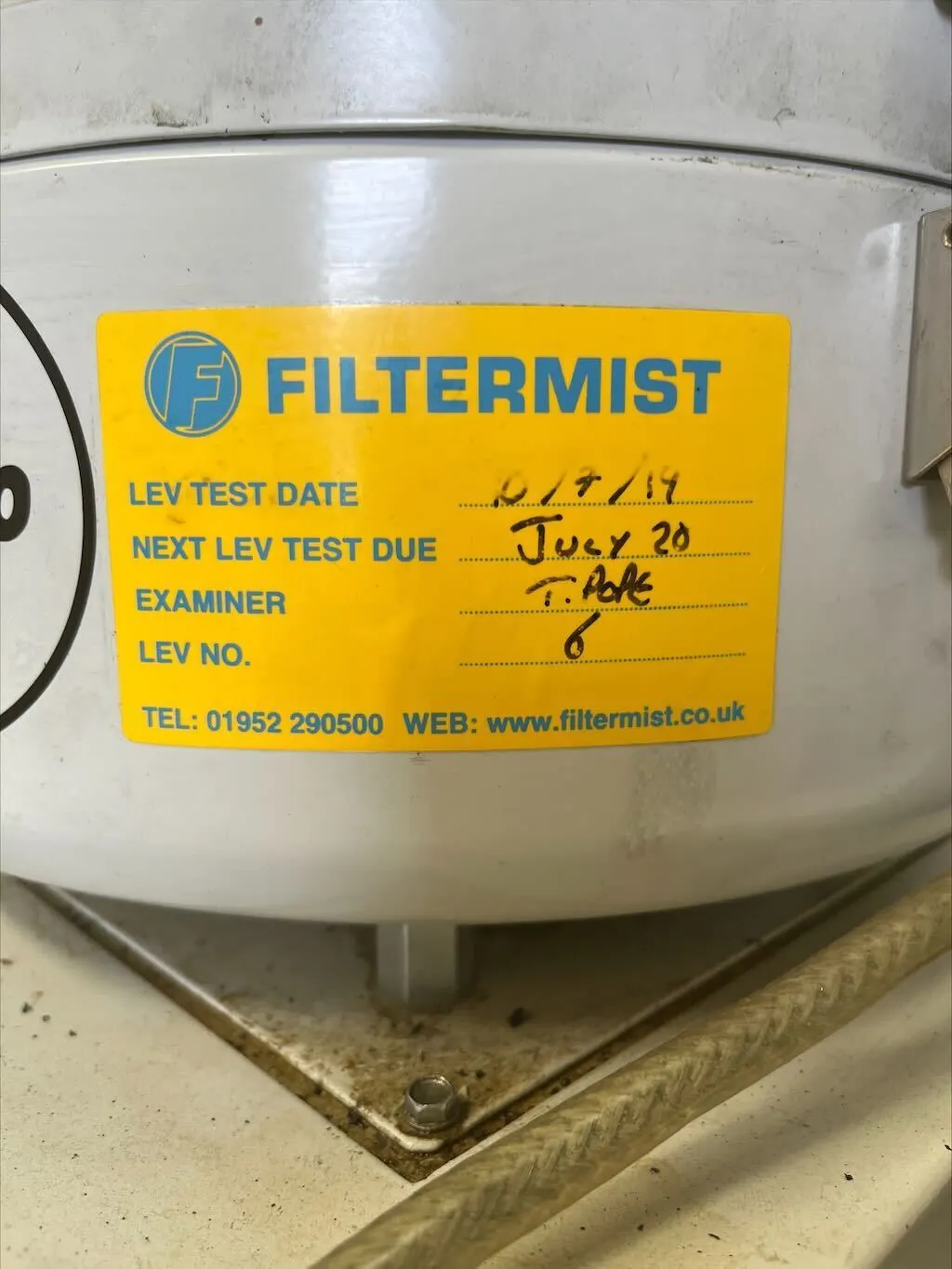

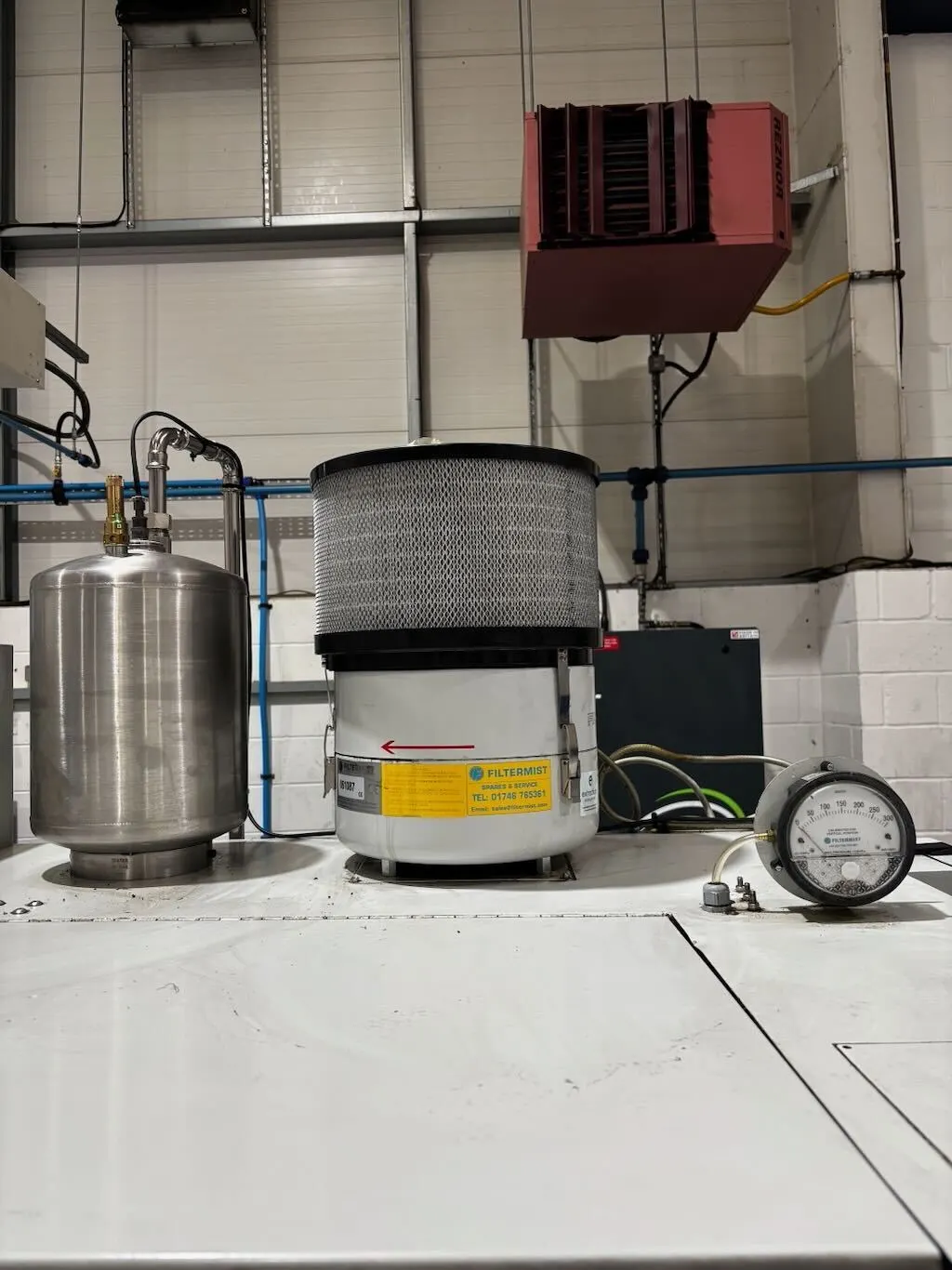

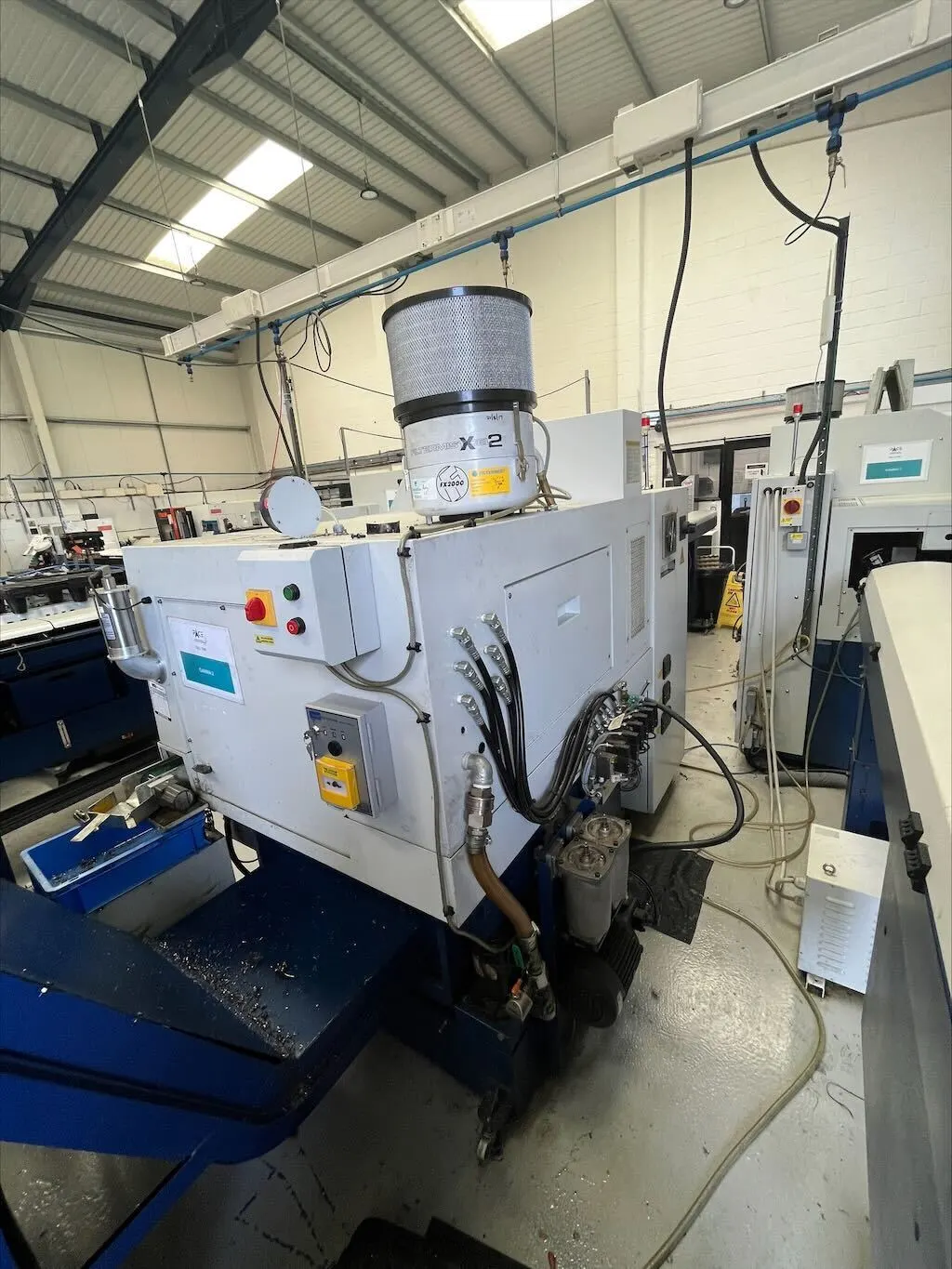

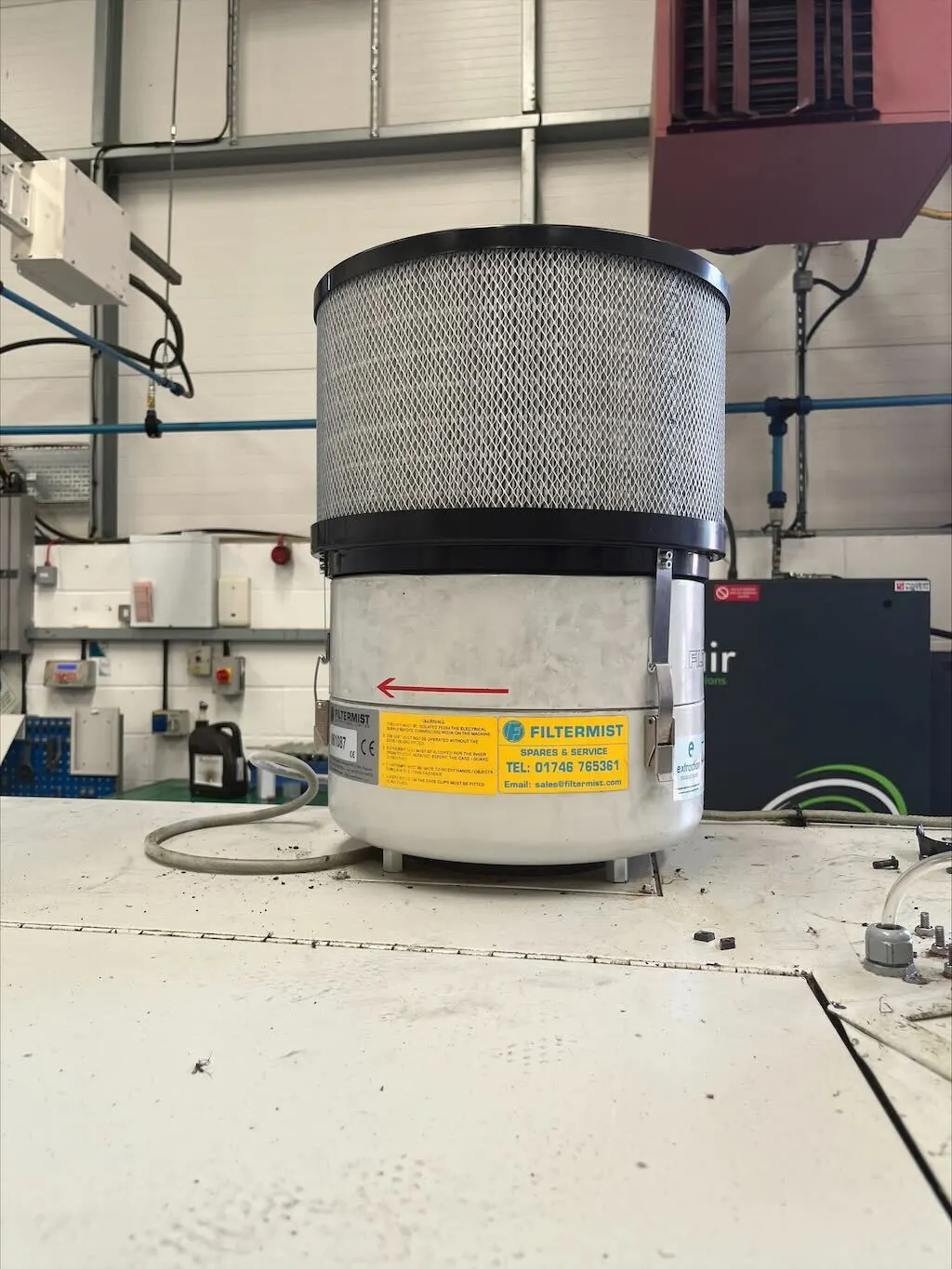

Filtermist Unit
Tooling Package
Specs given in good faith. Please verify on inspection.
Specifications
- Control
- Fanuc 31i
- Weight
- 3800 kg
- Dimensions
- 2,100 x 1,200 x 1,900 mm
- Spindle Hole Dia
- 20 mm
- Power
- 3.7 kW
- RPM
- 12000.0 rpm
- # Axis
- 6.0
