1 / 22About this machine

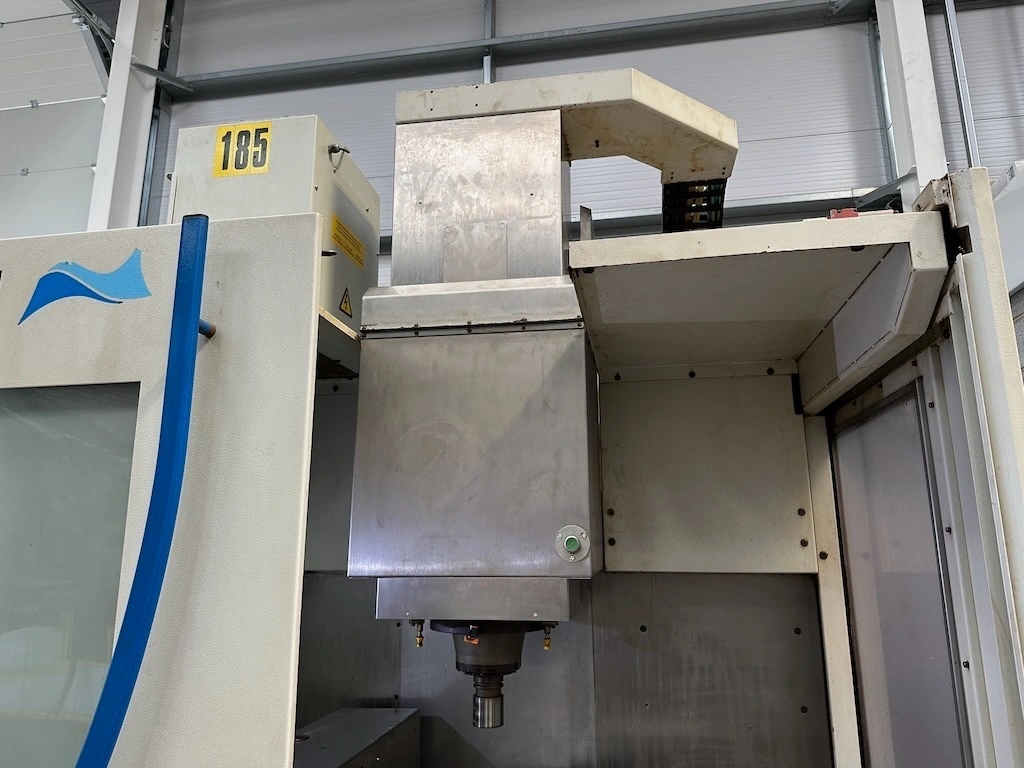

Mikron UCP 600 Universal 5-Axis Vertical Machining Centre with Heidenhain TNC 426/430 M CNC Control System, Equipped with: Step-Tec 18,000 rpm spindle; Separate spindle cooler; Unilube oil/air spindle lubrication system; Coolant tank with scraping chip conveyer; Separate coolant paper filtration equipment; Renishaw MP 12 3D IR touch probe; 3D scanning system for tool measurement TS27; 27 items of HSK-63A spindle tooling.
Equipped with
- Chiller Unit
- Manuals
- Renishaw Probing
- Swarf Conveyor
Full spec sheet

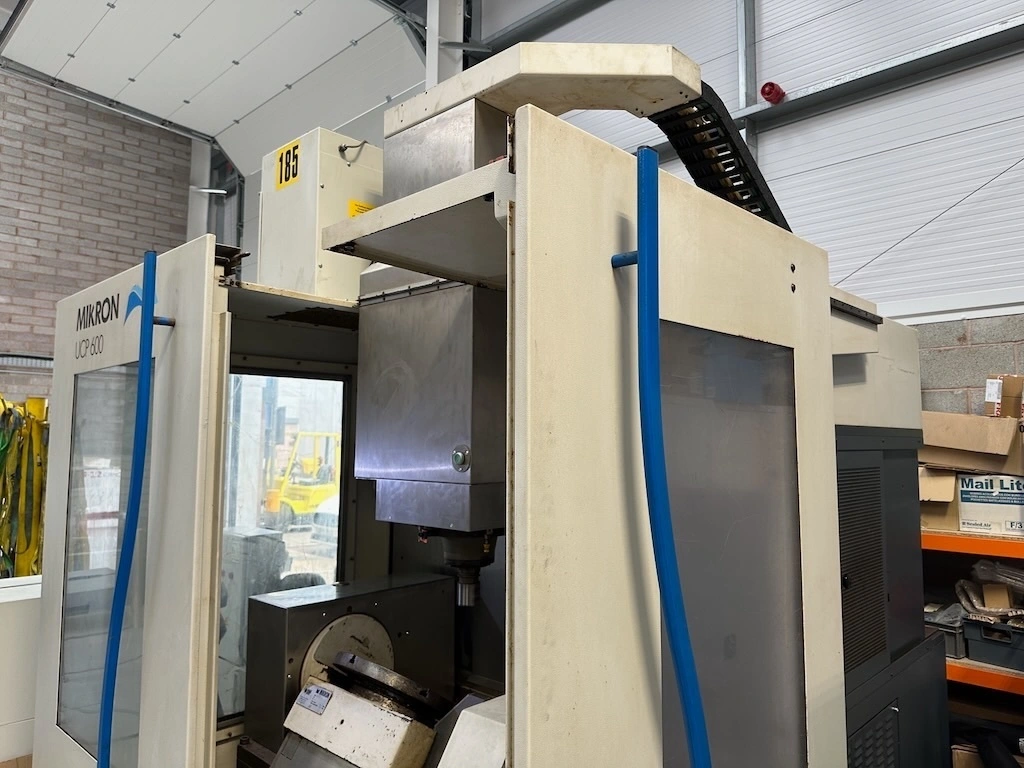

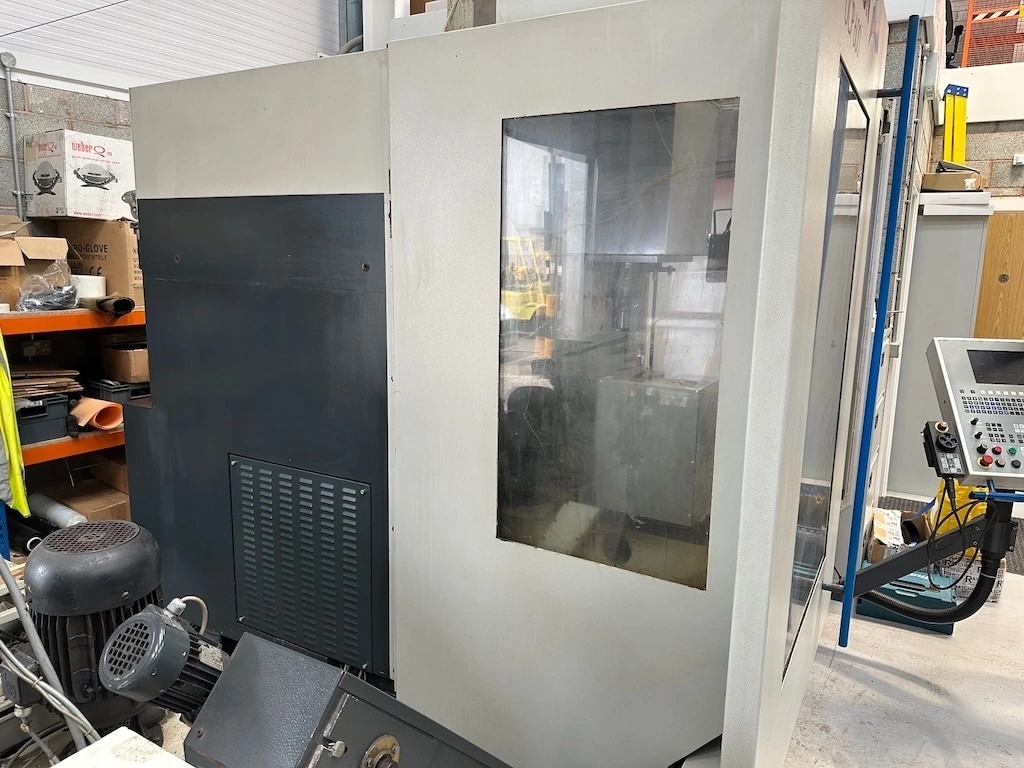

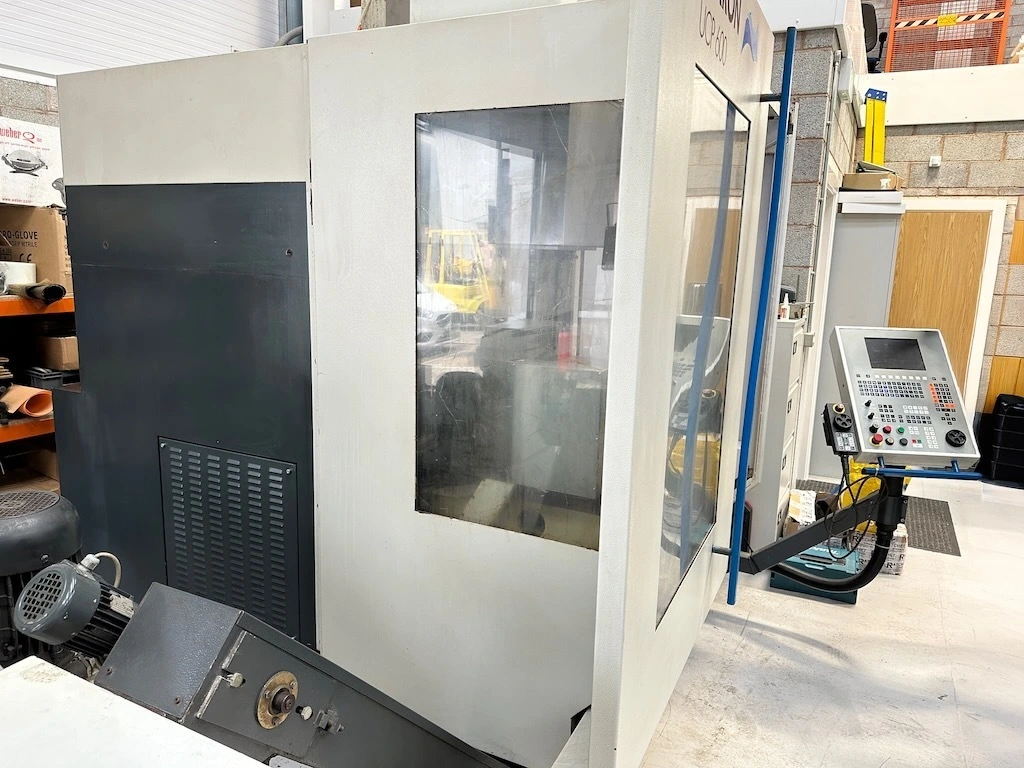

Mikron UCP 600 Universal 5-Axis Vertical Machining Centre

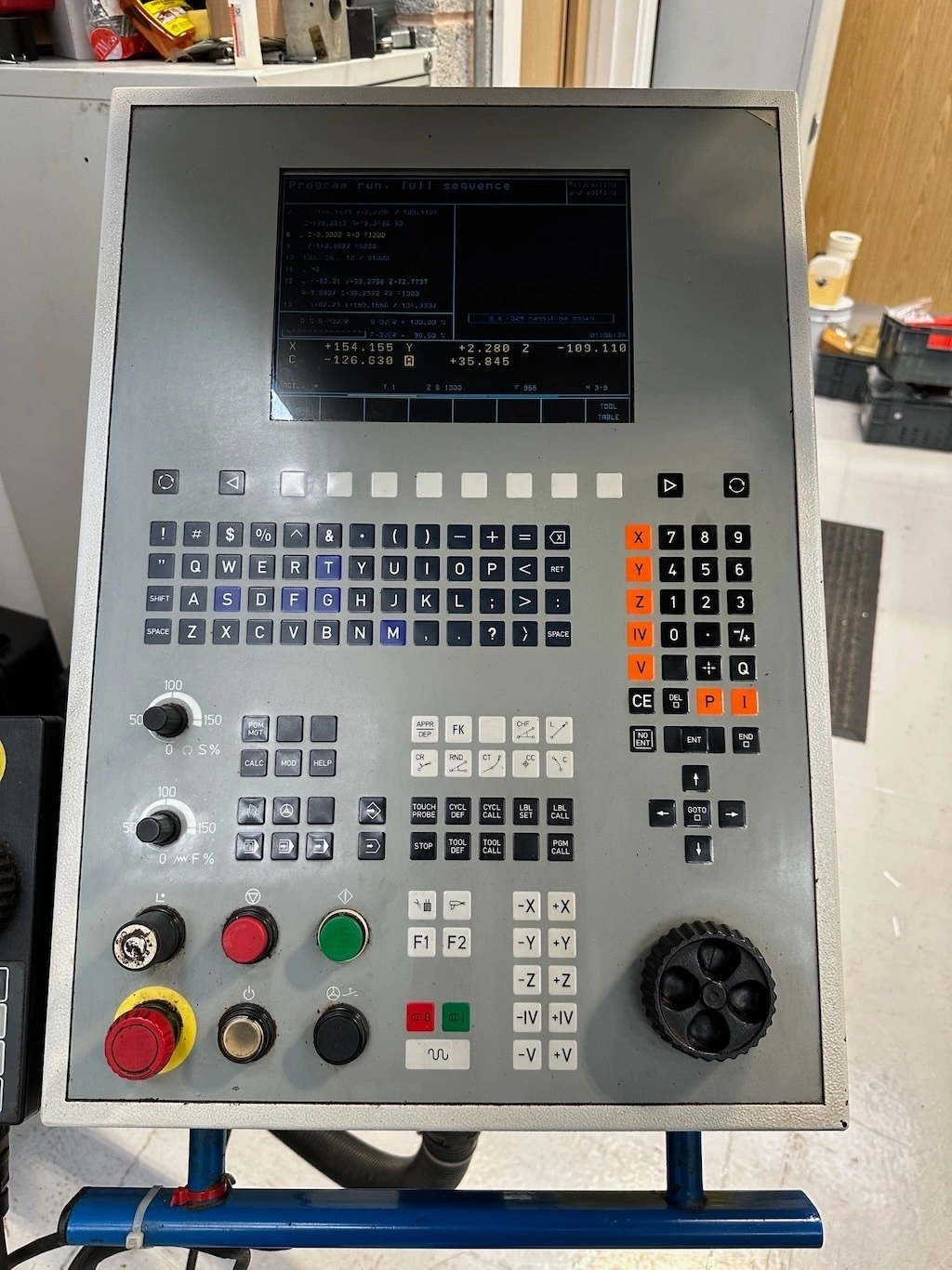

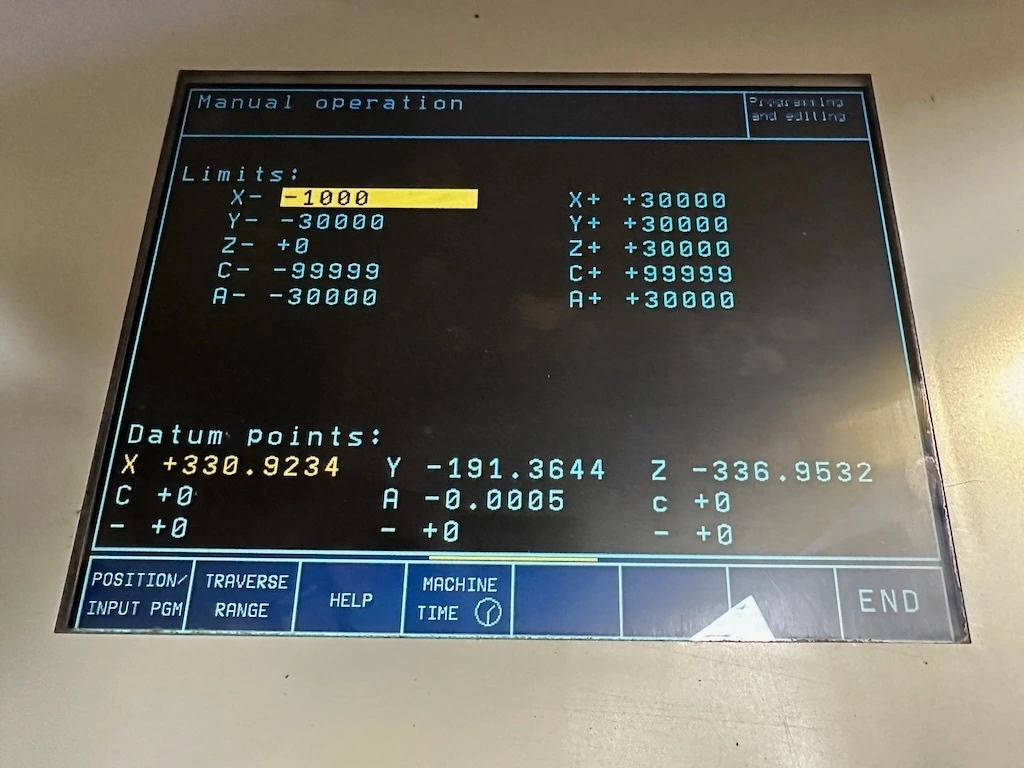

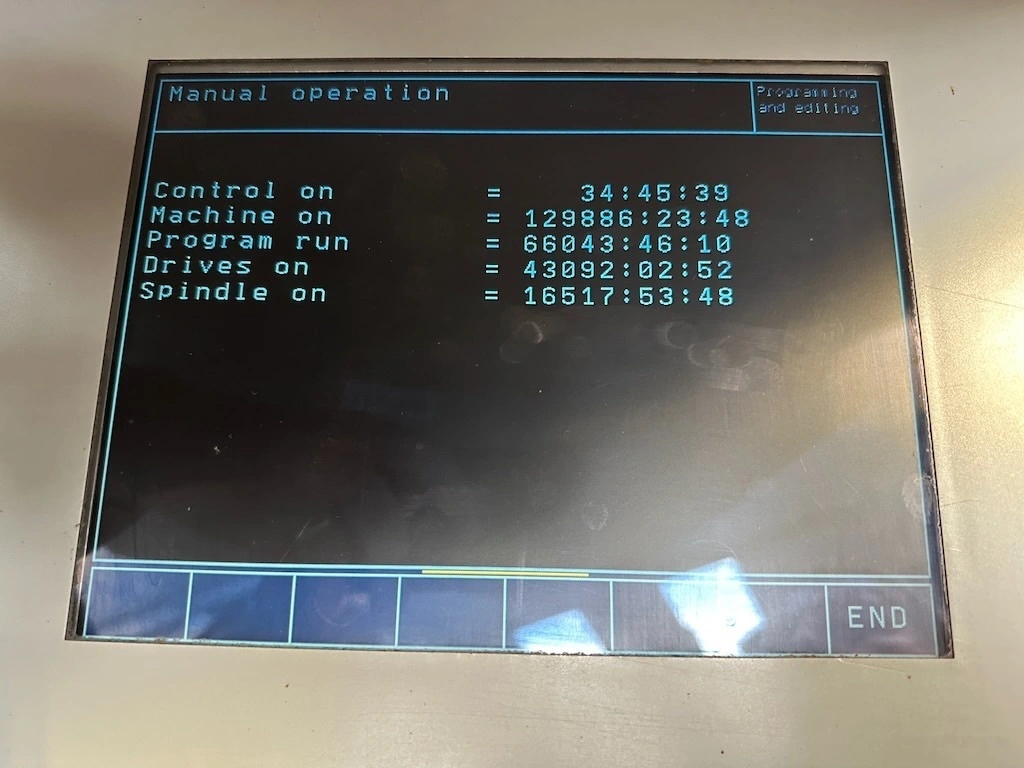

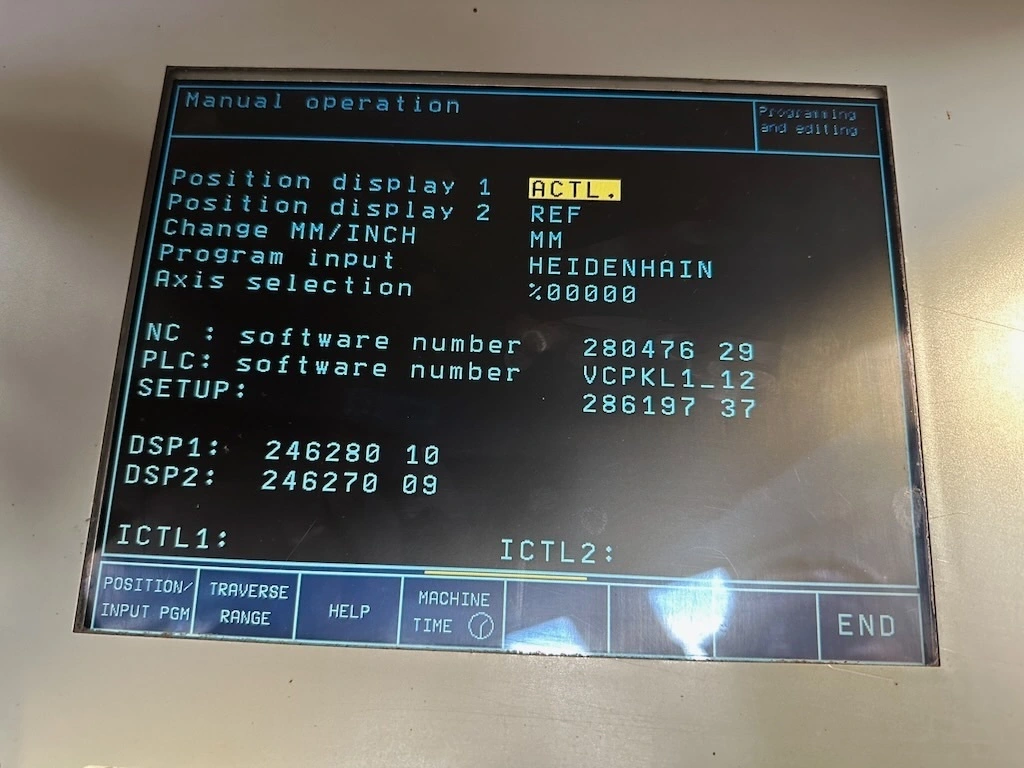

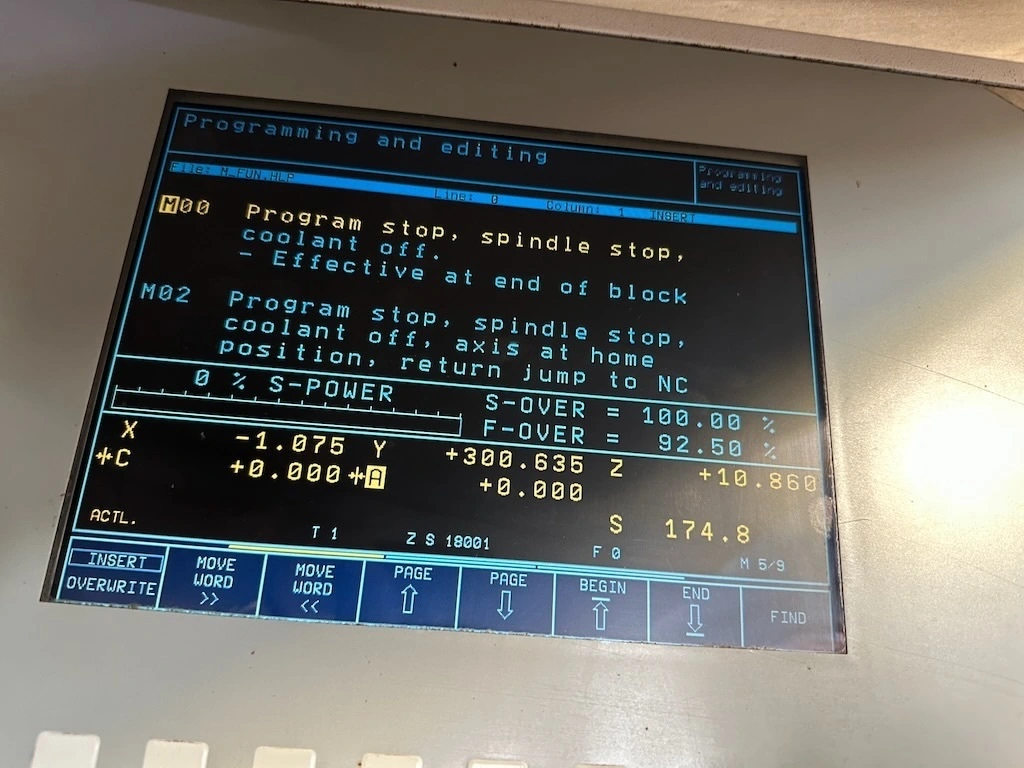

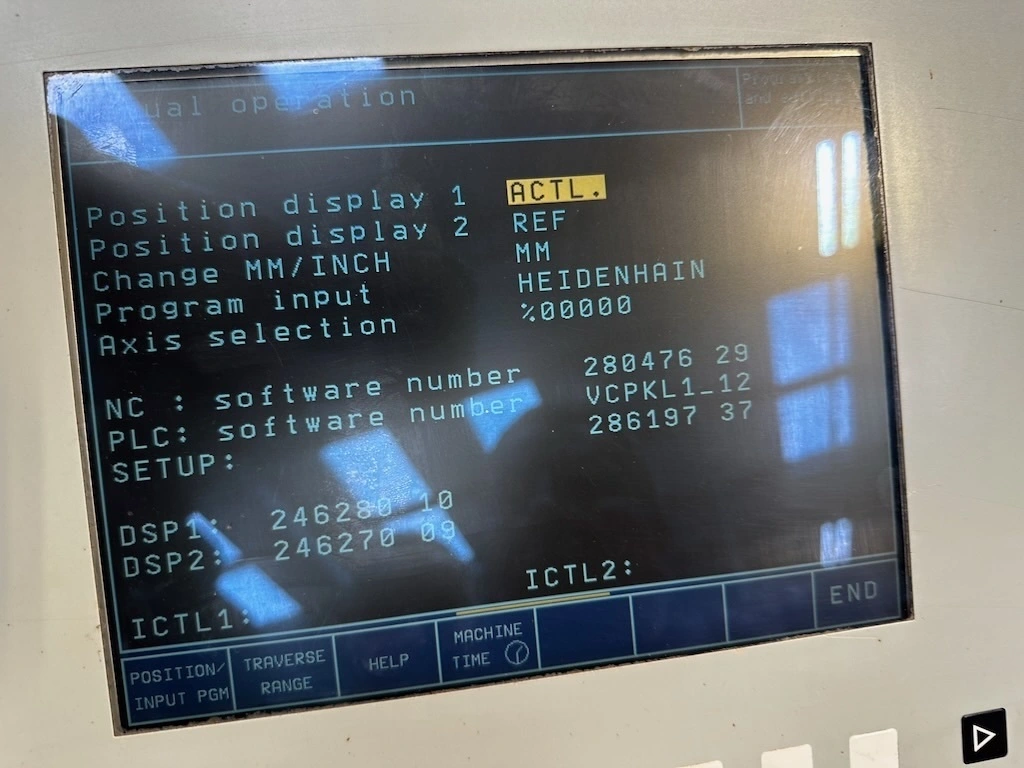

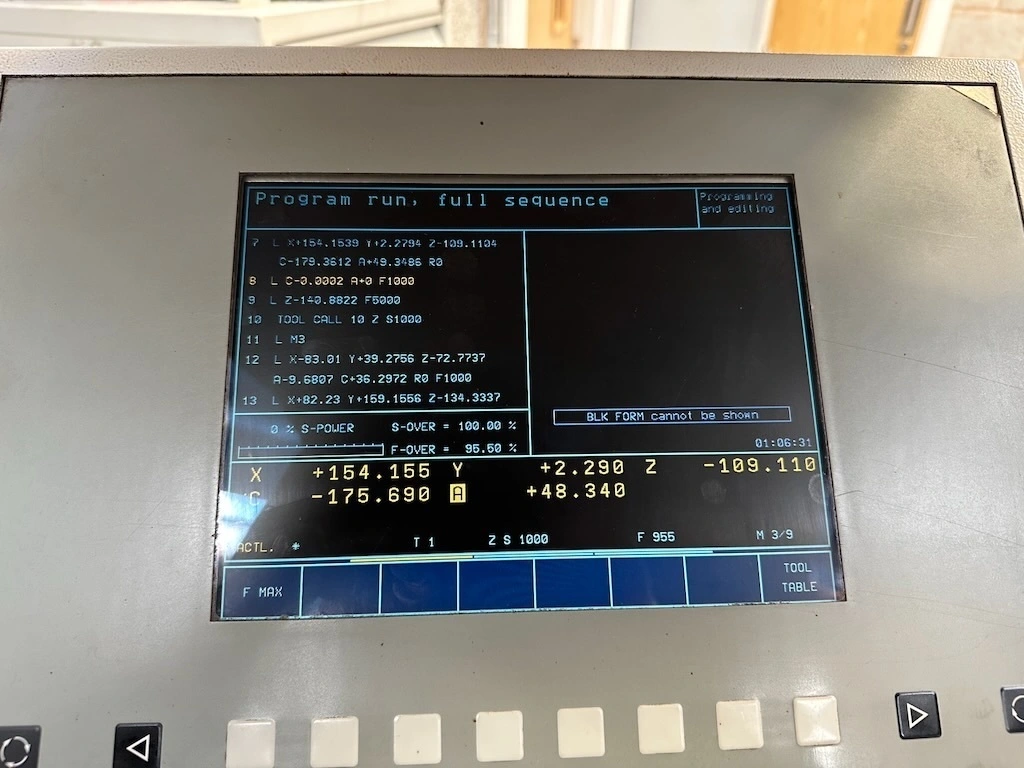

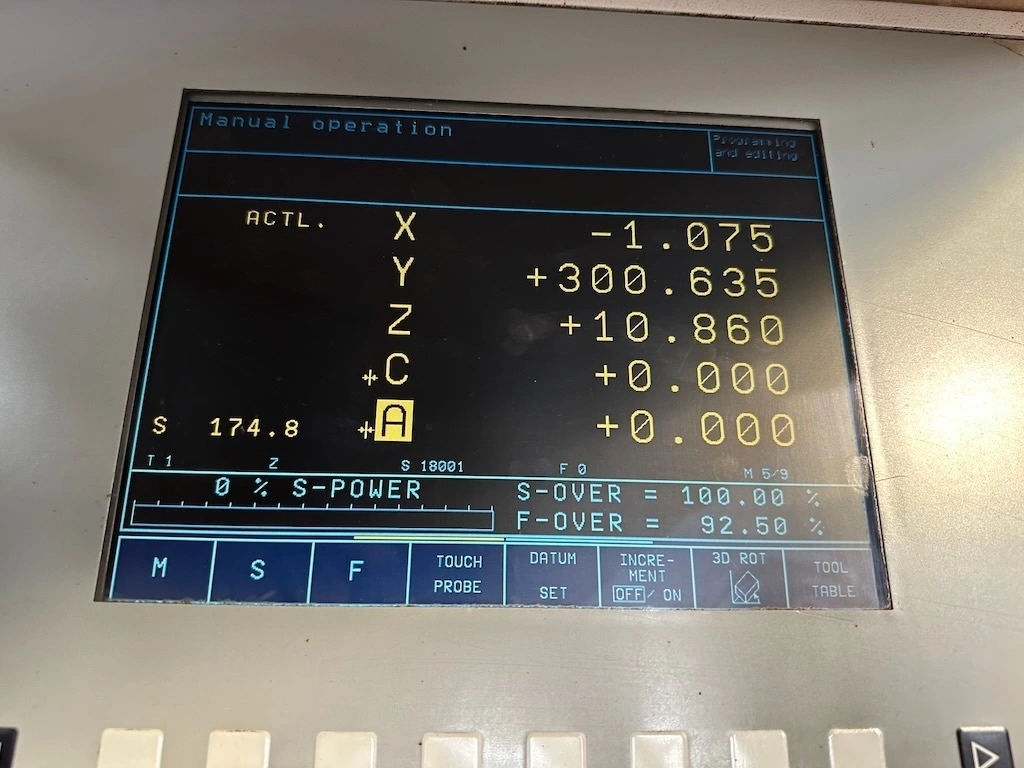

Heidenhain TNC 426/430 M CNC Control System
Serial number: 107.32.99.067
Year of manufacture: 2001
X-axis travel: 530 mm
Y-axis travel: 450 mm
Z axis travel: 450 mm

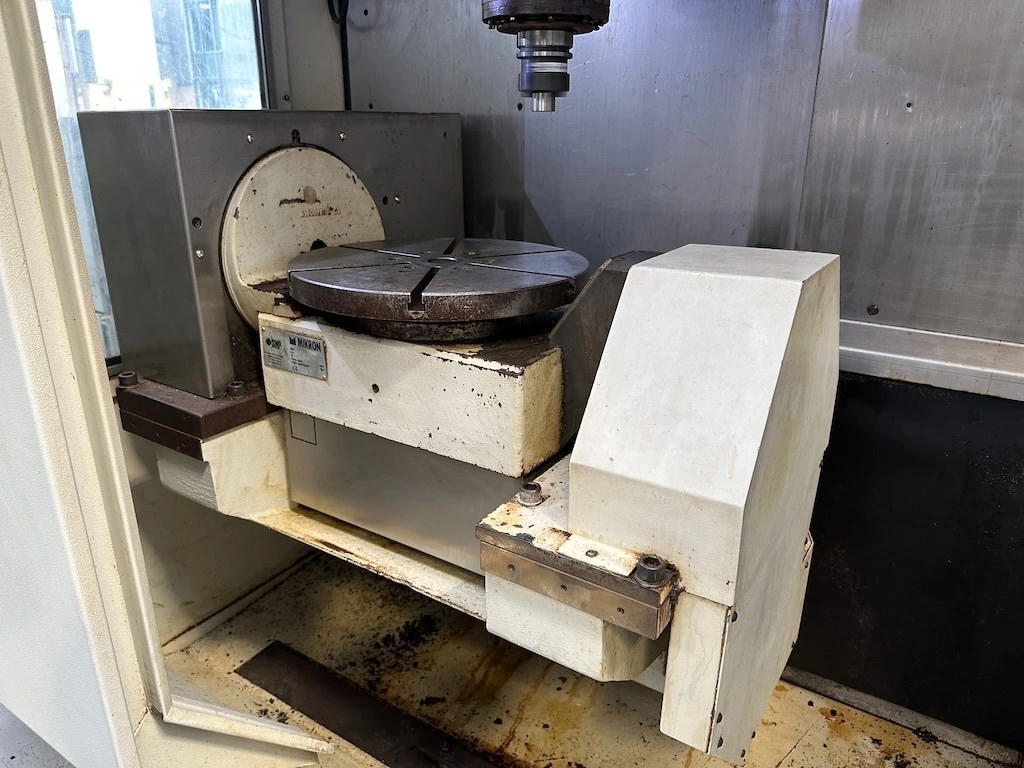

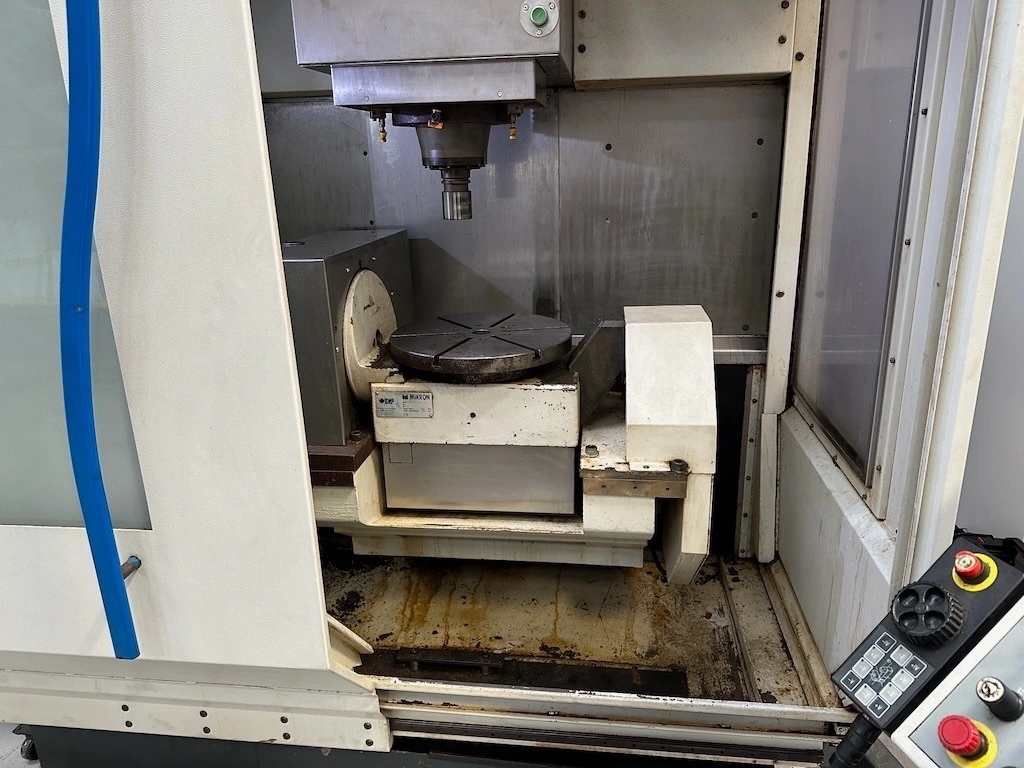

Rotary tilting table diameter: 400 mm
Maximum table load: 200 kg
Automatic tool changer: TC30: 30 HSK-63A/Din 69893 tools
Maximum rapid traverse: 22 m/min
Spindle speed: 50 - 18,000 rpm
Spindle power:16 kW at 40% 12kW at 100%
Spindle lubrication: Oil-Air

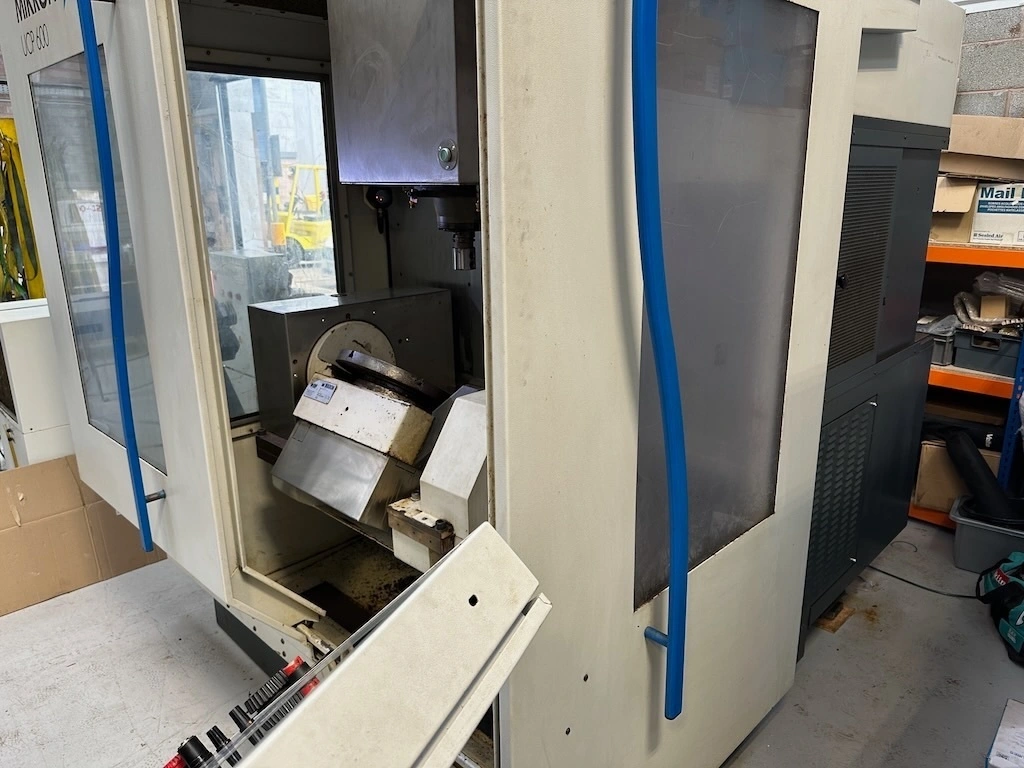

NC rotary tilting table with digitally controlled: 4th and 5th axis
Range of rotation of the table: C-axis: 360 degrees
Maximum rotary speed: 30 rpm
Swivel range: A-axis: -15 to + 122 degrees
Maximum swivel speed: 20 rpm
Machine installation dimensions: Machine weight: 6,500 kg
Width with operator panel and scraping chip conveyor: 2,930 mm
Depth with operator panel: 3,400 mm
Height: 2,645 mm

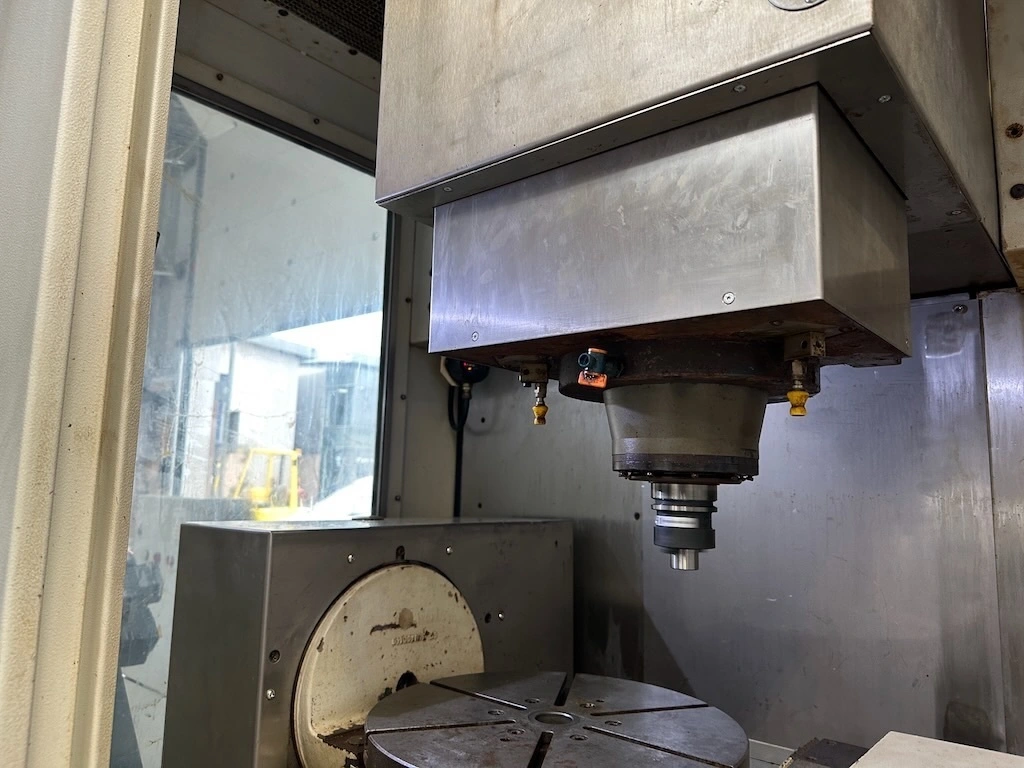

Equipped with: Step-Tec 18,000 rpm spindle;

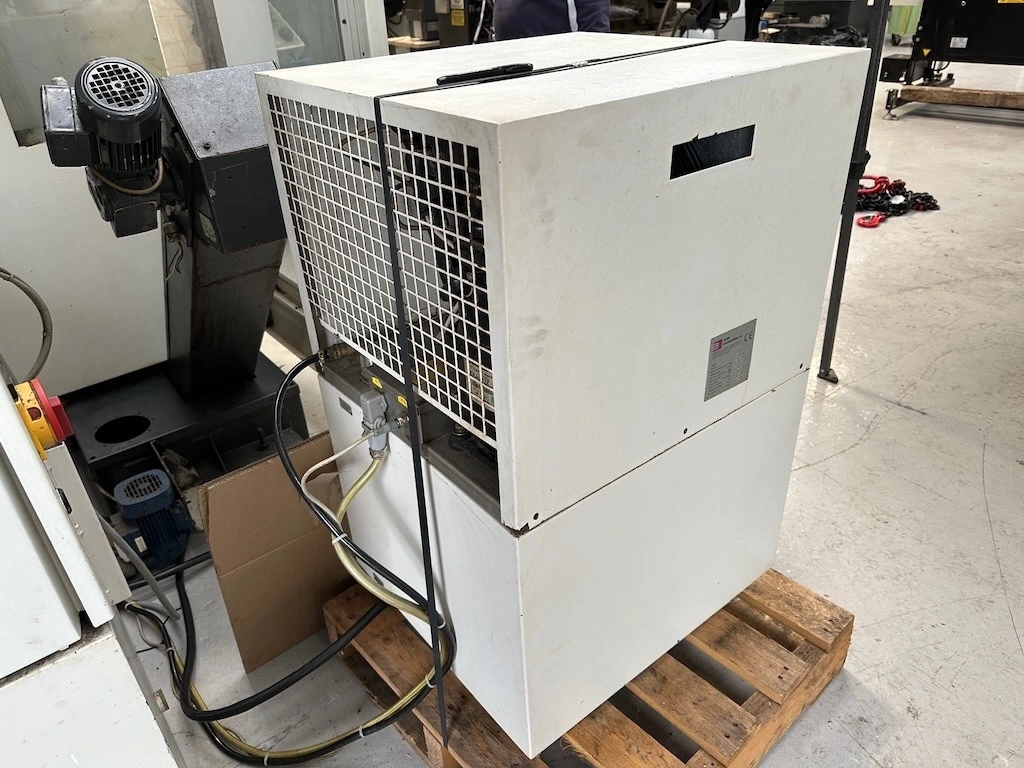

Separate spindle cooler;
Unilube oil/air spindle lubrication system;

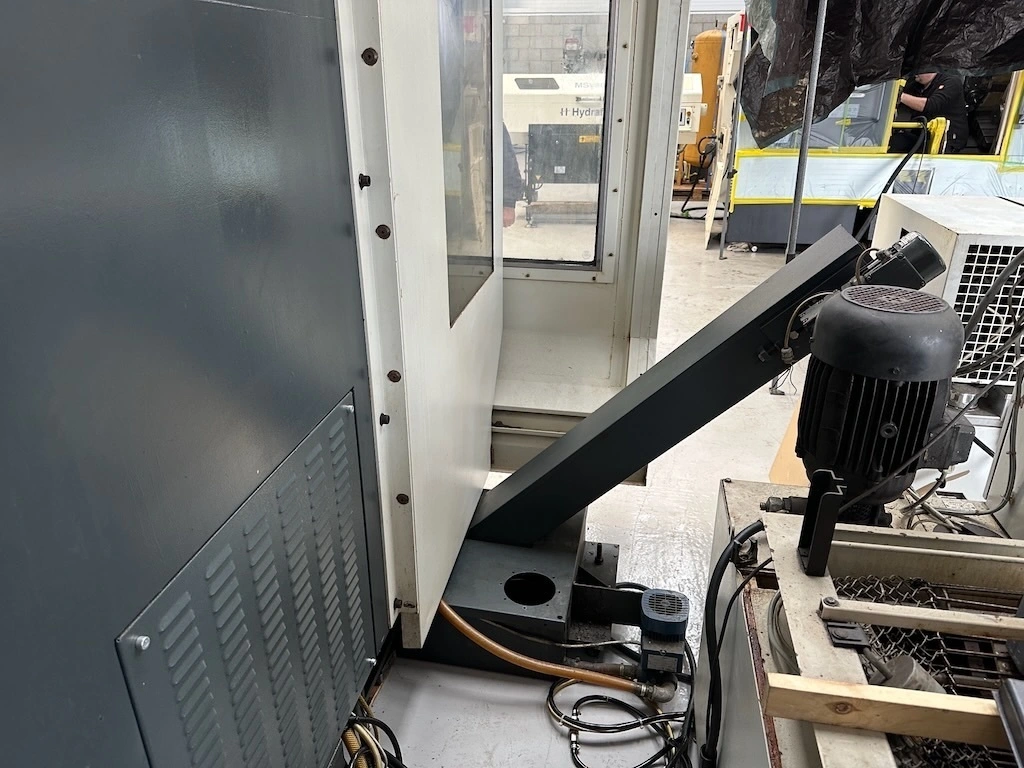

Coolant tank with scraping chip conveyor;

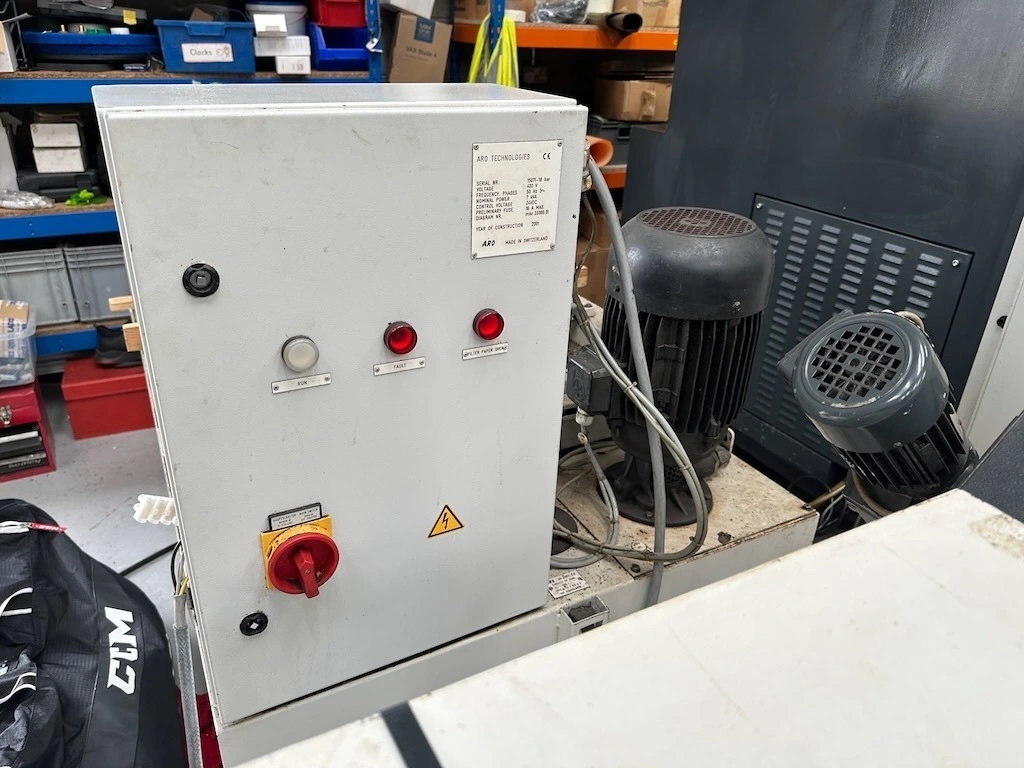

Separate coolant paper filtration equipment;
Renishaw MP 12 3D IR touch probe; 3D scanning system for tool measurement
Specs given in good faith. Please verify on inspection.
Specifications
- Control
- Heidenhain TNC426/430M
- Weight
- 14330 lbs
- Dimensions
- 115.35 in x 133.85 in x 104.13 in
- X
- 530 mm
- Y
- 450 mm
- Z
- 450 mm
- # Axis
- 5.0
- Power
- 16 kW
- RPM
- 18000.0 rpm
- # ATC
- 30.0
- Taper
- HSK-63A/Din 69893
